In Hemmingford, a compact installation where every centimeter around the outdoor unit matters
This installation of a Fujitsu AIRSTAGE Altair 500 wall-mounted heat pump in Hemmingford presents a particularly interesting case: the outdoor unit had to be integrated into a relatively tight space while maintaining a stable position, adequate clearance, and reasonable access for future service work.

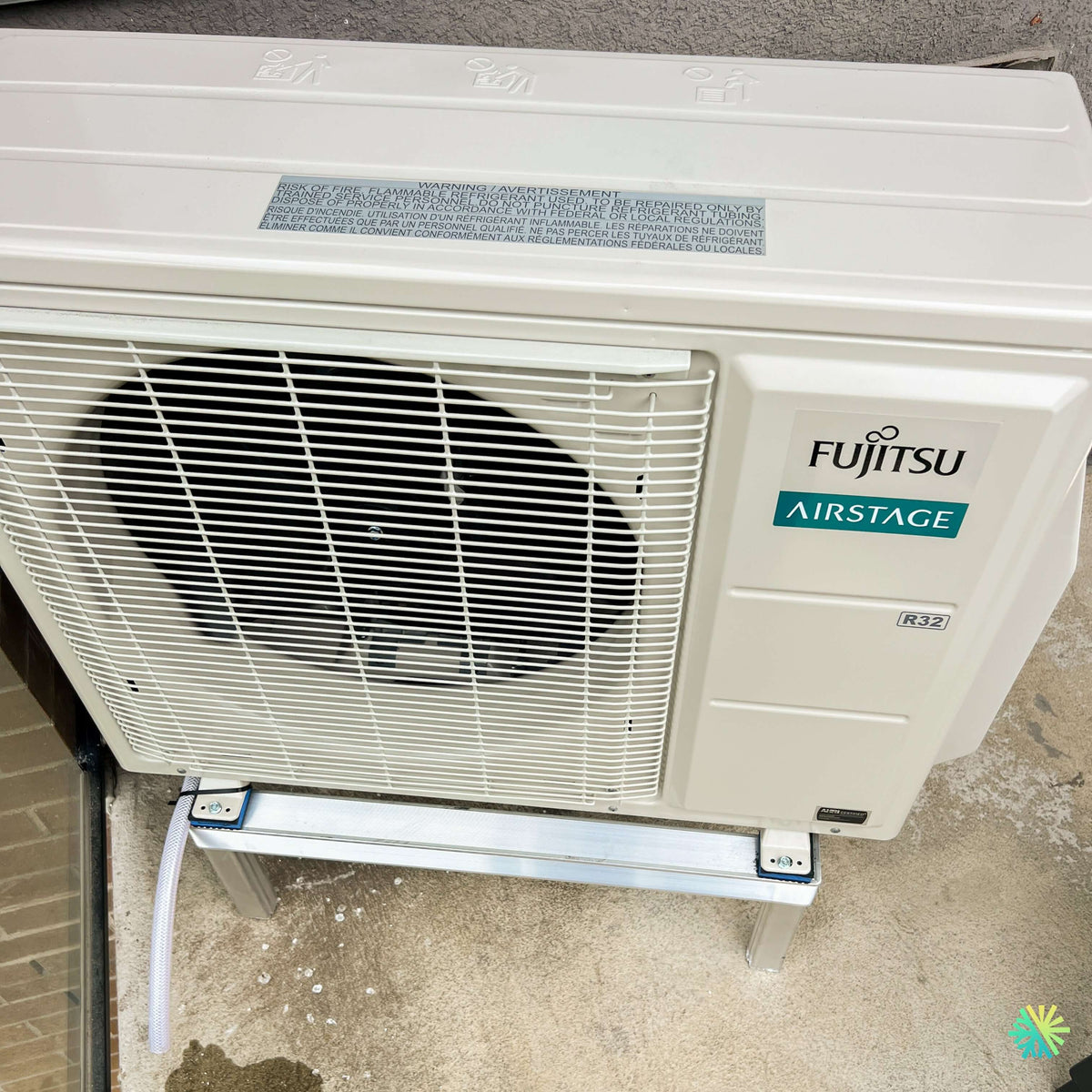

In the photo of our installation, the Fujitsu AIRSTAGE is positioned on an independent, elevated metal support, in front of a foundation wall, with a glazed opening very close to the left side and a structural surface immediately nearby. Rather than simply placing the compressor on the ground, we created an installation that keeps the appliance above the surface, protects its base, and better accommodates the winter conditions in the Hemmingford area.
The result looks simple once completed. Yet these compact installations are precisely the ones that require the most thought before work begins.
An elevated support chosen for the building’s actual context
The outdoor unit rests on a metal structure with vertical legs. It is therefore not in direct contact with the ground surface.
This configuration offers several advantages in Quebec’s climate:
- it keeps the heat pump farther away from direct snow accumulation;
- it reduces the base’s exposure to puddles and freeze-thaw cycles;
- it keeps a clear area beneath the appliance;
- it facilitates certain cleaning and inspection operations;
- it provides a stable base when wall mounting is not the preferred solution.
The interfaces installed between the heat pump and the metal crossbar can also be seen beneath the unit’s feet. Their role is important: stabilizing the appliance and limiting the direct transmission of vibrations to the support.
This detail becomes especially relevant when a wall-mounted heat pump is located near a door, window, terrace, or occupied room.
A condenser installed in a tight space without blocking its front
The large front fan is the most visible part of the outdoor unit. It must be able to move a significant volume of air without immediately encountering an obstacle.
For this Hemmingford project, the unit is installed near the wall, but the condenser's front remains unobstructed. This is a criterion we systematically assess before determining the final location.
Poor placement can cause several problems:
- recirculation of discharged air;
- reduced performance;
- increased system load;
- less favorable defrosting in winter;
- more complex maintenance;
- greater perceived noise in some confined spaces.
Our job is therefore not simply to find “a place where the unit fits.” We must determine where it will be able to operate properly for years.
R-32 is clearly identifiable on this installation
The photo makes it possible to read the marking directly R32 on the outdoor unit. A warning about the refrigerant's flammability is also present on the upper part of the casing.
The Fujitsu AIRSTAGE Altair 500 series does indeed use R-32. In its documentation, Fujitsu indicates a global warming potential of 675 for R-32, compared with 2,088 for R-410A, representing an announced reduction of 68%.
This new generation of equipment requires installation and service practices adapted to the refrigerant used. Refrigerant connections, evacuation, vacuuming, and commissioning must therefore be carried out with the required rigor.
A series available in several capacities, rather than a single universal model
The Altair 500 is a family of single-zone wall-mounted heat pumps available in several capacities. Fujitsu identifies the 09KPAS1, 12KPAS1, 18KPAS1, 24KPAS1, 30KPAS1, and 36KPAS1 models.
The published nominal cooling capacity therefore ranges from:
- 9,000 BTU/h;
- 12,000 BTU/h;
- 18,000 BTU/h;
- 22,000 BTU/h;
- 30,000 BTU/h;
- up to 33,000 BTU/h for the largest model in this series.
The corresponding nominal heating capacities are 10,000, 14,000, 18,000, 24,000, 30,000, and 34,000 BTU/h, respectively.
Because the rating plate is not sufficiently legible in the supplied photo to unambiguously identify the capacity installed in Hemmingford, we do not arbitrarily assign it a BTU value. This is important: when discussing performance, consumption, or rebates, you must always work from the exact combination of the indoor and outdoor models.
The technical specifications of the Altair 500 that directly affect an HVAC installation
Inverter technology designed to modulate capacity
The Fujitsu Altair 500 uses an Inverter compressor. Instead of operating only at full capacity before shutting off, the system can adjust its operation according to the thermal load.
This modulation helps maintain a more consistent indoor temperature and avoid certain unnecessary on-off cycles.
In a Hemmingford home, demand can vary considerably between a relatively mild autumn day and a cold evening. An Inverter heat pump can adapt its output to these variations rather than always operating at the same power.
Fujitsu also presents this technology as a way to achieve faster temperature adjustment and more consistent comfort.
Heating down to -15 °C according to the series specifications
The Fujitsu technical specifications indicate a heating operating range from -15 °C to 24 °C for all Altair 500 capacities.
This information must be interpreted correctly. A minimum operating temperature does not mean that the unit produces exactly its rated capacity up to that limit.
When choosing a heat pump in Hemmingford, we must therefore consider:
- the building’s heat loss;
- insulation;
- fenestration;
- the existing primary or supplemental heating system;
- air distribution;
- the desired comfort temperature;
- the capacity actually available at low temperatures.
These criteria are much more relevant than a simple rule based on square footage.
Very different efficiencies depending on the selected capacity
The series’ technical specifications show TRÈS2 values ranging from 21.0 to 26.0, depending on the model.
The published values are:
- 26.0 for the 09KPAS1;
- 24.0 for the 12KPAS1;
- 22.0 for the 18KPAS1;
- 21.5 for the 24KPAS1;
- 22.0 for the 30KPAS1;
- 21.0 for the 36KPAS1.
ENERGY STAR classifications also vary according to capacity. Some variants are identified as ENERGY STAR, ENERGY STAR Cold Climate, or under other categories indicated by Fujitsu in its technical specifications.
For heat pump rebate programs in Quebec, we always verify the eligibility of the model and the exact AHRI combination at the time of the project. The mere fact that a unit belongs to an ENERGY STAR range does not, by itself, guarantee a specific rebate amount.
An indoor sound level as low as 19 dB(A) on certain capacities
Acoustic comfort is often a priority when a homeowner replaces an old air conditioner or heat pump.
On the 9,000 and 12,000 BTU Altair 500 models, Fujitsu indicates indoor operation as low as 19 dB(A) in quiet mode. The minimum values then increase according to capacity: 26 dB(A) for the 18,000 BTU model, 31 dB(A) for the 24,000 BTU model, and 32 dB(A) for the two largest capacities.
The indoor unit offers six fan speeds in addition to automatic mode. This range makes it possible to choose between stronger air circulation and quieter operation depending on your needs.
ProCore coils and Hydro Fin fins
Fujitsu documentation mentions ProCore copper coils, designed to improve corrosion resistance. The manufacturer also indicates the use of a Hydro Fin finned heat exchanger to enhance the durability of the heat exchanger.
For a system intended to operate for several seasons in Quebec, these features are worthwhile. The outdoor unit must withstand humidity, rain, temperature fluctuations, and winter operation.
The quality of the unit remains inseparable from that of the installation. Good equipment that is poorly positioned or connected will never deliver the same results as a properly planned installation.
Pipe dimensions: a determining factor when replacing a unit
Refrigerant pipe diameters vary according to the Altair 500’s capacity.
The Fujitsu specification sheet states:
- 9,000 and 12,000 BTU: 1/4 in. liquid and 3/8 in. gas;
- 18,000 and 24,000 BTU: 1/4 in. liquid and 1/2 in. gas;
- 30,000 and 36,000 BTU: 3/8 in. liquid and 5/8 in. gas.
This is a particularly important detail when replacing an older unit.
We never assume that existing piping can automatically be reused simply because it already runs in the right location. We must confirm its diameter, condition, length, and compatibility with the new unit.
Incorrect pipe sizing can compromise operation and, depending on the situation, compressor reliability.
Up to 50 meters of piping on the larger capacities
Installation flexibility also varies by model.
Fujitsu allows a maximum length of:
- 20 m for the 9,000 and 12,000 BTU models;
- 30 m for the 18,000 and 24,000 BTU models;
- 50 m for the 30,000 and 36,000 BTU models.
The maximum permitted vertical difference varies from 15 to 30 m depending on the capacity.
These options are useful when the ideal location for the indoor unit is not directly behind the condenser. However, when a shorter, cleaner route is possible, we generally favor it to simplify the project and future maintenance.
Electrical requirements also change with the unit’s capacity
All capacities in the series operate at 208 to 230 V, 60 Hz, single-phase, but they do not all use the same circuit breaker.
According to Fujitsu:
- 9,000 BTU: 15 A;
- 12,000 BTU: 15 A;
- 18,000 BTU: 15 A;
- 24,000 BTU: 20 A;
- 30,000 BTU: 30 A;
- 36,000 BTU: 30 A.
Before a wall-mounted heat pump installation, we must therefore confirm that the electrical panel and the planned circuit can support the selected model.
The visible drainage on this installation also deserves attention
The photo from the Hemmingford project shows a flexible hose descending near the left side of the unit.
Water management is one of the elements often underestimated when installing a heat pump. In cooling mode, the indoor unit removes moisture from the air and produces condensate. In heating mode, the outdoor unit can also generate water during defrost cycles.
We must therefore consider where this water will be discharged to avoid:
- accumulation near the foundation;
- ice sheets in a passageway;
- unwanted water backflow;
- drainage onto sensitive materials.
This is precisely the kind of detail that distinguishes a merely functional installation from one designed for real-world operating conditions.
A compact outdoor unit does not mean that clearances become optional
The Fujitsu Altair 500 is presented by the manufacturer as a series whose outdoor unit retains a relatively compact design.
This feature is especially helpful for properties where space is limited, such as this project in Hemmingford.
But “compact” does not mean that the condenser can be squeezed in just anywhere. We must always maintain the necessary clearances around the unit so that heat exchange, servicing and cleaning can be carried out properly.
In the photo, the unit is located in a tight area, but its front remains largely open, and the elevated structure preserves the space beneath the condenser.
The mistakes we systematically avoid on an installation like this
Our experience with projects in Montréal, Laval, Longueuil, the North Shore and the South Shore has taught us that many future problems can be avoided during installation.
Among the most common mistakes:
- install the outdoor unit directly at ground level;
- obstruct the fan with a fence or wall that is too close;
- choose the BTU rating based solely on square footage;
- reuse a refrigerant line without checking its diameter;
- neglect condensate drainage;
- make access to the service panel more difficult;
- leave the system exposed to snow accumulation;
- neglect vibrations;
- choose an electrical circuit that does not match the model.
In Hemmingford, the available space imposed certain constraints. Our goal was therefore to turn these constraints into a structured layout rather than simply placing the unit wherever there was room.
Why we do not automatically oversize a heat pump
When a homeowner is choosing between two capacities, selecting “the larger one to be sure” is not always the best decision.
An Inverter heat pump performs best when it can modulate over long periods. A significantly oversized system can quickly reach its setpoint and reduce the time available for this modulation.
Conversely, a system that is too small may operate at its limit during the most demanding periods.
We therefore analyze the building as a whole: floor area, volumes, insulation, windows, orientation, floor, exposure, air circulation, and heating needs.
A Fujitsu installation that will remain accessible for HVAC maintenance
One of the points we consider even before commissioning is the possibility of returning to the installation several years later.
A technician must be able to clean the heat exchanger, inspect the system, access the connections, and perform diagnostics without having to dismantle half of the surroundings around the unit.
This Fujitsu AIRSTAGE Altair 500 installed in Hemmingford has clear front access and a sufficiently structured layout to allow for the necessary service work.
It is less striking than an energy-efficiency rating, but extremely important to a heat pump’s actual service life.
Our AirGreen approach to installations in Montérégie and Greater Montreal
Whether the project is in Hemmingford, Montreal, Laval, Longueuil, on the South Shore, or the North Shore, our method remains the same: we adapt the installation to the actual building.
We do not mechanically reproduce the same configuration on every house.
Before finalizing the project, we check the location, support, clearances, line length, piping dimensions, drainage, electrical supply, and accessibility.
This Fujitsu Altair 500 wall-mounted heat pump installation in Hemmingford is a good example. In a relatively compact outdoor space, we were able to install an R-32 unit on an elevated structure, keep the fan clear, and integrate the system without sacrificing the access required for servicing.
A high-performance heat pump is the starting point. The quality of the HVAC installation then determines the conditions under which this technology can truly perform year after year.
