A compact installation in Saint-Amable where the indoor unit had to be positioned with millimetre precision
At Saint-Amable, we installed a Fujitsu AIRSTAGE Altair 500 wall-mounted heat pump in an interior space where the clearance above the unit was particularly limited. The photo of this project immediately shows one of the project’s major challenges: the unit is positioned very close to the ceiling, in an area where every centimetre had to be used precisely to maintain an installation that was functional, clean, and accessible.
This type of configuration is common in certain homes on the South Shore, particularly when the layout of the walls, doors, mouldings, or architectural features limits the possible locations for a wall-mounted heat pump. An indoor unit cannot be installed just anywhere simply because a space appears to be available. Its air intake, discharge louver, filter access, refrigerant line routing, and the ability to service it later for HVAC maintenance must all be taken into account.
For this project in Saint-Amable, we chose a high location to preserve the available wall space while still allowing the heat pump to distribute air efficiently throughout the room.
The white finish of the Fujitsu unit blends discreetly into the wall and ceiling, which is particularly important in a space where the appliance remains clearly visible.
An installation near the ceiling requires much more than a simple space calculation
When a wall-mounted unit must be installed in a very high location, the first mistake to avoid is pushing it against the ceiling simply to gain a few centimetres.
A wall-mounted heat pump generally draws a significant portion of its air from the top of the unit. If this area is too obstructed, airflow may be affected.
It is therefore necessary to determine whether the available space meets the manufacturer’s requirements and still allows the machine to breathe properly.

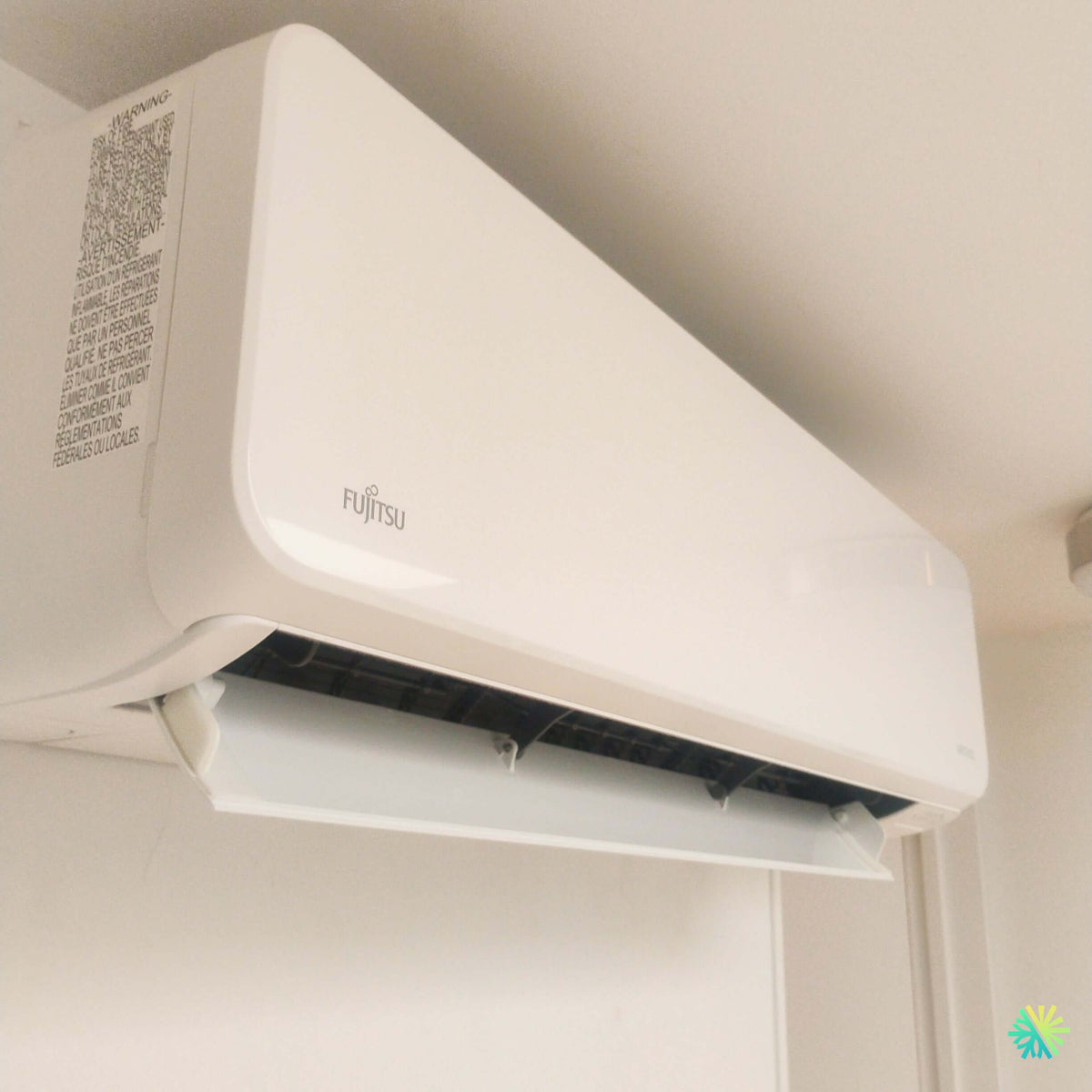

In the photo of this installation in Saint-Amable, we can see that the unit is installed very high, but that clearance remains above the casing. The position was therefore chosen to make maximum use of the available height without placing the unit directly against the ceiling.
This detail is important for three reasons:
- maintain functional air intake;
- allow the unit to be opened for maintenance;
- maintain good air distribution toward the room.
The lower louver is also completely unobstructed, allowing heated or cooled air to be projected into the occupied space.
An unobstructed air outlet to avoid distribution problems
The photo shows the main air-distribution louver of the Fujitsu Altair 500 in the open position.
This is an important detail in an indoor installation.
We always check that no piece of furniture, frame, shelf, or architectural element blocks this area. A heat pump may have excellent rated capacity on paper, but if its airflow is immediately stopped by an obstacle, comfort in the room will be uneven.
In a high installation like this one, the vertical direction of the air becomes particularly important.
Fujitsu documentation indicates automatic vertical airflow direction across the entire Altair 500 range, with manual horizontal adjustment.
This ability to adjust air movement helps adapt the distribution to the operating mode.
In cooling mode, we generally aim to distribute the cool air far enough for it to mix gradually with the air in the room.
In heating mode, the goal is to prevent all the heat from remaining concentrated near the ceiling.
The indoor unit’s size matters enormously in small spaces
The Fujitsu AIRSTAGE Altair 500 range is available in several capacities, with different physical dimensions.
The 9,000 and 12,000 BTU models use an indoor unit approximately 834 mm wide, 270 mm high, and 222 mm deep.
The 18,000 and 24,000 BTU versions are approximately 980 mm wide, 280 mm high, and 240 mm deep, while the 30,000 and 36,000 BTU models use a much larger indoor unit, approximately 1,150 mm wide.
These differences are far from insignificant.
In a confined space like the one in this installation in Saint-Amable, a few extra centimeters can determine whether a machine can be installed properly or not.
That is why we always check the exact model and its actual dimensions before confirming a location.
Since the capacity of the unit shown in the photo is not legible, we do not arbitrarily assign it a BTU rating. The series includes several visually similar capacities, and only the nameplate or installation documentation can confirm the exact model.
Fujitsu AIRSTAGE Altair 500: an R-32 Inverter lineup combining efficiency, quiet operation, and installation flexibility
Capacities ranging from 9,000 to 36,000 BTU class
The Altair 500 series includes the 09KPAS1, 12KPAS1, 18KPAS1, 24KPAS1, 30KPAS1, and 36KPAS1 models.
According to the Fujitsu technical data sheet, the nominal cooling capacities are respectively 9,000, 12,000, 18,000, 22,000, 30,000, and 33,000 BTU/h.
In heating mode, the nominal capacities are 10,000, 14,000, 18,000, 24,000, 30,000, and 34,000 BTU/h.
We always emphasize that a BTU rating should not be chosen solely based on a room’s approximate area.
The heating and cooling load also depends on insulation, the number of windows, solar exposure, ceiling height, room layout, and natural air circulation.
An oversized unit is not automatically preferable.
The right approach is to select the capacity that matches the building in order to take full advantage of the modulation provided by Inverter technology.
Inverter technology: finer modulation of heating and cooling
The Fujitsu Altair 500 uses an Inverter compressor capable of modulating its output according to demand.
The technical data sheet clearly shows this modulation range.
For example, the 9,000 BTU model can operate between 3,100 and 11,200 BTU/h in cooling mode and between 2,400 and 13,600 BTU/h in heating mode.
The 12,000 BTU model can range from 3,100 to 13,600 BTU/h in cooling mode and from 2,700 to 17,000 BTU/h in heating mode.
The 18,000 BTU model, meanwhile, modulates from 4,000 to 20,000 BTU/h in cooling mode and from 4,150 to 24,000 BTU/h in heating mode.
This ability to gradually reduce or increase output is particularly beneficial for indoor comfort.
A system that runs for longer periods at moderate output can maintain a more stable temperature than one that constantly switches between full power and complete shutdown.
Up to 26.0 TRÈS2 depending on capacity
The series delivers high efficiency ratings, but they vary by model.
Fujitsu specifically states:
- 26.0 TRÈS2 for the 9,000 BTU;
- 24.0 for the 12,000 BTU;
- 22.0 for the 18,000 BTU;
- 21.5 for the 24,000 BTU;
- 22.0 for the 30,000 BTU;
- 21.0 for the 36,000 BTU.
The regional CPSC2 values range from 7.7 to 8.3 depending on capacity.
For a homeowner comparing several wall-mounted heat pumps in Saint-Amable, Montreal, Laval, Longueuil, on the North Shore or South Shore, this data is useful for comparing systems of similar size.
However, they must always be put into context.
Actual efficiency also depends on sizing, installation quality, building insulation, and how the system is used.
A heat pump using R-32 refrigerant
The Altair 500 range operates with R-32.
In its documentation, Fujitsu compares the global warming potential of R-32, rated at 675, with that of R-410A, listed at 2088. The manufacturer thus presents a 68% reduction in GWP.
R-32 therefore represents one of the important technical developments of this new generation of equipment.
For us, HVAC installers, this also means following the work procedures, tools, and requirements specific to the refrigerant used.
Replacing an old heat pump must never be treated as a simple cabinet swap.
We must verify the compatibility of the piping, its diameter, condition, insulation, and the exact model to be installed.
Heating down to -15 °C according to the stated operating range
Fujitsu documentation indicates an official heating operating range of -15 °C to 24 °C for Altair 500 models.
This information is especially important for an installation in a municipality such as Saint-Amable, where winter temperatures can drop below this value.
The heat pump must therefore be considered as part of the building’s overall heating strategy.
The system can cover a significant portion of seasonal needs, but the owner must know what takes over or supplements the heating during periods of more intense cold.
This analysis is much more relevant than simply stating that a heat pump “heats in winter.”
We need to know the exact limitations of the selected model.
Up to 19 dB(A) for smaller capacities
Acoustic comfort is especially important in bedrooms, offices, living rooms, or spaces where the indoor unit is close to occupants.
Fujitsu indicates a minimum sound level of 19 dB(A) in quiet mode for the 9,000 and 12,000 BTU models.
The 18,000 BTU model goes down to 26 dB(A), the 24,000 BTU model to 31 dB(A), and the 30,000 and 36,000 BTU models to 32 dB(A).
The series also offers six fan speeds plus automatic mode.
These levels allow the system to operate discreetly when demand is low.
In an installation like the one in Saint-Amable, where the unit is visibly located in an occupied area, this quiet operation is a tangible advantage.
An indoor design with ProCore coils
The page devoted to the Altair 500’s features mentions ProCore copper coils, designed to improve corrosion resistance.
Fujitsu also mentions a Hydro Fin heat exchanger to enhance the durability of the heat-transfer surfaces.
These elements are invisible when the unit is closed, but they directly affect its ability to transfer heat efficiently over the years.
The indoor cabinet remains relatively understated, which is another advantage in projects where visual integration matters.
In the photo of our Saint-Amable installation, the unit’s white, slightly rounded design blends naturally with the light finish of the wall and ceiling.
Washable filters make routine maintenance simpler
Fujitsu indicates that the entire Altair 500 series uses washable air filters.
This is an important practical point for the homeowner.
A dust-laden filter reduces airflow. This restriction can affect comfort and the work required of the system.
We therefore recommend regularly checking the filters, especially when the heat pump operates daily during periods of intense heat or heating.
In this installation, the unit’s height will simply need to be taken into account during cleaning.
Access must remain safe and must not require disassembling the unit.
Wi-Fi and control options for those who want to go further
The series documentation mentions several optional control accessories.
These include a Wi-Fi adapter compatible with the AIRSTAGE mobile app, wired controllers, and various interfaces that enable integration with certain BACnet or Modbus systems.
The backlit wireless remote control is included with the indoor unit.
For a typical residence, the requirements often remain simple: adjust the temperature, choose the mode, adjust the fan speed, and manage the schedules.
However, this broader compatibility can be useful for more advanced installations.
Why piping diameters must be checked before any installation
The Altair 500 series does not have a single universal piping diameter.
The 9,000 and 12,000 BTU models use a gas line of 3/8 po and a liquid line of 1/4 po.
The 18,000 and 24,000 BTU versions use a gas line of 1/2 po and a liquid line of 1/4 po.
The 30,000 and 36,000 BTU models use a gas line of 5/8 po and a liquid line of 3/8 po.
When replacing an old heat pump, we therefore systematically check whether the existing line meets the requirements of the new equipment.
A unit should never be selected solely to reuse unsuitable piping.
Sufficiently generous line lengths for complex installations
The Fujitsu Altair 500 also offers good routing flexibility.
The 9,000 and 12,000 BTU models allow up to 20 m, or approximately 66 ft of piping.
The 18,000 and 24,000 BTU models allow up to 30 m, or approximately 98 ft.
The 30,000 and 36,000 BTU versions reach up to 50 m, or approximately 164 ft.
These values are particularly useful when an installation requires routing around several obstacles or when the outdoor unit cannot be placed directly behind the indoor unit.
The vertical elevation limit must also be respected: 15 m for the smaller capacities, 25 m for the mid-range models, and up to 30 m for the larger ones.
The electrical supply varies according to the unit’s capacity
The entire series operates at 208 to 230 V, 60 Hz, single-phase.
The 9,000, 12,000, and 18,000 BTU models are specified with a 15 A circuit breaker.
The 24,000 BTU model uses 20 A.
The 30,000 and 36,000 BTU models use 30 A.
This detail is important when preparing the project.
Before installation, we check the available space at the electrical panel, the circuit capacity, and the requirements for the exact model.
A clean installation begins well before securing the unit to the wall.
Mistakes we avoid in such a tight installation
Limited space can lead to compromises that seem minor during the work but become problematic later.
We specifically avoid:
- mounting the unit directly against the ceiling;
- compromising the upper air intake;
- blocking the lower flap;
- creating a piping route with bends that are too tight;
- installing the unit in a way that makes it impossible to open for servicing;
- to select a model that is physically too large for the available space.
We also verify that the unit remains level and is properly secured to an adequate structure.
A wall-mounted heat pump contains an evaporator and produces condensation in cooling mode. Poor installation can therefore lead to drainage problems that have nothing to do with the quality of the unit itself.
An installation that demonstrates the importance of finishing work
In this Saint-Amable installation, one of the most interesting points is precisely what is barely visible.
There are no exposed lines on the front of the indoor unit, no cable hanging beneath the appliance, and no added element that visually clutters the wall.
The Fujitsu Altair 500 simply appears to be part of the room.
This is the result we strive for in our residential installations.
In Montreal, Laval, Longueuil, Saint-Amable, on the North Shore and on the South Shore, architectural constraints are constantly changing. Some projects offer large, open walls. Others leave barely enough space between a ceiling, a door, or a window.
Our role is to adapt the installation to this reality without sacrificing the heat pump’s performance.
In Saint-Amable, a small amount of extra space can make a big difference
This Fujitsu AIRSTAGE Altair 500 wall-mounted heat pump installation in Saint-Amable clearly illustrates why we always assess the location before starting the work.
The unit itself offers several interesting features: Inverter technology, R-32 refrigerant, efficiencies of up to 26.0 TRÈS2, indoor operation as low as 19 dB(A), ProCore coils, and various control options.
But all these features are only valuable if the installation allows the system to operate properly.
Here, the main challenge was not the length of the lines or the size of the outdoor unit. It was precisely integrating the indoor unit into a very tight space near the ceiling.
We therefore paid particular attention to the overhead clearance, the flap opening, the airflow direction, and future accessibility.
This is the approach we apply to every HVAC installation: understanding the building’s specific constraints, selecting the right equipment, and ensuring the result is as technically sound as it is visually clean.
