Installation of a Fujitsu AIRSTAGE Orion XLTH 24,000 BTU wall-mounted heat pump in Baie-D'Urfé

A compact, robust, and winter-ready installation on the West Island

In Baie-D'Urfé, residential properties often present a particular challenge for HVAC installation: preserving outdoor aesthetics, respecting necessary clearances around the unit, limiting noise near living areas, and ensuring reliable performance when cold lake winds blow. For this installation, our AirGreen team installed a Fujitsu AIRSTAGE Orion XLTH 24,000 BTU wall-mounted heat pump, a mini-split system designed to provide both summer cooling and winter heating down to -26 °C.

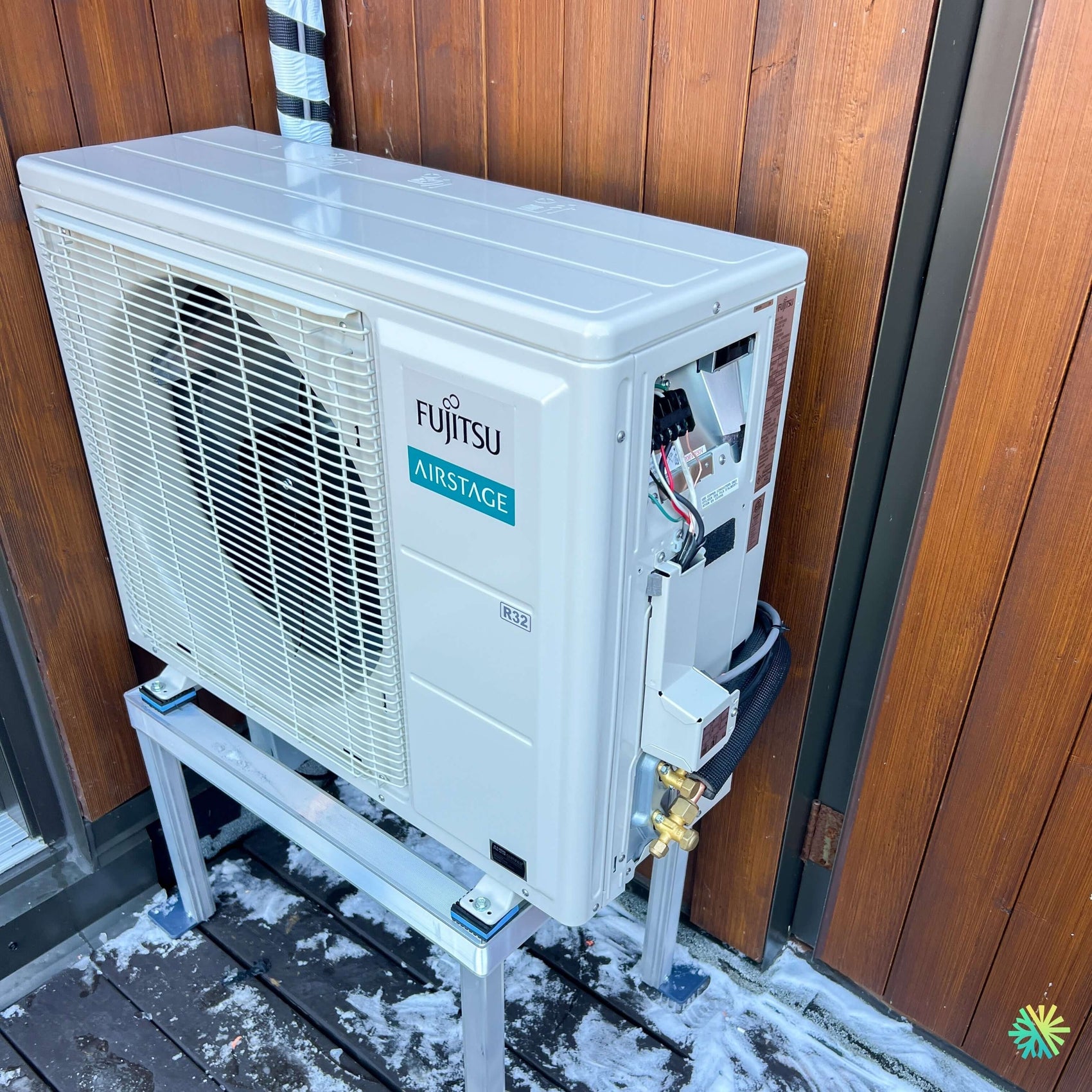

The project image shows a Fujitsu outdoor unit installed on an elevated aluminum stand, perfectly suited to Quebec's winter conditions. This choice is not just aesthetic: it protects the machine from snow accumulation, facilitates drainage during defrost cycles, and allows better access for HVAC maintenance. The wooden cladding behind the unit also required special attention to duct management, anchorage solidity, and refrigerant connection layout.

Why the Fujitsu Orion XLTH 24,000 BTU was suitable for this project

The installed model is part of the Fujitsu AIRSTAGE Orion XLTH series, a single-zone wall-mounted range using R-32 refrigerant. According to the Fujitsu technical sheet, the 24KZAH1 model offers a nominal cooling capacity of 22,000 BTU/h, a nominal heating capacity of 25,200 BTU/h, a SEER2 of 24.0, an HSPF2 region V of 9.4, and a heating range down to -26 °C.

For a client in Baie-D'Urfé, this type of performance is particularly relevant. Homes in this area may have large open spaces, sunrooms, sun-exposed rooms, or areas that are more difficult to balance with an existing central system. A 24,000 BTU wall-mounted heat pump then becomes a serious solution for stabilizing comfort without undertaking major ductwork.

An elevated outdoor unit for better durability

The most important detail visible in the photo is the elevated stand. In Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, we often emphasize this point: an outdoor unit placed too low can quickly become vulnerable to snow, ice, and debris.

In this project, the stand allows:

• keeping the unit above snow accumulations;
• reducing the risk of coil obstruction;
• facilitating defrost cycles;
• stabilizing the appliance on a rigid structure;
• making future service interventions more accessible.

The installation is clean, clear, and visually integrated into the exterior wall. The choice of an aluminum stand also helps limit corrosion, an important advantage in a climate where humidity, snow, and temperature variations put outdoor equipment under considerable stress.

Careful management of connections and piping

In the photo, we notice the refrigerant lines and wiring passing through a protective sleeve. This detail is essential. A good wall-mounted heat pump installation is not limited to fixing the unit and connecting it. The system's durability depends on the protection of the ducts, the quality of the connections, the insulation of the lines, and compliance with clearances.

In this case, the unit is installed near a wooden wall, which requires a clean finish and particular attention to avoid any friction, infiltration, and excessive tension on the connections. Our technicians worked to keep the connections accessible while protecting sensitive elements from the elements.

The choice of R-32: performance and reduced environmental impact

The Fujitsu Orion XLTH uses R-32 refrigerant, which has a lower global warming potential than R-410A. For owners comparing several wall-mounted air conditioner or mini-split heat pump options, this point is becoming increasingly important. R-32 offers good energy performance while meeting new environmental expectations in the HVAC market.

In practice, this means an owner can choose a modern, high-performance system that is better aligned with current standards, without compromising comfort. For a Baie-D'Urfé residence, where a discreet and durable solution is often sought, this factor adds real value to the project.

A quiet solution for a calm residential area

Noise level is often one of the clients' primary concerns. In Baie-D'Urfé, where residential plots are often peaceful and well-maintained, it is crucial to choose a machine capable of offering good performance without creating noise pollution.

The Fujitsu data sheet indicates, for the 24KZAH1 model, an outdoor sound level of 49/50 dB(A) depending on the cooling/heating mode. Indoors, the sound level can drop to 30 dB(A) in quiet mode for this 24,000 BTU format. This data helps explain why this type of system is appreciated in bedrooms, living rooms, open spaces, and living areas where acoustic comfort is as important as temperature.

What homeowners should avoid during a similar installation

A poorly planned HVAC installation can reduce the performance of an excellent machine. For an appliance like the Fujitsu Orion XLTH 24,000 BTU, we recommend avoiding several common mistakes:

Installing the unit too close to the ground

An outdoor heat pump needs to breathe. If it's too low, snow can block the coil, hinder defrosting, and reduce heating capacity.

Neglecting vibrations

Even a quiet unit must be placed on a stable base with appropriate supports. Anti-vibration pads, visible on the structure, help reduce noise transmission.

Undersizing or oversizing the machine

A 24,000 BTU unit is suitable for some spaces, but not all. At AirGreen, we evaluate the area, insulation, sun exposure, ceiling heights, and usage habits before recommending a capacity.

Poor protection of refrigerant lines

Pipes and cables must be protected against UV, frost, shocks, and humidity. A clean finish extends the lifespan of the installation.

An AirGreen approach adapted to Baie-D'Urfé and Greater Montreal

Each area has its peculiarities. In Montreal, installations can be limited by space. In Laval, single-family homes sometimes offer more flexibility, but require good planning of line routes. In Longueuil, on the South Shore, condos and townhouses often impose neighborhood constraints. On the North Shore, snow and wind management often become a priority.

In Baie-D'Urfé, the desired balance is often: a high-performance, clean, discreet, and durable installation. In this project, the Fujitsu outdoor unit respects this balance. It is elevated, stable, well-positioned, and installed with a professional finish.

Subsidies and energy eligibility

Fujitsu Orion XLTH systems are associated with high energy performance and ENERGY STAR ratings, including references to cold climate categories according to the manufacturer's technical documentation. For customers considering a wall-mounted heat pump in Baie-D'Urfé, Montreal, Laval, Longueuil, on the North Shore, or on the South Shore, it is important to check eligibility for available programs at the time of purchase.

Subsidies may vary depending on the exact model, the installed configuration, the current program, and administrative criteria. This is why AirGreen always validates the technical information and applicable requirements before presenting a final recommendation.

Final result: a clean, solid installation ready for Quebec seasons

This installation of a Fujitsu AIRSTAGE Orion XLTH 24,000 BTU wall-mounted heat pump in Baie-D'Urfé perfectly illustrates our approach: choosing a reliable machine, installing it according to site realities, and paying attention to details that will make a difference in five, ten, or fifteen years.

The client gets a system capable of efficiently cooling in summer, heating for a large part of winter, and operating at a discreet sound level. The elevated stand, pipe protections, clean finish, and choice of an appliance adapted to cold climates demonstrate the importance of an installation carried out by a team specialized in HVAC.

At AirGreen, we know that a good installation is not only visible on the day of commissioning. It is confirmed over time: less noise, fewer problems, better comfort, simpler maintenance, and stable performance despite Quebec's demanding winters.

A well-installed Fujitsu wall-mounted heat pump truly changes a home's comfort

This project in Baie-D'Urfé reminds us of a reality we often observe in the field: the choice of equipment is important, but the quality of the installation is just as much so. A high-quality mini-split wall-mounted air conditioner can disappoint if it is poorly positioned, undersized, or poorly protected. Conversely, a rigorous installation allows the machine to fully express its potential.

For homeowners comparing options in Montreal, Laval, Longueuil, on the North Shore, or on the South Shore, the Fujitsu Orion XLTH 24,000 BTU represents a serious option for spaces requiring high capacity, good energy efficiency, and reliable heating in cold climates.
