Installation of a Fujitsu AIRSTAGE Orion XLTH 24,000 BTU wall-mounted heat pump in Saint-François, Laval

A Wall-Mounted Installation Designed for a Large Interior Volume in Saint-François

In Saint-François, in eastern Laval, our AirGreen team installed a Fujitsu AIRSTAGE Orion XLTH 24,000 BTU wall-mounted heat pump, a ductless heating and air conditioning solution designed to provide stable comfort in a large room or open area where performance needs are higher than with a standard wall-mounted unit.

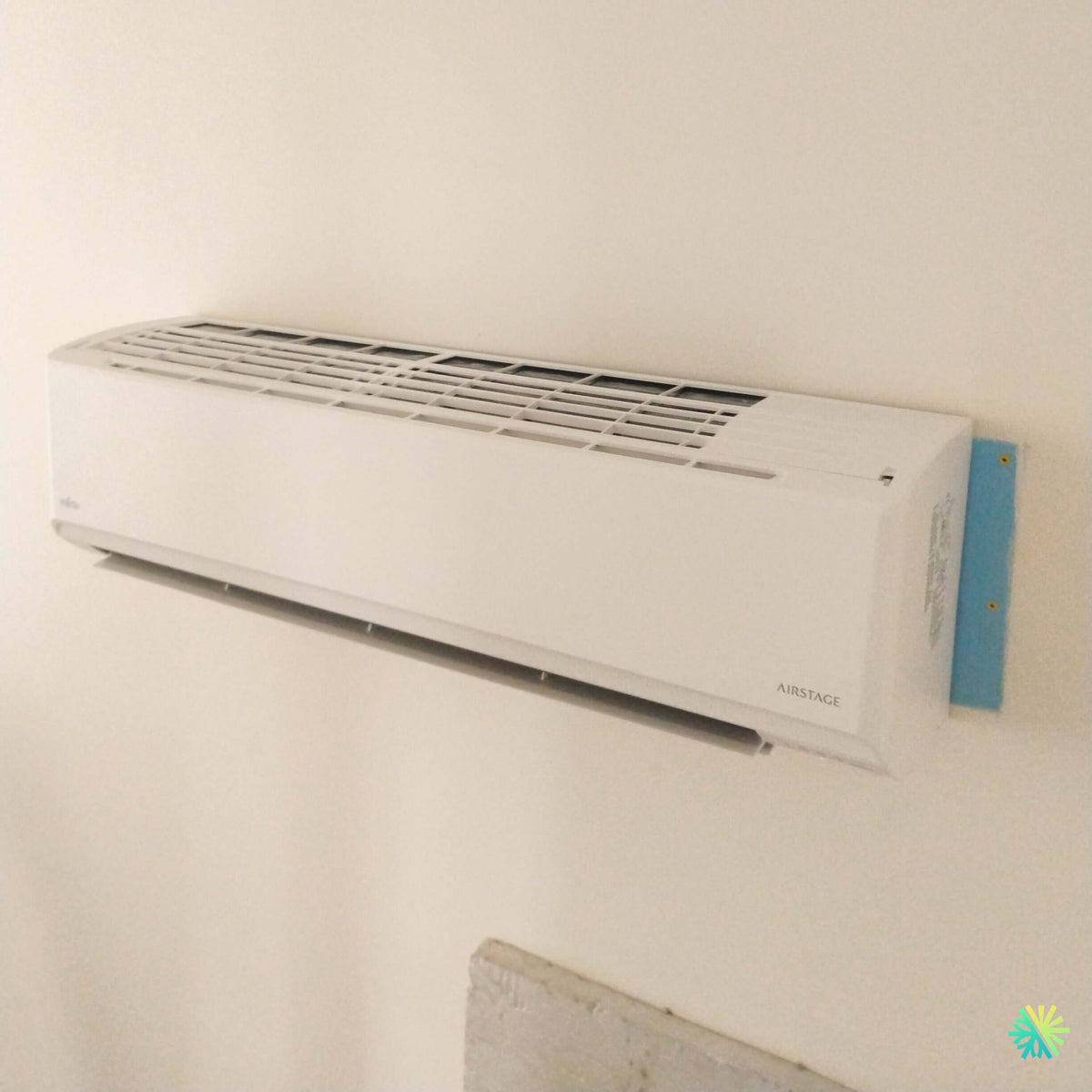

The project photo perfectly illustrates a common installation context in homes and residential buildings in Laval, Montreal, Longueuil, the North Shore, and the South Shore: an indoor unit positioned very close to the ceiling, on a clear wall, with limited side clearance and the wall finishing already underway. The blue mounting plate visible on the right side also indicates an installation or adjustment stage before the wall is fully finished. This type of detail is important because a successful HVAC installation is not limited to attaching a device to the wall: it requires planning the structure, alignment, drainage, airflow, access for maintenance, and final visual integration.

In this project, the choice of the Fujitsu Orion XLTH 24,000 BTU met a specific objective: to obtain a robust wall-mounted unit, capable of providing both summer air conditioning and winter heating in an area where temperature variations can be significant. The Orion XLTH series is designed for cold climate heating down to -26 °C, without a shutdown device, according to the Fujitsu documentation provided for this range.

Why a 24,000 BTU model was relevant here

A 24,000 BTU unit is not chosen at random. In a wall-mounted installation, the capacity must be adapted to several elements:

• the actual area to be covered;
• ceiling heights;
• building insulation;
• solar orientation;
• the number of windows;
• airflow between rooms;
• customer heating expectations;
• the possibility or not of adding other units in the future.

In this case, the interior configuration justified a higher capacity wall-mounted heat pump. The 24KZAH1 model of the Fujitsu Orion XLTH series offers a nominal cooling capacity of 22,000 BTU/h and a nominal heating capacity of 25,200 BTU/h, with a range that can reach 36,800 BTU/h in heating according to the manufacturer's technical sheet.

This capacity reserve becomes particularly useful in an open area, a dwelling with higher ceilings, or a space that quickly loses heat in cold weather. For a customer in Saint-François, this means better temperature stability, fewer abrupt cycles, and a quicker response when the house needs to be warmed after an outdoor temperature drop.

A compact but demanding indoor unit to install

The indoor unit of the Fujitsu Orion XLTH 24,000 BTU is wider than a small wall-mounted model. According to the technical sheet, the indoor unit associated with model 24KZAH1 measures 45 1/4 inches in width, 13 3/8 inches in height, and 11 inches in depth. These dimensions require careful planning, especially when space available near the ceiling is limited.

In the photo, the unit is installed just below the ceiling, which requires particular attention to three points:

1. Top clearance
   Air must be able to circulate correctly to the air intake located on top of the unit. Installation too close to the ceiling can reduce performance and complicate maintenance.
2. Wall plate alignment
   The mounting plate must be perfectly level. A slight uncontrolled tilt can cause condensation drainage problems.
3. Access to filters and front cover
   Even if the unit is high, the customer must be able to access the washable filters for regular HVAC maintenance.

At AirGreen, we attach great importance to these details, as they directly influence the durability of the installation. A high-performance heat pump poorly positioned can become noisy, difficult to maintain, or less efficient. Conversely, a well-thought-out installation ensures more stable operation and better long-term satisfaction.

Technical advantages of the Fujitsu AIRSTAGE Orion XLTH

The Fujitsu AIRSTAGE Orion XLTH is a wall-mounted unit from the H series, designed for the Canadian market and cold regions. Its Inverter technology adjusts performance according to actual demand, which avoids frequent stops and starts of a traditional system. This modulation allows for a more constant temperature, with better controlled consumption.

The installed model uses R-32 refrigerant, which has a reduced global warming potential compared to R-410A according to Fujitsu documentation. The manufacturer indicates a 68% reduction in GWP compared to R-410A.

Among the important features of the model:

• heating down to -26 °C;
• Inverter technology;
• R-32 refrigerant;
• integrated Wi-Fi depending on the range;
• quiet operation;
• washable filters;
• multi-speed fan;
• low sound outdoor operating mode;
• base pan heater designed for cold regions;
• compatibility with multiple controllers and accessories.

For homeowners in Laval, Montreal, Longueuil, the North Shore, and the South Shore, this type of system is particularly attractive when looking to replace an old wall-mounted air conditioner, reduce the use of auxiliary electric heating, or improve comfort in a difficult-to-balance area.

Special attention to indoor and outdoor noise

Acoustic comfort is often a decisive criterion in a wall-mounted heat pump installation. In this project in Saint-François, the indoor location was visible and close to the living area. It was therefore necessary to ensure that the unit could operate without becoming a source of discomfort.

According to the technical sheet of model 24KZAH1, the indoor unit can go down to 30 dB(A) in quiet mode, while the outdoor unit is indicated at 49/50 dB(A) depending on the air conditioning/heating mode.

These sound levels are important, but they must be interpreted with caution: the final result also depends on the location of the outdoor unit, the type of support, the mounting surface, the distance to neighbors, and the possible resonance on certain structures. This is why AirGreen always analyzes the actual context before finalizing an installation.

In Laval, as in several municipalities in Greater Montreal, customers are increasingly concerned about the noise of outdoor units. Good practice involves avoiding very enclosed corners, poorly insulated supports, and installations that direct vibrations to a light structure.

AirGreen's Expertise in High-Performance Wall-Mounted Installation

Preparing the installation before drilling the wall

Before installation, our team always checks the piping layout, drain positioning, electrical passage, and outdoor location. In a wall-mounted installation, each drilling must be consistent with the drainage slope and the necessary clearance behind the unit.

In this project, the photo shows a unit placed high up. This choice allows for better air distribution, but it also increases the importance of precise drilling. A wrong angle can create water retention in the condensation drain. In the short term, this can cause drips. In the long term, it can promote deposits, odors, or blockages.

Our technicians take these constraints into account from the outset. The objective is simple: to install a wall-mounted air conditioner and a heat pump that work correctly not only on the first day, but also after several heating and cooling seasons.

The importance of finishing and visual integration

One detail stands out in the image: the wall still seems to be in the finishing phase, with a mounting plate visible on the right side. This often happens in projects where HVAC work is coordinated with other interior work. In this type of situation, AirGreen must install the unit securely while allowing for the finishing around the unit to be completed.

This type of coordination requires clear communication with the client or contractor. It is necessary to avoid:

• trapping the unit in a space that will make painting or plastering difficult;
• hiding necessary screws or access points;
• hindering the opening of the front panel;
• reducing air clearance after finishing;
• installing the unit before the wall support is adequate.

A clean installation is visible, but a well-thought-out installation is most noticeable after several months: the unit remains stable, accessible, quiet, and easy to maintain.

Common mistakes to avoid with a high-capacity wall-mounted heat pump

A 24,000 BTU unit can be an excellent solution, but only if the analysis is done properly. Among the mistakes we regularly see in the market:

Oversizing without analyzing the room

A unit that is too powerful for a small space can cool quickly without dehumidifying properly. The result can be a cold but uncomfortable room. In this project, the capacity was chosen because the volume to be treated and the heating needs justified a more powerful unit.

Installing too close to the ceiling

A wall-mounted unit needs air above it to function properly. When space is limited, clearances must be carefully validated.

Neglecting drainage

The drain is one of the simplest, yet one of the most critical elements. An insufficient slope can create recurring problems.

Forgetting maintenance access

Washable filters must be cleaned. The front panel must be able to open. A unit installed too high or too tight becomes difficult to maintain.

Placing the outdoor unit without acoustic consideration

Noise does not only depend on the sound level indicated on the technical sheet. The support, vibration, surrounding surfaces, and proximity to neighbors matter enormously.

A solution adapted to the climate of Laval and Greater Montreal

The Saint-François sector in Laval faces the same climatic challenges as several areas of Greater Montreal: summer humidity, temperature fluctuations, occasional extreme cold, buildings from different eras, and varied interior configurations. A Fujitsu wall-mounted heat pump like the Orion XLTH 24,000 BTU is relevant when the customer wants a ductless solution capable of offering good heating performance while ensuring efficient air conditioning.

The series is Energy Star rated, including cold climate ratings according to the provided documentation. For a customer, this can also be relevant when evaluating applicable subsidy programs, according to the criteria in force at the time of purchase and installation. Programs can change, and AirGreen always verifies the actual eligibility of the model with the applicable lists and conditions at the time of the project.

What the customer gains with a well-executed installation

After installation, the client benefits from a system capable of managing daily comfort with much greater precision than an old wall-mounted air conditioner or an isolated auxiliary heater. The Fujitsu Orion XLTH offers efficient air distribution, Inverter modulation, a good level of quietness, and heating capacity adapted to Quebec winters.

But the true value of the project comes from the combination of the right equipment and proper execution. A professional HVAC installation allows for:

• better real performance;
• fewer risks of water leaks;
• fewer vibrations;
• a longer lifespan;
• simpler use;
• more accessible maintenance;
• better integration into the interior space.

At AirGreen, we see each installation as a complete project. The choice of equipment is only one part of the work. The quality of installation, the logic of the refrigeration circuit, the outdoor location, aesthetics, electrical safety, and customer support are equally important.

Why AirGreen Recommends a Personalized Analysis Before Installation

Even when a client knows they want a 24,000 BTU wall-mounted heat pump, we always validate the context. Two houses of the same size may require different solutions. An open-plan area in Laval might need more capacity than a compartmentalized floor in Montreal. A condo in Longueuil may impose facade constraints, while a house on the North Shore or South Shore may offer more flexibility for the outdoor unit.

Our role is to connect the client's actual needs with the system's technical capabilities. This approach helps avoid costly errors and ensures lasting comfort.

An Installation Representative of Our AirGreen Approach

This project in Saint-François perfectly represents our way of working: serious equipment selection, attention to building constraints, careful wall mounting, and a concrete understanding of the local climate. The Fujitsu AIRSTAGE Orion XLTH 24,000 BTU is a high-end appliance for clients who want a reliable, efficient wall-mounted heat pump suitable for cold climate heating.

For AirGreen, every installation is an opportunity to deliver a result that measures up over time: stable comfort, quiet operation, simple maintenance, and client confidence season after season.
