Installation of a Fujitsu AIRSTAGE Orion XLTH wall-mounted heat pump in Acton Vale

A Compact Installation in Acton Vale Where Indoor Unit Placement Makes All the Difference

In Acton Vale, we completed this installation of a Fujitsu AIRSTAGE Orion XLTH wall-mounted heat pump, a series designed to meet the demands of Quebec’s climate while providing particularly precise operation in both heating and cooling modes. In the photo of this installation, one detail stands out immediately: the indoor unit was installed very high on the wall, near the ceiling, with the lines grouped on the right to maintain a compact installation in a space where every centimetre counts.

This type of project reflects our approach at AirGreen. An HVAC installation is not simply a matter of mounting a wall unit and connecting two refrigerant lines. The result depends on the choice of location, airflow, piping route, condensate drainage, service accessibility and, above all, adapting the equipment to the building’s actual needs.

In this installation in Acton Vale, the room layout called for a methodical approach. The Fujitsu unit is positioned near the ceiling while maintaining a configuration that allows air to be distributed through the lower part of the unit. The visible bundle of lines on the right follows the upper corner of the wall directly. This arrangement reduces the number of direction changes and avoids unnecessarily running the piping across a large section of the wall.

Why the Fujitsu AIRSTAGE Orion XLTH Is Particularly Well Suited to Quebec

The Fujitsu Orion XLTH belongs to the H series of AIRSTAGE single-zone wall-mounted systems. According to the technical documentation provided by Fujitsu, the Orion CTEB series is designed to continue operating in heating mode down to -26 °C, an important feature for Acton Vale homeowners who want to use their heat pump through much of the Quebec winter. The series also uses R-32 refrigerant, whose global warming potential is reported to be significantly lower than that of R-410A.

Unlike a heat pump designed solely for summer cooling, a unit like the Orion XLTH must be evaluated based on how it performs when outdoor temperatures drop sharply.

The range presented in the Fujitsu specification sheet includes several capacities:

• 9,000 BTU/h nominal in cooling mode;
• 12,000 BTU/h;
• 14,500 BTU/h;
• 18,000 BTU/h;
• 22,000 BTU/h.

In heating mode, the listed nominal capacities are even higher, ranging from 12,000 to 25,200 BTU/h depending on the model.

The exact capacity of the unit installed in Acton Vale is not visible in the supplied photo because the rating plate of the outdoor system is not shown. We therefore avoid arbitrarily assigning a BTU rating to this installation. This is an important distinction: several Fujitsu indoor units in this series have a very similar exterior format, particularly the 9,000, 12,000, and 15,000 BTU versions.

Energy efficiency varies according to the capacity selected

Another advantage of the Fujitsu AIRSTAGE Orion XLTH range is its seasonal performance. The specification sheet notably indicates TRÈS2 values of up to 33.1 BTU/hW for the 9,000 BTU model and 30.5 BTU/hW for the 12,000 BTU model. The higher-capacity models naturally display different values, but are still designed to combine heating and cooling in a ductless configuration.

All models in the range presented in the documentation have ENERGY STAR ratings, including the cold-climate designation for the versions indicated in the specification sheet.

This becomes particularly relevant when a homeowner is looking for a wall-mounted heat pump in Acton Vale, comparing not only the purchase price but also:

• electricity consumption;
• performance during the winter;
• capacity available at low temperatures;
• the quality of compressor modulation;
• noise level;
• the subsidy options applicable at the time of installation.

Financial assistance programs can change, and their criteria do not depend solely on the heat pump’s brand name. At AirGreen, we therefore always verify the exact combination of indoor and outdoor units, as well as the requirements of the program in effect, before confirming eligibility or an amount.

Inverter technology: important in a truly occupied home

The Inverter technology allows the heat pump to gradually adjust its operation according to demand rather than operating solely through a succession of full-capacity starts and stops.

In a residence, this can significantly improve comfort. Once the desired temperature is reached, the system can reduce its output and maintain more consistent conditions.

For the homeowner, this notably means:

• fewer abrupt temperature fluctuations;
• better comfort regulation;
• generally quieter operation when low capacity is sufficient;
• energy consumption better suited to the actual heating demand.

This principle is particularly useful during the milder temperatures of fall and spring, but also during winter when the heat pump must continuously adjust its heat output to the building's heat losses.

A unit designed to maintain heating capacity at very low temperatures

The stated minimum operating temperature is only part of the equation. It is also necessary to look at how much heating capacity remains available as the temperature drops.

For several Orion XLTH models, Fujitsu indicates a maximum capacity at -21°C that remains higher than their rated cooling capacity used as the reference in the technical data sheet. At -26°C, performance varies according to system size.

For example, the documentation indicates:

• 127% for the 9K model;
• 102% for the 12K model;
• 109% for the 15K model;
• 106% for the 18K model;
• 80% for the 24K model,

based on the comparison method specified by Fujitsu in its data sheet.

These values illustrate why sizing remains essential. Automatically installing the largest available unit is not necessarily the best strategy. An oversized heat pump can lead to less balanced operation during periods of low demand, while an undersized system will need to call on a supplemental heating source sooner.

At AirGreen, we prefer to select capacity based on floor area, layout, insulation, exposure, and heat loss rather than simply applying a number of BTUs per square foot.

What we observe in this Acton Vale installation

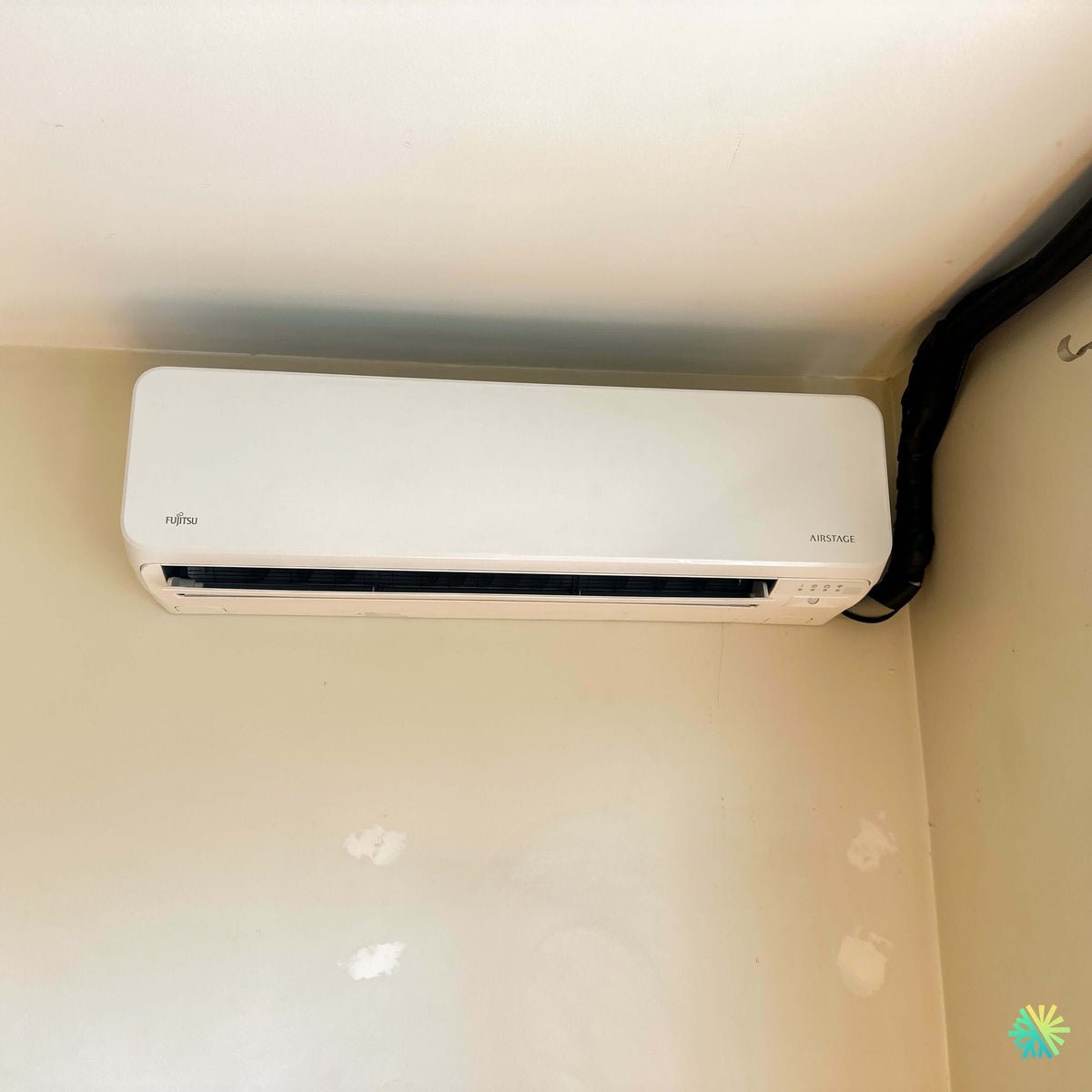

The photo shows a relatively unusual installation because the indoor unit is located near a ceiling whose geometry and adjacent walls limit the routing options.

Here we have a Fujitsu AIRSTAGE wall-mounted unit installed on a light-colored wall, almost at the junction with the ceiling. The piping leaves the unit on the right and immediately rises into the corner.

This approach provides several benefits.

Reduce the visible piping route

When the building configuration allows it, a direct route minimizes detours. Unnecessarily long piping means more materials, more fastening points, and sometimes greater difficulty maintaining an aesthetically pleasing result.

Fujitsu nevertheless allows considerable distances depending on capacity. The documentation mentions maximum lengths ranging from 25 m to 50 m, or approximately 82 to 164 feet, depending on the model.

This gives installers some flexibility, but a permitted maximum length is not an invitation to extend the installation unnecessarily.

Positioning the unit to promote air distribution

A wall-mounted heat pump must be able to project its air into the area being treated. A unit placed too low, too close to an obstacle, or directed toward an enclosed space can reduce distribution quality.

In this Acton Vale installation, the unit is mounted high, a typical configuration for a wall-mounted air conditioner and ductless heat pump, since the airflow can be directed into the room using the louvers.

The Orion XLTH series offers automatic vertical air direction as well as manual horizontal adjustment, according to the manufacturer's specifications.

Maintaining a relatively discreet installation

The connection bundle is grouped against the corner of the wall rather than spread horizontally across the entire surface. In some rooms, this difference can be considerable visually.

We often encounter this same issue in our installations of wall-mounted heat pumps in Montreal, Laval, Longueuil, the North Shore, and the South Shore: the ideal location from a thermal perspective must also accommodate windows, beams, doors, ceilings, furniture, and options for routing outdoors.

The technical details that determine the quality of a Fujitsu Orion XLTH installation

Different pipe diameters depending on capacity

One element that must never be improvised is the diameter of the refrigerant lines.

For the Orion XLTH, Fujitsu specifies:

• 9K and 12K models: 1/4 in. liquid line, 3/8 in. gas line;
• model 15K : 1/4 in. liquid line, 1/2 in. gas line;
• 18K and 24K models: 3/8 in. liquid line, 5/8 in. gas line.

These differences are important when replacing an older heat pump. The fact that existing piping is already installed in the wall does not automatically mean that it meets the requirements of the new unit.

Before reusing them, we must check several factors: diameter, condition of the lines, length, compatibility with the new refrigerant, quality of the connections, and overall configuration.

A power supply suited to the model

The series operates at 208 to 230 V, 60 Hz, single-phase.

According to Fujitsu, the specified circuit breaker also varies by capacity:

• 15 A for the 9K and 12K models;
• 20 A for the 15K, 18K, and 24K models.

Electricity should therefore not be considered separately from equipment selection. When we prepare an installation of a wall-mounted heat pump, the available circuit capacity is one of the parameters that must be confirmed before the work begins.

Exceptionally quiet operation

Fujitsu also emphasizes acoustics.

Depending on the capacity and fan mode, the indoor unit can operate at levels as low as 23 dB(A) on certain models in the range. Even the larger models offer several fan speeds, including a quiet mode.

For a heat pump installed near a bedroom, office, or living space used daily, this feature can be just as important as energy efficiency.

The outdoor unit also has a low-noise operating mode.

R-32, ProCore coils, and base-pan heater

The Orion XLTH’s design includes several interesting technical features for a Quebec installation.

Fujitsu specifically indicates:

• the use of R-32 refrigerant;
• an Inverter compressor;
• a base-pan heater designed for very cold regions;
• indoor coils with highly corrosion-resistant ProCore copper;
• several operating modes;
• automatic defrosting;
• automatic restart.

The basic base-pan heater deserves particular attention in our climate. When the heat pump operates in heating mode during the winter, the outdoor unit must periodically perform defrost cycles. Managing water and ice around the outdoor unit then becomes a genuine installation concern.

That is why we place so much importance on the outdoor unit’s support, its height above the ground, the clearance around the heat exchanger, and winter drainage.

Built-in Wi-Fi and control options

The Orion XLTH also offers built-in Wi-Fi connectivity for remote monitoring and control through the AIRSTAGE mobile app, according to Fujitsu documentation.

The system is also compatible with several optional controllers and interfaces, including certain wired solutions, BACnet, Modbus, and 24 V thermostats with the appropriate interfaces.

For a single-family home, built-in Wi-Fi is often the most-used feature. For a commercial building, rental property, or more complex automation project, the control interfaces become much more useful.

A common mistake: choosing solely based on BTU capacity

A homeowner sometimes simply asks us: “Should I install a 12,000 or an 18,000 BTU unit?”

BTU capacity is important, but it is not enough on its own.

We must also consider:

• the room layout;
• the number of floors;
• open or closed areas;
• insulation;
• the windows;
• sun exposure;
• the unit’s location;
• the actual winter heating requirements;
• the use of auxiliary heating.

A unit installed in a closed hallway will not distribute air in the same way as the same machine installed in a large open-plan area.

That is precisely why an on-site estimate provides much more information than sizing based solely on the property’s total area.

Maintenance remains essential, even for a high-end heat pump

A heat pump’s performance also depends on its maintenance.

The filters in the Orion XLTH series are washable. They should be inspected and cleaned regularly, depending on the home’s environment.

A buildup of dust can reduce airflow, increase operating time, and promote fouling of the indoor heat exchanger.

Over the years, more thorough HVAC maintenance may also become necessary to clean the blower wheel, evaporator, and drain pan.

An installation like the one in Acton Vale must therefore be designed not only to operate today, but also to provide access to the unit when it is time to service it.

This Acton Vale project sums up our method well

This Fujitsu AIRSTAGE Orion XLTH installation in Acton Vale illustrates a reality we encounter every day: the best installations are rarely those where the same solution is applied everywhere.

Here, the proximity of the ceiling, the adjacent corner, and the route of the lines influenced the unit’s layout. We prioritized a compact, direct configuration while preserving the heat pump’s primary function: properly distributing air throughout the treated space.

This attention to detail guides our wall-mounted heat pump installations at AirGreen, whether it is a project in Acton Vale or an installation in Montreal, Laval, Longueuil, on the North Shore or the South Shore.

The heat pump model matters. Its efficiency matters. Its low-temperature performance matters. But the quality of the final result depends just as much on sizing, positioning, piping, electrical work, drainage, and on-site execution.

With the Fujitsu Orion XLTH, we work with a platform that combines heating down to -26 °C, Inverter technology, R-32, multiple capacities, and a design intended for heating in cold climates. Our job is then to properly adapt this technology to the building receiving it.
