Installation of a FUJITSU AIRSTAGE ORION XLTH+ wall-mounted heat pump in McMasterville: integration above a door in a residential space under renovation

In McMasterville, a FUJITSU ORION XLTH+ installation carried out in a narrow space where positioning the indoor unit required careful planning

This installation of a FUJITSU AIRSTAGE ORION XLTH+ in McMasterville perfectly illustrates a scenario we regularly encounter at AirGreen: the best location for an indoor unit is not necessarily the largest wall in the home. In some homes, it is instead necessary to make intelligent use of the available space while respecting the machine’s technical requirements, drainage, airflow, and future accessibility.

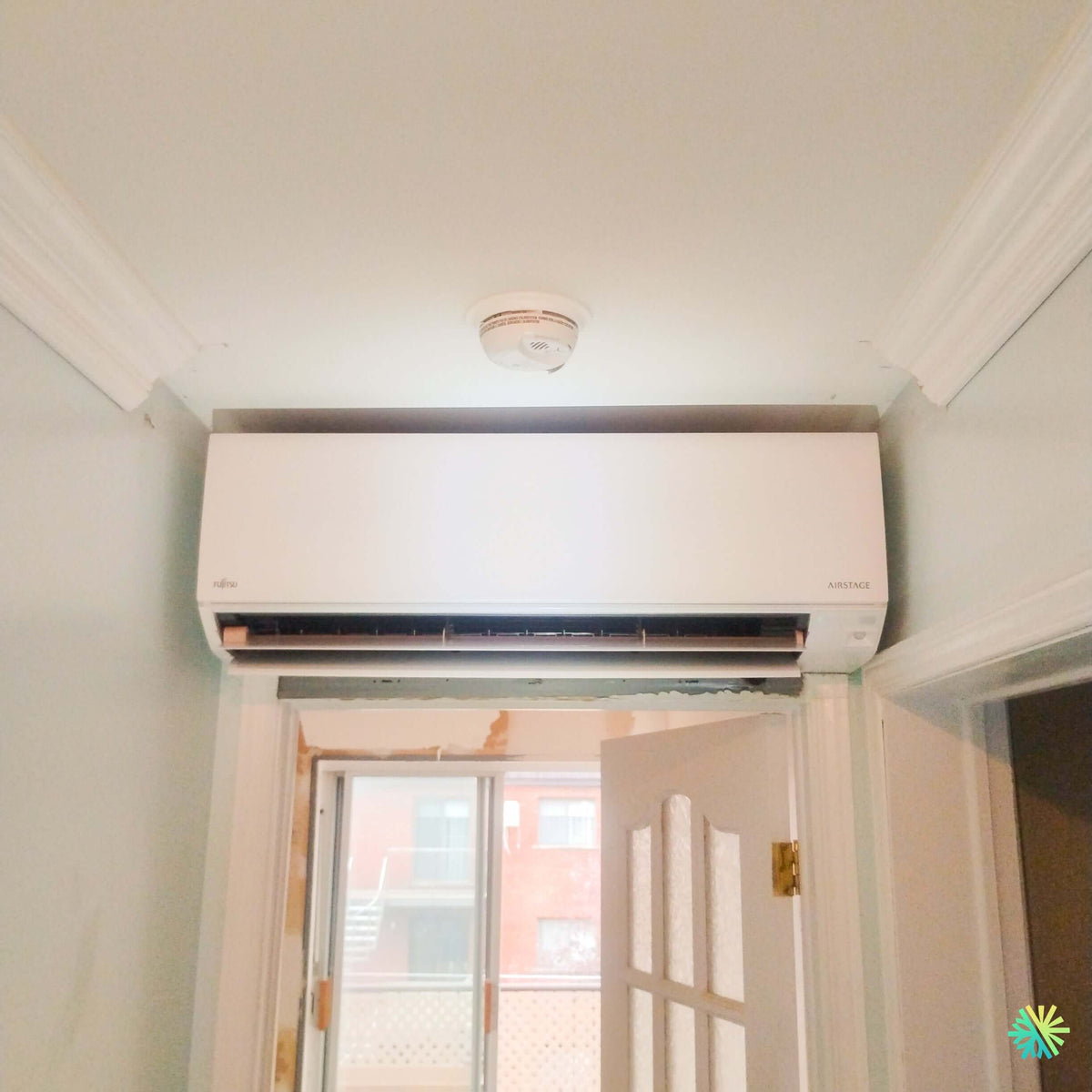

The photograph of this project shows a FUJITSU AIRSTAGE indoor unit installed directly above a door opening, in a relatively narrow section of the home. Signs of work can also be seen around the frame and the adjacent opening, indicating that the HVAC installation was carried out in an environment where some finishing work was still underway.

This situation requires particular coordination. A wall-mounted heat pump installed in a home under renovation must not only operate properly on the day it is commissioned. Its location must also remain logical after the finishing work is complete, when the frames, trim, doors, and wall surfaces have regained their final appearance.

In this specific case, the space above the door made it possible to use a portion of the wall that otherwise would have had little functional value. The unit remains elevated, does not reduce the available space for furniture, and can direct air toward the adjacent traffic area.

The FUJITSU ORION XLTH+ was particularly well suited to this project because it combines a relatively compact indoor unit with performance designed for Quebec’s cold climate. According to Fujitsu documentation, this range can operate in heating mode down to -30 °C, uses R-32 refrigerant, includes an Inverter compressor, and offers integrated Wi-Fi connectivity.

Installing a heat pump above a door: a useful solution, but never an improvised one

Visually, installing a wall-mounted unit above a door may seem simple. In practice, several checks must be completed before getting started.

We must first measure the space precisely.

The ORION XLTH+ specification sheet indicates that the indoor units in this series measure approximately 35 3/16 in. wide, 11 5/8 in. high, and 11 in. deep.

In a configuration like the one in McMasterville, a few inches can determine whether the installation is feasible.

Appropriate clearances must also be maintained around the unit. The fact that a unit physically “fits” between the door frame and the ceiling does not automatically mean it is properly installed.

We must plan in particular for:

• air intake at the top of the unit;
• opening the front panel;
• access to the filters;
• the circulation of discharged air;
• the passage of the refrigerant lines;
• condensate drainage;
• the space required for future HVAC maintenance.

In this installation in McMasterville, the wall-mounted head is positioned high enough to use the available space efficiently while remaining separate from the opening itself.

A door beneath the heat pump changes how air distribution must be considered

The indoor unit's location directly influences how air moves throughout the home.

When we position a wall-mounted heat pump in an open area, we generally aim to promote long, consistent air distribution. In a corridor or above an opening, we think more carefully about how the air will circulate between the different zones.

The photograph shows an opening that provides a view into another part of the home. This configuration can promote air circulation when the spaces are connected, but it also highlights an important rule: a single-zone wall-mounted heat pump cannot distribute air evenly through several closed rooms the way a duct system can.

We therefore explain to homeowners that overall comfort also depends on the home's layout and how the doors are used.

A properly sized wall-mounted unit can effectively handle a large open area. However, it should not be selected based on the idea that a high BTU rating will automatically force air through several enclosed, insulated rooms.

A FUJITSU line designed to heat well beyond moderate winter temperatures

The documentation for the FUJITSU AIRSTAGE ORION XLTH+ presents three main capacities:

• 09KTAP1;
• 12KTAP1;
• 15KTAP1.

The listed nominal cooling capacities are respectively 9,000 BTU/h, 12,000 BTU/h, and 14,500 BTU/h, while the nominal heating capacities are 12,000, 15,300, and 17,400 BTU/h.

The photograph does not allow the nameplate of the installed unit to be read reliably. We therefore do not attribute a specific capacity to it that cannot be confirmed from the information provided.

This caution is important when discussing HVAC.

Two units bearing the same series name may have different performance, electrical requirements, and capacities. The choice should always be made using the exact model numbers, not simply the commercial name.

The real appeal of the ORION XLTH+: its performance when the mercury drops very low

For a residence in McMasterville, summer air conditioning is important, but winter heating often represents an even more significant part of the purchasing decision.

The ORION XLTH+ series is advertised with a heating operating range from -30 °C to 24 °C.

This figure is useful, but it tells only part of the story.

The technical data sheet also provides maximum heating percentages at very low temperatures.

At -21 °C, Fujitsu indicates:

• 179% for model 09;
• 156% for model 12;
• 138% for model 15.

At -26 °C, these values are still:

• 147 %;
• 128 %;
• 116 %.

And at -30 °C, the values shown remain at:

• 113% for the 09;
• 103% for the 12;
• 101% for the 15,

according to the reference conditions specified in the technical documentation.

For us, these figures are particularly interesting because they help explain the difference between a heat pump that can simply continue operating in very cold weather and a machine designed to retain significant heating capacity.

An Inverter compressor that follows the home’s actual demand

The Inverter technology allows the compressor to modulate its speed according to demand.

When a home is very cold and the temperature needs to be raised quickly, the heat pump can provide more capacity. Once the desired temperature is reached, it can gradually reduce its operation instead of simply alternating between full power and a complete shutdown.

This modulation helps to:

• maintain a more stable temperature;
• reduce certain comfort fluctuations;
• avoid unnecessary starts;
• operate more quietly when demand is low;
• adapt energy consumption to actual needs.

In an installation like this, located in a high-traffic area, acoustic comfort becomes particularly important.

An indoor unit that can go as low as 23 dB(A)

The ORION XLTH+ series offers several fan speeds: automatic, high, medium-high, medium, medium-low, low, and quiet.

The technical specifications indicate that the 09 and 12 indoor units can operate at only 23 dB(A) in quiet mode, while the 15 version is rated at 26 dB(A).

This obviously does not mean that the unit will always operate at this noise level. When there is a high demand for heating or cooling, airflow and noise increase.

The advantage is rather the system's ability to become very discreet when maximum capacity is not required.

In a corridor, near a bedroom, or above a door as shown here, this type of operation can directly contribute to the quality of everyday life.

From the wall to the outdoor unit: the technical details that determine the true quality of an installation

Drainage becomes critical when the unit is installed above an opening

During air-conditioning operation, the indoor evaporator becomes cold and condenses the moisture contained in the air.

This water must be collected and then drained away.

For an installation above a door, a drainage problem would be particularly unpleasant. A leak could directly reach the frame, the floor, or the passageway.

We therefore pay particular attention to:

• the drain slope;
• the drainage route;
• the absence of areas where water could stagnate;
• the connection behind the unit;
• when testing the drainage before the work is complete.

The fact that the unit looks perfectly straight also plays a role in the quality of the installation.

A tilted unit immediately draws the eye when it is installed just above a perfectly horizontal door frame. Leveling is also important for the condensate pan's operation.

An installation carried out during construction work requires considering the final finish

The McMasterville photo shows that some surfaces around the opening were still being finished when the image was taken.

This type of situation is common.

When an HVAC system is installed during a renovation, we must coordinate several elements with the other work.

For example, trim added later must not prevent the heat pump panel from opening. New framing must not block the air outlet. A drywall repair must not damage the concealed lines behind the wall.

That is why we prefer to plan the installation in advance rather than wait until every finish is complete only to discover that there is no longer enough space.

The ORION XLTH+ lines: 1/4-inch liquid and 3/8-inch gas

Fujitsu documentation specifies that all three configurations in this series use:

• a liquid line of 1/4 po;
• a gas line of 3/8 po.

The minimum piping length is 3 metres, or approximately 10 feet, and the specified maximum length is 20 metres, or 66 feet, with a maximum vertical difference of 14.9 metres, or approximately 49 feet.

These limitations are essential when we choose the location of the indoor unit.

A wall-mounted head may be perfectly positioned aesthetically but become problematic if the route to the outdoor unit requires excessive detours.

We therefore always seek a balance between:

• air distribution quality;
• refrigerant line length;
• drainage simplicity;
• final appearance;
• accessibility;
• structural constraints.

R-32 refrigerant and what it means for this new generation

The FUJITSU ORION XLTH+ uses R-32.

The Fujitsu brochure compares a global warming potential of 675 for R-32 with 2088 for R-410A, representing an advertised reduction of 68% in the reference used by the manufacturer.

For the customer, refrigerant identification often appears as a mere technical detail in a quote.

For an HVAC company, this is fundamental information.

Handling procedures, circuit preparation, service equipment, and technician training must match the refrigerant and the system actually installed.

Evacuation and circuit preparation: what the final photo will never show

Much of the quality of a heat pump installation disappears completely once the project is finished.

The homeowner can no longer see the refrigerant connections. They do not see the evacuation procedure. They do not see the measurements taken during commissioning.

Yet these steps partly determine the system’s future reliability.

After the piping is connected, the circuit must be properly prepared, in particular by removing air and moisture before commissioning according to the applicable procedures.

We place as much importance on these invisible steps as we do on installing the wall-mounted head perfectly straight.

ProCore copper coils: an internal feature worth mentioning

According to Fujitsu, the ORION XLTH+ indoor unit uses high-corrosion-resistant ProCore copper coils.

The homeowner obviously cannot see these coils in the photograph.

Yet these are among the components that work every day as the system transfers heat between the indoors and outdoors.

When comparing two heat pumps, we therefore look not only at the façade design or the number of electronic features. The construction of the heat exchanger, compressor performance, and features intended for Quebec’s climate are just as important.

Integrated Wi-Fi and remote control

The ORION XLTH+ documentation mentions integrated Wi-Fi connectivity with remote monitoring through the AIRSTAGE mobile app.

This feature makes it easier for homeowners to manage the temperature without necessarily being in front of the unit.

In practice, this can be useful for adjusting the setpoint before arriving home, reducing heating during an absence, or making certain operating changes from a compatible phone.

Fujitsu also provides a backlit remote control with the indoor unit.

An ENERGY STAR lineup, but financial assistance must always be validated for the exact model

The technical data sheet lists ENERGY STAR ratings for the three ORION XLTH+ configurations presented.

This is a relevant point for homeowners comparing heat pumps based on their efficiency and the rebate programs available.

However, we always recommend verifying the exact indoor/outdoor unit pairing and the corresponding certification reference before calculating a rebate.

The combinations presented in the documentation are:

• ASUH09KTAS with AOUH09KTAP1;
• ASUH12KTAS with AOUH12KTAP1;
• ASUH15KTAS with AOUH15KTAP1.

Because rebate programs and their criteria may change, eligibility must be confirmed according to the rules applicable at the time of the project.

An error to avoid: oversizing the unit to “push the air farther”

In homes with several rooms, some homeowners think that a higher-capacity heat pump will necessarily send air much farther.

This is not a sound sizing method.

The capacity must be suited to the dwelling’s actual heat load. An unnecessarily oversized unit does not necessarily improve air circulation between enclosed rooms and may alter the system’s behavior at partial load.

We consider, among other things:

• the actual area served;
• the insulation level;
• fenestration;
• exposure;
• air infiltration;
• the number of floors;
• the layout of the openings;
• usage habits;
• heating needs at design temperatures.

For this McMasterville installation, the location above the door makes intelligent use of the existing geometry rather than trying to compensate for poor positioning with more BTUs.

The filters must remain accessible despite the high installation

Fujitsu documentation specifies that the filters in this series are washable.

Since the unit is installed relatively high, the homeowner will need to use an appropriate access method to remove and clean them.

This is a detail that must be considered before installation.

A wall-mounted head can be installed very high to improve aesthetic integration, but not so high that routine maintenance becomes impractical.

Over the years, the turbine, evaporator, and drain pan may also require more thorough cleaning. The unit must therefore remain accessible to our technicians.

The desired result: for the technical complexity to disappear once the work is complete

On this FUJITSU ORION XLTH+ installation in McMasterville, the most interesting aspect is probably the use of a challenging architectural space.

The wall-mounted head is installed above the opening, between two sections of wall, without taking up the room’s usable space. Despite the renovation work visible in the photo, the heat pump already fits naturally into the layout.

Once the finishing work is complete, the homeowner will essentially see a white FUJITSU unit installed high on the wall.

What they will no longer see are all the decisions required to achieve this result:

• space measurement;
• location selection;
• securing;
• leveling;
• drainage;
• piping;
• insulation;
• electrical work;
• refrigeration preparation;
• commissioning;
• operational testing.

At AirGreen, it is precisely these details that distinguish a merely functional installation from an HVAC installation designed to last.

We apply this approach in McMasterville, just as we do in our heat pump projects in Montreal, Laval, Longueuil, on the North Shore and the South Shore: observing the building, understanding its constraints, selecting the right equipment, and then completing an installation that respects both the machine’s performance and the client’s living space.

The FUJITSU AIRSTAGE ORION XLTH+ offers a combination particularly well suited to Quebec conditions: a compact wall-mounted design, Inverter modulation, quiet operation, R-32 refrigerant, high efficiency, and a heating capacity rated down to -30 °C.

But as always in HVAC, this technical potential only truly delivers value when the installation itself is carried out with precision.
