Installation of a Fujitsu AIRSTAGE Orion XLTH wall-mounted heat pump in Le Plateau-Mont-Royal, Montreal

A Fujitsu Orion XLTH installed above a door: making smart use of every section of wall in a Le Plateau-Mont-Royal home

In Le Plateau-Mont-Royal, the available space often dictates a significant part of the installation strategy for a wall-mounted heat pump. This project carried out by our AirGreen team is an excellent example: the indoor unit, a Fujitsu AIRSTAGE Orion XLTH, was positioned very high, directly above an interior door and near another opening, in an area where usable wall space was particularly limited.

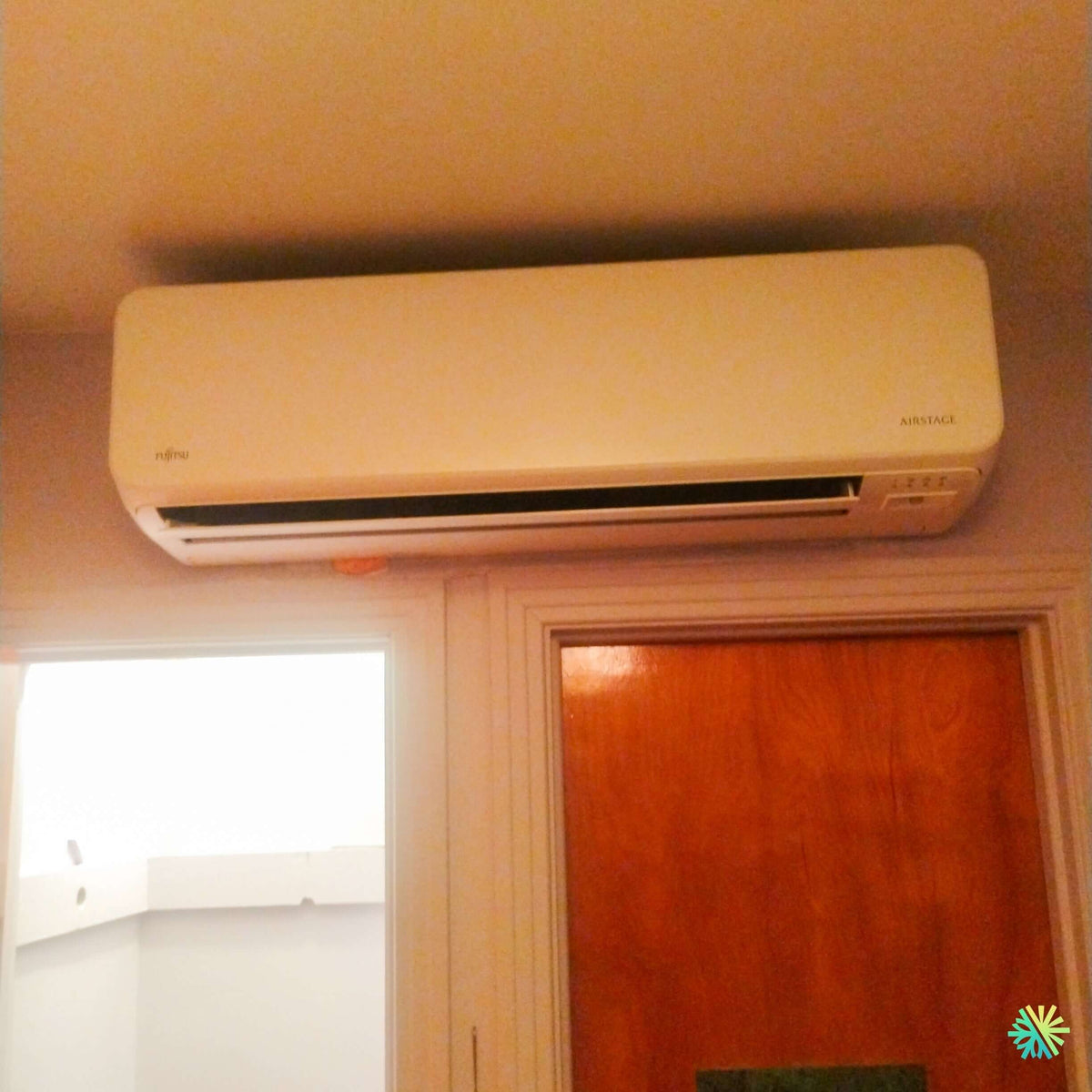

The construction-site photograph clearly shows the reality of this type of Montreal housing. We are not looking at a large, completely unobstructed wall where the heat pump could be placed anywhere. On the contrary, the room has several openings, and the space above them becomes a strategic area for integrating the unit without sacrificing sections of wall useful for furniture, storage, or circulation.

This arrangement nevertheless requires precision. A wall-mounted heat pump must be placed high enough to promote good air distribution, but its location must also allow it to operate, the front panel to open, access to the filters, and future HVAC maintenance work. In such a tight configuration, a few centimetres can make a difference.

The visible result of this installation in Le Plateau-Mont-Royal is characteristic of an approach we regularly use in Montreal: working with the existing architecture rather than fighting it. The heat pump occupies part of the wall that would otherwise have been difficult to use, while remaining well positioned to project air into the room.

Why installing above a door can be an excellent solution

Installing a wall-mounted unit above a door is not automatically the best option for every building. However, when the layout lends itself to it, this position offers several interesting advantages.

In this project, it notably allows us to:

• preserve the main walls for furniture and layout;
• place the unit at a height that promotes air distribution;
• limit the visual impact of the heat pump in the room;
• use an otherwise difficult-to-use area;
• keep clear passageways around openings;
• integrate the system without unnecessarily changing the layout of the home.

In Le Plateau-Mont-Royal, this type of constraint is common. Many homes have large windows, closely spaced doors, walls interrupted by openings, or interior layouts that do not necessarily match the standard dimensions of a modern heat pump.

Our job is therefore to determine not only which heat pump to install, but above all where it can actually operate properly for years to come.

Limited clearance from the ceiling requiring precise installation

The photograph also shows that the unit is installed quite close to the ceiling.

This is precisely the kind of configuration in which taking measurements before installation becomes essential. The indoor unit’s exact physical dimensions and the clearances required for airflow and maintenance must be taken into account.

According to the Fujitsu technical data sheet provided, the indoor units for the 9K, 12K, and 15K models in the Orion XLTH series measure 980 mm wide, 280 mm high, and 240 mm deep, or approximately 38 9/16 in × 11 in × 9 7/16 in. The 18K and 24K versions are larger, measuring 1,150 mm wide, 340 mm high, and 280 mm deep.

This difference can become decisive when the unit must be installed above a door.

The exact capacity of the unit shown in the photo cannot be determined with sufficient certainty from the image alone. We therefore do not arbitrarily assign it a BTU capacity. In an actual project, this is confirmed using the model numbers of the indoor and outdoor units and the building’s required sizing.

A heat pump designed for cold-climate heating

The Fujitsu AIRSTAGE Orion XLTH belongs to Fujitsu’s H single-zone series. The documentation provided lists the 09KZAH1, 12KZAH1, 15KZAH1, 18KZAH1, and 24KZAH1 models as wall-mounted systems designed to provide heating down to an outdoor temperature of -26 °C (-15 °F).

For an installation in Le Plateau-Mont-Royal, this information is particularly important.

A heat pump installed in Montreal should not be selected solely to cool a home during hot July days. Winter heating accounts for a significant portion of its use, particularly when the homeowner wants to reduce reliance on other electric heating sources.

The Orion XLTH series covers several nominal capacities:

• 9,000 BTU/h in cooling mode for the 9K model;
• 12,000 BTU/h for the 12K;
• 14,500 BTU/h for the 15K;
• 18,000 BTU/h for the 18K;
• 22,000 BTU/h for the 24K.

At nominal heating capacity, the specification sheet lists respectively 12,000, 16,000, 18,000, 21,600 and 25,200 BTU/h.

These values demonstrate why the number included in a heat pump’s commercial name does not tell the whole story. Heating efficiency, modulation, low-temperature performance and the actual layout of the residence must also be factored into the calculation.

Winter performance that goes far beyond the stated minimum temperature

Saying that a heat pump operates down to -26 °C is not enough. We are also interested in the amount of heating it can provide when the temperature actually drops.

The Fujitsu specification sheet provides detailed data at -15 °C, -21 °C and -26 °C.

At -21 °C, the 9K, 12K, 15K and 18K models are respectively listed at 154%, 124%, 126% and 127% of their reference nominal capacity. The 24K is listed at 95%.

At -26 °C, these values are respectively 127%, 102%, 109%, 106% and 80%.

For a homeowner comparing a wall-mounted heat pump in Montréal, this data is particularly useful. Two systems that can both operate at a very low temperature will not necessarily provide the same capacity when it is -20 °C outside.

The Inverter compressor: particularly relevant in a Montréal residence

The Orion XLTH uses an Inverter compressor. Fujitsu explains in its documentation that this technology allows the system to adjust its performance according to demand rather than constantly operating uniformly.

In a Plateau-Mont-Royal residence, this modulation is beneficial because heating and cooling needs constantly change.

A room may receive a great deal of sunlight for a few hours, then quickly lose that heat in the evening. A kitchen can produce a significant amount of heat when in use. An open door to an adjacent room can also change how the temperature is distributed.

The Inverter therefore allows the heat pump to modulate its operation in order to maintain a more stable temperature.

Particularly strong air circulation with an installation above an opening

The visible positioning in our photo was not chosen solely to save space.

A high-mounted indoor unit can project air over a considerable distance while preventing it from being immediately blocked by furniture.

The Orion XLTH series offers several fan speeds: Auto, high, medium-high, medium, medium-low, low, and quiet operation. The vertical airflow direction is automated according to the technical sheet, while the horizontal direction can be adjusted manually.

In a configuration like the one at this Le Plateau-Mont-Royal job site, we need to consider the air path before even drilling the wall.

A poorly positioned unit can have excellent efficiency on paper while distributing air poorly throughout the home.

Up to 23 dB(A) for certain capacities

Noise is also an important consideration when a heat pump is installed in a living space.

According to Fujitsu’s technical table, the 9K and 12K models can go as low as 23 dB(A) in quiet mode. The 15K model goes down to 26 dB(A), while the 18K and 24K models are listed at 30 dB(A).

This difference is worth considering when choosing a machine intended for a living room, office, or bedroom.

In a densely built area such as Le Plateau-Mont-Royal, we also pay attention to the positioning of the outdoor unit to minimize disturbances as much as possible and achieve an installation consistent with the building’s layout.

R-32: the current generation of this Orion XLTH

The documentation provided identifies R-32 as the refrigerant for all the Orion XLTH models presented.

Fujitsu indicates a global warming potential of 675 for R-32, compared with 2,088 for R-410A in the table presented on page 2, corresponding to an announced 68% reduction in GWP.

For the installer, the refrigerant used also dictates appropriate work, handling, and commissioning methods.

An installation is therefore not limited to connecting two copper pipes. The circuit must be prepared, assembled, and commissioned in accordance with the machine’s requirements.

The technical details that make a difference in an HVAC installation on Le Plateau-Mont-Royal

Pipe diameters vary according to capacity

When replacing an old heat pump, we often hear this question: “Can the existing pipes be kept?”

The answer depends on the system.

For the Fujitsu Orion XLTH, the specified sizes are:

Orion XLTH 9K and 12K

Liquid: 1/4 in — Gas: 3/8 in

Orion XLTH 15K

Liquid: 1/4 in — Gas: 1/2 in

Orion XLTH 18K and 24K

Liquid: 3/8 in — Gas: 5/8 in.

We therefore need to know the exact capacity before determining whether an existing line can be suitable.

In a Plateau home, this check can prevent many complications. Some older lines run through ceilings, finished walls, or hard-to-access areas. It is best to verify their compatibility before definitively selecting a new unit.

Significant flexibility for piping length

Fujitsu also indicates maximum piping lengths of:

• 25 m (82 ft) for the 9K and 12K models;
• 30 m (98 ft) for the 15K model;
• 50 m (164 ft) for the 18K and 24K models.

This provides some flexibility when the indoor and outdoor units cannot be positioned back to back.

In Montreal buildings, this flexibility can be particularly useful when architectural features need to be bypassed, work must be carried out from a specific façade, or the home's existing layout must be respected.

208–230 V and a breaker suited to the model

The series operates on a 208 to 230 V, 60 Hz, single-phase power supply.

The documentation specifies a 15 A breaker for the 9K and 12K models, then a 20 A breaker for the 15K, 18K, and 24K models.

Before any heat pump installation in Le Plateau-Mont-Royal, we therefore also check the electrical side.

In homes and plexes where several circuits are already present in a panel, this step is essential. The desired heating capacity must be compatible with the building's electrical reality.

Efficiency: up to 33.1 TRÈS2 depending on capacity

The technical data sheet lists the following TRÈS2 values:

• 9K : 33,1
• 12K : 30,5
• 15K : 27,5
• 18K : 25,5
• 24K : 24,0

The regional CPSC2, meanwhile, ranges from 9.4 to 10.7. The models listed in the document also carry the ENERGY STAR classifications shown in the manufacturer's table.

These performance figures once again show that exact models should be compared rather than brands alone.

Integrated Wi-Fi, remote control, and operating modes

The Orion XLTH documentation mentions integrated Wi-Fi connectivity for remote monitoring through the AIRSTAGE mobile app. The indoor unit also comes with a backlit remote control.

The functions listed by Fujitsu include, in particular:

• economy mode;
• energy-saving mode;
• minimal heat;
• automatic defrost;
• automatic restart;
• occupancy mode;
• multiple fan speeds.

The series also features ProCore copper indoor coils, which the manufacturer describes as having high corrosion resistance.

Mistakes to avoid when the space above a door seems to be the only option

This Plateau installation highlights several mistakes that we systematically seek to avoid.

Choosing the unit before measuring the space

The 18K and 24K units are noticeably wider and taller than the 9K to 15K models. A few extra inches can make installation impossible in such a constrained space.

Installing too close to an obstacle without considering maintenance

It must be possible to access the filters and the inside of the unit for HVAC maintenance. A beautiful installation on the first day should not become a problem at the first cleaning.

Choosing the BTU rating according to an approximate rule

Sizing must take the building into account, not just the floor area.

Ignoring the airflow path

A heat pump above a door can be highly effective if the air is distributed properly. It can be much less effective if its airflow immediately encounters a partition or obstacle.

Automatically reusing the old piping

As the Fujitsu specifications show, the diameters vary considerably depending on the capacity.

This Plateau-Mont-Royal project is a good representation of how we work.

In this installation, the most interesting challenge was not simply choosing a Fujitsu AIRSTAGE Orion XLTH. We had to successfully integrate a modern wall-mounted unit into a narrow section of wall above a door without compromising the room’s normal use.

This is exactly the kind of situation we encounter in several Montreal neighbourhoods.

In Laval, Longueuil, on the North Shore, and on the South Shore, the constraints may differ, but our approach remains the same: assess the property, select the appropriate capacity, check the electrical system and piping, choose a functional location, and install the heat pump in a way that facilitates its future use and maintenance.

The Fujitsu Orion XLTH offers several features that are particularly well suited to our climate: heating operation down to -26 °C, Inverter technology, R-32 refrigerant, high performance depending on capacity, quiet indoor operation, and Wi-Fi control capability.

But this Plateau-Mont-Royal project above all highlights one essential point: even an excellent unit will only reach its full potential if its location and installation have been carefully considered.
