Installation of a Fujitsu Orion XLTH 24,000 BTU Wall-Mounted Heat Pump in Pierrefonds-Roxboro

A compact yet technically demanding installation in a confined indoor space

In Pierrefonds-Roxboro, in the west of Montreal, our AirGreen team carried out a particularly interesting HVAC installation: the installation of a Fujitsu Orion XLTH 24,000 BTU wall-mounted heat pump, a single-zone wall-mounted system designed to provide both heating and cooling in a residence where the available space above the door required precise planning.

Upon arrival, one detail caught our attention: the indoor unit had to be installed very close to the ceiling, above a door frame, with an existing ceiling opening revealing a wooden structure. This type of configuration requires much more than simple wall mounting. It is necessary to evaluate the available height, the solidity of the anchoring, the passage of the refrigerant lines, the condensate drainage, and the final aesthetics, especially when the piping must exit the unit at a tight angle.

The choice of the Fujitsu Orion XLTH 24,000 BTU was perfectly suited to the client's needs: a robust, quiet wall-mounted unit, efficient in heating in cold weather, and capable of effectively cooling a large indoor area. According to the Fujitsu technical sheet, the 24KZAH1 model offers a nominal cooling capacity of 22,000 BTU/h, a nominal heating capacity of 25,200 BTU/h, operates in heating down to -26 °C, uses R-32 refrigerant, and has an Energy Star rating, including relevant cold climate mentions for the Canadian market.

Why this wall-mounted heat pump was a good fit for this Pierrefonds-Roxboro home

In several areas of Pierrefonds-Roxboro, homes feature varied interior configurations: low ceilings in certain areas, successive renovations, load-bearing walls that are difficult to penetrate, or restricted circulation spaces around door openings. Here, the main challenge was to install a wall-mounted heat pump in a strategic location, without compromising air distribution or future access for HVAC maintenance.

The Fujitsu Orion XLTH stood out for several reasons:

• its 24,000 BTU capacity, ideal for a larger living area;
• its heating operation down to -26 °C, very relevant for winters in Montreal, Laval, Longueuil, the North Shore and the South Shore;
• its quiet indoor operation, with sound levels as low as 30 dB in quiet mode for this model;
• its Inverter technology, which modulates performance rather than constantly running on/off;
• its R-32 refrigerant, known for its lower global warming potential than R-410A;
• its compatibility with integrated Wi-Fi and various control options.

For the client, the goal was not just to have an efficient wall-mounted air conditioner in the summer. They also wanted a reliable solution to reduce their reliance on traditional heating during cold periods. It is precisely in this type of situation that the Orion XLTH series truly excels.

An indoor location that required precision

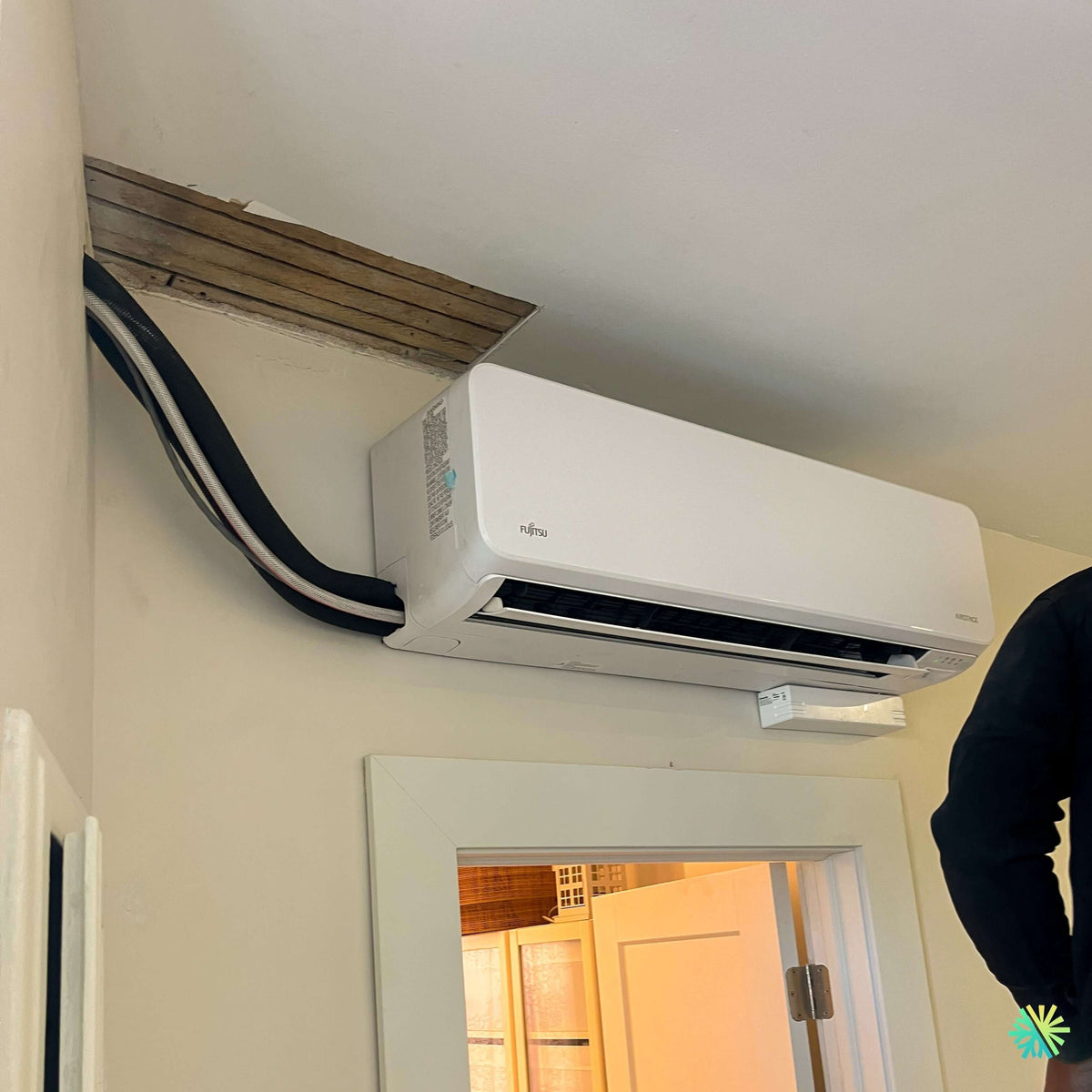

The installation photo clearly shows the complexity of the job: the indoor unit is placed above a door, very close to the ceiling, with the refrigerant lines exiting from the left side and going up towards an existing opening. This type of installation requires methodical execution.

Before fixing the unit, our team checked:

• the minimum height required for filter maintenance;
• the possible slope for condensate drainage;
• the path of the insulated copper pipes;
• the solidity of the wall at the mounting plate;
• the distance between the unit and the ceiling;
• the possibility of neatly finishing the line passage.

The ceiling opening revealed wooden slats, likely related to older construction or a section already open for mechanical passage. Rather than treating this constraint as an obstacle, our team used it to organize the line passage in a functional manner. The priority was to ensure a reliable connection, without forcing the bends of the refrigerant lines and without creating tension on the connections.

The care taken with the refrigerant lines

A common mistake in mini split installations is underestimating the importance of line routing. Poorly bent, too tight, or insufficiently protected pipes can impair system durability. In this Pierrefonds-Roxboro project, the insulated copper lines had to exit laterally, pass near a corner, and then connect to the outside.

We paid particular attention to three elements:

The bend radius

Refrigerant lines must be carefully bent. An overly aggressive bend can reduce refrigerant flow or weaken the copper. Here, the passage to the left of the unit was made with a controlled curve, despite the limited space.

Insulation

Insulating the lines is essential to prevent heat loss and condensation. It also helps protect the installation in the long term, especially in a home where certain areas may be colder or less ventilated.

Future access

Even if the installation must be aesthetic, it must also remain logical for future maintenance or diagnosis. At AirGreen, we always install with the full life cycle of the equipment in mind: use, maintenance, eventual repair, future replacement.

A machine adapted to Montreal winters

The Fujitsu Orion XLTH 24,000 BTU is particularly interesting for homeowners who want a heat pump capable of operating in winter conditions. Technical documentation indicates a heating operating range of -26 °C to 24 °C for models in the series. For the 24KZAH1 model, the maximum heating capacity reaches 36,800 BTU/h, with maintained heating performance even when the outdoor temperature drops significantly.

In the context of Montreal, this point is essential. A wall-mounted heat pump installed in an open area or a large living space must be able to maintain stable comfort, without sudden cycles and without blowing air that is too hot then too cold. Inverter technology precisely allows for adjusting the compressor speed according to the actual needs of the home.

The importance of positioning above a door

Installing a wall unit above a door can be an excellent solution, but only if the analysis is done correctly. Poor positioning can lead to:

• air diffusion blocked by a frame or beam;
• noise disturbance in a high-traffic area;
• difficult access to filters;
• improperly sloped condensate drainage;
• an unaesthetic visual finish.

In this project, the location allowed for freeing up the main walls of the room while ensuring air diffusion towards the area to be treated. The Fujitsu unit, with its elongated wall-mounted format, integrated well above the door, despite the constraint of the nearby low ceiling.

What this installation shows about AirGreen's work

A successful HVAC installation is never just about hanging a machine on the wall. It relies on a series of technical decisions made on-site. In this Pierrefonds-Roxboro residence, our team had to contend with a ceiling opening, a confined space, a visible side exit, and a high-capacity appliance.

Our approach was simple: secure the installation, preserve the machine's performance, ensure accessible maintenance, and limit aesthetic compromises. These details distinguish a durable installation from one that is merely functional.

At AirGreen, we regularly work on similar projects in Montreal, Laval, Longueuil, on the North Shore, and the South Shore. Old houses, condos, plexes, partial renovations, and atypical spaces require a team capable of adapting. Every wall tells a story: a previous renovation, a hidden structure, an electrical constraint, a drainage slope to respect. Our role is to transform these constraints into concrete solutions.

Practical advice before installing a Fujitsu wall-mounted heat pump

Choosing the right BTU capacity

The choice of a 24,000 BTU wall-mounted heat pump must be justified by the area, room configuration, insulation, solar orientation, and client habits. An undersized unit will work tirelessly. An oversized unit can create less comfortable cycles if the space does not match its capacity.

In this case, the 24,000 BTU was consistent with the need to cover a significant area. The 24KZAH1 model also offers high airflow, up to 1,060 m³/h at high speed according to the technical sheet, which helps distribute comfort in a larger space.

Don't neglect maintenance

A wall-mounted air conditioner or wall-mounted heat pump performs well when properly maintained. Washable filters should be cleaned regularly, and professional maintenance allows for checking:

• the condition of the coils;
• drainage;
• operating pressure and temperature;
• the cleanliness of the fan;
• electrical connections;
• the condition of the outdoor unit.

In an installation placed high above a door, filter access must be confirmed from the outset. This is a simple but essential detail.

Consider available subsidies

Clients in Montreal, Laval, Longueuil, the North Shore, and the South Shore often ask us about subsidies. Programs can vary depending on the period, the exact model, the eligibility of the residence, and applicable governmental or provincial criteria. The Fujitsu Orion XLTH, with its performance classifications and cold climate orientation, is the type of equipment often sought by homeowners who want to maximize their energy investment.

At AirGreen, we help our clients understand the applicable criteria at the time of the project, without promising a subsidy before full validation of the model, AHRI number, and current rules.

Avoid overly quick installations

An installation done too quickly can hide problems:

• refrigerant line bent too much;
• drain without sufficient slope;
• wall mount poorly anchored;
• indoor unit too close to the ceiling;
• poorly protected outdoor passage;
• lack of space for maintenance.

The Pierrefonds-Roxboro project is a good example of an installation where it was necessary to take the time to analyze the space before drilling, fixing, and connecting. The result is a clean, solid, and building-adapted installation.

A result designed for daily comfort

Once installed, the Fujitsu Orion XLTH 24,000 BTU wall-mounted heat pump provides stable comfort, both for summer air conditioning and heating during cold periods. For the client, the advantage is immediate: a single wall-mounted unit, strategically placed, capable of managing a large indoor area discreetly.

For AirGreen, this project perfectly illustrates our way of working: observe, plan, adapt, install rigorously, then deliver a solution that meets both technical expectations and the actual comfort of the occupants.
