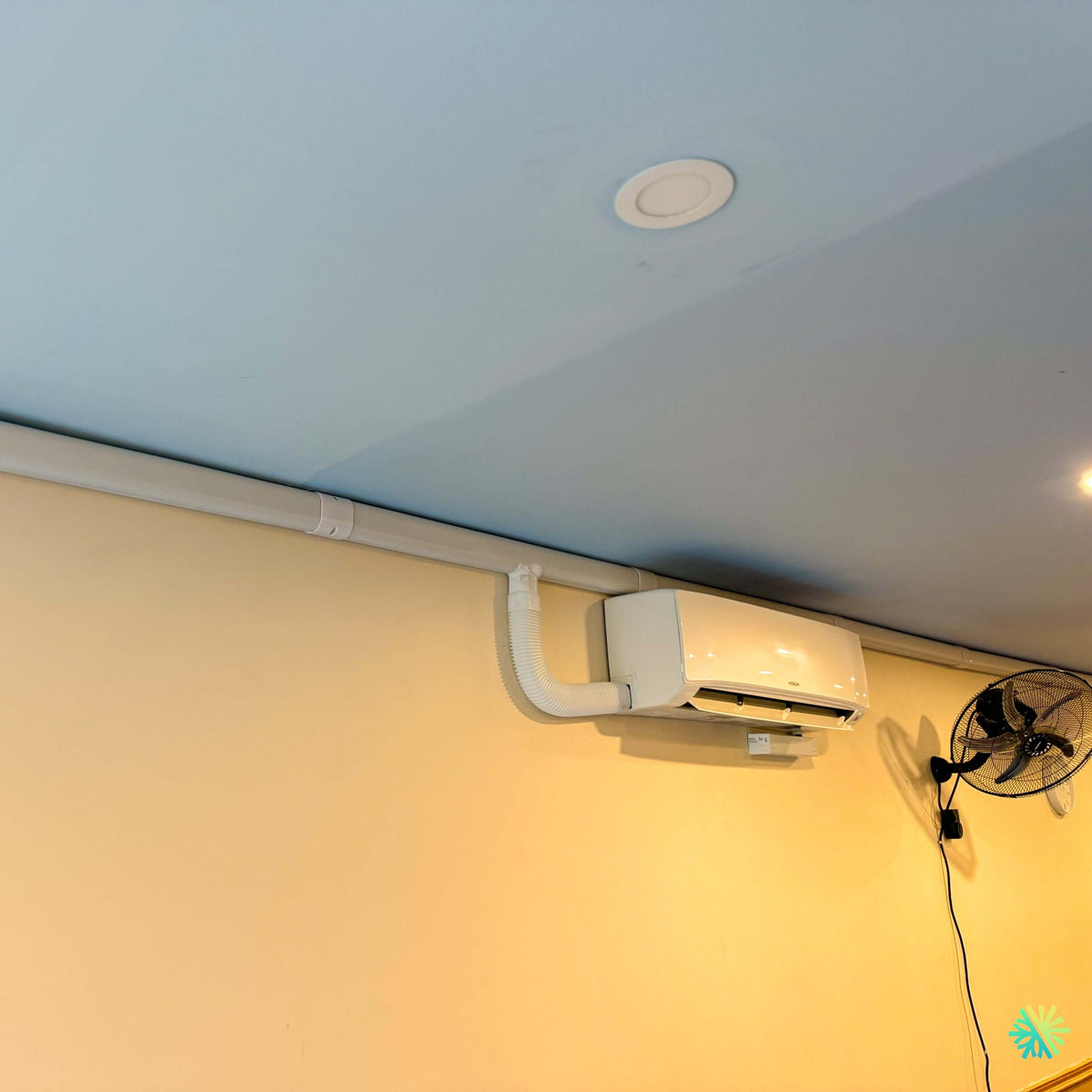

Installation of a Hitachi airHome 600 wall-mounted heat pump in Châteauguay, on Montreal’s South Shore

An Exposed Route Transformed into an Orderly, Functional HVAC Installation

This Hitachi airHome 600 wall-mounted heat pump installation in Châteauguay is distinguished by a constraint immediately visible in the photo: the lines could not simply pass through the wall directly behind the indoor unit. They had to follow a long horizontal section near the ceiling before reaching the heat pump.

In this type of project, the quality of the result depends as much on the system’s operation as on how the lines are integrated into the room. Unprotected piping would have resulted in an uneven finish, exposed the refrigerant insulation to impacts, and complicated future maintenance. We therefore used a rigid white line-set cover, installed in the upper part of the wall, where it meets the blue ceiling.

The route is clearly structured:

• A long horizontal section runs along the ceiling;
• The line-set cover joints remain aligned;
• A vertical transition descends toward the indoor unit;
• A flexible section forms a gradual curve;
• A finishing box protects the side entry point for the connections;
• The unit remains accessible from the front and underneath.

This configuration makes it possible to route the refrigerant lines, communication wiring, and drainage to the Hitachi airHome 600, while maintaining a cohesive appearance in the room.

Why the direct route behind the unit was not chosen

When a heat pump is installed on a completely unobstructed exterior wall, the lines can sometimes exit directly behind the unit. The result is then almost invisible indoors. However, this scenario is not possible in all buildings in Châteauguay.

Several factors may require a different route:

• The wall behind the unit opens onto another room;
• A structure, column, or beam blocks the passage;
• The best location for air distribution does not correspond to the exterior exit point;
• The drain slope requires a different route;
• Electrical or mechanical installations occupy the wall cavity;
• The owner wants to avoid opening a large portion of the ceiling or walls;
• The outdoor unit must be placed elsewhere to meet the required clearances.

Our job is therefore to design a route that remains mechanically compliant, accessible, and visually organized. In this installation, the passage near the ceiling uses a lightly used area of the room and avoids visually cutting across the center of the wall.

A gradual curve to protect the connections

The flexible section visible near the unit does not form a sharp angle. Instead, it follows a wide curve before entering the side housing.

This geometry is important. The copper lines of a heat pump must not be bent excessively. A bend that is too tight can:

• reduce the inside diameter of the line;
• create a restriction in the refrigerant circuit;
• damage the insulation;
• place strain on the flared connections;
• transmit vibrations to the wall;
• complicate future removal of the unit.

We must also preserve the drainage hose's route. Even when concealed in molding that appears horizontal, the drain must maintain a sufficient slope toward its discharge point.

An installation may look flawless on the day of the work yet develop a problem several weeks later if water remains trapped in a low spot. The first signs are often a flowing-water sound, an odor, unusual moisture, or a drop beneath the unit.

What We Check Before Closing the Line-Set Cover

Before completing the finish, we check in particular:

1. the condition and insulation of the copper lines;
2. the continuity of the drain slope;
3. the absence of pinching in the flexible section;
4. support for the lines along their entire length;
5. the fastening of the molding connectors;
6. the safe routing of the wiring;
7. the accessibility of the connections near the unit;
8. the absence of vibrations against the ceiling or wall.

The line-set cover is therefore not used to conceal an improvised installation. It provides the finishing touch for a system that must first be properly assembled and tested.

A unit placed high up without being enclosed against the ceiling

In the photo, the indoor unit is installed in the upper part of the wall, beneath a ceiling painted blue. This position makes use of the available height and helps extend the reach of the airflow.

However, the unit is not installed completely flush against the ceiling. The air intake of a wall-mounted heat pump is generally located on top of the unit. Insufficient clearance can limit the volume of air drawn in, increase noise levels, and make filter removal more difficult.

For every HVAC installation in Châteauguay, we must balance several clearances:

• the recommended clearance above the unit;
• the space required on the sides;
• the height allowing for good air distribution;
• the ability to open the front panel;
• access to the filters;
• the space required for the lines;
• the proximity of the other equipment in the room.

The installation plate must also be perfectly stable. A unit that is slightly tilted in the wrong direction can compromise condensate drainage. Insufficient fastening can create vibrations, especially when the fan changes speed.

Thoughtful coexistence with the existing wall-mounted fan

A black fan was already installed to the right of the new heat pump. We maintained a separation between the two units so as not to block the Hitachi unit's front panel or airflow louver.

This presence had to be taken into account when positioning the unit. An auxiliary fan can be useful for moving air to another part of a large room, but it should not blow directly into the heat pump's temperature sensor.

When warm or cool air is continuously directed toward the sensor, the unit may interpret a temperature that does not actually represent the rest of the room. This can lead to:

• premature shutdown;
• uneven temperature;
• unnecessary speed changes;
• poor perceived comfort;
• less efficient operation.

We recommend directing the wall-mounted fan to support the general circulation of air without continuously pushing its airflow toward the heat pump's upper intake.

Air distribution suited to a long or open room

The Hitachi airHome 600 is installed on a wall with clear space in front of its louver. This configuration allows the airflow to travel through the room rather than immediately encountering a cabinet, partition, or tall piece of furniture.

To improve cooling comfort, the louvers can generally be directed forward or slightly upward so that cool air gradually mixes with the ambient air. In heating mode, a lower orientation helps bring heat down toward the occupied area.

The setting should remain suited to the actual layout of the space. Maximum speed is not always necessary. Medium or automatic speed can produce a more even temperature and a more pleasant sound environment.

Features of the Hitachi airHome 600 that are useful in a building in Châteauguay

The Hitachi airHome 600 is a series of wall-mounted heat pumps with Inverter technology, available in nominal cooling capacities of 9,000, 12,000, 15,000, 18,000, and 22,000 BTU/h. Commercial documentation presents the range more broadly as a 9,000 to 24,000 BTU/h solution for heating and cooling.

The photograph does not allow the model numbers to be read. We therefore cannot reliably assign a precise capacity to this installation based solely on the cabinet width. The 9,000, 12,000, and 15,000 BTU/h models, in particular, have very similar indoor dimensions.

The exact capacity must be confirmed on the nameplates:

• RAK-GJ09PHAA / RAC-GJ09WHAA;
• RAK-GJ12PHAA / RAC-GJ12WHAA;
• RAK-GJ15PHAA / RAC-GJ15WHAA;
• RAK-GJ18PHAA / RAC-GJ18WHAA;
• RAK-GJ24PHAA / RAC-GJ24WHAA.

A capacity selected based on the building, not just its area

The required number of BTUs depends on several factors. An estimate based solely on square footage can result in a unit that is too large or too small.

When selecting a wall-mounted heat pump, we consider, among other things:

• the volume of the room;
• ceiling height;
• solar exposure;
• the number and quality of the windows;
• wall insulation;
• air infiltration;
• the use of the room;
• the presence of heat-producing appliances;
• the usual number of occupants;
• air circulation to adjacent rooms;
• the expected contribution of the heat pump to winter heating.

An oversized unit can quickly reach its setpoint and reduce its operation before properly dehumidifying the room. An undersized system may operate almost continuously during extreme periods without achieving the requested comfort level.

Inverter technology broadens the modulation range, but it does not correct an improper capacity selection.

Heating down to -25 °C with capacity maintained in cold weather

The airHome 600 series is designed to continue operating in heating mode down to an outdoor temperature of -25 °C. The manufacturer also indicates 100% heating capacity at -15 °C, depending on the conditions and combinations presented.

Low-temperature capacities vary by model. At -25 °C, the documentation indicates maximum heating capacities ranging from approximately 7,200 BTU/h for the 9,000 BTU/h model to 15,000 BTU/h for the largest model in the series.

This information is essential for a property located in Châteauguay. The rated capacity shown on a quote does not always correspond to the actual heat produced during a very cold night. We therefore need to compare performance at different outdoor temperatures, particularly when the heat pump must cover a significant portion of the heating load.

The range uses R32 refrigerant, features a standard heating element in the base of the outdoor unit, and offers ratings of up to 23.0 SEER2 and 9.2 HSPF2 for Region 5, depending on the selected combination. The five listed combinations are ENERGY STAR certified.

Inverter Technology to Limit Temperature Fluctuations

A conventional fixed-speed heat pump starts at full capacity, reaches the setpoint, and then stops. Inverter technology instead adjusts the compressor speed according to the actual load.

In a room like the one shown in the photo, this modulating operation allows the appliance to gradually reduce its output as the temperature stabilizes. The benefits experienced may include:

• fewer variations between cycles;
• more consistent temperature;
• better humidity management;
• fewer abrupt starts;
• energy consumption adapted to demand;
• more consistent sound levels.

However, actual performance remains dependent on installation. A sensor affected by a nearby fan, an obstructed unit, or improperly insulated piping can reduce the expected benefits.

FrostWash 3.0: Supporting Coil Cleanliness

FrostWash 3.0 technology works on the indoor coil in three phases. The coil is first heated, then cooled until ice forms. Particles become trapped in the ice before being carried away with the water as it melts.

This function can be started manually or activated automatically, depending on the settings. It helps reduce the buildup of contaminants on the heat exchanger, an important component for maintaining airflow and heat transfer.

However, it does not replace essential maintenance tasks:

• clean the filters regularly;
• inspect the condensate pan;
• check the condition of the drain;
• watch for unusual odors;
• have the blower cleaned when deposits accumulate on it;
• keep the outdoor unit clear.

An appliance equipped with a self-cleaning system may still require professional HVAC maintenance, particularly in a workshop, a high-traffic area, a room with pets, or an environment with more dust.

PM2.5 Filter and Odor Protection

The series includes a stainless-steel pre-filter and a PM2.5 activated carbon purification filter. This combination is designed to capture small particles and reduce certain odors.

The mold protection function also circulates air through the internal components after certain cycles to reduce residual moisture. This action can reduce conditions favorable to odor formation, without eliminating existing contamination.

The heat pump primarily treats the air in the area where it is installed. It does not replace an air exchanger, range hood, or ventilation system designed to renew the building's air.

Sound levels suitable for occupied rooms

Indoor sound levels vary according to capacity and fan speed. The 12,000 BTU/h combination can go as low as approximately 27 dB(A) in silent mode, while the range's detailed nominal data indicate slightly different values depending on the model.

To achieve truly quiet operation, the installation must avoid sources of unwanted vibration:

• poorly secured pipe cover;
• copper in direct contact with the structure;
• insufficiently anchored wall plate;
• indoor unit improperly secured to its bracket;
• drain vibrating against the casing;
• outdoor unit installed on an unstable base.

After installation, we perform tests in several modes to detect abnormal noise before completing the work.

Wi-Fi included and management through airCloud Go

The Hitachi airHome 600 documentation states that a Wi-Fi adapter is included for the different capacities. The airCloud Go app can be used to:

• adjust the temperature remotely;
• schedule a weekly program;
• view certain consumption estimates;
• use the compatible voice control;
• activate smart functions;
• manage operation based on occupancy patterns.

The Smart Eco function uses a motion sensor. When no presence is detected for a certain period, the heat pump can reduce its energy consumption before restoring its initial settings when an occupant returns.

In a space where schedules vary, this automation can prevent the same temperature from being maintained continuously when the room is unoccupied.

Eligibility for financial assistance must be verified for the exact combination

The brochure states that the range is eligible for most provincial heat pump incentives. This does not mean that every installation automatically receives the same financial assistance.

Eligibility depends in particular on:

• the exact numbers of the indoor and outdoor units;
• the list of appliances recognized by the program;
• the certified capacity;
• the type of building;
• the replaced or retained heating source;
• of the purchase and installation date;
• of the criteria in effect at the time of the application;
• of the documents provided by the contractor and the homeowner.

We recommend verifying eligibility before signing the contract, then keeping the detailed invoice, serial numbers, photos of the nameplates, and certification documents. The ENERGY STAR logo alone is not enough to confirm the amount of a subsidy.

Mistakes to avoid with a long indoor route

Neglecting the drainage slope

The longer the route, the more important it is to check the slope. A single low point can retain water.

Adding unnecessary connections

Each additional connection in the line-set cover increases the risk of misalignment, noise, or movement. The route must be planned before the sections are cut.

Forcing a bend that is too tight

A compact transition may appear more discreet, but it must never compromise the copper lines or the drain.

Installing the unit without taking the existing fan into account

Two poorly oriented air-circulation devices can distort the temperature reading or create an uncomfortable draft.

Mounting the unit against the ceiling

The air intake and filters must remain accessible. The finish must not make maintenance impossible.

Choosing the BTU capacity based on a photo or the width of the casing

Several models use the same indoor unit format. The nameplate and the load calculation remain the reliable references.

The result achieved by AirGreen in Châteauguay

This installation shows that an exposed route can be completed cleanly when every section is planned. The line-set cover follows the ceiling line, the transition to the heat pump is gradual, the connections are protected, and the front of the Hitachi remains unobstructed.

We also took the existing wall-mounted fan and the air circulation in the room into account. The heat pump is not simply a matter of occupying available space: its location must support comfort, maintenance, and long-term operation.

At AirGreen, we carry out wall-mounted heat pump installations in Châteauguay, as well as in Montreal, Laval, Longueuil, the South Shore, and the North Shore. Every project has its own constraints: concrete walls, finished ceilings, long piping runs, difficult drainage, distant outdoor units, or equipment that is already in place.

Our approach consists of examining these constraints before the work begins, selecting the appropriate capacity, and planning a finish that will remain practical after several years of use.
