Installation of a GREE CHARMO R32 wall-mounted heat pump in Westmount: discreet comfort, efficiency, and seamless integration into a bright residence

An HVAC Installation Designed to Respect the Interior Aesthetic of a Westmount Home

In Westmount, wall-mounted heat pump projects often require special attention. Residences there frequently feature well-maintained interiors, clear walls, large windows, relatively high ceilings, and architecture where every visible element must be installed with precision. For this intervention, our AirGreen team installed a GREE CHARMO R32, a wall-mounted heat pump – air conditioner – mini split designed to offer efficient comfort while discreetly blending into an already well-appointed living space.

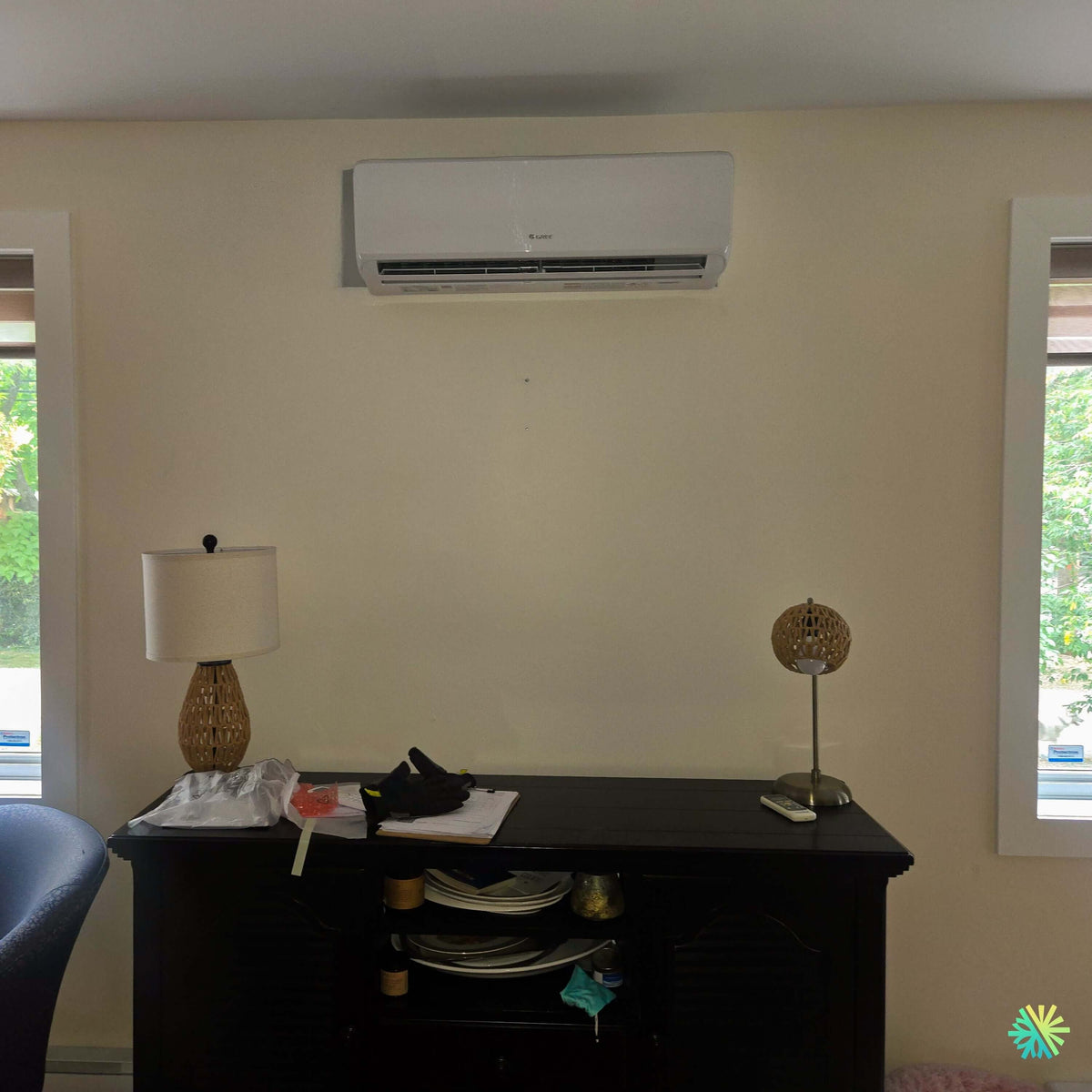

The project photo perfectly illustrates the goal: a white wall-mounted unit, installed high in the center of a light-colored wall, between two windows, above a low cabinet. This positioning is not accidental. It allows for more uniform air distribution in the room while maintaining a clean and balanced appearance. In a house where natural light enters generously through side openings, the unit had to be placed so as not to detract from the room's aesthetic or the daily use of furniture.

At AirGreen, we approach every HVAC installation as a technical project, but also as an integration into a real living space. In this specific case, the challenge was to maximize comfort without transforming the appearance of the room. The GREE CHARMO R32 met this requirement very well thanks to its understated design, quiet operation, and modern R32 refrigerant technology.

Why the GREE CHARMO R32 was well suited for this residence

The GREE CHARMO R32 is a wall-mounted air conditioning and heat pump heating solution that meets the needs of many homeowners in Greater Montreal. It is particularly interesting for residences where the goal is to improve comfort in a specific area without installing a complete central system.

In this Westmount home, the objective was clear: to ensure a more stable temperature in a living room exposed to solar heat, while also providing an efficient auxiliary heating solution during cooler periods. Large windows bring in a lot of light, but they can also increase heat gain in summer. A well-positioned GREE wall-mounted heat pump can correct this imbalance without oversizing the equipment.

The CHARMO R32 series is distinguished by:

• the use of R32 refrigerant, known for its better environmental profile compared to some older refrigerants;
• inverter compressor technology, which modulates power according to actual demand;
• comfortable air distribution, suitable for residential rooms;
• a discreet wall-mounted format, ideal for spaces where appearance matters;
• quiet operation, particularly appreciated in a living room, family room, or resting area;
• attractive energy efficiency for owners concerned about reducing their consumption.

In areas like Montreal, Laval, Longueuil, the North Shore, and the South Shore, this type of system is often chosen by clients who want a flexible, durable, and more economical solution than traditional electric heating used alone.

Strategic positioning between two windows

One of the most important aspects of this installation was the choice of the indoor unit's location. The photo shows that the wall-mounted heat pump is installed high up, centered on a wall between two windows. This configuration offers several concrete advantages.

First, air can be distributed into the room without major obstruction. The furniture below the unit does not block air circulation, as the unit is high enough. Second, the central positioning helps avoid uncomfortable zones: a corner too cold in cooling mode, or an area less well heated in heating mode.

However, installing a wall-mounted air conditioner above furniture requires great precision. Our technicians must consider the available height, the clearance below the unit, the slope of the condensate drain, access for future maintenance, and the routing of refrigerant lines. A wall-mounted unit should never be placed simply because it "fits" visually into a space. It must also function correctly, remain accessible, and allow for reliable drainage.

In this Westmount project, our team therefore validated:

1. the wall structure;
2. the distance from the ceiling;
3. the distance between the unit and the windows;
4. the absence of major obstruction in front of the diffusion louvers;
5. the optimal path for the refrigerant lines;
6. the possibility of easily maintaining the filters;
7. the aesthetic integration of the whole.

This preparatory work is often what distinguishes a professional installation from a merely functional one. A successful HVAC installation must be beautiful, reliable, and performant in the long term.

A Clean, Precise Execution Adapted to the Realities of Westmount Homes

Westmount homes sometimes present particular constraints: older walls, delicate interior finishes, limited mechanical spaces, high aesthetic requirements, and sometimes an exterior configuration that complicates the placement of the condenser. Even when an indoor unit seems simple to install, the work behind the wall and outside requires complete technical expertise.

For this GREE CHARMO R32 installation, our team worked with a methodical approach to limit unnecessary openings, protect interior surfaces, and ensure clean routing of conduits. The visible result is a well-aligned unit, discreet and consistent with the room's layout.

Key steps of our installation

A mini-split wall-mounted heat pump installation involves several essential steps. At AirGreen, we never reduce this work to merely attaching a device to the wall. Each step influences performance, durability, and customer satisfaction.

Room analysis and validation of comfort load

Before installation, we evaluate the room to be treated: area, ceiling height, sun exposure, insulation level, number of windows, air circulation, and usage habits. In Westmount, large windows can have a significant impact on indoor temperature, especially during hot days.

A heat pump that is too small risks running continuously and never achieving the desired comfort. A heat pump that is too large can cause short cycling, reduce dehumidification, and create an abrupt sensation of cold air. The correct capacity choice is therefore essential.

Installation of the wall plate and unit alignment

The mounting plate must be perfectly level. A slight deviation can impair the appearance of the installation, as well as the drainage of condensation water. In this residence, the unit was positioned to appear naturally integrated into the wall, without any imbalance between the windows.

Visual alignment is particularly important in a symmetrical room. A slightly off-center or tilted unit quickly becomes noticeable. Our team therefore took the necessary time to achieve a clean result.

Routing of refrigerant lines and drain

Refrigerant lines, communication wiring, and the drain must be installed according to applicable standards. Drainage is one of the most critical points. An incorrect slope or poorly planned routing can cause water leaks, odors, noise, or maintenance problems.

For this type of project, we plan the route to minimize visual impact, while maintaining an accessible and durable installation. When necessary, outdoor protectors or line covers can be used to achieve a cleaner finish.

Outdoor unit installation

Even though the photo shows the indoor unit, the proper functioning of the system also strongly depends on the outdoor installation. The condenser must be placed in a stable, ventilated, and accessible location. Consideration must also be given to noise, clearance around the unit, snow removal, defrost water drainage, and local regulations or property-specific constraints.

In dense residential areas like Westmount and certain sectors of Montreal, the choice of outdoor location often requires more thought than in an isolated house in the suburbs. Our teams consider proximity to neighbors, pedestrian walkways, service access, and external aesthetics.

Vacuuming, testing, and startup

Once connections are made, the system must be properly vacuumed to eliminate moisture and air in the lines. This step is fundamental to protect the compressor and ensure system performance. Our technicians then check pressures, connections, drainage, communication between units, and operation in both cooling and heating modes.

The client also receives explanations on how to use the remote control, available modes, temperature adjustment, louver direction, and best practices for HVAC maintenance.

Common mistakes to avoid during a wall-mounted heat pump installation

A wall-mounted heat pump project may seem simple, but certain errors frequently occur when the installation is not planned by specialists.

Installing the unit too close to the ceiling

A unit too close to the ceiling may lack return air, become less efficient, and complicate filter maintenance. Sufficient clearance must be maintained to ensure proper airflow.

Choosing the location solely based on appearance

Aesthetics are important, especially in a home like this one in Westmount. However, the unit must also be placed to distribute air effectively. A unit hidden in a corner may seem discreet, but it risks poorly air conditioning the room.

Neglecting drainage

The condensate drain must be carefully planned. Inadequate slope or an overly complex path can lead to water problems. This is one reason why an HVAC installation must be performed by an experienced team.

Underestimating the importance of the outdoor unit

A poorly placed condenser can lose efficiency, become noisy, accumulate snow, or hinder maintenance. Indoor comfort also begins with a good outdoor installation.

Forgetting regular maintenance

Even an excellent GREE heat pump requires maintenance. Filters must be cleaned regularly, the outdoor unit must remain clear, and a periodic professional check helps maintain performance.

The Comfort Achieved After Installation

After commissioning, the difference felt in the room was immediate. The GREE CHARMO R32 stabilizes the temperature without creating aggressive drafts. The high installation promotes efficient distribution, while inverter modulation helps the system operate more consistently.

For the client, the main advantage is control over comfort. The room can now be cooled during hot periods, but also heated in the off-season without relying solely on electric baseboards or a less flexible existing system.

In Westmount homes, where several rooms may have different thermal behaviors due to orientation, windows, or age of construction, a mini-split wall-mounted heat pump can become a very relevant solution. It allows for treating a specific area with more control.

The GREE CHARMO R32 and Available Subsidies

Homeowners who install an eligible wall-mounted heat pump may sometimes benefit from subsidy programs, particularly through Hydro-Québec or other programs in effect, depending on the exact model, installed capacity, and applicable criteria at the time of the project.

For a GREE CHARMO R32, eligibility must always be confirmed with the precise information of the installed equipment, including the model number, capacity, applicable certification, and program requirements. At AirGreen, we help our clients understand the necessary documents, invoices, technical information, and steps to follow after installation.

This support is important because a subsidy does not only depend on the brand. It depends on the exact appliance, its performance, the conformity of the installation, and the program in effect. Our clients in Montreal, Laval, Longueuil, the North Shore, and the South Shore appreciate this clarity, especially when comparing multiple quotes.

Why choose AirGreen for a GREE installation in Westmount

A successful installation is not based solely on the choice of machine. It also depends on the quality of work, the precision of the diagnosis, the conformity of the installation, and the team's ability to adapt to the constraints of each residence.

For this project in Westmount, our added value was demonstrated in several details:

• thoughtful choice of interior location;
• careful visual integration between two windows;
• respect for existing surfaces and layout;
• clean and aligned installation;
• drainage verification;
• full system startup;
• clear explanation of operation to the client;
• maintenance recommendations adapted to actual use.

We have carried out similar installations in homes, condos, and small residential buildings in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore. Each property has its own specificities: low ceilings, masonry walls, co-ownership constraints, long piping distances, limited exterior access, aesthetic requirements, or higher heating needs. This experience allows us to anticipate problems before they become costly.

Practical tips for homeowners considering a wall-mounted heat pump

Before choosing a GREE CHARMO R32 wall-mounted heat pump or another model, it is helpful to consider a few concrete points.

Evaluate the room, not just the area

Two rooms of the same size can have different needs. A very bright, south-facing room will require a different analysis than a shaded and well-insulated room.

Consider the location from the start

The ideal location must combine performance, discretion, access for maintenance, and technical feasibility. The indoor unit must effectively distribute air, while the outdoor unit must be stable, clear, and accessible.

Compare installation quality, not just price

A lower quote can hide compromises: line covers not included, limited piping distance, less robust outdoor support, no explanation of drainage, or lack of electrical details. A durable HVAC installation must be clear from the outset.

Plan for maintenance

Regular filter cleaning improves air quality and performance. Periodic professional maintenance also allows for checking components, drainage, the condition of the outdoor unit, and general operation.

A discreet installation that transforms daily comfort

This GREE CHARMO R32 installation in Westmount demonstrates that a wall-mounted heat pump can be both efficient, discreet, and well-integrated. The indoor unit harmonizes with the light wall, remains accessible, does not obstruct windows, and provides effective air distribution in the room.

For AirGreen, this type of project represents exactly what we seek in a residential intervention: a suitable technical solution, a clean finish, real comfort for the client, and an installation designed to last. Whether in Westmount, elsewhere in Montreal, in Laval, in Longueuil, on the North Shore, or on the South Shore, our approach remains the same: recommend the right equipment, install it correctly, and deliver a result that inspires confidence from day one.
