An installation in Ville-Marie where a few centimeters made all the difference
In the condos, lofts, and apartments of Ville-Marie, the space available for installing a wall-mounted heat pump is often much more limited than in a single-family home. Ceilings may be uneven, walls may have returns or angles, and owners generally want an installation that is as discreet as possible.
This is exactly what this Hitachi airHome 400 in Ville-Marie installation demonstrates. The indoor unit was positioned very high on the wall, near the ceiling and close to an architectural corner. The photo taken from below clearly highlights the precision required to achieve a straight, stable, and accessible installation despite the lack of space.
At first glance, the wall-mounted unit appears to be simply installed in the upper part of the wall. In reality, this configuration requires several important checks:
- space available above the unit;
- distance from the side wall;
- ability to open the front panel;
- access to the filters;
- air circulation in the intake area;
- clearance for the air outlet flap;
- wall penetration position;
- condensate drain slope;
- strength of the mounting surface.
A mistake of just a few centimeters could complicate future maintenance or reduce airflow quality. We therefore adapted the installation to the room's actual constraints rather than applying a standard position.
A wall-mounted unit positioned near the ceiling without blocking the intake
The indoor unit of a heat pump primarily draws in air through its upper section. This air then passes through the filters and heat exchanger before being discharged through the lower section.
When the appliance is installed near the ceiling, the required clearance must be maintained to prevent the intake from being partially obstructed. A unit that is too tightly positioned may operate, but with less favorable airflow, more noise, and difficult access to the filters.
In this installation in Ville-Marie, the unit is positioned high to free up wall space and improve air distribution throughout the room, but its placement was carefully determined.
We checked:
- the space required to open the panel;
- front access to the filters;
- the full movement of the lower flap;
- no contact with the ceiling;
- the ability to work on the sides;
- the alignment of the wall plate;
- the position of the pipes and drain line.
The Hitachi airHome 400 documentation specifically presents several features designed to facilitate installation and servicing, including removable side covers, a drain connection configurable on the left or right, a removable drain pan, and a front panel that can be removed with few screws.
A wall corner that required very precise measurement

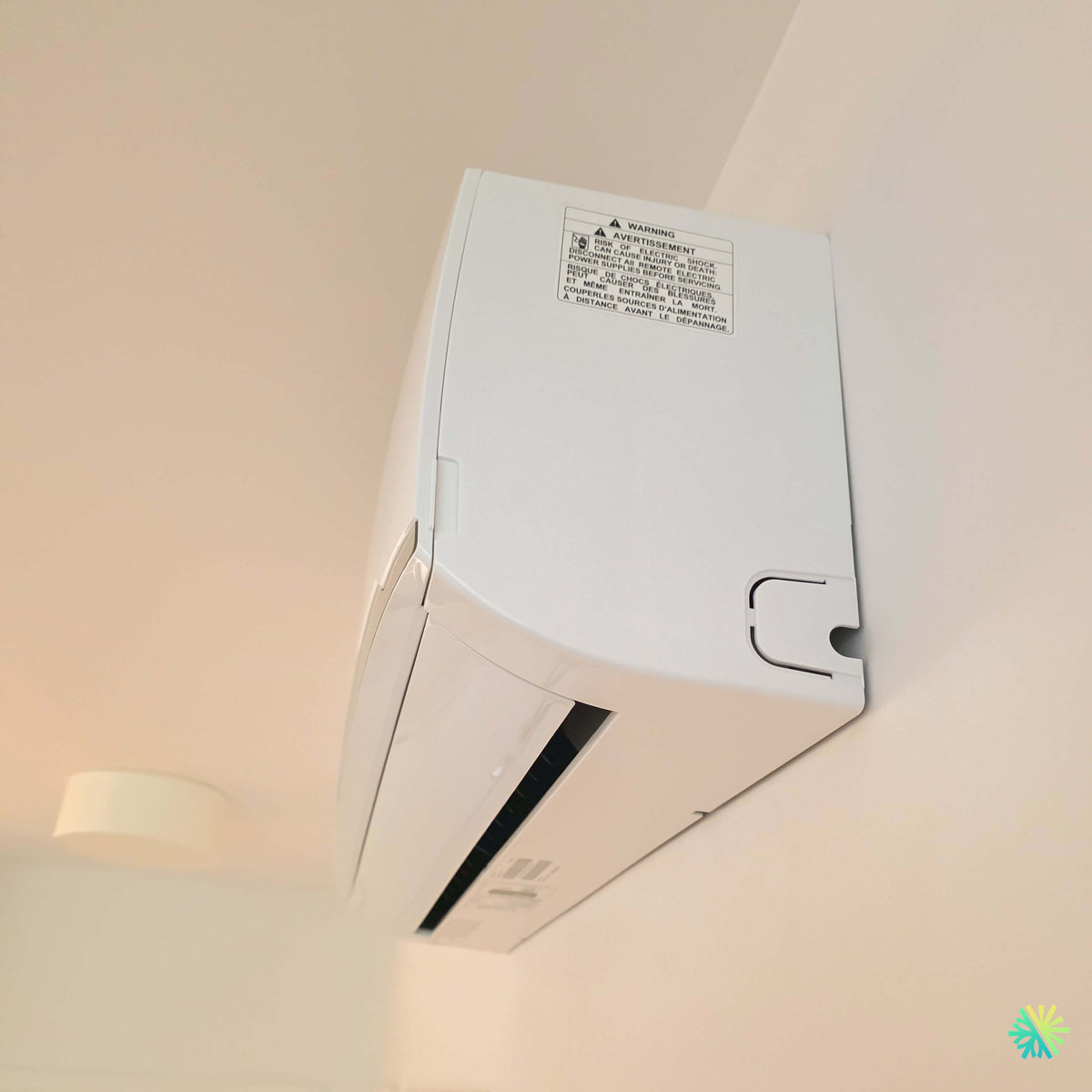

The photo shows that the right side of the unit is installed close to a wall return. This detail is important. A wall-mounted unit placed too close to a corner may be difficult to remove or may limit access to the side casing.
The way the front panel lifts must also be taken into account. In some spaces, a unit may appear well positioned when the panel is closed but become impossible to open fully.
We therefore assessed the unit’s actual footprint, not just its dimensions on paper. This includes:
- the depth of the panel when it opens;
- the width needed to remove the covers;
- access to the drain connection;
- the clearance around the pipes;
- the space required for cleaning.
This attention to detail is particularly important in downtown condos, where every wall may accommodate cabinets, light fixtures, moldings, or architectural elements.
A visually discreet installation in a bright interior
The white unit blends naturally into light-colored walls and ceilings. In an urban space, the owner often seeks an air-conditioning and heating solution that does not dominate the room.
The Hitachi airHome 400 has a clean-lined casing. Installed high on the wall, it frees up usable wall space for furniture, artwork, or decorative elements.
Visual quality nevertheless depends greatly on installation precision. A slightly tilted wall-mounted unit quickly becomes noticeable, especially in a room with straight lines and uniform surfaces.
Before final fastening, we check that the plate is level horizontally. This step also affects condensate management. An improperly leveled unit can encourage water to accumulate on one side of the drain pan.
Why drainage is critical in a condo
In air conditioning, the heat pump removes moisture from the air. This water must be continuously drained through the drain line.
In a house, a leak can damage a wall or floor. In a condo, it can also reach a unit below and create a problem with the condominium corporation.
We therefore pay particular attention to:
- the drain slope;
- the watertightness of the connections;
- the pipe support;
- protection against crushing;
- where the water is discharged;
- access for future maintenance.
When the drain operates by gravity, its slope must remain constant. A reverse slope can trap water, produce gurgling sounds, or cause an overflow.
If a condensate pump is required, it must be selected and installed in a way that limits noise and facilitates maintenance. The photograph does not make it possible to confirm the drainage method used in this project, but this check is always part of our planning.
Routing the lines behind the unit
The absence of a visible line-set cover next to the unit suggests direct integration toward the rear or a concealed passage through the structure. This type of result provides a very clean finish, but requires greater precision when drilling.
The wall penetration must correspond to the exact position of the unit's outlet. An alignment error may require unnecessarily enlarging the opening or forcing the lines.
We plan the route while taking into account:
- the pipe diameter;
- the insulation;
- the communication cable;
- the drain;
- the copper's bend radius;
- the required slope;
- sealing around the wall penetration.
The refrigerant lines must never be bent sharply behind the wall-mounted unit. A bend that is too tight can restrict the internal passage or weaken the copper.
A solid installation despite the elevated position
An indoor unit must be mounted on a securely anchored plate. Depending on the building's construction, the wall may consist of drywall, metal studs, wood studs, masonry, or a more complex assembly.
In a condo in Ville-Marie, we cannot assume what the wall is made of. We must verify the structure and use the appropriate anchors.
Insufficient fastening can cause:
- slight movement of the unit;
- vibrations;
- resonance noise;
- pressure on the lines;
- loss of level;
- cracks around the anchors.
The unit visible in the photo is installed very high up. This makes precise anchoring even more important, as any vibration can be transmitted to the ceiling or adjacent wall.
Why the Hitachi airHome 400 is well suited to several condo projects in Montreal
The Hitachi airHome 400 is a line of wall-mounted heat pumps with Inverter technology, available in several capacities. According to the manufacturer's documentation, the series includes models ranging from 9,000 to 36,000 BTU/h.
This variety makes it possible to adapt the system to different types of spaces:
- studio;
- open-plan condo;
- bedroom;
- living room;
- entire floor;
- light commercial space;
- small townhouse.
The exact capacity of the system installed in this project cannot be confirmed from the photo alone. Several models in the series have a similar appearance. We need to read the indoor and outdoor nameplates to identify the exact combination.
Inverter technology for more consistent comfort
The Hitachi airHome 400 uses Vector DC Inverter technology. The compressor adjusts its speed according to actual demand instead of operating only at full capacity.
In a condo, this modulation is particularly useful. Requirements can change quickly depending on:
- sunlight;
- the number of occupants;
- cooking;
- open windows;
- the presence of electronic devices;
- the temperature of neighboring units.
An Inverter heat pump can increase its capacity at startup, then slow down as the temperature approaches the setpoint.
This contributes to:
- reduce temperature fluctuations;
- maintain quieter operation;
- limit short cycles;
- improve dehumidification;
- adjust consumption to demand;
- provide more consistent comfort.
The Hitachi brochure also presents an Eco mode that adjusts operation to reduce consumption.
High performance, but different depending on capacity
The airHome 400 series features performance data that varies by model.
The documentation indicates, among other things:
- up to 20.0 TRÉS2;
- up to 10.5 CPSC2 in Region 4;
- a COP at 8 °C of up to 3.3;
- a COP at -15 °C that varies by capacity;
- a rated heating capacity of 10,000 to 35,000 BTU/h;
- a rated cooling capacity of 9,000 to 33,000 BTU/h.
These values must be associated with the exact combination. For example, the 9,000 BTU/h model displays different data from the 18,000 or 24,000 BTU/h model.
For a condo, you should not choose a capacity that is too high simply to obtain faster cooling. An oversized unit may reduce its dehumidification cycles and create comfort fluctuations.
Proper sizing in a Ville-Marie condo
Floor area is important, but it is not enough.
We also evaluate:
- ceiling height;
- the amount of glazing;
- the condo’s orientation;
- sun exposure;
- the floor;
- whether there is a roof above;
- insulation;
- open spaces;
- doors between rooms;
- internal heat loads.
A top-floor condo with large windows may require more air conditioning than a unit of the same size located between two floors.
Conversely, a very well-insulated condo surrounded by other heated units may require less heating capacity.
Quiet indoor operation
Some 9,000 and 12,000 BTU/h models in the airHome 400 lineup can operate at 29 dB(A) in quiet mode. Larger models have higher minimum sound levels.
In a condo, indoor noise is often a top concern. The heat pump may be located near the living room, kitchen, or even a bedroom.
Actual noise levels also depend on the installation:
- stable wall plate;
- properly leveled unit;
- lines with no rigid contact;
- properly secured line-set cover;
- clean filters;
- clean blower;
- capacity suited to the room.
A machine that is quiet on paper can become bothersome if it is poorly installed.
FrostWash and Mold Guard to make it easier to keep the unit clean
The Hitachi airHome 400 includes the FrostWash function on the indoor unit. It uses a freeze-and-thaw cycle on the heat exchanger to capture and remove some of the impurities.
The Mold Guard function circulates air through the internal components and heats the coil to limit conditions favorable to odors and mold growth.
The brochure also presents:
- a stainless steel prefilter;
- an activated carbon filter;
- filtration targeting PM2.5 particles;
- a deodorizing function.
These features can help keep the unit cleaner, but they do not replace filter cleaning or periodic HVAC maintenance. The manufacturer also specifies that Mold Guard can help prevent mold growth without eliminating mold that is already present.
Maintenance is still required despite the high installation
The unit's elevated position frees up wall space, but it makes the filters less immediately accessible. The owner will need to use a stable stepladder to clean them.
We particularly recommend:
- to check the filters every month during periods of intensive use;
- to clean them according to their condition;
- to observe the airflow;
- to watch for odors;
- to have the drain inspected;
- to schedule a deep cleaning if the blower wheel is dirty.
A dirty filter can reduce airflow, increase noise, and extend operating cycles.
R32 refrigerant and piping requirements
The airHome 400 models use R32 refrigerant. Pipe diameters depend on capacity.
According to the technical table:
- 9,000 and 12,000 BTU/h: 1/4 in. liquid and 3/8 in. gas;
- 18,000 BTU/h: 1/4 in. liquid and 1/2 in. gas;
- 24,000 BTU/h: 1/4 in. liquid and 5/8 in. gas;
- 36,000 BTU/h: 3/8 in. liquid and 5/8 in. gas.
Maximum piping lengths range from 82 to 165 feet depending on the model, with maximum elevation differences of 49 to 98 feet.
In a Ville-Marie building, these limits are important. The outdoor unit may be installed on a balcony, terrace, roof, or in a remote mechanical area.
We therefore need to calculate the actual routing before confirming feasibility.
Electrical requirements by model
The series includes 208–230 V models as well as a 12,000 BTU/h version at 115 V.
For 208–230 V models, the indicated minimum circuit ampacity ranges from 8 to 27 A depending on capacity, while the maximum overcurrent protection ranges from 15 to 40 A.
In a condo, we need to verify:
- available space in the panel;
- electrical capacity;
- breaker type;
- cable routing;
- condominium regulations;
- disconnect switch location;
- building requirements.
A heat pump should never be selected without verifying these constraints.
Control via remote control, Wi-Fi, and optional thermostat
The remote control manages the main functions:
- heating;
- cooling;
- temperature;
- fan speed;
- air direction;
- minimum heat maintenance mode;
- sleep function.
An optional Wi-Fi adapter may enable remote control, weekly scheduling, and certain monitoring features.
In a Ville-Marie condo, this option may be practical for:
- adjust the temperature before returning home;
- reduce consumption during an absence;
- maintain a minimum temperature in winter;
- avoid leaving the unit at full capacity unnecessarily.
An airPoint Room H700 wall-mounted thermostat is also available as an option, depending on model compatibility.
System warranty and registration
The brochure presents a standard seven-year warranty on the compressor and five years on parts.
For certain residential installations registered online, a ten-year extended warranty on the compressor and parts is indicated at no additional cost. An enhanced option with twelve years on the compressor, ten years on parts, and ten years on labor is also presented, subject to the applicable terms and purchase of the upgrade.
We always recommend registering promptly after installation and keeping:
- invoice;
- serial numbers;
- model numbers;
- commissioning date;
- warranty documents.
Rebates: confirm the exact combination
The documentation indicates that the airHome 400 series qualifies for several provincial heat pump incentives.
However, the amount cannot be calculated solely based on the name of the product line.
The following must be confirmed:
- the indoor model;
- the outdoor model;
- the approved combination;
- the recognized capacity at the reference temperature;
- the program in effect;
- the type of residence;
- the installation date;
- the required documents.
In a condo, you must also check whether the owner can submit the application directly or whether certain condominium documents are required.
Mistakes to avoid in a tight interior installation
This Ville-Marie installation highlights several common mistakes.
Installing the unit too close to the ceiling
This can reduce airflow and make filter removal more difficult.
Neglecting the wall return
The side of the unit must remain accessible for servicing.
Choosing the location based solely on aesthetics
Air distribution, drainage, and maintenance must remain priorities.
Drilling before confirming the outdoor routing
In a condo, pipe routing may be limited by the structure and regulations.
Using a capacity that is too high
An oversized unit does not guarantee better comfort.
Failing to check the electrical panel
Requirements vary depending on the selected capacity.
Forgetting about future access
A very discreet installation must not make servicing impossible.
An AirGreen installation adapted to downtown architecture
This wall-mounted heat pump installation in Ville-Marie shows that a tight interior space can accommodate a Hitachi airHome 400 when the installation is precisely planned.
We adapted the installation to:
- a nearby ceiling;
- a wall angle;
- limited side clearance;
- a clean interior finish;
- a need for discreet integration;
- future access to preserve.
In Montreal, constraints vary from one building to another. Some projects take place in modern condos, while others are in older plexes, lofts, or renovated buildings. The structure, condominium regulations, pipe routing, and location of the outdoor unit can completely change the installation method.
Whether we work in Ville-Marie, Laval, Longueuil, on the North Shore, or the South Shore, we seek the same result: a clean, durable, accessible installation that is truly suited to the building.
This HVAC installation in Montreal demonstrates that choosing the machine is only part of the work. Positioning, drainage, clearances, and fastening precision also determine the quality of comfort for many years.
