Installation of a Hitachi airHome 400 wall-mounted heat pump in a residence in Montreal’s West Island

A compact installation in a tight corner, with the lines routed laterally and clearances carefully verified

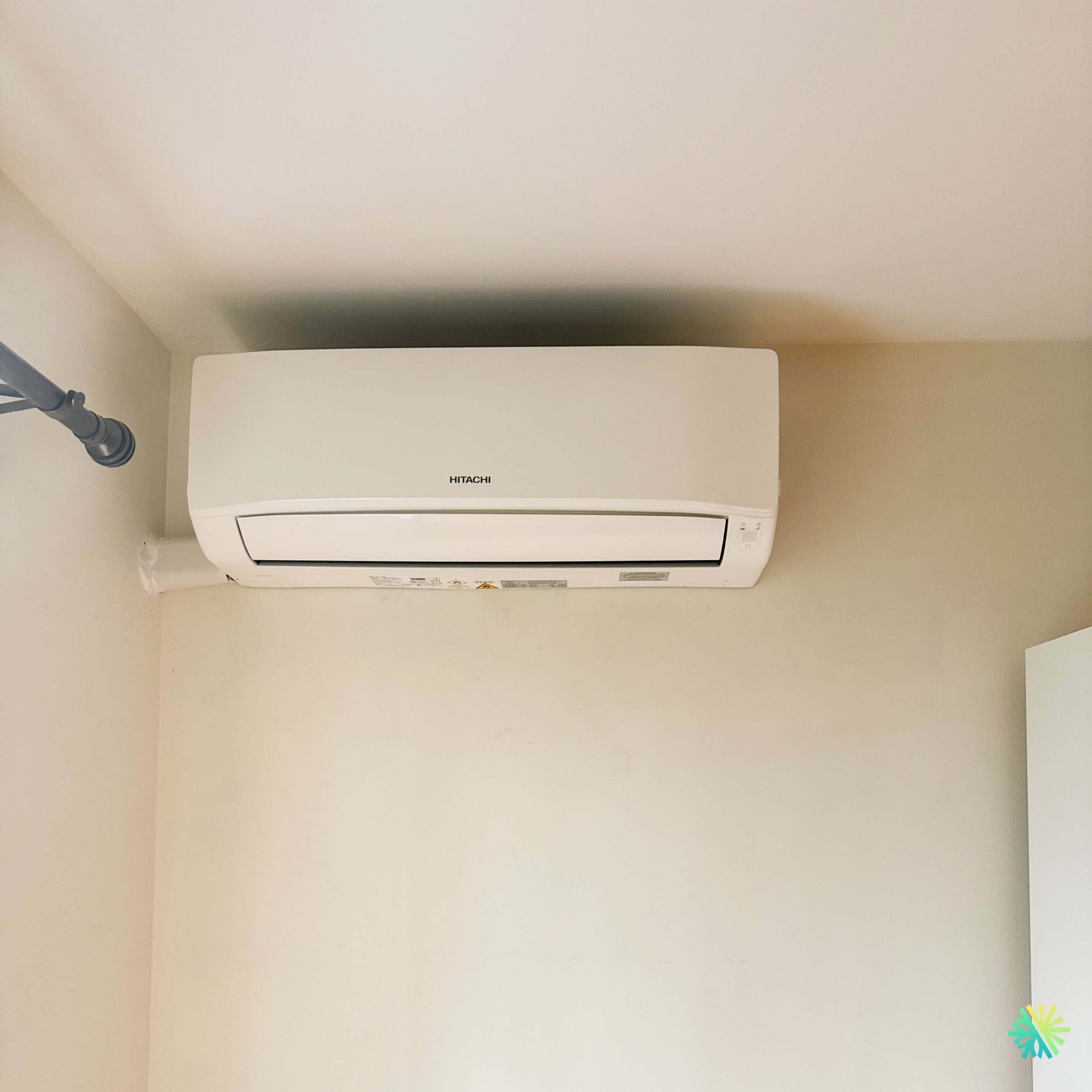

In this residence in Montreal’s West Island, our AirGreen team installed a Hitachi airHome 400 wall-mounted heat pump in a room where the wall configuration required particularly precise planning. The indoor unit had to be placed near the ceiling, between a wall corner, a curtain rod, and a tall cabinet on the right.

The photograph taken at the end of our work clearly shows the chosen solution. The unit is installed in the upper part of the wall, while a short white line-hide cover extends from the left side to reach the adjacent wall. The unit maintains functional clearance below the ceiling, its louver can open freely, and the casing remains accessible for inspections and maintenance.

This type of project accurately reflects the realities of a wall-mounted heat pump installation in the West Island. In many homes in Montreal’s West Island, the ideal location must take into account windows, curtains, cabinets, the building’s structure, and the possible position of the outdoor unit. A successful installation rarely relies on the first available wall.

Three visible constraints that guided our choice

The image makes it possible to identify three important elements around the indoor unit.

On the left, a curtain rod projects into the room. On the right, the top of a cabinet is relatively close to the heat pump. Above, the ceiling leaves limited clearance for the intake area.

We therefore had to install the unit in a way that would avoid:

• the curtain or its rod coming into contact with the unit;
• the cabinet blocking the airflow;
• the ceiling restricting air intake;
• the front panel becoming impossible to open;
• the path of the lines forming a reverse slope;
• the unit casing being subjected to lateral pressure after it is secured.

The selected position makes it possible to preserve the unit’s operation while using a section of wall that would have been difficult to use for anything else.

Why a room corner can be a good location

A location near a corner is not necessarily a compromise. In some rooms, it may even offer a better solution than the center of the wall.

It can help bring the lines closer to an exterior wall or a simpler routing path. It can also free up the central part of the wall for furniture, artwork, or circulation.

The side clearance must nevertheless be checked. If the unit is installed too close to the adjacent wall, it may:

• reduce air intake;
• limit removal of the side panel;
• complicate the drain connection;
• create turbulence;
• make future service more difficult.

In this West Island installation, we maintained the necessary clearance while using the left side as the starting point for the line-set cover.

A clean side passage for the refrigerant lines

The small white cover visible on the left conceals the components connecting the indoor unit to the rest of the system.

The following usually pass under this cover:

• the two insulated refrigerant lines;
• the communication cable;
• the condensate drain;
• depending on the system, part of the electrical wiring.

A side passage is often necessary when the hole cannot be drilled directly behind the unit. This may be due to the wall structure, the location of the outdoor unit, or the need to avoid an obstacle.

The quality of this run directly affects the finish and operation. The copper must not be bent too sharply. The insulation must remain intact. The drain must maintain a continuous slope. The cover must be secured without compressing the bundle.

Drainage: an essential detail in a short horizontal run

In air conditioning mode, the heat pump removes moisture from the air. This moisture becomes water on the indoor coil before being directed to the drain.

A short horizontal run may seem simple, but it still requires a precise slope. A rise of just a few millimeters can be enough to slow drainage.

Improper drainage can lead to:

• water in the drain pan;
• gurgling noises;
• a musty odor;
• an overflow;
• stains on the wall;
• damage to the furniture.

During this installation, we checked the slope before closing the cover. We then performed a drainage test to confirm that the water was leaving the unit properly.

A Hitachi lineup ranging from 9,000 to 36,000 BTU/h

The Hitachi airHome 400 is available in several capacities, ranging from 9,000 to 36,000 BTU/h depending on the combination of indoor and outdoor units. The lineup includes nominal configurations of 9,000, 12,000, 18,000, 24,000, and 36,000 BTU, as well as a 12,000 BTU version powered by 115 V.

The exact capacity of the unit shown in the photo cannot be confirmed based on its dimensions alone. Several models use a similar cabinet.

At AirGreen, we determine capacity based on actual thermal needs rather than the amount of wall space available.

Our analysis takes factors such as these into account:

1. area served;
2. ceiling height;
3. number of windows;
4. sun exposure;
5. insulation level;
6. walls facing outdoors;
7. the openness between rooms;
8. heating load in winter;
9. internal heat sources;
10. occupant habits.

Characteristics of West Island homes

The West Island includes homes built during different periods, with highly varied layouts. These include bungalows, two-story homes, renovated residences, and properties with large expanses of glass.

Two rooms of the same size may therefore require different capacities.

A west-facing room with a large window can accumulate significant heat late in the day. A room above a garage may experience greater heat loss in winter. An open-concept area may require greater airflow range than an enclosed bedroom.

That is why we avoid simplified rules based solely on square footage.

Vector DC Inverter technology and modulating operation

The Hitachi airHome 400 uses Vector DC Inverter technology, allowing the compressor to adjust its speed.

A conventional compressor often operates at full capacity and then stops when the desired temperature is reached. An Inverter system can instead slow down and continue providing reduced capacity.

This modulation offers several benefits:

• more stable temperature;
• fewer on-off cycles;
• quieter operation;
• better humidity control;
• consumption better matched to demand;
• more even comfort.

In a room where the unit is installed near a piece of furniture or an area that is frequently occupied, this modulation capacity also helps reduce the sensation of an overly strong airflow.

Seasonal efficiency of up to a SEER2 of 20.0

Depending on the model, the airHome 400 range can achieve a SEER2 of 20.0. Other configurations offer values of 19.5, 19.0, or 18.3.

SEER2 measures seasonal cooling efficiency under standardized conditions.

To properly compare two heat pumps, you must also consider:

• COP at different temperatures;
• heating capacity at -8 °C;
• available capacity at -15 °C;
• noise level;
• modulation range;
• electrical requirements;
• installation quality;
• warranty coverage.

A high figure on a specification sheet is useful, but it does not replace proper sizing or rigorous commissioning.

Heating down to approximately -20.5 °C

The models in this range are designed to operate in heating mode down to approximately -20.5 °C.

This range allows the heat pump to contribute to heating for much of the winter in the West Island. However, the available capacity varies according to the outdoor temperature.

Hitachi documentation indicates the following nominal heating capacities at -8 °C:

• 6,500 BTU/h for the nominal 9,000 BTU model;
• 8,400 BTU/h for the nominal 12,000 BTU model;
• 13,300 BTU/h for the nominal 18,000 BTU model;
• 17,500 BTU/h for the nominal 24,000 BTU model;
• 25,200 BTU/h for the nominal 36,000 BTU model.

At -15 °C, the maximum rated capacities also vary by model. These figures are more relevant to winter heating than the BTU number alone used in the model name.

A wall-mounted heat pump does not automatically heat the entire house

In an open-concept area, a single unit can sometimes cover a large portion of a floor. In a compartmentalized home, the results will be different.

Air must be able to circulate.

Closed doors, narrow corridors, stairs, and changes in elevation can limit the distribution of heat or cool air.

Before recommending a system, we therefore clarify whether the goal is to:

• condition a room;
• air-condition a floor;
• reduce baseboard heater consumption;
• support a primary heating system;
• improve comfort in a problem area.

This distinction avoids promising a distribution that the building’s layout cannot provide.

Indoor operation from 29 dB(A)

Some 9,000 and 12,000 BTU configurations can operate at 29 dB(A) in silent mode.

The noise level is particularly important in a bedroom, office, or small living room. However, it depends as much on the installation as on the unit.

An unusual noise may be caused by:

• a poorly secured wall plate;
• a casing touching the ceiling;
• a compressed pipe;
• a vibrating pipe cover;
• of a panel that was not properly latched;
• of a nearby object placed too close.

In the configuration shown in the photo, we paid particular attention to the curtain rod and the adjacent piece of furniture. Neither of these elements was to enter the vibration or airflow zone.

Why clearance must be maintained in front of the furniture

The piece of furniture visible on the right is relatively tall. We therefore checked that it did not reduce the louver opening or create a barrier in front of the airstream.

Furniture placed too close can cause:

• immediate air recirculation;
• uneven cooling;
• a blowing sound;
• a less representative temperature reading;
• a localized draft.

You should also anticipate objects that might be placed on the furniture. A box, a plant, or a pile of clothes can alter airflow after installation.

We recommend keeping the area in front of and beneath the heat pump as clear as possible.

A system designed to support comfort, cleanliness, and maintenance

FrostWash to help clean the indoor heat exchanger

The FrostWash function uses a freezing and thawing process on the indoor heat exchanger. Some of the impurities are captured and then drained away with the water.

According to the tests presented by the manufacturer, this technology helps better preserve airflow under simulated dirty conditions.

FrostWash does not replace regular maintenance. The filters, fan, drain pan, and louvers can still accumulate dust.

We recommend in particular:

• clean the prefilters regularly;
• keep the top of the unit clear;
• monitor odors;
• check for any reduction in airflow;
• have the unit cleaned when the fan becomes dirty.

Mold Guard and residual moisture reduction

The Mold Guard function helps dry certain internal components after air conditioning operation.

It circulates air for a set period and can heat the coil to reduce residual moisture.

This function is useful during humid periods, but it cannot eliminate contamination that is already established. A unit with visible mold or a persistent odor should undergo a thorough cleaning.

PM2.5 and activated carbon filter

The Hitachi airHome 400 includes a stainless steel prefilter and an activated carbon purification filter designed to capture PM2.5 particles.

Activated carbon can also help reduce certain odors.

The heat pump does not, however, replace an air exchanger or a central filtration system. It primarily treats the air circulating in the room where it is installed.

A design that facilitates technical access

The manufacturer has integrated several practical features into the indoor unit:

• removable side covers;
• drain connectable on the left or right;
• removable drain pan;
• removable fan motor mount;
• large installation plate;
• front panel removable with few screws;
• probes positioned for more accurate measurement.

In this West Island installation, the ability to connect the components on the left side was particularly relevant. It made it possible to create the short side run visible in the photo.

Maintenance must remain possible despite the proximity of the ceiling

A visually compact installation must not make maintenance impossible.

The owner must be able to open the panel and remove the filters. A technician must also be able to access the side panels, drain, and internal components.

Before completing the installation, we check:

• panel opening;
• filter removal;
• louver movement;
• access to the screws;
• no contact with the ceiling;
• clearance from side obstacles.

This step prevents a clean installation on the first day from becoming problematic during the first service visit.

R32 refrigerant and circuit preparation

The airHome 400 range uses R32 refrigerant. Its installation requires appropriate practices and compatible tools.

Our procedure includes, among other things:

1. line preparation;
2. flaring;
3. torque tightening;
4. leak test;
5. evacuation;
6. vacuum hold verification;
7. valve opening;
8. air-conditioning startup;
9. heating test;
10. drainage verification.

These operations are invisible once the cover is closed, but they directly determine the machine's reliability.

Electrical requirements by capacity

Most airHome 400 models operate on a power supply of 208-230 V. A 12,000 BTU version is available at 115 V.

The maximum protection varies by model:

• 15 A for certain 9,000 and 12,000 BTU units;
• 25 A for the 18,000 and 24,000 BTU models;
• 40 A for the 36,000 BTU model;
• 30 A for the 12,000 BTU version at 115 V.

We always check the nameplate data before choosing the circuit breaker or conductor gauge.

BTU count alone is not enough to determine the electrical supply.

Optional Wi-Fi control

The airCloud Go adapter can be added as an option to control the heat pump from a phone.

It allows you to:

• adjust the temperature;
• create a weekly schedule;
• start the unit remotely;
• use certain compatible voice commands;
• better adapt operation to occupancy periods.

An airPoint Room H700 wall controller is also available as an option.

These accessories must be confirmed in the proposal, since they may not be included as standard.

Common mistakes avoided in this project

Placing the unit too close to the ceiling

Insufficient air intake reduces airflow and may increase noise.

Ignoring the curtain rod

The curtain may be drawn toward the unit or vibrate in the airflow.

Installing the unit above a piece of furniture that is too tall

The furniture can block the airflow and create recirculation.

Installing the drain without a slope

Water can accumulate and flow back toward the unit.

Compressing the lines inside the cover

A bent copper line or crushed insulation can affect operation and cause condensation.

Making the filters inaccessible

Lack of maintenance reduces airflow and increases noise levels.

Choosing the model solely according to the available width

Capacity must be selected according to the building’s needs, never according to the wall’s size.

An AirGreen installation adapted to West Island residences

This Hitachi airHome 400 wall-mounted heat pump installation in the West Island shows that a limited space can accommodate a clean, functional solution when every detail is planned.

The unit is installed near a corner, below the ceiling, with a short lateral passage for the lines. The curtain rod, adjacent piece of furniture, air intake clearance, and drain slope were all taken into consideration.

At AirGreen, we install wall-mounted heat pumps in the West Island, Montreal, Laval, Longueuil, the North Shore, and the South Shore. We adapt each project to the home’s actual layout rather than repeating the same method from one job to another.

The result must be satisfactory in four respects:

• comfort;
• finish;
• reliability;
• future maintenance.

In this residence, the Hitachi airHome 400 occupies a rarely used section of wall while ensuring unobstructed air circulation. The homeowner now benefits from a system capable of cooling, dehumidifying, and contributing to heating without sacrificing usable room space.
