An outdoor installation carefully integrated into a Beaconsfield residence
For this installation in Beaconsfield, in Montréal's West Island, our team had to add a 12,000 BTU Hitachi airHome 400 wall-mounted heat pump to a residence whose exterior layout presented several practical constraints. The side façade included a large ground-floor window, a basement window, an outdoor faucet, existing lines, and a very densely planted area nearby.
The challenge was therefore not limited to securing an outdoor unit and running a few pipes. We had to design a route that respected the building envelope, remained accessible for maintenance, protected the refrigerant lines, and preserved the property's appearance as much as possible.
We installed the Hitachi airHome 400 outdoor unit on a raised metal bracket, which was itself placed on a rigid, stable base. The lines were concealed in a light-coloured outdoor line-set cover installed horizontally beneath the large window. This route avoided the basement window, went around the outdoor faucet, and maintained a clean finish on the yellow stucco wall.
This project clearly illustrates our approach at AirGreen: an HVAC installation should never be improvised based solely on the shortest route. It must take drainage, equipment clearance, vibration, service access, and the visual impact on the residence into account.
Why a 12,000 BTU Hitachi airHome 400 was a good fit for this Beaconsfield residence
The capacity of a wall-mounted heat pump must be determined based on several factors: the size of the area to be conditioned, the level of insulation, sun exposure, the number of windows, the layout of the rooms, and the actual heating requirements.
In this project, the 12,000 BTU model provided a good balance of capacity, modulation, and efficiency for the area being served. In the airHome 400 range, this capacity corresponds to the indoor RAK-DJ12RHAA and outdoor RAC-DJ12WHAA models.
The main technical data for this combination include, in particular:
- a rated cooling capacity of 12,000 BTU/h;
- a modulated cooling capacity of approximately 4,700 to 13,200 BTU/h;
- a rated heating capacity of 13,000 BTU/h;
- a modulated heating range of approximately 5,500 to 13,700 BTU/h;
- a TRÉS2 rating of 19.5;
- a CPSC2 rating of 9.2 in Region 4 and 7.0 in Region 5;
- a coefficient of performance of 3.2 at 8 °C;
- a rated heating capacity of 8,400 BTU/h at -8 °C;
- a maximum capacity of approximately 10,250 BTU/h at -15 °C;
- a heating operating range down to approximately -20.5 °C;
- operation using the refrigerant R32.
The technical table presented in the Hitachi brochure also indicates a minimum circuit ampacity of 9 A and maximum overcurrent protection of 15 A for this 12,000 BTU combination. These values are important when planning the electrical installation, but the final circuit must always be verified based on the nameplate of the installed equipment and the requirements applicable to the worksite.
Inverter technology that avoids repeated abrupt starts
The Hitachi airHome 400 uses Vector DC Inverter technology. Unlike an older air conditioner that frequently operates at full capacity before shutting down completely, an Inverter heat pump gradually adjusts the speed of its compressor.
When the indoor temperature is far from the set point, the unit can deliver more power. As the room reaches the requested temperature, the compressor slows down and maintains more stable operation.
This modulation provides several advantages in a Beaconsfield residence:
- more consistent indoor temperature;
- fewer variations between cycles;
- consumption better suited to actual needs;
- generally quieter operation;
- better dehumidification during hot and humid days.
The manufacturer indicates that the 12,000 BTU model can operate at approximately 29 dB(A) indoors in quiet mode. The outdoor unit, for its part, has a stated maximum sound level of approximately 51 dB(A). Outdoor placement nevertheless remains essential, because even a relatively quiet unit can become disruptive if it is installed too close to a bedroom, patio, or neighboring property.
Positioning the outdoor unit: a technical decision, not merely an aesthetic one

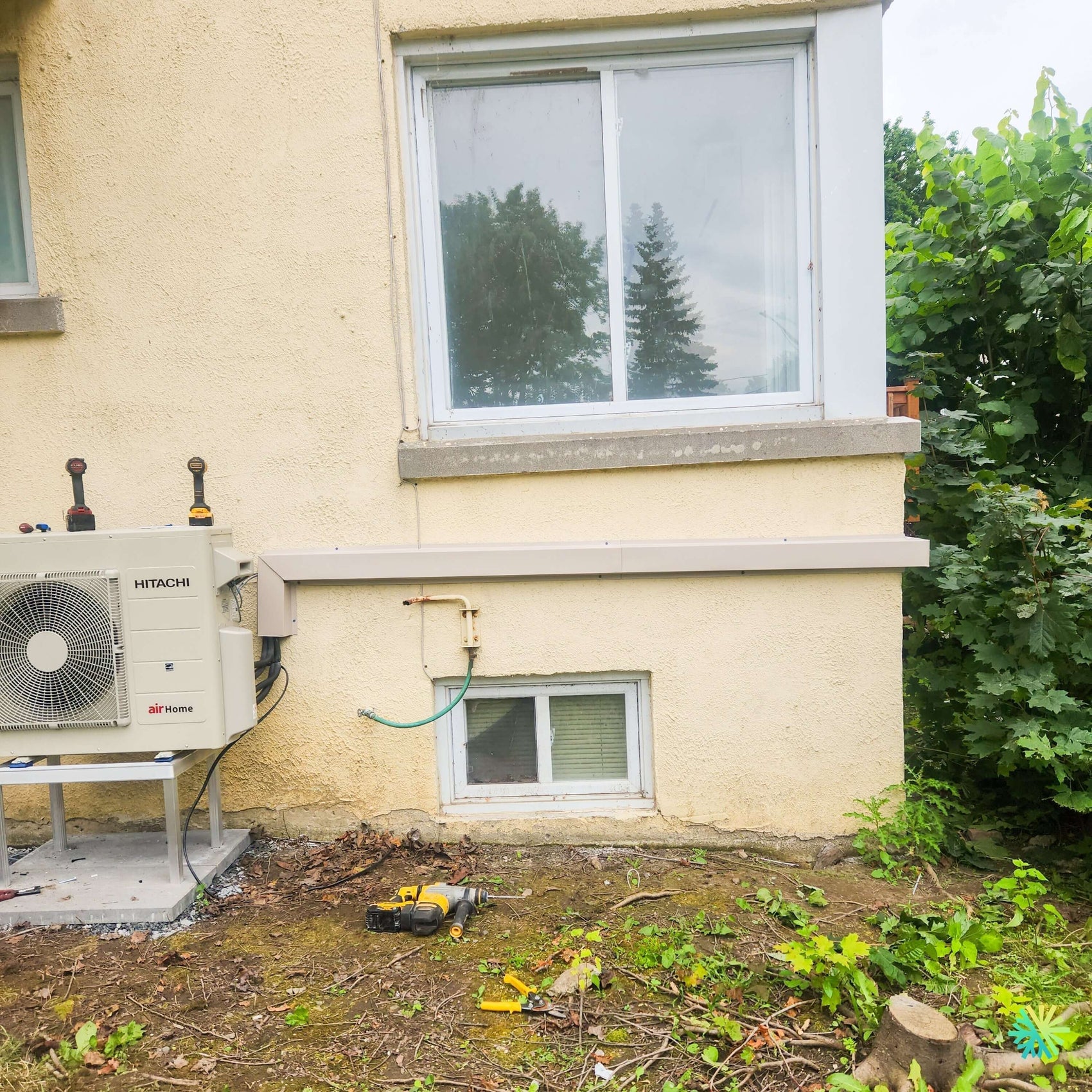

In the project photo, the outdoor unit was installed to the left of the basement window, on a sturdy metal support. This position offered several advantages.
First, it prevented the lower window from being obstructed. It is important to maintain functional access to the building’s openings, particularly when they are used for ventilation, maintenance, or exhaust.
Secondly, the unit was not located directly beneath the outdoor faucet. A leak, an improperly connected hose, or water splashed during use could otherwise have reached the equipment or caused ice to build up around its base in winter.
Thirdly, the raised support keeps the heat pump above ground level. In Beaconsfield, as elsewhere in Montreal, Laval, Longueuil, on the North Shore and the South Shore, this elevation is particularly important because of:
- snow accumulation;
- freeze-thaw cycles;
- water produced during defrost cycles;
- leaves and debris on the ground;
- the risk of settling caused by an improperly prepared base.
An outdoor unit installed too low can quickly become surrounded by compacted snow or ice. This impairs airflow and may increase the frequency of defrost cycles. A proper installation must account for winter from day one, even when the work is carried out in summer.
A stable base to limit vibrations and shifting
Here, the metal support rests on a rigid slab surrounded by clean stone. This preparation helps distribute the weight of the unit and keep the support level.
Natural soil can shift after heavy rain, a thaw, or landscaping work. If the support tilts, the outdoor unit may become unstable, transmit more vibrations, or place stress on the refrigerant lines.
During our wall-mounted heat pump installations in Beaconsfield and the West Island, we check, among other things:
- the stability of the base;
- the level of the support;
- the clearance beneath the unit;
- the distance between the fan and obstacles;
- the space needed by the technician for future HVAC maintenance;
- the condensate drainage path.
The plants visible to the right of the installation will also need to be maintained. A hedge or shrub should not encroach on the space around the outdoor unit. Leaves can stick to the heat exchanger, while branches can interfere with airflow or strike the cabinet in windy weather.
A pipe cover suited to the window configuration
The pipe route is one of the most visible elements of this project. Rather than leaving the refrigerant pipes, communication cable, and drain exposed, we installed an exterior pipe cover matching the light-colored elements of the façade.
The route first descends near the outdoor unit, then continues horizontally beneath the large window. This configuration makes it possible to group the technical components in an orderly protective cover.
The pipe cover serves several functions:
- it protects the pipe insulation from UV rays;
- it reduces the risk of mechanical damage;
- it limits exposure to birds and small animals;
- it provides a much neater finish;
- it makes it easier to inspect the route during maintenance;
- it allows certain sections to be removed without opening the wall.
A common mistake is installing the line without a consistent slope or using unnecessarily many joints. Every change in direction must be planned to prevent stress on the copper pipes and promote condensate drainage.
Drainage: a discreet detail that can cause major problems
In cooling mode, the indoor unit removes some of the moisture from the air. This water must be discharged through a condensate drain.
For the 12,000 BTU model, Hitachi advertises a dehumidification capacity of up to approximately 1.65 liters per hour, depending on the conditions. During a particularly humid day in Beaconsfield, the amount of water produced can therefore be considerable.
An improperly installed drain can cause:
- water running down the exterior wall;
- infiltration around the penetration;
- odors;
- backflow toward the indoor unit;
- ceiling or wall stains;
- ice formation in a problematic area during winter.
We therefore need to check the slope, pipe fastening, outlet location, and the seal around the building penetration. The drain should not simply be hidden in the molding: it must function properly along its entire length.
Refrigerant fittings designed for the installed model
The 12,000 BTU Hitachi airHome 400 system uses 1/4-inch connections for the liquid line and 3/8-inch connections for the gas line.
The quality of the flare connections is critical. A refrigerant leak may not appear until several weeks or months later. Our technicians must therefore prepare the copper ends precisely, use the appropriate tightening torque, and perform the necessary checks before commissioning.
The brochure indicates a maximum piping length of approximately 82 feet, with a maximum elevation difference of nearly 49 feet for the 12,000 BTU model. These limits do not mean that a long route can be improvised. The more complex the route, the more important it is to consider the refrigerant charge, capacity losses, access to the connections, and the manufacturer's exact requirements.
In this Beaconsfield project, the relatively direct outdoor route made it possible to maintain an organized installation without imposing an unnecessarily complicated path.
FrostWash and Mold Guard: two useful functions for the indoor unit
The Hitachi airHome 400 includes the FrostWash function on the indoor unit. It uses a freezing and thawing process on the heat exchanger to help capture and remove some accumulated impurities.
The system also includes a Mold Guard function, designed to circulate air through the internal components and heat the coil after certain operating periods. The goal is to reduce conditions that favor odors and mold growth.
These functions can help keep the heat exchanger cleaner, but they do not replace professional HVAC maintenance. Filters must always be checked, washed, or replaced according to their condition. The heat exchanger, fan, and condensate pan must also be inspected periodically.
A self-cleaning function can slow the buildup of dirt. However, it cannot remove significant existing contamination or clear a clogged drain.
The PM2.5 filter and the stainless-steel pre-filter
The airHome 400 range includes an activated-carbon PM2.5 air-purifying filter as well as a stainless-steel pre-filter. This system is designed to capture some small particles and reduce certain odors.
To maintain good performance, owners should avoid waiting until the filters are completely clogged. A very dirty filter reduces airflow and can cause:
- reduced comfort;
- higher electricity consumption;
- more noise;
- less effective dehumidification;
- ice buildup on the heat exchanger under certain conditions.
In a home with pets, renovation work, or a lot of dust, the maintenance frequency must be adapted to the reality of the dwelling.
What this Hitachi installation in Beaconsfield demonstrates about the quality of an HVAC project
This installation may seem simple at first glance, but each element addresses a specific constraint: the height of the unit, the support, the basement window, the faucet, the plants, the length of the line-hide, and the positioning of the lines.
Mistakes to avoid during a similar installation
For a property with a configuration similar to Beaconsfield, we recommend avoiding the following mistakes:
- install the unit directly on the ground;
- place the unit too close to the ground;
- block a basement window;
- direct defrost water toward the foundation;
- leave the lines exposed to the sun;
- place the heat pump beneath an outdoor faucet;
- install the fan facing a hedge that is too close;
- neglect the drain slope;
- choose the capacity based solely on the floor area;
- make the service panels inaccessible.
Quality work must remain functional for many years after installation. It is therefore necessary to anticipate plant growth, ground movement, snow accumulation, and maintenance needs.
A properly sized heat pump, installed with a long-term perspective
The 12,000 BTU Hitachi airHome 400 is an interesting solution for homeowners looking for a wall-mounted inverter unit using R32 refrigerant, offering good modulation and several comfort features.
Its actual efficiency nevertheless depends on the quality of the sizing and installation. High-performance equipment cannot compensate for poor drainage, an unstable base, a damaged refrigerant line, or obstructed airflow.
At AirGreen, we install wall-mounted heat pumps in Beaconsfield, the West Island, Montreal, Laval, Longueuil, the North Shore, and the South Shore, adapting each project to the building’s structure. This installation shows how methodical planning makes it possible to integrate an outdoor unit into a crowded space while maintaining an accessible, stable, and visually orderly result.
