A heat pump installed on a narrow balcony without compromising access or airflow
This Hitachi airHome 400 wall-mounted heat pump installation in Rivière-des-Prairies–Pointe-aux-Trembles presented a very concrete constraint: the outdoor unit had to be integrated into a narrow wooden balcony surrounded by the building wall, a railing, structural posts, and a neighboring property located a short distance away.
For this type of project in Montreal, the goal is not simply to find a space large enough to place the compressor. We must also maintain functional clearances, allow air to flow, limit vibrations transmitted to the balcony, and maintain safe access to the electrical and refrigerant connections.

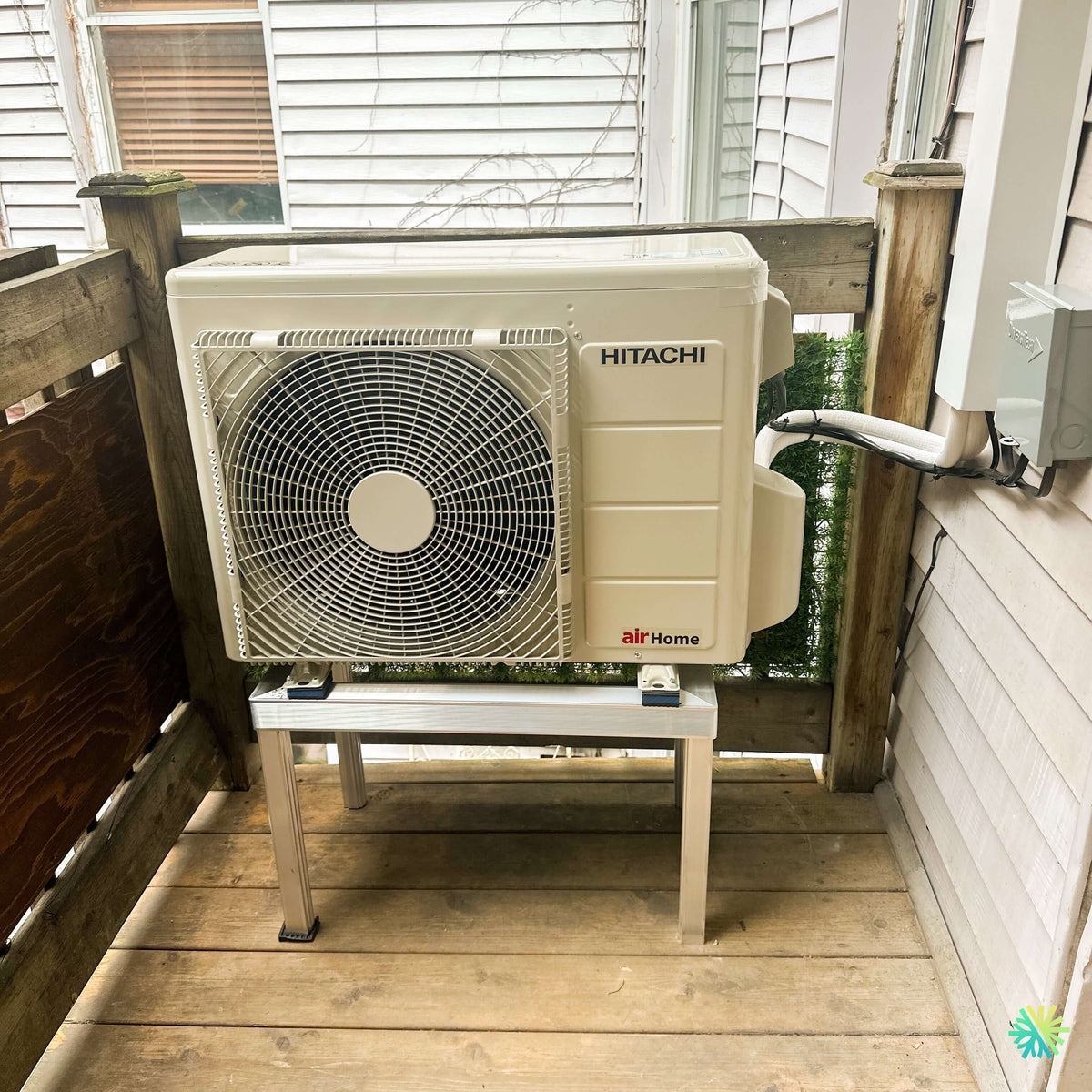

The photograph shows a compact but structured installation. The Hitachi outdoor unit rests on a raised metal platform, which is itself supported by the wooden floor. Isolators are placed beneath the heat pump’s anchor points to reduce vibration transmission. The line-set cover runs up along the exterior cladding to the wall penetration, while an electrical device is installed nearby on the façade.
This configuration allowed us to use the available space without placing the unit directly on the wooden boards or completely blocking the balcony.
Why a balcony installation requires a different analysis
A heat pump installed on a ground-level slab generally benefits from a more open space around it. On a balcony, conditions are tighter and several constraints add up:
- The railing may restrict air discharge;
- The wall may limit access to the connection side;
- The floor may amplify vibrations;
- Defrost water may accumulate on the wood;
- Snow may become trapped in an enclosed space;
- Future maintenance may become difficult;
- Occupants must still be able to pass through;
- The proximity of neighbors can make the noise more noticeable.
Before installing the unit, we therefore need to consider not only its dimensions, but also its airflow direction, the side where the service valves are located, the position of the electrical panel, and how a technician will be able to service it several years later.
In the photo, the fan face is oriented toward the open space of the balcony rather than directly toward the wall. This orientation allows the air expelled by the outdoor unit to move away from the coil.
A compressor installed too close to a frontal obstacle may reingest some of its own air. This recirculation phenomenon reduces performance, especially during periods of high heat or intensive heating.
A metal table to raise the heat pump
We chose a metal support table rather than installing it directly on the balcony. This elevation serves several technical purposes.
It first keeps the unit above the floor surface. In winter, this height helps reduce the risk of the bottom of the unit being surrounded by snow, ice, or defrost water.
A heat pump produces water during its defrost cycles. When this water falls directly onto a cold balcony, it can freeze and form an accumulation beneath the unit. By raising the compressor, we create more space under the cabinet and facilitate water management.
The table also helps distribute the load points across the balcony structure. An outdoor unit can weigh several dozen kilograms, depending on its capacity. It should not be placed haphazardly on an unstable surface or on assorted shims.
A table does not replace an assessment of the balcony
The presence of a metal support alone does not guarantee a quality installation. We must also check:
- the condition of the boards;
- the stability of the balcony;
- the level of the table;
- the position of the feet;
- the strength of the connections;
- the space available under the unit;
- the absence of excessive movement.
In the photograph, the support feet rest directly on the balcony boards. This configuration requires the floor to be sufficiently strong and stable. In some projects, reinforcements or another support strategy may be necessary depending on the existing structure.
Isolators under the unit to limit vibrations
Between the heat pump and the table, vibration-damping components can be seen. Their purpose is to create separation between the metal cabinet and the support.
Even a quiet Inverter heat pump generates some vibration when the compressor and fan are operating. On a concrete slab, these vibrations are generally less noticeable. On a wooden balcony, they can be transmitted to the boards, joists, or adjacent wall.
Without adequate insulation, the resident may hear a humming or resonating sound indoors, particularly during nighttime operation.
We therefore aim to reduce unnecessary rigid connections. This includes:
- the unit's feet;
- the refrigerant lines;
- the power cable;
- the line-set cover;
- the fasteners against the wall;
- the points of contact with the railing.
A small detail that is poorly managed can become a disproportionate source of noise in a balcony installation.
A compact and accessible refrigerant connection
The right side of the outdoor unit contains the copper connections, wiring, and service valves. The space available between the heat pump and the wall is limited, but it remains organized.
The lines leave the unit in a controlled curve before joining the vertical line-set cover. This transition must be made without pinching the copper or compressing the insulation.
We must avoid several common mistakes:
- bend the lines too close to the valves;
- let the weight of the copper pull on the connections;
- crush the insulation at an elbow;
- expose the pipes to accidental contact;
- create a bulky loop in the passage;
- place the connections where they are inaccessible.
The white line-set cover then protects the route from UV rays, the elements, and physical damage. It also allows the lines to be integrated more neatly into the building's exterior cladding.
The electrical device located near the outdoor unit
The photograph shows an electrical box installed on the wall near the compressor. This proximity facilitates access to the disconnecting device during maintenance or repair work.
The power supply for a wall-mounted heat pump must precisely match the specifications of the installed model. The Hitachi airHome 400 range includes several capacities whose requirements are not identical.
According to the manufacturer's table, the 208–230 V models notably have:
- a minimum circuit ampacity of 8 A for the 9,000 BTU/h model;
- 9 A for the 12,000 BTU/h model;
- 13 A for the 18,000 BTU/h model;
- 18 A for the 24,000 BTU/h model;
- 27 A for the 36,000 BTU/h model.
The maximum overcurrent protection, for its part, ranges from 15 to 40 A depending on the combination. The brochure also presents a 12,000 BTU/h version powered at 115 V.
It is therefore essential to check the nameplates before selecting the circuit breaker, cable, and disconnecting device.
Access to preserve for future maintenance
In a tight installation, it is easy to focus only on the final appearance. However, a technician will need to return to inspect the valves, check the pressures, access the electrical panel, or clean the coil.
We therefore avoid completely trapping the unit between the railing and the wall.
The required access depends on the model, the position of the panels, and the type of work. Even when the passage seems limited, we aim to maintain a practical approach toward:
- the connection side;
- the top of the unit;
- the rear grille;
- the electrical enclosure;
- the anchors;
- the underside of the compressor.
A compact installation should not become an installation that is impossible to service.
Why the Hitachi airHome 400 was relevant to this project in Rivière-des-Prairies–Pointe-aux-Trembles
The Hitachi airHome 400 is a lineup of wall-mounted heat pumps with Inverter technology, available in several capacities. According to the technical documentation, the series includes units ranging from 9,000 to 36,000 BTU/h.
The exact capacity of the photographed unit cannot be confirmed from the outdoor cabinet alone. Several models have a similar appearance. To identify the system precisely, we need to read the model numbers on the nameplates of both the indoor and outdoor units.
This verification is necessary to determine:
- rated capacity;
- efficiency;
- pipe diameters;
- electrical protection;
- maximum line length;
- low-temperature capacity;
- the potential subsidy amount.
Vector DC Inverter technology
The Hitachi airHome 400 uses Vector DC Inverter technology, which allows the compressor to adjust its speed according to demand.
In a fixed-speed system, the compressor generally operates at full capacity and then stops once the target temperature is reached. An Inverter system can instead reduce its speed and maintain the temperature with longer, more regular cycles.
This modulation offers particularly interesting benefits in a residential environment:
- more stable temperature;
- reduced abrupt starts;
- better humidity control;
- quieter operation;
- consumption better matched to the load;
- more consistent comfort throughout the night.
On a balcony near a bedroom or a neighboring property, modulated operation can also help limit the sound variations associated with repeated starts.
Different efficiency ratings depending on the model
The airHome 400 lineup offers high efficiency ratings, but these vary by capacity.
The technical data sheet indicates, among other things:
- up to 20.0 SEER2 for the 9,000 BTU/h model;
- 19.5 SEER2 for several other capacities;
- up to 10.5 HSPF2 in Region 4 for the 18,000 and 24,000 BTU/h models;
- a COP at 8 °C of up to 3.3;
- a COP at -15 °C ranging from 1.9 to 2.42 depending on the model;
- heating capacities at -8 °C ranging from 6,500 to 25,200 BTU/h.
The rated cooling capacity ranges from 9,000 to 33,000 BTU/h depending on the combination, while the rated heating capacity is between 10,000 and 35,000 BTU/h.
These data demonstrate why we do not compare units solely based on the series name. A 9,000 BTU/h model and a 24,000 BTU/h model have neither the same electrical demand, nor the same dimensions, nor the same low-temperature capacity.
Heating operation down to approximately -20.5 °C
The series documentation indicates a heating operating range down to approximately -20.5 °C.
This information means that the system is designed to operate down to this outdoor temperature under the conditions specified by the manufacturer. However, it does not mean that every model will be able to meet the entire heating needs of any residence at this temperature.
To assess the actual heating capacity, we must compare:
- the home’s heat loss;
- capacity delivered at -8 °C;
- maximum capacity at -15 °C;
- insulation;
- the area served;
- air distribution;
- the existing backup heating system.
In Rivière-des-Prairies–Pointe-aux-Trembles, cold periods can impose a significant load. A properly sized heat pump can considerably reduce the use of baseboard heaters or another system, but selection must remain based on the building’s needs.
R32 Refrigerant and Piping Diameters
The airHome 400 lineup uses R32 refrigerant. Pipe diameters vary according to capacity:
- 9,000 and 12,000 BTU/h models: 1/4 in. liquid and 3/8 in. gas;
- 18,000 BTU/h model: 1/4 in. liquid and 1/2 in. gas;
- 24,000 BTU/h model: 1/4 in. liquid and 5/8 in. gas;
- 36,000 BTU/h model: 3/8 in. liquid and 5/8 in. gas.
Maximum piping lengths range from 82 to 165 feet depending on the model, with maximum elevation differences ranging from 49 to 98 feet.
In this balcony installation, the visible route is compact, which is generally an advantage. A well-planned route reduces the amount of exposed piping, simplifies the finishing, and can limit losses associated with an unnecessarily long route.
However, the short length does not eliminate the need for rigorous commissioning. We must always:
- check the flared connections;
- conduct leak tests;
- perform a vacuum evacuation;
- confirm the actual pipe length;
- check the applicable refrigerant charge;
- inspect the insulation.
A sound level suitable for a residential environment
Depending on capacity, airHome 400 indoor units can operate at as little as 29 dB(A) in quiet mode for certain 9,000 and 12,000 BTU/h models.
The outdoor units have a high sound level ranging from approximately 51 to 58 dB(A), depending on the model.
These values must be interpreted in context. On a balcony, perceived noise can be influenced by:
- wooden surfaces;
- the railing;
- the adjacent wall;
- the proximity of a window;
- the distance from the neighboring property;
- structural resonance;
- whether or not isolators are present.
That is why the mechanical installation is just as important as the data listed on the technical specifications sheet.
Errors that increase noise
Even a quiet heat pump can become disruptive if:
- it is rigidly screwed to a resonant structure;
- the platform is unstable;
- the feet are not isolated;
- the lines touch the railing;
- the pipe cover is improperly secured;
- the appliance is installed incorrectly out of level;
- the coil is blocked.
In this project, the independent platform and the isolators beneath the unit help reduce these risks.
FrostWash and Mold Guard inside
The indoor unit of the Hitachi airHome 400 features FrostWash technology. It uses a freeze-and-thaw cycle on the indoor heat exchanger to capture and remove some of the accumulated impurities.
The Mold Guard function circulates air through the internal components and heats the coil to reduce conditions conducive to odors and mold growth.
The brochure also presents:
- a stainless steel pre-filter;
- an activated carbon filter;
- filtration targeting PM2.5 particles;
- a deodorizing function;
- a design that facilitates access to certain components.
The manufacturer nevertheless specifies that Mold Guard may help prevent mold growth, but does not remove mold that is already present.
Regular HVAC maintenance therefore remains necessary, even with self-cleaning features.
The warranties presented for the product line
The Hitachi brochure states a standard warranty of seven years on the compressor and five years on parts. For some residential installations registered online, a ten-year extended warranty on the compressor and parts is indicated at no additional cost.
An enhanced option is also offered, with twelve years on the compressor, ten years on parts, and ten years on labor, subject to registration and purchase of the applicable upgrade.
The exact terms must always be confirmed at the time of purchase, as registration, the type of installation, and the manufacturer's conditions may affect coverage.
Rebates: check both model numbers
The documentation indicates that the airHome 400 qualifies for several provincial heat pump incentives. However, the amount cannot be determined from the series name alone.
Must be checked:
- the indoor model;
- the outdoor model;
- the certified combination;
- the recognized capacity at the reference temperature;
- the program in effect;
- the building type;
- the installation address;
- the invoice;
- the date of the work.
Two visually similar units may qualify for different amounts.
Mistakes to avoid when installing on a balcony
This Rivière-des-Prairies–Pointe-aux-Trembles installation illustrates several common mistakes.
Placing the compressor directly on the decking
This increases the risk of moisture, vibration, movement, and obstruction by snow.
Pointing the fan toward a nearby obstacle
The air discharge must remain sufficiently clear to prevent recirculation.
Completely blocking the passage
Maintenance and use of the balcony must remain possible.
Neglecting defrost water
Water can freeze on the wood and create an accumulation beneath the unit.
Securing the lines against the railing
Vibrations and movement can damage the insulation or create contact noise.
Installing the valves against the wall
The service side must remain accessible.
Choosing the capacity based on the cabinet size
The capacity must be confirmed using the model numbers and a load assessment.
Underestimating the proximity of neighbors
Positioning and vibration isolation are particularly important in Montreal's densely populated areas.
An AirGreen installation designed for a confined space
This project demonstrates that a narrow balcony can accommodate a Hitachi airHome 400 wall-mounted heat pump, provided that every aspect of the installation is carefully planned.
We incorporated:
- a raised metal stand;
- anti-vibration isolators;
- an air discharge directed toward the open space;
- a compact line-set cover;
- an accessible electrical connection;
- preserved access to the valves;
- an installation compatible with movement on the balcony.
In Rivière-des-Prairies–Pointe-aux-Trembles, as elsewhere in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, every property has its own constraints. Some installations require a long refrigerant line run. Others call for a rooftop unit, a unit on a foundation, or one in a side yard. Here, the main challenge was to transform a tight space into a functional, stable, and serviceable location.
This HVAC installation in Montreal shows that a good heat pump does not reach its full potential through its technical specifications alone. The base, clearances, vibrations, winter drainage, and future access are equally important for achieving a reliable and comfortable system.
