Installation of a Samsung WindFree™ MaxHeat wall-mounted heat pump on a rear balcony in Ville-Marie, Montreal

A raised installation in a narrow courtyard, between masonry, a metal balcony, and limited technical access

This Samsung WindFree™ MaxHeat wall-mounted heat pump installation in Ville-Marie perfectly illustrates the realities of HVAC work in Montreal’s central neighborhoods. The outdoor unit could not simply be placed on the ground near the building. The courtyard layout, the presence of a metal balcony, the closely spaced brick walls, and the limited circulation space required a raised installation directly on the rear balcony.

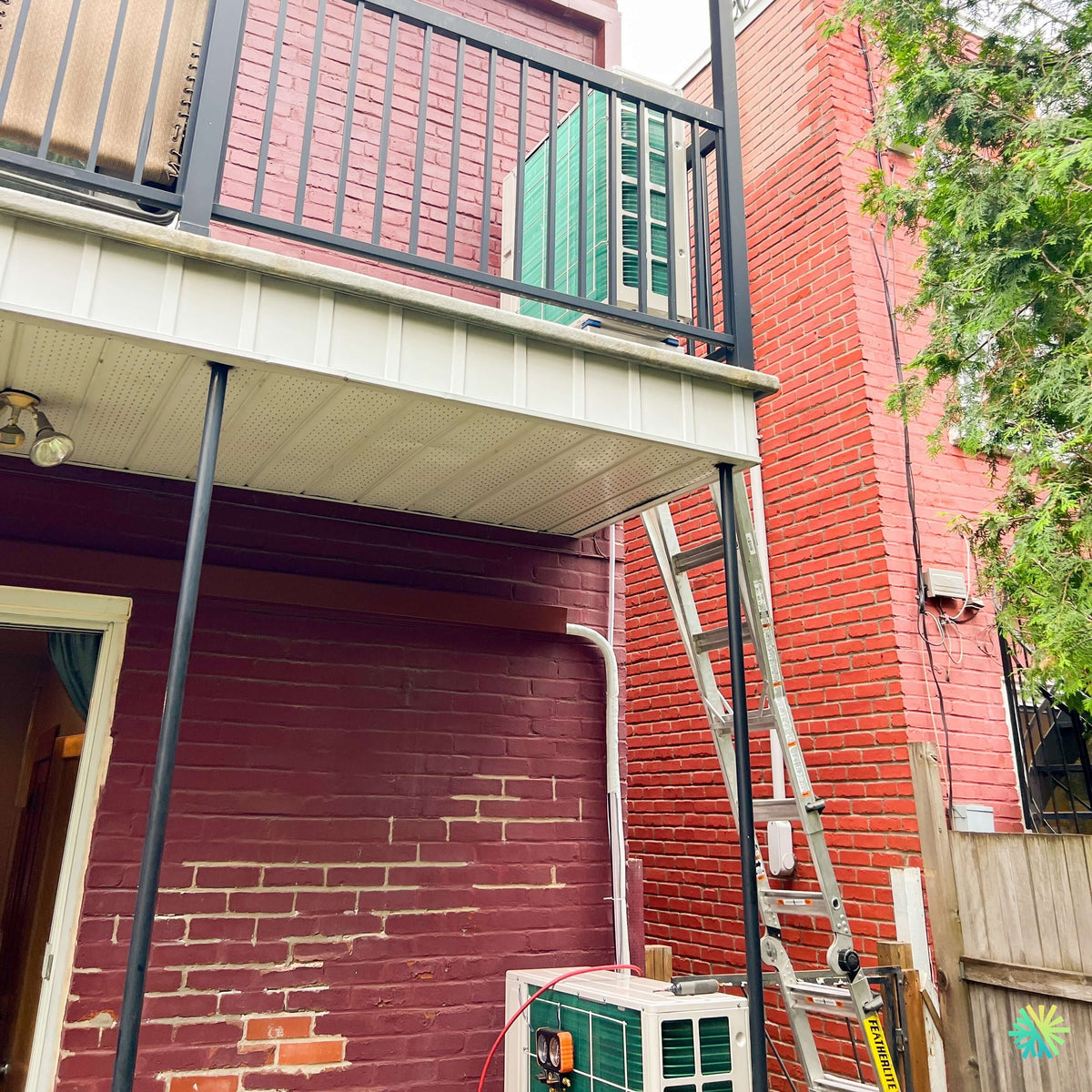

In the photo, the outdoor unit can be seen installed behind the balcony railing on the upper floor. Below, a second unit and the service equipment used by our technicians show the complexity of the project: ladder work, vertical connections, restricted access, and precise coordination between the building’s different levels.

This type of HVAC installation in Ville-Marie requires much more than a secure mounting. We must analyze the airflow around the heat pump, the load supported by the structure, future access for maintenance, the route of the refrigerant lines, condensate drainage, and the risk of vibrations being transmitted to the balcony or masonry wall.

Our goal was to install a Samsung WindFree™ MaxHeat heat pump capable of providing reliable heating and cooling comfort while respecting the building’s architectural constraints and the everyday use of the backyard.

Why was the outdoor unit placed on the balcony?

In the dense areas of Ville-Marie, available ground space is often occupied by walkways, fences, bins, stairs, emergency exits, or other mechanical equipment. A unit installed in the wrong location can obstruct movement, collect debris from the roof, or end up too close to a neighboring property.

The balcony was a logical location here, but it had to be carefully evaluated.

Before installation, we must specifically confirm:

• the structure’s capacity to support the equipment;
• the stability of the surface;
• the clearances around the air intake and outlet;
• the proximity of the railing;
• the space between the unit and the brick wall;
• access to the service panels;
• the route of the lines to the indoor unit;
• vibration control;
• the drainage of defrost water in winter;
• the safety of our technicians during installation and future maintenance.

The balcony has an openwork metal guardrail. Unlike a solid wall, this structure allows a significant portion of the air expelled by the unit to pass through. However, this does not mean that the unit can be installed without considering the clearances. If the fan is too close to the bars, the wall, or an object stored on the balcony, some of the air may return toward the outdoor heat exchanger.

This recirculation can reduce the heat pump’s performance, increase the compressor’s operating time, and complicate defrosting during cold periods.

We therefore position the unit to maintain the best possible clearance within the site’s actual limitations.

Working at height that requires careful planning

The ladder visible in the photo demonstrates the access required to reach the balcony and complete the connections. In a Montreal backyard, the room to maneuver is often limited by neighboring walls, fences, and existing structures.

Work at height must be organized before the equipment even arrives. The following must be planned:

1. the safe movement of the outdoor unit;
2. the number of technicians required;
3. the lifting method;
4. stabilizing the ladders;
5. the space required for the tools;
6. protecting the windows, bricks, and guardrails;
7. the sequence of the connections;
8. access to electricity;
9. evacuating the circuit;
10. the safe removal of all site equipment.

An outdoor heat pump must never be lifted improvisedly. Its cabinet may be damaged, and an impact on the connections or heat exchanger can compromise the unit’s operation.

At AirGreen, we plan the lifting and installation so that the unit remains stable throughout the entire operation. We also avoid using the lines or fragile panels as lifting points.

An integration suited to Ville-Marie’s brick architecture

Ville-Marie buildings often feature old brick walls, stacked balconies, and shared courtyards. These characteristics directly influence the routing of the lines.

On this installation, the connections follow a vertical route along the wall. A white pipe cover protects and groups the lines while creating a cleaner finish on the red masonry.

The connection system generally includes:

• two copper refrigerant lines;
• their thermal insulation;
• a communication cable;
• the wiring required according to the configuration;
• a condensate drain from the indoor unit.

The pipe cover is not only used to improve the appearance of the installation. It also protects the insulation from UV rays, rain, impacts, and animals. Deteriorated outdoor insulation can lead to efficiency losses and condensation on the cold line.

Each section must be securely fastened without unnecessarily damaging the masonry. Drilling into old brick requires particular care: the joints may be fragile, some bricks may crumble, and the drilling path may intersect hidden elements.

We choose the mounting points according to the wall’s actual condition rather than applying the same method to every building.

The Samsung WindFree™ MaxHeat: winter heating and gentler cooling

The Samsung WindFree™ MaxHeat is a variable-speed wall-mounted heat pump designed for heating and cooling. Its modulation technology allows it to adjust its operation according to demand rather than operating only at full power or being switched off.

This feature helps maintain a more stable temperature and limit short cycles. In a Montreal dwelling, demand constantly varies according to sunlight, open doors, heat loss through the walls, room occupancy, and outdoor temperature.

The WindFree™ technology primarily concerns air distribution during cooling. When the desired temperature is reached, the indoor unit can distribute cooled air through the numerous micro-openings in its front panel. The airflow then becomes less concentrated than with a conventional air jet.

This mode can be particularly useful in:

• a bedroom where the bed is near the unit;
• a living room where occupants remain seated for long periods;
• a home office;
• a narrow dwelling where it is difficult to avoid occupied areas;
• an open-plan area requiring regular temperature maintenance.

The name MaxHeat indicates a design geared toward low-temperature heating. However, the actual capacity, energy efficiency, and specific performance depend on the exact combination of indoor and outdoor units installed.

It is therefore important not to automatically assign the same technical specifications to all devices in the WindFree™ MaxHeat family.

The BTU capacity must match the dwelling

The exact capacity of this installation cannot be determined from the photo. The Samsung WindFree™ MaxHeat is available in different capacities, and the choice must be based on the building’s actual needs.

In an apartment or dwelling in Ville-Marie, we consider in particular:

• the actual area served;
• the ceiling height;
• the wall insulation;
• the condition of the windows;
• the unit’s orientation;
• the number of exterior walls;
• the unit’s position in the building;
• the presence of a heated upper floor;
• the layout of the rooms;
• the intended use of the heat pump in winter.

An oversized unit can quickly reach the target temperature near the indoor unit, then shut off before treating the rest of the home evenly. In summer, this can reduce the time spent dehumidifying.

An undersized unit, on the other hand, may run continuously during the coldest periods or on very hot days without maintaining the desired setpoint.

We prioritize selection based on the dwelling’s actual characteristics rather than an approximate BTU-per-square-foot rule.

Vibration control on a balcony

An outdoor unit installed on a balcony must not transmit its vibrations to the structure. Even when an appliance is relatively quiet, poor fastening can amplify noise in neighboring rooms.

A compressor’s slight vibration can travel through:

• the balcony floor;
• metal supports;
• the railing;
• masonry;
• interior walls;
• the ceiling of the lower dwelling.

We therefore check the equipment’s stability and use vibration-control components appropriate to the configuration. The unit must be level, securely fastened, and separated from surfaces likely to resonate.

It is also important to prevent the cabinet from touching the railing directly. When a heat pump is too close to a metal component, vibrations can produce a humming or intermittent rattling sound that is difficult to diagnose after installation.

Defrost water must be able to drain away without creating ice.

In heating mode, the outdoor heat exchanger can accumulate frost. The heat pump then periodically performs a defrost cycle. The ice melts and produces water beneath the unit.

On a balcony, this water must be considered from the planning stage.

It must be prevented from:

• flows onto a door or window located below;
• forms a sheet of ice on a walking surface;
• repeatedly reaches the brick wall;
• accumulates beneath the unit;
• falls directly onto equipment located on the level below;
• creates a nuisance for neighboring occupants.

The balcony slope, the unit’s height, and the position of the elements located beneath the installation influence the selected solution. Depending on the project, a tray, drainage, or specific water-flow management may be necessary.

A unit installed at an elevated position must also remain sufficiently clear to prevent windblown snow from blocking the heat exchanger.

This Ville-Marie project illustrates the details that determine the durability of an HVAC installation.

Refrigerant connections and the vacuum process

The photograph shows a service manifold connected to the lower unit during the work. This equipment is used to inspect and prepare the refrigeration circuit according to the applicable procedure.

After installing the lines, we must ensure that the system is leak-free. Even a very small leak can cause a gradual loss of refrigerant, reduced efficiency, and abnormal compressor operation.

The vacuum process then removes the air and moisture present in the system before commissioning.

This step is essential because moisture can:

• contaminate the oil;
• promote acid formation;
• create restrictions in the circuit;
• reduce compressor reliability;
• complicate future diagnostics;
• shorten the system’s service life.

A clean outdoor installation is not necessarily a technically complete installation. Quality also depends on all the invisible operations performed before startup.

Future service access must not be overlooked

Choosing an elevated location may solve a space issue, but it creates a new obligation: the unit must remain accessible for HVAC maintenance and repairs.

The technician must be able to:

• remove the panels;
• access the service valves;
• clean the heat exchanger;
• check the electrical connections;
• measure operating parameters;
• inspect the base;
• clear away leaves or debris;
• replace a part if necessary.

The balcony must therefore remain sufficiently clear. The owner should not later add a storage cabinet, awning, opaque fence, or objects directly in front of the heat pump.

Any modification that reduces airflow can impair performance and complicate maintenance.

Mistakes to avoid when installing on a balcony

Install the unit too close to the railing

An open railing allows air to circulate, but it must not touch the unit or be positioned at a distance that conflicts with the manufacturer’s requirements.

Block the front of the unit with outdoor furniture

A table, cover, barbecue, or storage box placed in front of the unit can cause air recirculation.

Ignore structural vibrations

A metal or lightweight balcony can amplify noise. Stability and vibration isolation must be checked during installation.

Fail to plan for defrosting

Water produced in winter can create ice on the balcony or flow down to the level below.

Block access with a permanent structure

A heat pump must be serviceable without dismantling the entire balcony or removing a heavy structure.

Use an inadequately protected piping route

Insulation exposed to sunlight deteriorates quickly. A securely fastened line-set cover protects the piping route and improves the appearance of the wall.

Recommended maintenance for a unit installed at height

An outdoor heat pump on a balcony should be inspected regularly, even when it seems less exposed than a ground-level unit.

We recommend checking:

• the accumulation of leaves between the unit and the wall;
• the presence of snow or ice beneath the cabinet;
• the condition of the vibration-damping components;
• the stability of the base;
• the condition of the line-set cover;
• the absence of objects in front of the fan;
• the cleanliness of the heat exchanger;
• the free flow of water.

The outdoor heat exchanger must not be cleaned with a high-pressure jet. The fins are thin and may bend. Professional cleaning ensures the proper method is used without damaging the components.

Indoors, the filters must be cleaned regularly. A clogged filter reduces airflow, increases operating time, and can affect comfort.

Rebates: verify the exact installed combination

Some cold-climate wall-mounted heat pumps may qualify for financial assistance. However, eligibility is not based solely on the Samsung brand or the WindFree™ MaxHeat name.

The following must be verified:

• the indoor unit model number;
• the outdoor unit model number;
• the certified combination;
• the low-temperature heating capacity;
• the reference recognized by the program;
• the type of building;
• the installation date;
• the administrative requirements in effect.

The applicable amount may vary according to the certified capacity and the program. Owners should keep their detailed invoice, serial numbers, certification documents, and photos of the rating plates when requested.

At AirGreen, we verify eligibility based on the system's exact references rather than promising a rebate solely on the basis of the commercial name.

AirGreen's experience with complex urban installations

We install wall-mounted heat pumps in Montreal, particularly in areas where outdoor access is especially difficult. Projects in Ville-Marie, Le Plateau-Mont-Royal, Rosemont, Villeray, and the Southwest often require a different approach from installations in a detached house.

In Laval, we encounter more side yards, terraces, and raised foundations. In Longueuil and on the South Shore, rear balconies, stacked housing units, and passages between buildings are also common. On the North Shore, managing snow, wind, and long line runs can become a priority.

For each project, we analyze:

1. heating and cooling needs;
2. required capacity;
3. the location of the indoor unit;
4. the available outdoor space;
5. the strength of the support;
6. ventilation clearances;
7. the path of the lines;
8. drainage;
9. vibrations;
10. access for servicing.

This installation of a Samsung WindFree™ MaxHeat wall-mounted heat pump on a balcony in Ville-Marie demonstrates that a restricted location can accommodate an effective solution when it is assessed as a whole.

The outdoor unit was integrated into the balcony structure without taking up floor space. The vertical path of the lines was protected along the brickwork, access at height was planned, and the connections were completed with the necessary professional equipment.

The result meets the specific requirements of a dense Montreal building while providing occupants with a heating and cooling system designed for consistent comfort throughout the seasons.
