Installation of a Sharp wall-mounted heat pump in Villeray–Saint-Michel–Parc-Extension
AirGreen installed a Sharp wall-mounted heat pump in Villeray–Saint-Michel–Parc-Extension: a discreet, quiet and efficient mini-split solution for air conditioning in the summer and heating for much of the winter in Montreal.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
In Villeray–Saint-Michel–Parc-Extension , many homes share a common reality: rooms of varying sizes, uneven heating from one floor to another, and the need for reliable comfort in both summer and winter. At AirGreen , we installed a Sharp wall-mounted heat pump , an ideal solution for increasing comfort, reducing energy consumption, and stabilizing the temperature daily.
The system installed: Sharp wall-mounted heat pump (mini-split)

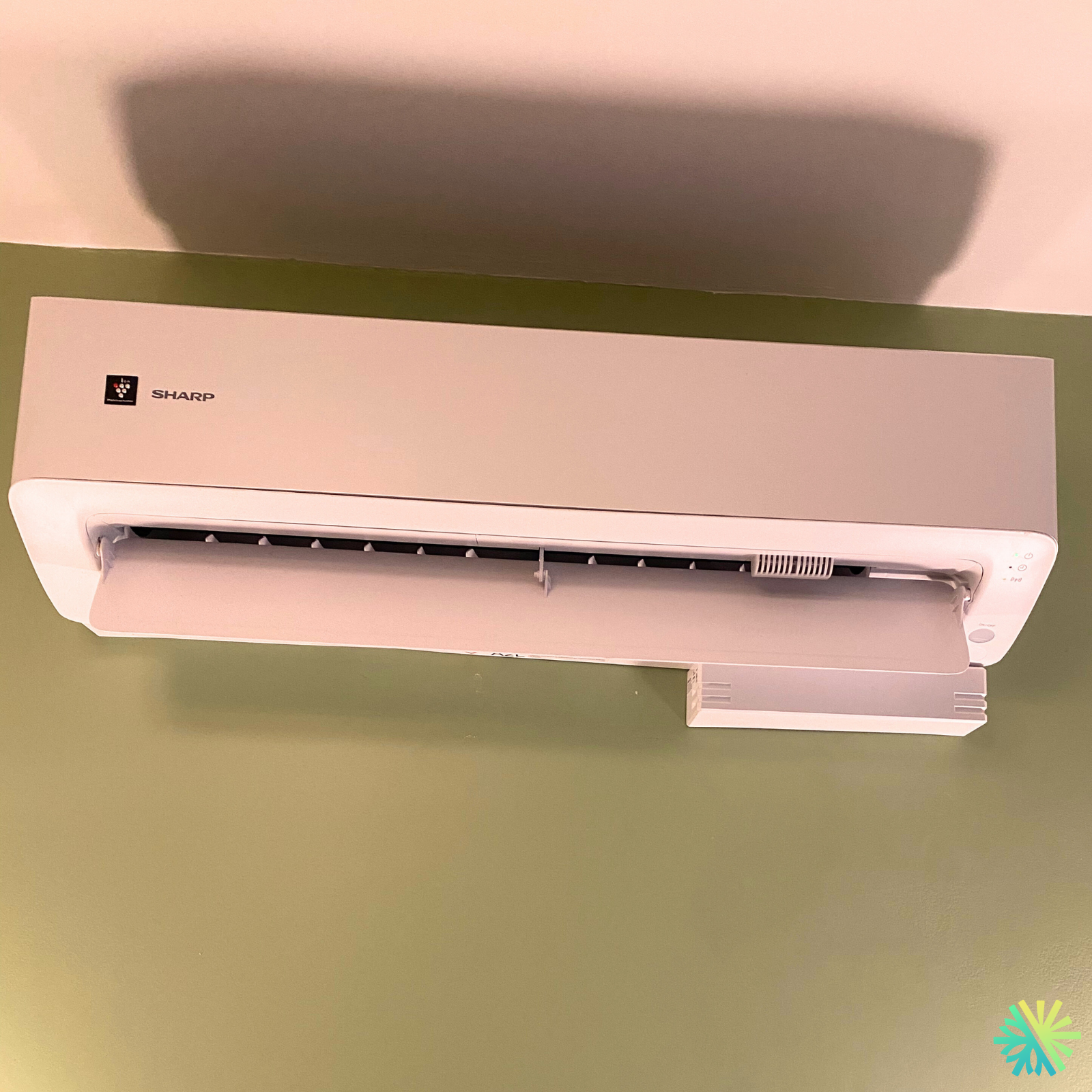

The photo clearly shows a wall-mounted indoor unit (mini-split head): horizontal format, installed high up, with a supply air flap and optimized air distribution. It is therefore a Sharp wall-mounted heat pump , designed to provide:
-
efficient heating in cold season (via modulated cycles),
-
air conditioning during hot and humid periods
-
stable comfort thanks to Inverter technology (continuous power adjustment).
To remain consistent with the Sharp range used in residential applications, we present the model here as a Sharp ZU1 (a common and realistic reference for this type of wall installation).
Why the Sharp ZU1 is an excellent choice for Villeray
In an area like Villeray, people often look for a solution that:
-
requires no ductwork (perfect for apartments and duplexes),
-
It works well despite the temperature variations in Quebec.
-
remains quiet for the comfort of living (and the neighbors, in a condominium).
The Sharp ZU1 ticks these boxes thanks to its modulating operation: instead of constantly stopping/restarting, it adjusts its speed, which improves comfort and limits consumption peaks.
Prominent installation details observed in the photo
This installation was designed to be clean, efficient and discreet , both technically and aesthetically:
-
Positioning at a height , near the ceiling: this is the ideal location for uniform air circulation and better blowing range, especially in a main room.
-
Neat alignment of the unit on a painted wall (olive green tint): the aim is a neat visual integration, without a “DIY effect”.
-
Management of connections on the right side : a clean finish is noticeable in the routing (refrigeration connections + drainage), with an orderly appearance.
-
Wide diffusion flap : useful for directing air without direct drafts onto occupants (an important point in a dining room, living room or bedroom).
At AirGreen, we always emphasize these points: a high-performance heat pump, yes, but also an installation that respects the decor, the flow of traffic in the room and lifestyle habits.
Four-season comfort: air conditioning in summer, heating in winter
In Montreal, people don't choose a heat pump solely for air conditioning. The real advantage is the efficient heating it provides for much of the winter (and especially during the shoulder seasons when electric heating can be expensive).
In this type of project, our objective is clear:
-
reduce the sensation of cold spots,
-
maintain a stable temperature,
-
improve comfort without excessive noise.
AirGreen's best practices for a sustainable installation
A wall-mounted heat pump performs best when installed correctly. In this type of installation, we pay particular attention to:
-
the sealing of the fittings (to protect performance and longevity),
-
the slope and path of the drain (to avoid drips, backflow or odors),
-
the quality of the wall mounting (level, anchoring, stability),
-
adjusting the airflow and directions according to the room (real comfort, not just “it blows”).
And of course, we take the time to explain to the customer how to optimize usage: modes, instructions, filter maintenance, and good habits to maximize savings.
Recommended maintenance: essential for performance and air quality
Even an excellent system like a Sharp needs a minimum of maintenance to remain efficient:
-
Regular cleaning of the filters ,
-
condensate drainage check,
-
periodic deep cleaning (coil, turbine, tank),
-
general inspection (noise, vibration, efficiency, condition of connections).
This is often what makes the difference between a “decent” heat pump and a quiet, efficient, and durable heat pump that lasts for many years.
Conclusion: a Sharp mural, perfectly suited to the Montreal reality
This installation in Villeray–Saint-Michel–Parc-Extension illustrates exactly what many owners and occupants in Montreal are looking for: a compact, discreet system capable of heating and cooling efficiently, without major work.
At AirGreen , we install Sharp heat pumps taking into account the building, the configuration of the rooms and the real constraints of daily life — for a clean, reliable and comfortable result.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
