Installation of a Sharp wall-mounted heat pump in Plateau-Mont-Royal
AirGreen installed a Sharp wall-mounted heat pump in the Plateau-Mont-Royal neighbourhood, with an outdoor unit seamlessly integrated into a brick balcony. An efficient, quiet solution perfectly suited to Montreal's urban constraints.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
In the Plateau-Mont-Royal neighbourhood, brick buildings with narrow balconies and generous windows are commonplace. This dense urban environment often presents real challenges when it comes to installing a high-performance, discreet, and durable heat pump. For this residential project, our AirGreen team completed the installation of aSharp wall-mounted heat pump , with an outdoor unit carefully positioned on a typical neighbourhood balcony.
A typically Montreal context… and specific technical choices

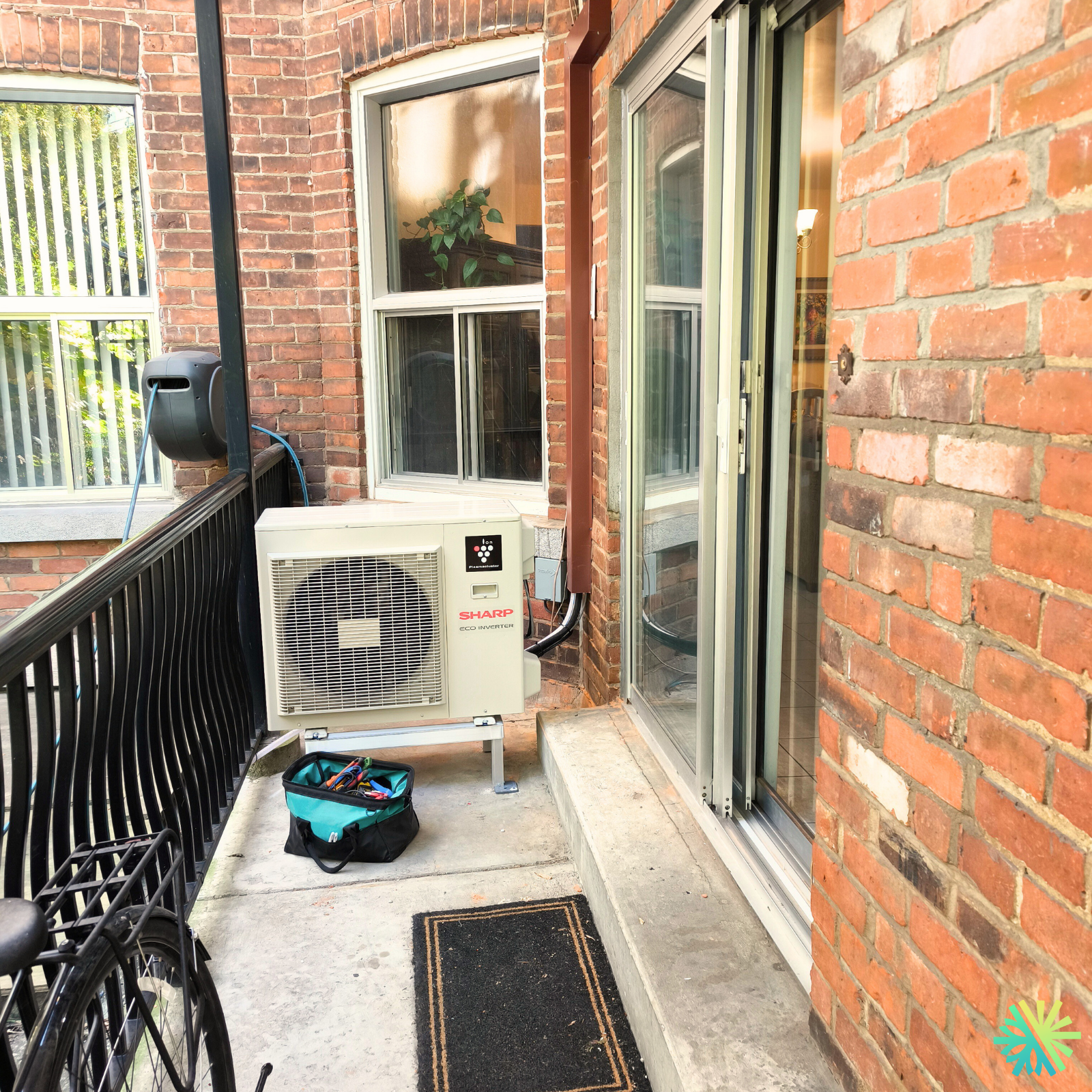

The photo perfectly illustrates the reality of the Plateau:
-
exposed brick facade,
-
concrete balcony of limited dimensions
-
metal railings,
-
patio doors and windows close together.
In this type of environment, every decision counts. The location of the outdoor unit must comply with both:
-
traffic on the balcony ,
-
noise and vibrations ,
-
the aesthetics of the building,
-
and of course, long-term performance , summer and winter.
Machine type: wall-mounted heat pump (mini-split)
The installed system is a wall-mounted heat pump , also known as a mini-split. This type of equipment is particularly well-suited to apartments in the Plateau-Mont-Royal neighbourhood, where adding central ductwork is often complex, or even impossible.
The visual clues are clear:
-
compact outdoor unit,
-
refrigeration lines exiting directly into the interior,
-
absence of visible ducts or plenum.
Brand used: Sharp (reference provided)
As indicated by the brand name provided manually, the installed equipment is a Sharp heat pump . Sharp is known for its reliable, quiet wall-mounted systems that are well-suited to Quebec's climatic conditions, particularly in urban areas where acoustic comfort is essential.
Consistent model: Sharp ZU1 – Eco Inverter
Even though the precise model number is not legible in the fine details of the image, the visible outdoor unit clearly corresponds to the Sharp Eco Inverter range, allowing us to identify a Sharp ZU1 model as a consistent and realistic choice.
The ZU1 series is available in several capacities (12,000 to 24,000 BTU), making it ideal for:
-
condos,
-
single-story apartments
-
or semi-open-plan housing, typical of the Plateau.
Significant installation details visible in the photo
1) Installation on a raised support
The outdoor unit is installed on a raised metal bracket , securely anchored to the balcony slab. This approach allows for:
-
improved snow and water management in winter,
-
a reduction in vibrations transmitted to the structure,
-
increased protection against stagnant moisture.
2) Careful management of limited space
The balcony is narrow, with a patio door right next to it. The unit was therefore positioned so as to:
-
preserve access and traffic flow,
-
avoid any obstruction to the opening of the door,
-
maintain optimal airflow to the condenser.
3) Clean and secure refrigeration connections
The pipes are grouped together and protected, with a discreet wall passage, which is essential in a visible and close-up environment like an urban balcony.
Performance and everyday comfort
A properly installed Sharp wall-mounted heat pump offers a double advantage that is highly valued in the Plateau-Mont-Royal area:
-
Efficient air conditioning in summer , when brick facades store heat and apartments quickly become stifling.
-
Efficient heating in mid-season and winter , reducing the use of electric baseboard heaters and improving overall comfort.
Thanks to inverter technology, the system continuously adjusts its power, which:
-
reduces on/off cycles
-
improves energy efficiency
-
extends the lifespan of the equipment.
Why a Sharp wall-mounted heat pump is an excellent choice on the Plateau
The Plateau-Mont-Royal area presents unique challenges:
-
high density,
-
close neighborhood
-
outdoor space restrictions,
-
the importance of silence and aesthetics.
The Sharp wall-mounted heat pump addresses these challenges precisely:
-
compact format
-
silent operation
-
flexible installation,
-
harmonious integration on balcony or rear facade.
The AirGreen approach: precision, sustainability and respect for the building
At AirGreen, we know that a successful installation is more than just setting up a machine. For this project, we paid particular attention to:
-
the perfect alignment of the unit,
-
vibration reduction,
-
the protection of existing surfaces,
-
and comprehensive heating and air conditioning tests.
Every detail counts, especially in a neighborhood as iconic and vibrant as the Plateau.
In summary
This Sharp wall-mounted heat pump installation in Plateau-Mont-Royal perfectly illustrates how a well-chosen and well-positioned system can transform the comfort of an urban dwelling, without compromising on space or aesthetics.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
