Installation of a Sharp ZU1 wall-mounted heat pump in Laval-des-Rapides
AirGreen installs a Sharp ZU1 wall-mounted heat pump in Laval-des-Rapides: performance, comfort and aesthetics combined in a complete HVAC solution for the Quebec climate.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Careful installation of a Sharp ZU1 heat pump for lasting comfort in Laval
At AirGreen , we recently installed a Sharp ZU1 wall-mounted heat pump in a residential duplex in Laval-des-Rapides , a quiet and green neighborhood in Laval . This project perfectly illustrates our approach: technical precision, aesthetic integration and sustainable energy performance .
Installation context
The client wanted to replace an old wall-mounted air conditioner with a complete four-season heating and cooling solution . Our recommendation: the Sharp ZU1 , an energy-efficient heat pump with Eco Inverter and Plasmacluster Ion technology, ideal for the Quebec climate. This model stands out for its stable operation down to −25 °C and its high-efficiency compressor, perfect for ensuring consistent comfort throughout the year.
Optimized wall integration

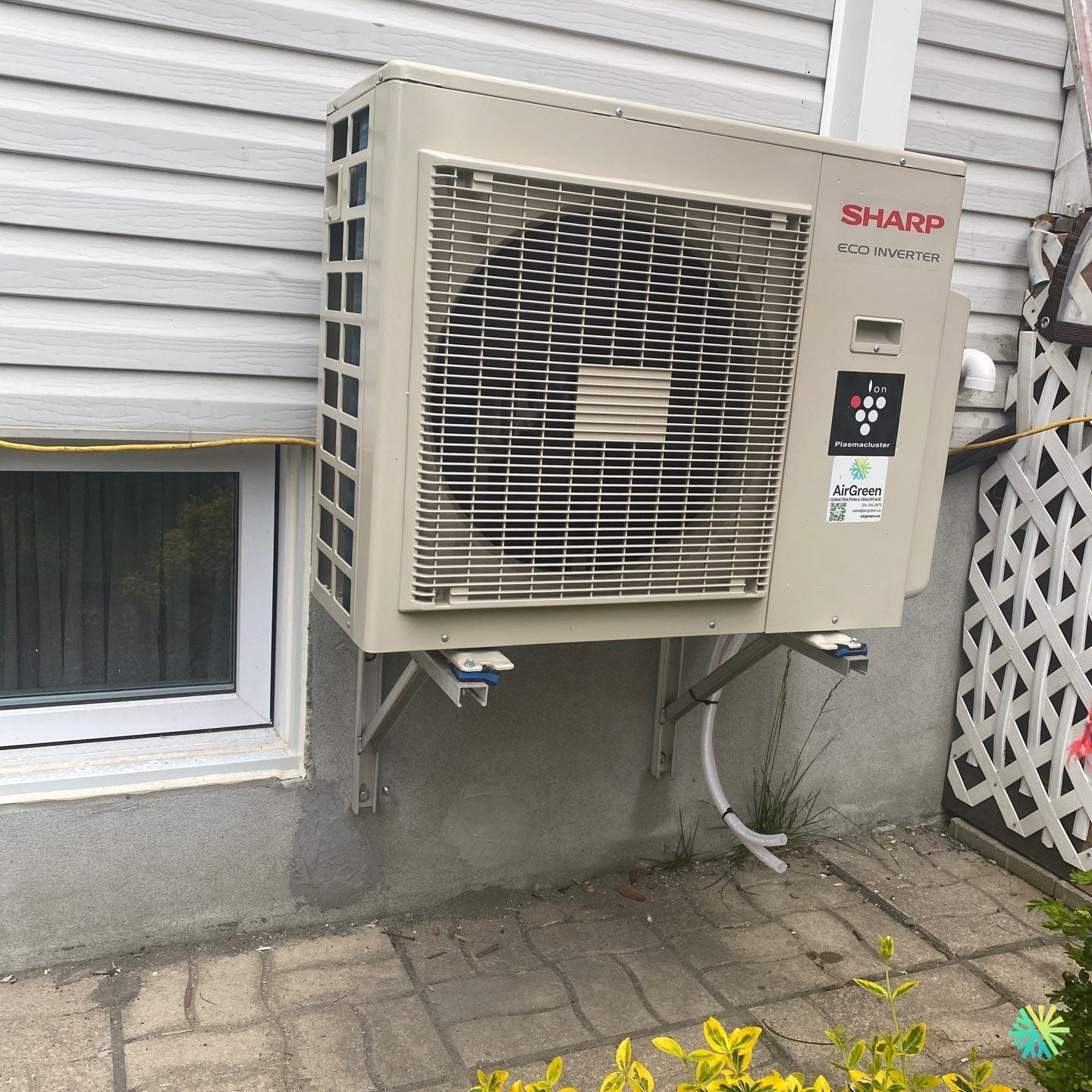

The outdoor unit was fixed on sturdy wall brackets above the paved ground, ensuring good air circulation and protection against snow and moisture .
The installation required precise wall drilling for the exit of the refrigeration and electrical conduits, carefully sheathed in a discreet beige-colored capping , in harmony with the facade of the building.
Condensate drainage was carried out by natural gravity , eliminating the need for an additional pump — a plus for durability and ease of maintenance.
Technical and safety details
-
Brand: Sharp
-
Model: ZU1, Eco Inverter Series
-
Type: Wall-mounted heat pump (mini-split)
-
Capacity: 12,000 BTU
-
Refrigerant: R-32 (environmentally friendly, low global warming potential)
-
Features: Plasmacluster Ion Technology, Quiet Mode, Auto Restart, Smart Defrost
-
Support: Galvanized steel brackets with anti-vibration
-
Electrical installation: dedicated line, protection by 15 A differential circuit breaker
The advantages of the Sharp ZU1 model
The Sharp ZU1 is one of the new generation of R-32 wall-mounted heat pumps we offer at AirGreen. It combines exceptional energy efficiency , reduced noise levels and Plasmacluster air purification technology , which neutralizes viruses, allergens and bacteria in indoor air.
Thanks to its inverter compressor , the Sharp ZU1 automatically adapts its power according to the ambient temperature, considerably reducing electricity consumption.
This model is also eligible for grant programs such as Rénoclimat and Chauffez vert , thanks to its Energy Star® certification and its performance in extreme cold.
Adaptation to the Laval residential context
The Laval-des-Rapides duplex had a typical layout: vinyl walls, paved driveway, basement windows close to the installation area .
Our technicians therefore chose an installation height calculated to guarantee the stability of the support , while avoiding acoustic resonance against the facade.
The refrigeration path has been optimized to less than three meters, minimizing heat loss and maximizing system efficiency.
Final result: comfort, silence and aesthetics
At the end of the project, the client now benefits from a complete HVAC system , capable of ensuring optimal comfort in both summer and winter.
The exterior unit, sober and discreet, blends harmoniously into the residential environment.
Commissioning tests confirmed remarkable thermal stability , with energy efficiency greater than 18 SEER and a significant reduction in energy bills .
AirGreen Maintenance and Monitoring
As with all our installations, we recommend annual maintenance to maintain the peak performance of your Sharp ZU1 heat pump. Our technicians offer a complete service:
-
Cleaning of coils and filters,
-
Checking the compressor and refrigerant level,
-
Testing electrical connections and drainage.
This monitoring extends the life of the system and guarantees flawless operation, even during the harsh winters of Greater Montreal.
Why choose AirGreen in Laval?
Installing a Sharp ZU1 wall-mounted heat pump in Laval with AirGreen means choosing:
-
Certified HVAC experts ,
-
An impeccable installation ,
-
Personalized advice to maximize grants,
-
And peace of mind thanks to our fast and courteous after-sales service.
At AirGreen, we are committed to providing each customer in Greater Montreal, Laval, Longueuil, the North Shore and the South Shore with reliable, efficient and aesthetic HVAC solutions , perfectly adapted to their home and their needs.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
