Installation of a Sharp ZU1 Mini Split Heat Pump in Brossard
Discover how AirGreen’s installation of the Sharp ZU1 mini split heat pump in Brossard brings warmth, efficiency, and healthier air to Canadian homes.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Uniting Comfort and Technology: A Heat Pump Installation Designed for Canadian Winters

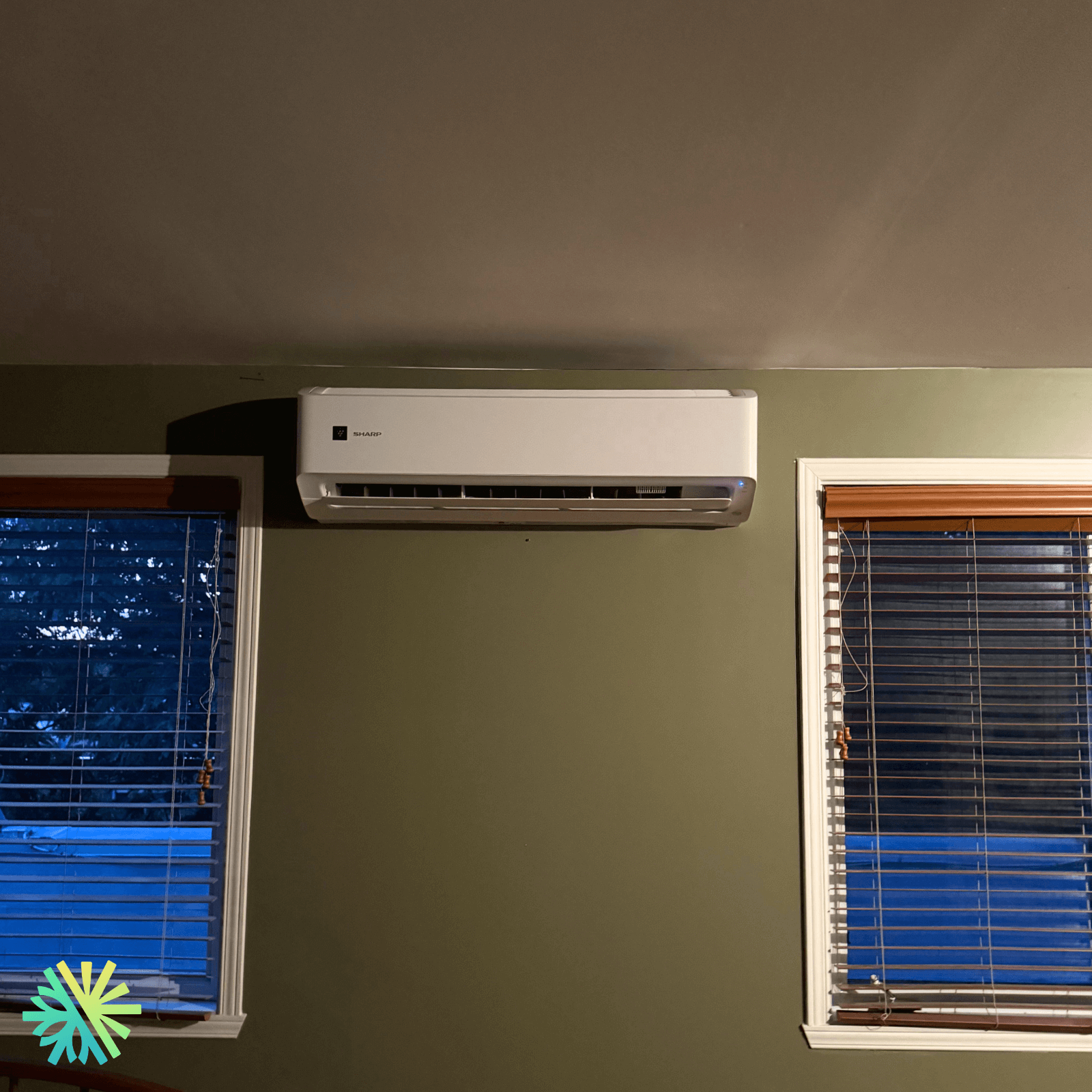

In our recent installation project in Brossard, we had the pleasure of installing the Sharp ZU1 18,000 BTU wall-mounted mini split heat pump. This project stands out not only because of the efficiency and reliability of the Sharp ZU1 model but also because it perfectly meets the needs of a Canadian home, providing comfort even in extreme weather conditions down to -27°C. With the highest LogisVert Grant available from Hydro-Québec in its category, this installation embodies a blend of efficiency, cost-saving potential, and the pursuit of year-round comfort.
Why Choose the Sharp ZU1 for Your Home?
When it comes to heating and cooling, the Sharp ZU1 is a model that doesn’t compromise. It’s a machine designed to handle intense cold while keeping energy consumption at an optimal level. With a cooling capacity of 18,000 BTU and a sound pressure level as low as 25 dB(A) indoors, this unit is not only powerful but also whisper-quiet, providing a comfortable environment without disruptive noise. This model's 24.0 SEER rating makes it highly energy-efficient, helping homeowners reduce energy bills while also minimizing environmental impact.
Key Features of the Sharp ZU1 Heat Pump
- Energy Star Certified: The Sharp ZU1 meets the highest standards for energy efficiency.
- WiFi Included: With built-in WiFi, you can control your heat pump remotely for added convenience.
- AHRI Certified: Certified with AHRI #213246053, ensuring quality and performance.
- Heating Capability Down to -27°C: Perfectly suited for Canadian winters, providing reliable warmth even in severe conditions.
- Quiet Operation: With a sound pressure level of just 25 dB(A) indoors, it operates quietly to avoid disrupting your home environment.
- Plasmacluster Technology: A unique feature of Sharp’s heat pumps, this technology helps purify the air, eliminating bacteria, viruses, and mold.
Installation Details: Brossard’s New Standard of Comfort
For this installation, our team selected a spot in the main living area, optimizing air distribution throughout the space. We installed the indoor unit with precise measurements, ensuring a clean and professional look that blends seamlessly into the room's decor. The dimensions of the interior unit are 41.42 x 9.80 x 12.44 inches, making it compact enough for various room sizes while still delivering high performance.
The outdoor unit, measuring 33.47 x 13 x 27.94 inches, was positioned to maximize efficiency and minimize exposure to the elements. The sturdy build of the Sharp ZU1's exterior unit, combined with its R-32 refrigerant, ensures both durability and environmentally friendly operation.
Harnessing Advanced Technology for Optimal Comfort
This Sharp ZU1 unit doesn’t just provide heating and cooling—it offers a range of advanced features designed to make life easier and healthier:
- Plasmacluster Ion Technology: Unique to Sharp, this feature releases positive and negative ions that neutralize pollutants and enhance indoor air quality. It’s like having an air purifier integrated into your HVAC system, creating a healthier environment by reducing bacteria, viruses, and allergens.
- Temperature Control Precision: Equipped with advanced sensors and control mechanisms, the ZU1 can maintain your chosen temperature with remarkable accuracy, providing consistent comfort.
- Quiet Yet Powerful: Despite its impressive performance, this heat pump operates quietly. At only 52 dB(A) outdoors, your comfort remains uninterrupted even when the unit is working at full capacity.
Benefits of Installing with AirGreen
As a company based in Montréal with a strong presence across Laval, Longueuil, and both the North and South Shores, AirGreen is proud to bring cutting-edge technology and exceptional service to homeowners in these regions. We understand the demands of Canadian winters and the importance of reliable HVAC solutions that withstand extreme conditions.
When you choose AirGreen for your heat pump installation, you’re not just getting a product—you’re investing in professional service backed by years of expertise and a commitment to customer satisfaction. Our team ensures that every installation meets strict quality standards, giving you peace of mind and a product that’s built to last.
Maximum Efficiency and Cost Savings with Hydro-Québec's LogisVert Grant
One of the standout features of this installation is the $2,640 LogisVert Grant from Hydro-Québec. This is the highest grant available for a heat pump in the 18,000 BTU category, making it an attractive option for homeowners looking to reduce upfront costs while improving energy efficiency. This grant makes the Sharp ZU1 not only a smart choice in terms of technology but also a financially savvy investment for long-term savings.
Dimensions and Specifications
| Feature | Specification |
|---|---|
| Cooling Capacity | 18,000 BTU |
| Heating Capability | Effective to -27°C |
| Indoor Unit Dimensions | 41.42 x 9.80 x 12.44 in |
| Outdoor Unit Dimensions | 33.47 x 13 x 27.94 in |
| Noise Level | 25-49 dB(A) indoor, 52 dB(A) outdoor |
| SEER | 24.0 |
| Warranty | 10 years (compressor, parts, labor) |
| Refrigerant | R-32 |
Why the Sharp ZU1 is Ideal for Canadian Homes
In a region where temperatures frequently plunge, it’s crucial to have a system that can reliably perform even in harsh winter conditions. The Sharp ZU1, with its ability to provide heat at -27°C, ensures that your home stays comfortable regardless of the season. Moreover, its efficient R-32 refrigerant minimizes environmental impact, aligning with modern eco-conscious living.
With 10-year warranties covering the compressor, parts, and labor, you can trust that your investment is protected, and your home will remain comfortable for years to come.
A Smart Investment for Your Home's Future
The Sharp ZU1 heat pump is not just an HVAC unit—it’s a long-term investment in your home’s comfort, energy efficiency, and air quality. With its Plasmacluster Ion Technology, the unit doesn’t merely regulate temperature but also purifies the air, promoting a healthier indoor environment. As more homeowners become aware of the importance of air quality, the Sharp ZU1 stands out as a forward-thinking choice that addresses multiple needs.
In conclusion, AirGreen’s installation of the Sharp ZU1 18,000 BTU mini split heat pump in Brossard is a prime example of how modern HVAC solutions can meet the demands of Canadian climates while also delivering enhanced air quality and energy efficiency. Our commitment to quality and our experience in the HVAC industry make us the trusted choice for installations in Montreal, Laval, Longueuil, and beyond. We look forward to bringing warmth, comfort, and efficiency to more homes with every installation.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
