Installation of a SHARP ZU1 Wall-Mounted Heat Pump in South Shore

Experience ultimate comfort with our SHARP ZU1 heat pump installation! Efficient, eco-friendly, and built for -27°C winters, it’s the perfect choice for South Shore homeowners.

By AirGreen Climatisation & Chauffage Admin5 min read
City
Region
Equipment
Brand
Challenges
Published
–chapters, to open one by one
5 minto read the whole story
–type of installation
2024year published
At a glance

The job on one screen

The unit

The unit’s data sheet

The range as published on airgreen.ca: pick a size to see its capacity in deep cold.

The range, size by size
SizeHeating at −8 °CHeating at −15 °CColdest certified pointCOP at −15 °CSEERHSPFIndicative LogisVert aid
Sharp ZU1 12 00014,50012,000−27 °C: 7,2002.1122.011.0$1,740
Sharp ZU1 15 00018,10015,300−27 °C: 10,1002.124.011.0$2,172
Sharp ZU1 18 00022,00018,000−27 °C: 11,5002.224.011.0$2,640
Sharp ZU1 24 00022,40019,000−27 °C: 12,3002.222.011.0$2,688
14,500Its full nominal heating at −8 °C

According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.

7,200Still 7,200 BTU/h at −27 °C

According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.

17,100A 17,100 BTU/h reserve in mild weather

At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.

Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.

The full story

The article, chapter by chapter

Transforming Comfort: A Unique Installation with AirGreen

At AirGreen, we are proud to provide cutting-edge HVAC solutions, tailored to the specific needs of our clients across Montreal, Laval, Longueuil, the North Shore, and the South Shore. This recent installation on the South Shore perfectly illustrates our commitment to quality, innovation, and customer satisfaction. Here is the story of the installation of the SHARP ZU1 15,000 BTU wall-mounted heat pump for a homeowner seeking ultimate comfort and energy efficiency.

The Context: A Need for Precision and Performance

Our client contacted us with a specific request: a reliable system capable of providing exceptional heating during Quebec’s harsh winters and optimal cooling during the summer months. They were looking for an efficient, quiet, and environmentally friendly device. After discussing their needs and analyzing their home’s layout, we recommended the SHARP ZU1 wall-mounted heat pump, a model known for its advanced features, durability, and ability to operate down to -27 °C.

Why the SHARP ZU1? Features That Make a Difference

The SHARP ZU1 wall-mounted heat pump is much more than just a device; it’s a solution designed for modern homeowners who value performance, durability, and comfort. Here’s what makes this model exceptional:

  • Heating and Cooling Capacity: With a capacity of 15,000 BTU, this unit guarantees year-round comfort, perfectly adapting to the seasons.
  • Efficiency: Featuring an impressive 24.0 SEER rating, the SHARP ZU1 is one of the most energy-efficient models, helping our client save on energy bills.
  • Extreme Cold Resistance: Certified by Energy Star®, this heat pump excels in harsh climates, remaining operational down to -27 °C.
  • R-32 Refrigerant: The use of this eco-friendly refrigerant reduces greenhouse gas emissions and improves overall efficiency.
  • Quiet Operation: With sound levels as low as 23 dB(A) indoors and 49 dB(A) outdoors, this system operates ultra-quietly, perfect for peaceful living.
  • Advanced Technology: Equipped with Plasmacluster technology, the SHARP ZU1 neutralizes viruses, allergens, and odors in the ambient air, ensuring optimal indoor air quality.
  • Coanda Airflow Control: This innovative feature optimizes air distribution, avoiding uncomfortable drafts and ensuring even temperatures throughout the home.

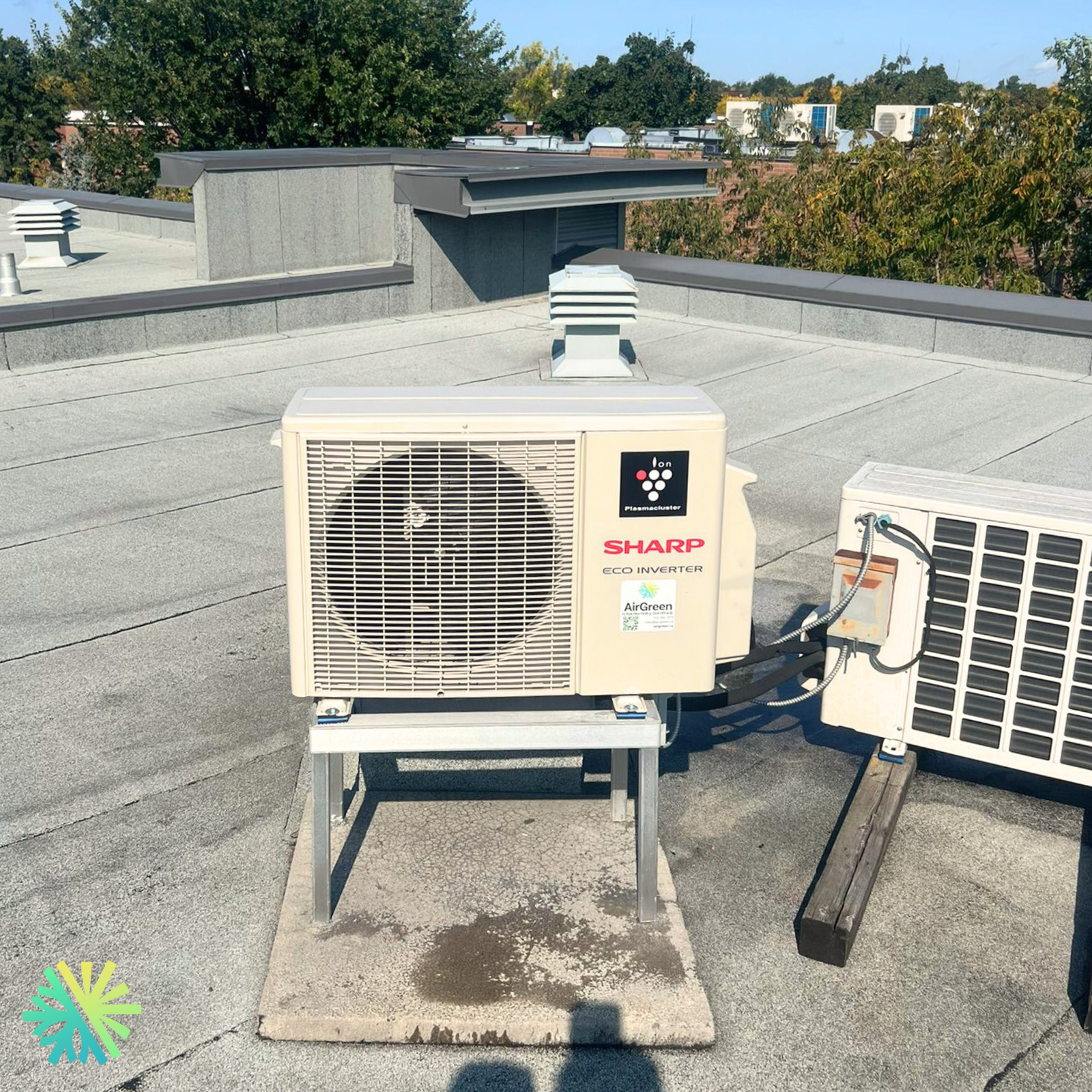

Installation of a SHARP ZU1 wall-mounted heat pump on the South Shore

The Installation: Designing a Custom Solution

Step 1: Planning and Preparation

Every installation begins with a thorough planning process. For this project, our team conducted an in-depth property assessment to determine the ideal locations for the indoor and outdoor units. The indoor unit, with its sleek dimensions of 41.42 x 9.80 x 12.44 inches, was installed in the living room, the heart of the home, to ensure optimal air circulation. The outdoor unit, measuring 30.72 x 10.59 x 21.25 inches, was strategically placed on the roof to maximize efficiency and minimize noise.

Step 2: Professional Installation

Using high-quality materials and precise techniques, we installed the system with care and accuracy. Copper piping and electrical wiring were seamlessly integrated to preserve the home’s aesthetics. We used a sturdy anti-vibration mount for the outdoor unit, ensuring its stability and durability even in bad weather.

Step 3: Testing and Calibration

Once installation was complete, our technicians performed rigorous tests to ensure the system operated at maximum efficiency. From checking refrigerant levels to calibrating the thermostat, every detail was carefully examined to guarantee optimal performance.

Benefits for the Client: Why This Installation Is Remarkable

Maximum Comfort with Minimal Effort

The advanced features of the SHARP ZU1, including WiFi connectivity and a user-friendly smartphone app, allow the homeowner to control the system remotely. Whether adjusting the temperature or monitoring energy consumption, everything is at their fingertips.

Financial Incentives

This model qualifies for a $2,172 rebate through the LogisVert program, the highest available rebate for a 15,000 BTU heat pump. By choosing this system, our client not only improved their home’s comfort but also made a smart financial decision.

Durability and Performance Combined

The eco-friendly R-32 refrigerant and Energy Star® certification make this heat pump a sustainable choice, aligned with Quebec’s commitment to reducing energy consumption and environmental impact.

Why Choose AirGreen for Your HVAC Needs?

At AirGreen, we go beyond simple installations; we create solutions. Our team is committed to:

  • Providing top-notch customer service, from consultation to post-installation support.
  • Offering cutting-edge HVAC products tailored to your home’s unique needs.
  • Ensuring compliance with all safety and efficiency standards.

With every project, we bring unmatched expertise and dedication, making us a trusted partner for homeowners in the region.

Conclusion

This installation of the SHARP ZU1 wall-mounted heat pump on the South Shore demonstrates the transformative power of quality HVAC solutions. Whether facing harsh winters or sweltering summers, AirGreen is here to ensure your home remains a haven of comfort and efficiency.

Installation of a SHARP ZU1 wall-mounted heat pump on the South Shore
Your numbers

The job tools

Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.

Before / afterThe cost of the same heat

Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):

Before · baseboards11.142¢/kWh
After · heat pump–

Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.

Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.

Size checkYour baseboards, in BTU/h
–BTU/h of installed electric heat

    Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.

    The steps

    How the job unfolds

    The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.

    Step 1 of 9The on-site estimate

    We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.

    1. The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
    2. The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
    3. Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
    4. The wall openingA single opening, with the slope the drain needs to flow outside.
    5. The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
    6. Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
    7. The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
    8. Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
    9. The walkthroughRemote, modes, filters: we show you the essentials before we leave.
    The tour

    What we check on a job like this one

    Each number is a point we check on site. Switch between summer and winter to watch air and heat move.

    Generic diagram: wall-mounted heat pump, indoor and outdoor units

    In summer, the outdoor unit rejects the house's heat outside.

    Generic illustration of this type of installation, not a survey of this job site. Tap a number.

    1. Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.

    2. The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.

    3. Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.

    4. A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.

    5. The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.

    6. On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.

    7. The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.

    At your place

    Is your home ready?

    Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.

    0 / 6 checked
    Maintenance

    Good habits, once the unit is in place

    Six simple habits that keep the unit going. Your list stays on this device.

    0 / 6 checked
    Through the seasons

    What to do, season by season

    Three habits per season for this unit. They take a few minutes and prevent many calls.

    • Clean the indoor unit's filters.
    • Clear leaves and debris left on the outdoor unit by winter.
    • Test cooling before the first hot days.
    For your project

    The right pages, at the right time

    True or false

    Four statements: true or false?

    It all comes down to details you have just seen.

    1. In heating mode, the outdoor unit can produce water.

    2. You pick the capacity with a simple square-footage rule.

    3. A multi-zone connects several indoor heads to a single condenser.

    4. The disconnect can sit behind the patio furniture.

    Frequently asked questions

    What people ask us about this kind of work

    12 questions
    Does a wall-mounted heat pump heat in winter?
    Yes, it heats and cools. Its capacity drops in very cold weather; the operating range depends on the model and is listed on its spec sheet.
    Wall-mounted or multi-zone: how do I choose?
    One wall head and one condenser outside: the direct solution for a room or an open area. For two to five rooms, a multi-zone puts one head in each room on a single condenser.
    Where does the outdoor unit go?
    Where it stays above the snow, clear and accessible, away from walkways. We decide it with you during the estimate.
    Are there grants?
    Depending on the model and your situation, assistance programs may apply, including Hydro-Québec's LogisVert. AirGreen checks the model number before quoting an amount. See the grants.
    Do I need a permit?
    Rules vary from city to city: location, distances, noise. See permits and by-laws, and we check for your address.
    How cold can it heat?
    It depends on the model. According to Hydro-Québec, newer models work down to a temperature between −15 °C and −25 °C, and some cold-climate models are certified lower. The minimum temperature is on each unit's spec sheet.
    How much can I save?
    Hydro-Québec says a heat pump can be up to three times more efficient than baseboards for heating in the colder months. The result depends on the house, the climate and how it is used.
    How is the LogisVert assistance calculated?
    For ENERGY STAR cold-climate certified heat pumps, Hydro-Québec lists assistance of $120 per 1,000 BTU/h of heating capacity at −8 °C. AirGreen checks the exact model before quoting an amount; only Hydro-Québec confirms the assistance granted. See the grants.
    Is it noisy?
    The sound level depends on the model and is listed in decibels on each unit's spec sheet. Location matters too: when possible, we avoid putting the outdoor unit under a bedroom window.
    The outdoor unit is covered in ice: is that normal?
    Some frost is: the unit runs defrost cycles. Never hit the ice. If the unit stays iced up or stops heating, call us.
    Does AirGreen hold the required licences?
    Yes. AirGreen holds RBQ licence 5645-9605-01, subclasses 15.8 Ventilation, 15.10 Refrigeration and 16 Electricity.
    Is the estimate free?
    Yes. The on-site estimate is free and the quote follows within 24 hours. Book my free estimate.
