Zephyr wall-mounted heat pump installation in Fabreville (Laval): four-season performance and custom installation
In Fabreville (Laval), AirGreen installed a Zephyr wall-mounted heat pump with an outdoor unit fixed to the wall for better winter protection. A reliable, clean, and efficient solution for year-round residential comfort.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
In Fabreville , a typical residential area of Laval comprised mainly of single-family homes with vinyl siding, we recently completed the installation of a Zephyr wall-mounted heat pump . This project perfectly illustrates our approach at AirGreen : a thoughtful, robust, and aesthetically pleasing installation, adapted to Quebec's climate and the specific constraints of the property.

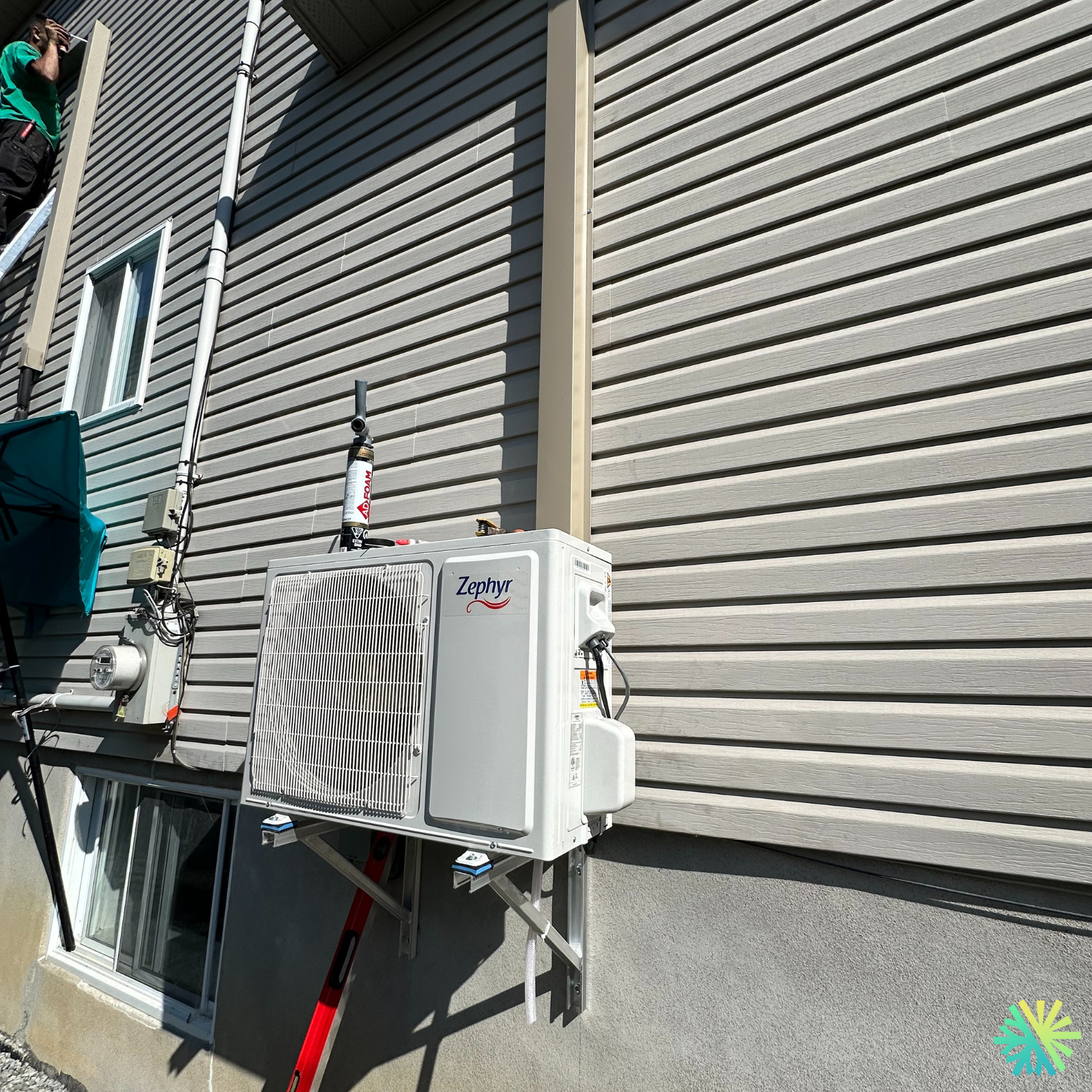

The photo clearly highlights the Zephyr outdoor unit, securely fixed to the wall on metal brackets designed to withstand harsh winters, snow accumulation and frequent freeze-thaw cycles in Laval.
Type of system installed: wall-mounted heat pump (residential mini-split)
This is a Zephyr wall-mounted heat pump , also called a mini-split , a very popular choice in neighborhoods like Fabreville. This type of system is ideal for:
-
houses without central flues,
-
additions or finished basements,
-
improving comfort without major renovations.
The configuration includes a wall-mounted indoor unit (not visible in this photo) and a compact outdoor unit , connected by carefully protected refrigerant lines.
Brand used: Zephyr
As indicated, the installed brand is Zephyr . This brand is known for offering reliable systems well-suited to residential needs in Quebec, with:
-
good energy efficiency,
-
compatibility with heating in winter,
-
stable operation even during large temperature variations.
Since the exact model is not visible in the image, we are referring to a new generation Zephyr wall-mounted heat pump , consistent with the common residential installations we carry out at AirGreen.
Outdoor installation details: what you notice immediately
This outdoor installation in Fabreville has several important technical features:
Wall mounting on sturdy brackets
The outdoor unit is installed on galvanized wall brackets , securely anchored to the structure. This choice allows for:
-
to avoid direct contact with the snow,
-
to reduce vibrations transmitted to the ground,
-
to extend the lifespan of the equipment.
Careful management of connections and drainage
The refrigerant lines and electrical wiring are neatly organized, with a clean vertical run along the wall. This arrangement protects the components against:
-
the shocks,
-
prolonged exposure to the elements,
-
premature wear.
Condensation drainage is also designed to prevent any backflow or accumulation of water near the foundation.
Accessibility for maintenance
The chosen location allows easy access for:
-
the annual maintenance,
-
the inspections,
-
service interventions, without having to unnecessarily dismantle the equipment.
Why a Zephyr wall-mounted heat pump is an excellent choice in Laval
In an area like Fabreville, where winters are cold and summers are sometimes very hot, a properly installed wall-mounted heat pump offers a real advantage:
-
efficient heating during the intermediate cold seasons,
-
Fast and comfortable air conditioning in summer.
-
reduced reliance on electric baseboard heaters,
-
better room-by-room temperature control.
With a professional installation like this, the system can operate stably and quietly, while maintaining an excellent level of comfort.
The AirGreen approach: a sustainable installation adapted to Quebec
At AirGreen , every wall-mounted heat pump installation is designed to last. In Fabreville, this means:
-
compliance with electrical and mechanical standards
-
fixing suitable for the typical exterior cladding of Laval,
-
complete commissioning with functional tests,
-
special attention to resistance to Quebec winter conditions.
We don't just install a machine: we install a comfort system , designed to work efficiently year after year.
Conclusion: a project perfectly integrated into Fabreville
This Zephyr wall-mounted heat pump installation in Fabreville (Laval) demonstrates that with rigorous planning and professional execution, it is possible to achieve:
-
a clean and sturdy outdoor installation
-
a high-performance system for heating and air conditioning,
-
and increased comfort for the whole house, summer and winter.
Whether you are in Laval, on the North Shore, in Montreal or elsewhere in Greater Montreal, AirGreen supports you with HVAC solutions adapted to your residential reality.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
