Installation of a SHARP BU Double Zone Heat Pump in Anjou
Discover how AirGreen installed a SHARP Double Zone Heat Pump in Anjou—efficient, eco-friendly, and perfect for Montreal’s climate challenges. Breathe cleaner air while saving money!
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A Perfect Heating and Cooling Solution for Comfort and Savings

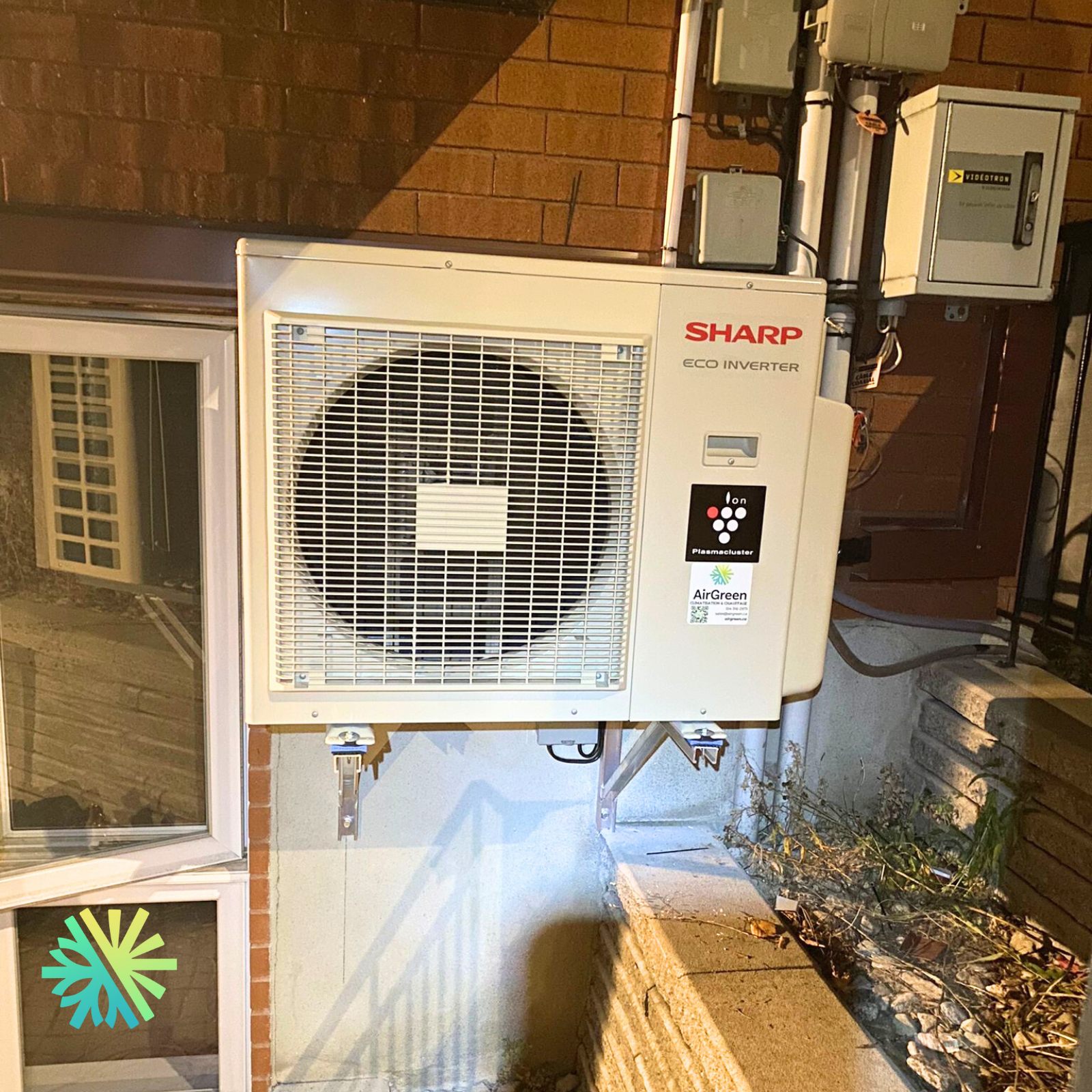

In Anjou, AirGreen recently completed the installation of a SHARP BU Double Zone Heat Pump, a high-performance 24,000 BTU system designed to deliver optimal comfort throughout all seasons. Equipped with two 12,000 BTU indoor units, this setup is tailor-made to efficiently manage temperatures across two distinct zones of the home. This installation offers not only exceptional comfort but also impressive energy savings and cutting-edge technology suited for Montreal’s climate extremes.
Why SHARP’s Double Zone Heat Pump Stands Out
The SHARP BU Double Zone Heat Pump is not just another air conditioning system; it’s an innovation that prioritizes efficiency, performance, and sustainability. Designed to operate flawlessly even in the coldest conditions, it is a top choice for homeowners in Montreal, Laval, Longueuil, and across the North Shore and South Shore.
Key Features of the SHARP BU Model
- Capacity: 24,000 BTU compressor with two 12,000 BTU interior units
- Heating Capability: Effective up to -27°C
- Energy Efficiency: 24.0 SEER (Seasonal Energy Efficiency Ratio)
- Refrigerant: R-32, eco-friendly with a low environmental impact
- Noise Level: 50.0 dB(A) for the exterior unit
- Smart Controls: Integrated WiFi for convenient management
- Warranty: 10 years on the compressor, parts, and labor
- Eligible for the $3,000 LogisVert Grant by Hydro-Québec
An Installation Designed for Montreal’s Climate
The SHARP BU is a year-round solution. In the winter, it heats homes reliably, even during frigid temperatures as low as -27°C, a necessity in Montreal's harsh winters. In summer, it provides refreshing, energy-efficient cooling. Whether you’re tackling sweltering July days or chilly February nights, this system keeps your home perfectly comfortable.
A Smooth and Professional Installation in Anjou
The installation took place in a residential home in Anjou, where our client needed a solution to manage temperatures in two primary zones of their home: the living room and master bedroom. With a SHARP 24,000 BTU outdoor compressor and two sleek, efficient 12,000 BTU indoor units, the system was ideal for their needs.
Our team at AirGreen approached the project with precision and care:
- Site Assessment: We ensured the location for the outdoor unit met optimal airflow requirements. Mounted securely on a concrete wall with vibration-dampening brackets, the unit was positioned to minimize noise and maximize longevity.
- Interior Units: The two wall-mounted units were placed strategically in the main living areas to ensure efficient airflow. Thanks to the Coanda Effect, these units direct air seamlessly, avoiding cold drafts and creating an even temperature across the zones.
- Electrical Setup: With a 220V system, we installed dedicated wiring to support the heat pump’s power demands, ensuring safe and smooth operation.
What Makes the SHARP BU a Top Choice?
Unmatched Air Quality with Plasmacluster Technology
One of the standout features of the SHARP BU series is its Plasmacluster ion technology, a game-changer for indoor air quality. By releasing positive and negative ions, it actively neutralizes viruses, bacteria, allergens, and even odors, ensuring the air you breathe is not only clean but also fresh.
For families in Anjou, especially those with allergies, asthma, or pets, this feature brings immense value.
Sustainability and Efficiency with R-32 Refrigerant
The choice of R-32 refrigerant ensures the system remains eco-friendly while providing superior performance. R-32 offers:
- Lower global warming potential (GWP) compared to traditional refrigerants
- Higher energy efficiency, leading to reduced electricity bills
- Recyclability, contributing to sustainability efforts
Ultra-Quiet Operation
Operating at just 50 dB(A), the SHARP outdoor compressor ensures peace and quiet for homeowners and their neighbors. Whether it’s running during a summer evening or a cold winter morning, the system operates silently in the background.
Energy Efficiency That Saves You Money
With a 24.0 SEER rating, the SHARP BU is among the most efficient heat pumps on the market. This translates into significant energy savings year-round, especially when compared to traditional HVAC systems.
Eligible for Hydro-Québec’s $3,000 LogisVert Grant
A major incentive for homeowners in Montreal and surrounding areas is the LogisVert Grant by Hydro-Québec. The SHARP BU heat pump qualifies for up to $3,000 in rebates, making this installation an investment that pays off quickly.
Combined with its 10-year warranty on parts, labor, and the compressor, the SHARP BU offers incredible value and long-term peace of mind.
What Our Clients Love About AirGreen
At AirGreen, we pride ourselves on delivering top-notch service with attention to detail. Here’s what sets us apart:
- Expert Installers: Our team ensures every installation meets the highest industry standards.
- Energy Solutions: We recommend energy-efficient options that save you money.
- Local Support: Based in Montreal, we serve clients across Laval, Longueuil, North Shore, and South Shore with prompt, professional service.
Why Choose AirGreen for Your Heat Pump Installation?
- Professional Consultation: We assess your home’s unique needs and recommend tailored solutions.
- Transparent Pricing: No hidden fees—our clients always know what to expect.
- Top Brands: We install only the most reliable brands, like SHARP, that are proven to perform in Quebec’s demanding climate.
- After-Sales Service: Our commitment doesn’t end after installation. We’re here for maintenance, support, and any questions you may have.
Conclusion: A Reliable, Efficient Solution for Anjou Homes
The SHARP BU Double Zone Heat Pump installed in Anjou by AirGreen is more than just a climate control system—it’s a commitment to comfort, efficiency, and clean air. With its innovative features, exceptional cold-weather performance, and eligibility for the Hydro-Québec LogisVert Grant, this system delivers unparalleled value.
If you’re looking for a high-performing heat pump in Montreal, Laval, Longueuil, or surrounding areas, trust AirGreen to deliver expert solutions that make your home a haven of comfort all year long.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp BU 24 0002 Zones (Dual Zone) | 25,000 | 21,200 | −27 °C: 14,600 | 2.3 | 24.0 | 11.5 | $3,000 |
| Sharp BU 24 0003 Zones (Triple Zone) | 25,000 | 21,200 | −27 °C: 14,600 | 2.3 | 24.0 | 11.5 | $3,000 |
Among the year’s most efficient according to ENERGY STAR, on top of its cold-climate certification.
Minimum certified capacity (NEEP): it slows down instead of stopping when a single room calls.
NEEP still lists 14,600 BTU/h at a COP of 1.84 at −17 °F.
Global warming potential of R-32, versus 2,088 for R-410A (ENERGY STAR).
Among the year’s most efficient according to ENERGY STAR, on top of its cold-climate certification.
Minimum certified capacity (NEEP): it slows down instead of stopping when a single room calls.
NEEP still lists 14,600 BTU/h at a COP of 1.84 at −17 °F.
Global warming potential of R-32, versus 2,088 for R-410A (ENERGY STAR).
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
