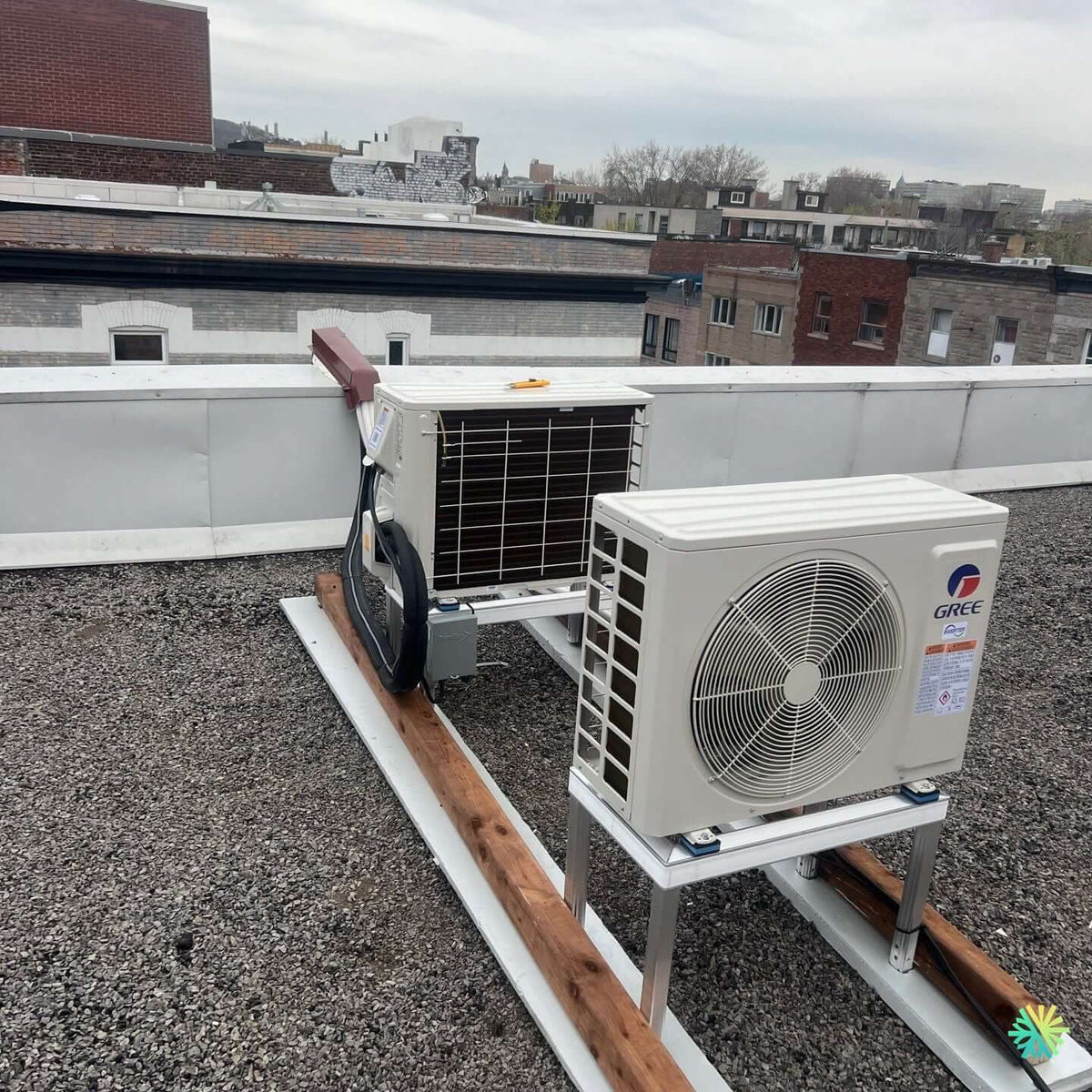

Installation of two GREE Livo R32 wall-mounted heat pumps in Rosemont–La Petite-Patrie
Installation of two GREE Livo R32 wall-mounted heat pumps on a flat roof in Rosemont–La Petite-Patrie. An AirGreen project combining performance, energy efficiency, and sustainability for four-season comfort in Montreal.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A flat roof installation designed for performance and durability
At AirGreen , we recently completed the installation of two GREE Livo R32 wall-mounted heat pumps in a residential building in the Rosemont–La Petite-Patrie district of Montreal. This project perfectly illustrates our expertise in integrating high-performance, sustainable HVAC solutions into the typical urban fabric of the metropolis: flat-roofed buildings, limited access, and the architectural constraints specific to Montreal triplexes and plexes.
The context: four-season comfort for a typical Rosemont building
The owner wanted to modernize his air conditioning and heating system to ensure consistent comfort all year round , while reducing his energy costs. The old, aging, energy-intensive units no longer met current performance and reliability requirements.
Our recommendation: the GREE Livo R32 wall-mounted heat pump , a compact, energy-efficient solution perfectly suited to the climatic conditions of Greater Montreal. Thanks to its R-32 refrigerant, this series offers better energy efficiency and a reduced environmental impact , while maintaining excellent performance down to −25 °C .
A flat roof installation: technical, precise and careful
This project presented a specific challenge: the outdoor units had to be installed on the building's flat roof . This type of configuration, common in Montreal's central neighborhoods, requires meticulous planning to ensure the stability, safety, and durability of the installation.
Our technicians opted for raised aluminum supports fixed on anti-vibration rails resting on treated wooden boards . This system ensures even weight distribution , protects the roof covering and limits vibrations transmitted to the building structure.
The refrigerant connections were carefully protected by a brown cover , ensuring both mechanical protection and aesthetic integration into the urban landscape. This attention to detail, specific to our AirGreen teams, guarantees a clean, durable installation that complies with ventilation and evacuation standards .
A perfect pairing: two GREE units for two independent zones
As the building has several apartments, the chosen configuration is based on two independent GREE Livo R32 systems , each serving a separate zone. This choice offers the owner optimal flexibility : each zone can be controlled independently , promoting fine-tuned energy management adapted to the occupancy of the premises.
The wall-mounted indoor units combined with these condensers provide uniform airflow and quiet operation , while offering a discreet and modern design. Both systems operate in heat pump mode , providing both heating and cooling, with an energy efficiency (SEER) rating greater than 20 .
GREE Livo R32: performance, reliability and respect for the environment
The GREE Livo R32 series stands out for its variable speed compressor technology (inverter) , which automatically adjusts the power according to actual needs. This results in:
-
reduced energy consumption ,
-
increased thermal stability ,
-
and extended system longevity .
Thanks to its R-32 refrigerant, this heat pump also meets the latest environmental standards , with a global warming potential (GWP) 68% lower than R-410A. It is therefore an excellent choice for Montreal homeowners concerned about energy efficiency and sustainability.
A certified facility eligible for grant programs
Like all installations carried out by AirGreen, this project fully complies with the requirements of the subsidy programs in force in Quebec, such as Chauffez vert or the incentives offered by Hydro-Québec .
GREE Livo R32 wall-mounted heat pumps , thanks to their Energy Star certification, are eligible for this financial assistance , which allows our customers to considerably reduce the net cost of their investment .
Notable technical details
-
Installation location : Flat roof of a residential building, Rosemont–La Petite-Patrie
-
System type : Wall-mounted heat pump (mini-split)
-
Brand and range : GREE Livo R32
-
Number of outdoor units : 2
-
Support : Raised aluminum frames with anti-vibration rails and treated wooden boards
-
Cover : brown PVC, ensuring protection and discretion
-
Performance : heating down to −25°C, SEER > 20, Energy Star certified
-
Power supply : 230 V
-
Condensate evacuation method : gravity, thanks to the natural slope of the roof
A project delivered on time, without compromising on quality
Despite roof access constraints and spring weather conditions, our team completed the installation in a single day , including pressurization, vacuuming and operational testing.
Each unit has been calibrated for optimum performance , ensuring quiet and stable operation from the moment it is commissioned.
This rigorous approach reflects AirGreen's commitment to technical excellence and customer satisfaction . Our certified installers ensure that each system is not only high-performing, but also aesthetically integrated and easy to maintain .
Added value for the building
In addition to comfort and energy savings, this installation has increased the real estate value of the building .
New occupants now benefit from four-season comfort , a consistent interior temperature , and a significant reduction in noise and electricity consumption .
Why choose AirGreen for your HVAC installations in Montreal
At AirGreen, we combine technical expertise, attention to detail, and a commitment to the environment . Our teams are fully familiar with the realities of Montreal buildings—whether flat roofs, exterior staircases, or older structures—and adapt each installation accordingly.
Our mission is simple: to offer each customer a durable, efficient and elegant HVAC solution , installed according to the strictest standards in the industry .
AirGreen — Your trusted partner for the installation, maintenance and repair of GREE , Fujitsu , Midea , Sharp , and many other brands of heat pumps in Greater Montreal , Laval , Longueuil , the North Shore and the South Shore .
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Gree Livo R32 9 000 (115 V) | 10,000 | 7,600 | −25 °C: 5,700 | 1.86 | 20.5 | 8.8 | – |
| Gree Livo R32 9 000 | 9,600 | 7,600 | −25 °C: 5,500 | 1.94 | 20.5 | 8.8 | – |
| Gree Livo R32 12 000 (115 V) | 9,700 | 8,500 | −25 °C: 6,500 | 1.75 | 19.0 | 8.5 | – |
| Gree Livo R32 12 000 | 9,700 | 9,100 | −25 °C: 6,500 | 1.8 | 19.0 | 8.5 | $1,164 |
| Gree Livo R32 18 000 | 15,300 | 12,100 | −25 °C: 10,200 | 1.85 | 20.0 | 8.5 | $1,836 |
| Gree Livo R32 24 000 | 19,200 | 15,700 | −25 °C: 10,500 | 1.75 | 19.0 | 8.5 | $2,304 |
| Gree Livo R32 30 000 | 24,000 | 23,000 | −25 °C: 16,900 | 1.8 | 22.0 | 9.0 | $2,880 |
| Gree Livo R32 36 000 | 27,400 | 24,600 | −25 °C: 21,000 | 1.8 | 21.0 | 8.5 | $3,288 |
According to NEEP, it delivers 10,000 BTU/h at −8 °C (17 °F), as much as at 8 °C. It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −25 °C (−13 °F) is 5,700 BTU/h, 63% of its nominal 9,000 BTU size.
At 8 °C, its certified maximum capacity reaches 13,300 BTU/h, 48% more than its nominal 9,000 BTU size.
According to NEEP, its COP at −15 °C is 1.94: the highest of the Livo R32 line, which ranges from 1.75 to 1.86 at that temperature.
According to NEEP, its certified maximum capacity at −25 °C (−13 °F) is 5,500 BTU/h, 61% of its nominal 9,000 BTU size.
At 8 °C, its certified maximum capacity reaches 13,136 BTU/h, 46% more than its nominal 9,000 BTU size.
According to NEEP, it delivers 8,500 BTU/h at −15 °C, against 9,100 for the Gree Livo R32 12 000.
At −25 °C, its certified minimum capacity is 1,800 BTU/h (3,070 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 8,500 BTU/h, 71% of its nominal 12,000 BTU size. Its COP there is 1.75.
According to NEEP, it delivers 9,100 BTU/h at −15 °C, against 8,500 for the Gree Livo R32 12 000 (115 V).
At −25 °C, its certified minimum capacity is 1,800 BTU/h (3,070 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 9,100 BTU/h, 76% of its nominal 12,000 BTU size. Its COP there is 1.80.
At 8 °C, its certified maximum capacity reaches 22,500 BTU/h, 25% more than its nominal 18,000 BTU size.
According to NEEP, its certified minimum capacity is at least 7,000 BTU/h at every temperature. In a small, well-insulated room it will cycle on and off more often: size it carefully.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 12,100 BTU/h, 67% of its nominal 18,000 BTU size. Its COP there is 1.85.
At −25 °C, its certified minimum capacity is 3,100 BTU/h (5,800 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 15,700 BTU/h, 65% of its nominal 24,000 BTU size. Its COP there is 1.75.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 23,000 BTU/h, 77% of its nominal 30,000 BTU size. Its COP there is 1.80.
According to NEEP, its COP at −25 °C is 1.54: the highest of the Livo R32 line, which ranges from 1.30 to 1.52 at that temperature.
At −25 °C, its certified minimum capacity is 7,000 BTU/h (10,000 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 24,600 BTU/h, 68% of its nominal 36,000 BTU size. Its COP there is 1.80.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.A dash in the aid column: amount to be confirmed for this model.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
