Installation of a Fujitsu AIRSTAGE Altair 500 wall-mounted heat pump in Saint-Denis-sur-Richelieu: precise HVAC integration in a constrained outdoor space

In Saint-Denis-sur-Richelieu, a Fujitsu Altair 500 installed in a location where every clearance had to be carefully considered

This installation of a Fujitsu AIRSTAGE Altair 500 wall-mounted heat pump in Saint-Denis-sur-Richelieu illustrates a type of project we regularly encounter at AirGreen: choosing the machine is important, but integrating the outdoor unit into the available space requires just as much attention.

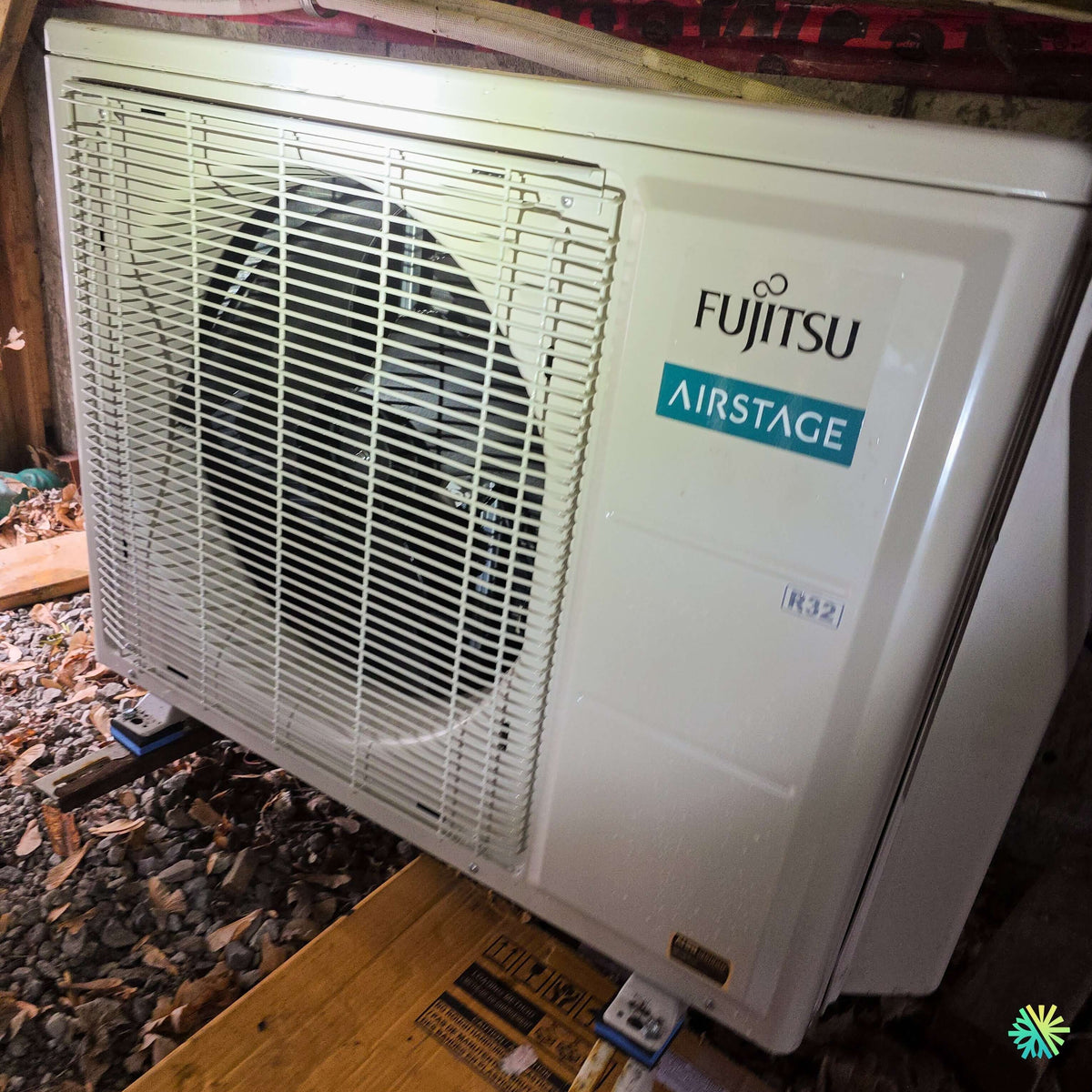

The photo of our installation shows a configuration very different from a heat pump placed in the middle of a large, unobstructed yard. Here, the outdoor unit is located in a relatively narrow area, near the foundation and beneath an existing structure. The ground is covered with crushed stone, and several construction elements directly surround the condenser.

In this context, we must consider airflow, machine stability, refrigerant line routing, water drainage, vibrations, and above all accessibility for future HVAC maintenance at the same time.

The result is an installation that makes efficient use of the available space while incorporating a Fujitsu AIRSTAGE Altair 500 with R-32 refrigerant, a single-zone Inverter heat pump series available in several capacities.

An installation that could not be approached as a standard outdoor installation

In a conventional installation, the condenser can sometimes be placed on an open support against an exterior wall, with plenty of space in front of and around the machine.

At Saint-Denis-sur-Richelieu, the conditions visible on this project were different.

We specifically had to work around:

• a relatively narrow outdoor area;
• a structure located above the unit;
• a stone and gravel surface;
• an adjacent foundation;
• a space that had to remain sufficiently accessible;
• the need to maintain adequate airflow around the condenser.

These are precisely the situations in which an installation must be planned on-site rather than carried out according to the same layout from one house to another.

An outdoor heat pump needs to exchange a large volume of air. The fan visible behind the front grille is not simply a ventilation component: it plays a direct role in the system’s heat transfer.

We must therefore avoid treating the condenser’s location as a purely aesthetic choice.

The Fujitsu AIRSTAGE Altair 500: a single-zone range from 9,000 to 36,000 BTU

The Fujitsu AIRSTAGE Altair 500 series is available in several models: 09KPAS1, 12KPAS1, 18KPAS1, 24KPAS1, 30KPAS1, and 36KPAS1. The Fujitsu technical data sheet indicates rated cooling capacities of 9,000, 12,000, 18,000, 22,000, 30,000, and 33,000 BTU/h, depending on the model. In heating mode, the corresponding rated values range from 10,000 to 34,000 BTU/h.

The exact capacity of the system photographed in Saint-Denis-sur-Richelieu cannot be confirmed solely from the front view of the outdoor unit, since the complete nameplate is not visible.

We therefore prefer not to make up a capacity.

This detail is important for homeowners comparing several Fujitsu wall-mounted heat pumps: the same product family can include very different capacities, with correspondingly different requirements for piping, circuit breakers, and physical dimensions.

An R-32 system clearly identifiable in the photo

The inscription R32 is visible on the front panel of the installed condenser.

Fujitsu explains that R-32 has a stated global warming potential of 675, compared with 2,088 for R-410A, representing a 68% reduction according to the data presented in its documentation.

For an HVAC company, this refrigerant change has practical implications.

The handling methods, commissioning procedures, and equipment used must be compatible with the type of refrigerant specified by the manufacturer. We never consider an R-32 installation to be an exact repetition of the practices associated with previous generations of heat pumps.

Why the stability of the outdoor unit deserves so much attention

The photo shows that the condenser rests on separate supports, with vibration-damping elements visible beneath its feet.

For any wall-mounted heat pump installation, we aim to provide a stable base.

The machine contains a compressor and a fan that operate for long periods. Even when a system is quiet, normal mechanical movement is always present.

A stable base helps limit equipment movement and the unnecessary transmission of vibrations to the surrounding structure.

In this Saint-Denis-sur-Richelieu project, the ground is crushed stone. This type of surface can provide good drainage around the installation area, but the machine’s stability must still be carefully considered, particularly in Quebec, where freezing and thawing can alter certain surfaces over the seasons.

A space beneath the structure: air must remain able to circulate

The positioning visible in the photo also highlights another challenge: the unit is located beneath an overhead structure.

A heat pump must not be enclosed.

The condenser’s operation depends on heat exchange with the outdoor air. The fan must be able to move air without it being continuously recirculated in an overly enclosed space.

When an installation is located beneath a balcony, deck, or another partially covered area, we therefore carefully examine the available geometry.

It is not enough to see that “the machine fits.”

We must also consider how the system will actually operate once it starts up.

A potential advantage of a covered space: partial protection from direct precipitation

A partially protected location can offer certain practical advantages when it complies with the required clearances.

A structure above the unit can limit some direct snow accumulation on top of it, although this never means that the homeowner can stop monitoring conditions around the heat pump during the winter.

Snow can be pushed sideways by the wind, and water from the defrost cycles must always be able to drain properly.

We therefore recommend keeping the area around the condenser clear throughout the cold season.

Defrosting: a detail homeowners often overlook

In heating mode, a heat pump extracts heat from the outdoor air.

When conditions are conducive to frost forming on the coil, the unit automatically initiates defrost cycles.

The Fujitsu Altair 500 documentation specifically mentions an automatic defrost function among its operating modes.

During these cycles, water may collect beneath or around the condenser.

In an installation with a stone surface like the one in Saint-Denis-sur-Richelieu, it is therefore important for this water to have an area where it can drain rather than remain trapped directly against the machine.

What the Fujitsu Altair 500 brings to this installation on the South Shore

Inverter technology adapted to a residence’s changing needs

The Altair 500 series uses an Inverter compressor.

Fujitsu states that this technology allows the system to adjust its performance according to demand in order to provide more gradual temperature control.

For a homeowner, this means that a properly sized heat pump does not necessarily need to run continuously according to an all-or-nothing logic.

The machine can adjust its operation according to the actual load.

That is one of the reasons proper sizing matters so much.

Installing an oversized capacity simply “to be safe” is not a universally sound strategy. We must select the capacity based on the building, insulation, windows, area served, and indoor airflow.

SEER2 ratings of up to 26

Energy performance varies by capacity.

The Fujitsu technical specifications sheet lists the following SEER2 values:

• 26.0 for the 9,000 BTU;
• 24.0 for the 12,000 BTU;
• 22.0 for the 18,000 BTU;
• 21.5 for the 24,000 BTU;
• 22.0 for the 30,000 BTU;
• 21.0 for the 36,000 BTU.

These figures make it possible to compare the different capacities, but they must always be interpreted together with the exact model installed.

At AirGreen, we avoid advertising a single efficiency rating for an entire range when the data varies from one capacity to another.

Heating rated down to -15 °C

Fujitsu indicates a heating operating range of -15 °C to 24 °C for the Altair 500 models presented in the specifications sheet.

This positions the series as a heat pump that can actively contribute to winter heating.

However, we always explain to homeowners the difference between a minimum operating temperature and the capacity required to fully cover a home's heat loss on the coldest days.

These are two different concepts.

A heat pump can continue operating at a certain outdoor temperature without necessarily delivering exactly the same capacity at that temperature as it does under milder conditions.

A range of capacities requiring different pipes

This is a particularly important technical consideration when replacing an old system.

The Altair 500 series does not use the same pipe diameters for all capacities.

The Fujitsu specifications sheet indicates:

• 9,000 and 12,000 BTU: 1/4 in. liquid and 3/8 in. gas;
• 18,000 and 24,000 BTU: 1/4 in. liquid and 1/2 in. gas;
• 30,000 and 36,000 BTU: 3/8 in. liquid and 5/8 in. gas.

This information becomes crucial when replacing an old wall-mounted air conditioner or an old heat pump.

Seeing two pipes already installed does not automatically mean they can be reused.

We check their dimensions and condition before making a decision.

Piping lengths offer good installation flexibility

Depending on the capacity, Fujitsu allows a maximum piping length ranging from 20 to 50 metres.

The 9,000 and 12,000 BTU models can reach 20 m, the 18,000 and 24,000 BTU models 30 m, and the 30,000 and 36,000 BTU versions up to 50 m.

This flexibility can make a difference in a building where the ideal location for the indoor unit does not directly correspond to where we want to install the condenser.

In a project like this, where the outdoor space is unique, being able to plan the routing of the lines intelligently is a real advantage.

Electrical requirements that vary with capacity

All the Altair 500 models presented operate at 208 to 230 V, 60 Hz, single-phase, but the required circuit breaker depends on the capacity.

According to Fujitsu:

• 9,000 BTU: 15 A;
• 12,000 BTU: 15 A;
• 18,000 BTU: 15 A;
• 24,000 BTU: 20 A;
• 30,000 BTU: 30 A;
• 36,000 BTU: 30 A.

This variation shows why we must confirm the exact model before preparing the electrical supply.

Up to 19 dB(A) on certain indoor units

One of the appealing aspects of the Altair 500 series is its quiet indoor operation.

The 9,000 and 12,000 BTU models can operate as low as 19 dB(A) in cooling mode at the quiet setting, while higher capacities have different minimum sound levels.

This may be particularly relevant when the indoor unit is located in a bedroom, office, or main living area.

A heat pump may operate for several hours a day. Sound level is therefore a genuine comfort criterion, not merely a secondary specification on the technical sheet.

ProCore and Hydro Fin: components designed to improve durability

Fujitsu presents the Altair 500 indoor unit with highly corrosion-resistant copper ProCore coils, along with a heat exchanger featuring Hydro Fin fins designed to improve corrosion resistance and durability.

The manufacturer also states that the outdoor unit uses an Inverter compressor and highlights its compact design.

In a space like the one in this project in Saint-Denis-sur-Richelieu, the dimensions of a condenser can be decisive. An overly large unit could unnecessarily limit installation options.

Wi-Fi and controllers: several options rather than a single mandatory configuration

Fujitsu’s documentation presents several control solutions for the Altair 500 series.

Connectivity with AIRSTAGE Mobile is possible, in particular, by means of a compatible USB WLAN adapter. Wired controllers, 24 V interfaces, and BACnet or Modbus solutions are also among the compatible accessories.

For residential use, the main benefit is generally being able to control the temperature and operating modes more easily.

However, we always check which accessories are actually included in the project, because a function compatible with a product line is not necessarily automatically included with every unit.

Mistakes to avoid in such a unique outdoor space

This installation offers several useful lessons for homeowners in Saint-Denis-sur-Richelieu, Beloeil, Mont-Saint-Hilaire, Saint-Hyacinthe, and the South Shore who are planning to install a heat pump.

The first mistake would be to choose the location solely because the machine can physically fit there.

Air circulation must also be analyzed.

The second would be to block service access.

A heat pump will eventually need to be inspected, cleaned, or repaired. The technician must be able to access the important components.

The third would be to ignore the discharge of defrost water.

Finally, leaves, wood, stored objects, or other debris must not be allowed to gradually accumulate around the condenser.

In the photo, we can see an environment where vegetation and leaves could easily end up near the unit. The owner must therefore keep this area clear to preserve unobstructed airflow.

Why we adapt every installation to the building

At AirGreen, we install wall-mounted heat pumps in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, but no home is exactly like the next.

In Saint-Denis-sur-Richelieu, residences may feature more rural outdoor spaces, patios, accessible foundations, gravel-covered areas, or semi-protected locations such as the one in this installation.

Our job is to use these constraints to design a functional installation rather than impose a standardized solution.

We consider, among other things:

• the required capacity;
• the indoor unit location;
• the outdoor unit clearances;
• the piping route;
• drainage;
• electrical requirements;
• vibrations;
• maintenance access;
• winter operation;
• the visual integration of the system.

A properly selected Fujitsu Altair 500 must also be properly installed.

It is easy to compare two heat pumps based on a BTU, SEER2, or price chart.

The reality of an HVAC installation is more comprehensive.

An excellent machine cannot compensate for a poor location, incompatible piping, or an inadequate electrical supply.

This Fujitsu AIRSTAGE Altair 500 installation in Saint-Denis-sur-Richelieu illustrates precisely why we place so much importance on the actual environment surrounding the system.

The condenser must not only operate on the day it is commissioned, but remain accessible, stable, and capable of exchanging air properly several years later.

This is the approach we apply at AirGreen on our wall-mounted heat pump projects in Montreal, Laval, Longueuil, the North Shore, the South Shore, and the Richelieu Valley.
