A technical installation at height for optimal comfort
At AirGreen , we recently completed a complex installation of two Sharp Eco Inverter wall-mounted heat pumps in a commercial building located in Saint-Léonard, Montreal . This project was distinguished by its unique configuration: the outdoor units were mounted high above a metal structure , requiring a rigorous approach to HVAC safety and performance.
Context and preparation of the site
The client, the owner of an industrial workshop, wanted to air condition and heat two separate areas of his premises. The goal: to provide consistent comfort throughout the year while reducing energy consumption.
Before starting work, our team carried out:
-
A complete thermal analysis of the space (ceiling height, insulation, air volume).
-
The selection of suitable equipment: Sharp Eco Inverter with Plasmacluster Ion technology , recognized for its reliability and efficiency in commercial environments.
-
Planning the positioning of outdoor units to ensure good air circulation and minimize ambient noise .
Technical challenges: installation at height and reinforced anchoring

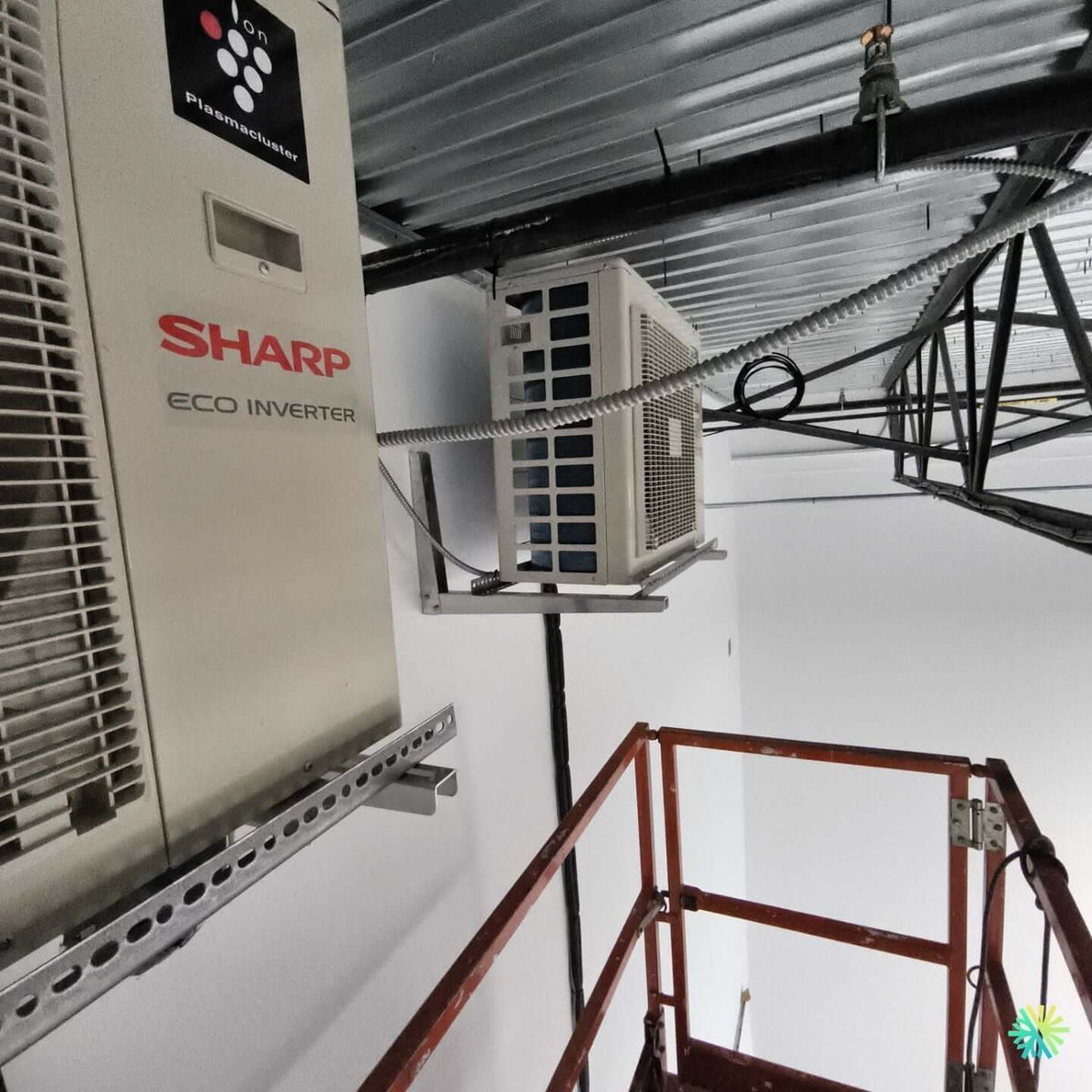

One of the main challenges of this installation was the mounting height . The outdoor units had to be fixed to wall brackets almost three meters above the ground , under a metal frame.
Our technicians, equipped with a secure lifting platform , have:
-
Installed high-strength galvanized supports , capable of supporting the dynamic load of the compressor.
-
Checked alignment and stability using laser levels.
-
Isolated vibrations thanks to industrial rubber anti-vibration pads .
-
Routed refrigeration and electrical conduits in rigid metal conduits for maximum durability.
Sharp System Connection and Setup
Once the units were securely in place, we performed a complete vacuum on the refrigeration circuit to remove all traces of moisture. The system was then recharged according to the manufacturer's precise specifications.
Each Sharp Eco Inverter unit has been individually configured:
-
Calibration of set temperatures for each zone.
-
Checking the heating and cooling mode .
-
Synchronization of wall remote controls.
-
Testing the Plasmacluster Ion system , which purifies the air by reducing bacteria and allergens.
Final checks and results
Performance tests confirmed excellent temperature stability and significant noise reduction thanks to inverter technology. The customer particularly appreciated the units' quiet operation , a key criterion for their business.
We also carried out a preliminary energy assessment , showing that these Sharp models consume up to 30% less electricity than a conventional system.
Recognized AirGreen expertise in Montreal
This installation in Saint-Léonard perfectly illustrates our expertise in specially configured HVAC projects. At AirGreen, we combine safety, precision, and efficiency to deliver lasting results, even in demanding environments.
Our teams operate throughout Greater Montreal— Laval, Longueuil, North Shore, and South Shore —to install, repair, and maintain residential and commercial HVAC systems. Each project is carefully planned according to manufacturer standards and building requirements.
Conclusion
With this installation of Sharp Eco Inverter heat pumps in Saint-Léonard , AirGreen once again demonstrates its expertise in professional air conditioning and heating . Thanks to precise and secure execution, the customer now benefits from constant comfort and sustainable energy efficiency , while optimizing the workspace.
