Installation of a Sharp ZHU Wall-Mounted Heat Pump in Pierrefonds, Montreal
Dive into the story of a challenging yet successful installation of a Sharp ZHU Wall-Mounted Heat Pump in Pierrefonds, Montreal. Discover how AirGreen enhances home comfort with top-tier HVAC services.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Installation of a Sharp ZHU Wall-Mounted Mini Split in Pierrefonds, Montreal
At AirGreen, we pride ourselves on delivering top-notch HVAC services across Montreal, Laval, Longueuil, North Shore, and South Shore. Our latest installation project took us to the heart of Pierrefonds, Montreal, where we installed a state-of-the-art Sharp ZHU Wall-Mounted Heat Pump. This project was not just about installing an HVAC unit; it was about overcoming challenges, ensuring customer satisfaction, and enhancing the comfort of a home.

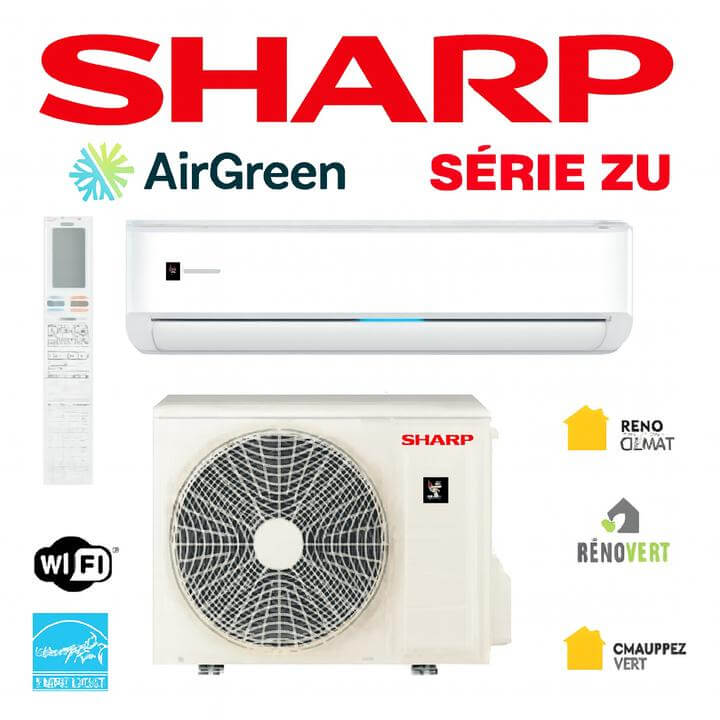

The Sharp ZHU Wall-Mounted Heat Pump
The Sharp ZHU is a wall-mounted heat pump that stands out for its exceptional energy efficiency and advanced features. This model is Energy Star® certified and comes with a cooling capacity of 18,000 BTU. It's equipped with WiFi for easy control and monitoring, and it operates with an impressive efficiency of 25.0 SEER. The Sharp ZHU is also designed for quiet operation, with a sound pressure level of just 52.0 dB(A) outside and 25 / 49 dB(A) inside.
This heat pump uses R-32 Freon, a modern refrigerant that reduces greenhouse gases and energy consumption by around 10%. The Sharp ZHU also boasts Plasmacluster technology for superior air purification, neutralizing bacteria, viruses, mold, and allergens.
The Installation Process
The installation of the Sharp ZHU in Pierrefonds was a challenging yet rewarding process. The location required us to navigate through a large layer of masonry and one room to install the unit in the center of the house, atop a stairway. This strategic placement allows for optimal heating and cooling across two floors.
Despite the complexity, our team was committed to ensuring a flawless installation. We took our time to ensure that every step was executed with precision, and the result was a perfectly installed heat pump that the customer was thrilled with.
The Benefits of the Sharp ZHU
The Sharp ZHU is not just an HVAC unit; it's a solution that enhances the comfort and quality of life in your home. It's designed to withstand extreme cold temperatures and includes a Multi Space Function and "Spot Air" mode for targeted cooling or heating.
The Sharp ZHU also comes with a generous warranty package (10-10-10), ensuring peace of mind for years to come. And with the Provincial Grant of $700 that this model is eligible for, it's an investment that truly pays off.
Why Choose AirGreen?
At AirGreen, we believe in delivering quality, efficiency, and satisfaction with every project. Our team of skilled professionals is dedicated to ensuring that every installation is carried out to the highest standards, and the Sharp ZHU installation in Pierrefonds is a testament to that commitment.
We invite you to explore more about the Sharp ZHU Wall-Mounted Heat Pump on our website. Discover how AirGreen can enhance the comfort of your home with our top-tier HVAC services.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
