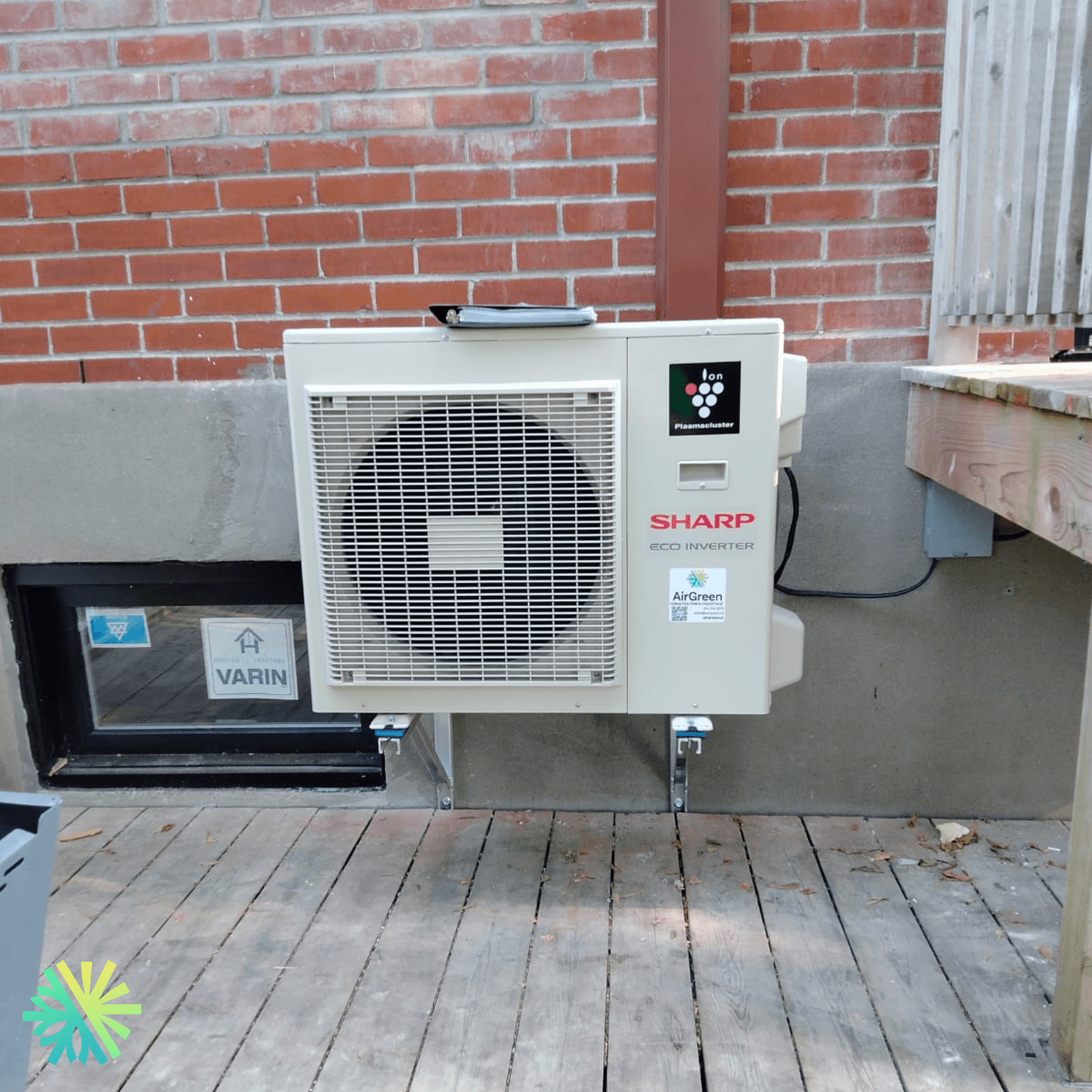

Installation of a Sharp ZU1 Wall-Mounted Heat Pump in South Shore
Discover how AirGreen's installation of the Sharp ZU1 Wall-Mounted Heat Pump in South Shore offers energy efficiency, superior air purification, and modern comfort for your home.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A Story of Energy Efficiency and Modern Comfort in the South Shore
AirGreen recently completed an exciting HVAC installation project in the South Shore of Montreal, featuring the highly acclaimed Sharp ZU1 Wall-Mounted Heat Pump. This installation is a showcase of our commitment to providing energy-efficient and state-of-the-art solutions to our valued customers. The Sharp ZU1 is not just another heat pump; it represents a blend of advanced technology, environmental responsibility, and superior comfort.
The Perfect Match: Sharp ZU1 for Energy Savings
The Sharp ZU1 model installed at this residence is a 18,000 BTU unit, perfectly suited for the home’s heating and cooling needs. This heat pump is Energy Star® certified, which means it meets strict energy efficiency guidelines set by the EPA. The 24.0 SEER efficiency rating ensures that the system delivers excellent performance while consuming less electricity, making it an ideal choice for homeowners looking to reduce their energy bills.
What sets the Sharp ZU1 apart is its use of the environmentally friendly R-32 refrigerant, which has a lower global warming potential compared to traditional refrigerants. This not only makes the unit more efficient but also aligns with AirGreen's commitment to sustainable practices. The installation also qualifies for a generous $2640 LogisVert Grant by Hydro-Québec, which further emphasizes its energy-saving credentials.
Advanced Technology for Superior Comfort
The Sharp ZU1 is equipped with Plasmacluster™ technology, a unique feature that provides superior air purification. This technology releases positive and negative ions into the air, which bond with and neutralize harmful particles like viruses, bacteria, and allergens. This makes it an excellent choice for households with allergies or respiratory concerns, ensuring clean, healthy air throughout the home.
In addition to Plasmacluster technology, the ZU1 features Coanda airflow control, which ensures even distribution of air throughout the room. This prevents cold or hot spots, providing uniform comfort across all spaces. The system also operates quietly, with an indoor sound pressure level ranging from 25 to 49 dB(A) and an outdoor level of 52 dB(A), ensuring a peaceful environment.
Robust and Reliable: Built for Extreme Conditions
One of the standout features of the Sharp ZU1 is its ability to operate efficiently in extreme temperatures. The unit is designed to heat effectively even when outdoor temperatures drop as low as -27°C. This is achieved through Sharp's innovative Hot Gas Pipe System, which prevents the outdoor compressor from freezing and ensures consistent performance. The system's defrost mode is particularly beneficial during Quebec's harsh winters, as it prevents the buildup of ice and maintains the unit’s efficiency.
Ease of Use and Connectivity
The Sharp ZU1 comes with built-in WiFi, allowing homeowners to control the system remotely via a smartphone app. This app provides real-time information about room temperature, humidity, and energy consumption, enabling users to optimize their system for comfort and efficiency. The app also includes features like remote locking and GPS interlocking, ensuring the system is never left on unnecessarily, thus saving energy.
Comprehensive Warranty and Support
AirGreen offers an extended 10-10-10 warranty on the Sharp ZU1, covering the compressor, parts, and labor for ten years each. This comprehensive warranty is a testament to the quality and reliability of the Sharp brand, providing homeowners with peace of mind knowing they are protected against potential issues.
The Installation: A Seamless Experience
For this project, our skilled technicians carefully planned and executed the installation, ensuring that the Sharp ZU1 was perfectly positioned for optimal performance. The installation involved the distribution of the unit's capacity across various rooms to ensure uniform heating and cooling. The team paid special attention to the placement of the outdoor unit, ensuring it was securely mounted and well-drained to prevent any issues during the winter months.
The Result: A Comfortable and Eco-Friendly Home
The homeowners are delighted with their new Sharp ZU1 Wall-Mounted Heat Pump. The system not only provides exceptional comfort throughout the year but also contributes to lower energy bills and a reduced environmental footprint. The integration of advanced technologies like Plasmacluster and Coanda airflow control ensures that the air quality is top-notch, making the home a healthier and more comfortable place to live.
At AirGreen, we are proud to offer cutting-edge HVAC solutions that cater to the needs of our customers while promoting energy efficiency and sustainability. The installation of the Sharp ZU1 Wall-Mounted Heat Pump is a perfect example of how modern technology can enhance comfort and reduce energy consumption. We invite you to experience the difference with our range of high-quality HVAC products and services.
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What the unit delivers when it is cold
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Which type of equipment for your project?
Pick what looks like your need.
Four mistakes we do not make
Flip each card to see what we do instead.
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
Useful pages for what comes next
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Tell us about your house. We come and see it for free.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
