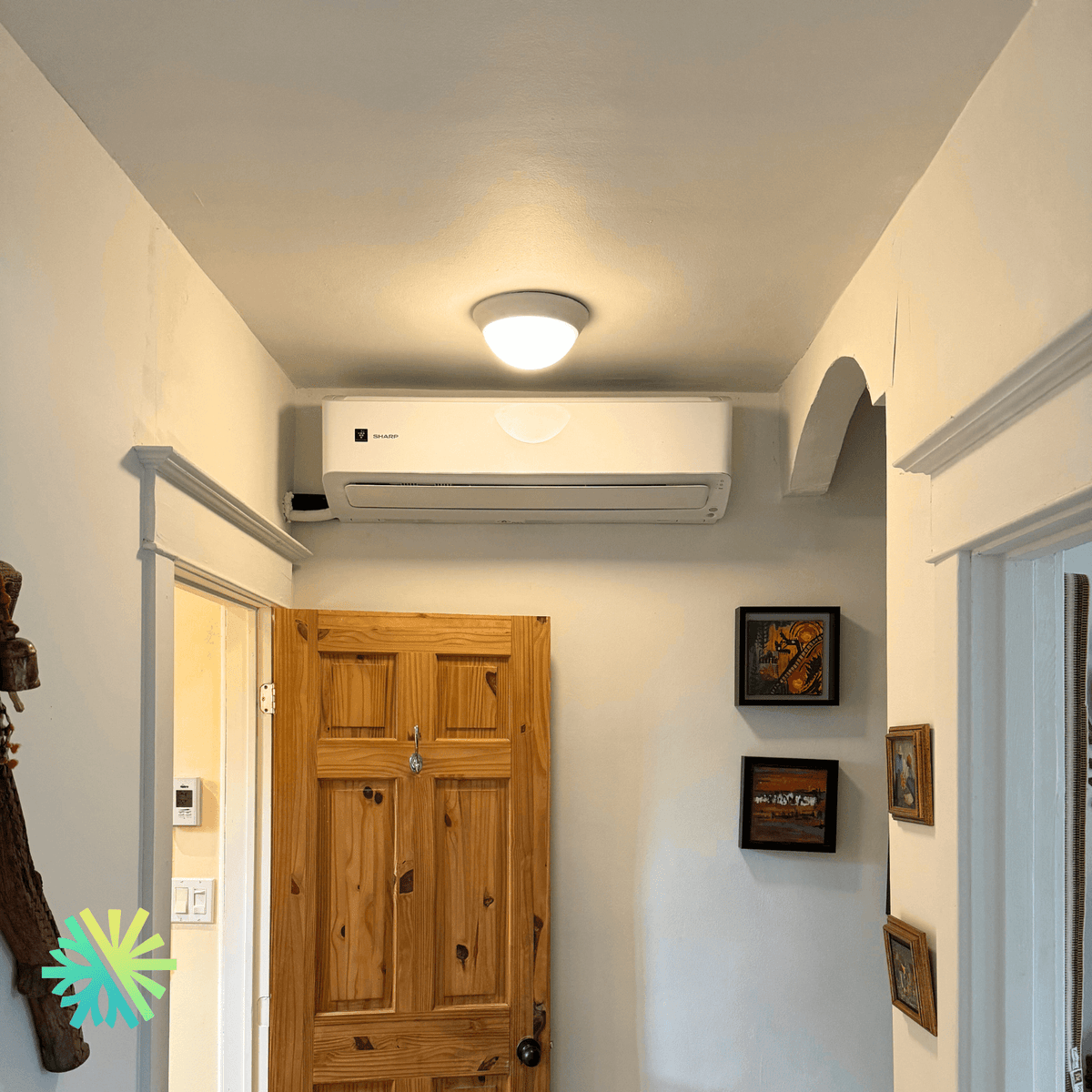

Installation of a SHARP ZU1 Wall-Mounted Heat Pump in Repentigny
Experience comfort like never before with the SHARP ZU1 15,000 BTU heat pump. Installed by AirGreen in Repentigny, it’s eco-friendly, efficient, and eligible for a $2,172 grant!
- City
- Region
- Equipment
- Brand
- Challenges
- Published
The job on one screen
The unit’s data sheet
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp ZU1 12 000 | 14,500 | 12,000 | −27 °C: 7,200 | 2.11 | 22.0 | 11.0 | $1,740 |
| Sharp ZU1 15 000 | 18,100 | 15,300 | −27 °C: 10,100 | 2.1 | 24.0 | 11.0 | $2,172 |
| Sharp ZU1 18 000 | 22,000 | 18,000 | −27 °C: 11,500 | 2.2 | 24.0 | 11.0 | $2,640 |
| Sharp ZU1 24 000 | 22,400 | 19,000 | −27 °C: 12,300 | 2.2 | 22.0 | 11.0 | $2,688 |
According to NEEP, it delivers 14,500 BTU/h at −8 °C (17 °F), more than at 8 °C (14,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 7,200 BTU/h, 60% of its nominal 12,000 BTU size.
At 8 °C, its certified maximum capacity reaches 17,100 BTU/h, 42% more than its nominal 12,000 BTU size.
According to NEEP, it delivers 18,100 BTU/h at −8 °C (17 °F), more than at 8 °C (18,000 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 10,100 BTU/h, 67% of its nominal 15,000 BTU size.
At 8 °C, its certified maximum capacity reaches 21,800 BTU/h, 45% more than its nominal 15,000 BTU size.
According to NEEP, it delivers 22,000 BTU/h at −8 °C (17 °F), more than at 8 °C (21,600 BTU/h). It heats as hard in moderate cold as in mild weather.
According to NEEP, its COP at −27 °C is 1.88: the highest of the ZU1 line, which ranges from 1.79 to 1.82 at that temperature.
According to NEEP, its certified maximum capacity at −27 °C (−17 °F) is 11,500 BTU/h, 64% of its nominal 18,000 BTU size.
At −27 °C, its certified minimum capacity is 3,200 BTU/h (5,500 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 19,000 BTU/h, 79% of its nominal 24,000 BTU size. Its COP there is 2.20.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The article, chapter by chapter
Cutting-Edge Comfort: The SHARP ZU1 15,000 BTU Heat Pump Installation in Repentigny
When it comes to combining energy efficiency, modern technology, and year-round comfort, the SHARP ZU1 Wall-Mounted Heat Pump sets a new standard. Our recent installation in the charming neighborhood of Repentigny was a perfect example of how AirGreen brings tailored HVAC solutions to homes across Montreal, Laval, Longueuil, and Rive Nord et Sud.
Transforming a Home with State-of-the-Art HVAC Technology
This project wasn’t just about installing another heat pump—it was about delivering a system capable of handling Quebec's harsh winters while keeping energy bills low and air quality high. The SHARP ZU1, a 15,000 BTU powerhouse, offered our client exceptional performance. Here’s how we brought their home to life with this revolutionary technology.
Why Choose the SHARP ZU1 Heat Pump?
The SHARP ZU1 series is not just another heat pump; it’s a symbol of Japanese innovation and precision engineering. Designed to deliver heating even in temperatures as low as -27°C, this model is perfect for Quebec’s extreme climate. Its 24.0 SEER efficiency rating ensures remarkable energy savings without compromising on comfort.
Key Features of the SHARP ZU1:
- Energy Star Certified for extreme climates
- Plasmacluster Technology for advanced air purification
- Coanda Airflow Control for uniform temperature distribution
- R-32 Refrigerant, reducing environmental impact and energy usage
- Whisper-quiet operation with sound levels as low as 23 dB(A) indoors
These features make it an excellent choice for homeowners looking for reliability, comfort, and eco-friendliness.
Installation Details: A Perfect Fit for Repentigny’s Unique Home Design
The installation in Repentigny posed an interesting challenge: optimizing airflow in a narrow hallway with high ceilings. To address this, our expert technicians carefully positioned the indoor unit to ensure uniform cooling and heating throughout the home. The sleek design of the SHARP ZU1 blended seamlessly with the home’s modern aesthetic, proving that functionality and style can coexist.
Optimizing Performance with Precision Placement
- Interior Unit Dimensions: 41.42" x 9.80" x 12.44"
- Exterior Unit Dimensions: 30.72" x 10.59" x 21.25"
- Pipework: 1/4" - 3/8" copper lines, ensuring efficient refrigerant flow
- Voltage: 220V for consistent performance
Our team also ensured the system's outdoor unit was installed in a location shielded from the elements, allowing it to perform efficiently even during Quebec’s harshest winter storms.
Unmatched Benefits for the Homeowner
Energy Efficiency and Environmental Impact
The R-32 refrigerant used in the SHARP ZU1 is a game-changer. Not only does it reduce greenhouse gas emissions, but it also improves the unit's efficiency by 10% compared to traditional refrigerants. This makes it a smart choice for eco-conscious homeowners.
Exceptional Air Quality with Plasmacluster Technology
AirGreen’s installation ensured that the home in Repentigny now benefits from Plasmacluster Technology, which:
- Neutralizes airborne bacteria and viruses
- Eliminates mold and allergens
- Removes odors, creating a fresher indoor environment
This technology is a standout feature, making the SHARP ZU1 more than just a heat pump—it’s an investment in the family’s health and well-being.
Comfort in Every Corner with Coanda Airflow
The Coanda Airflow Control ensures that warm air is directed downward during winter and cool air upward during summer, creating a balanced indoor climate. With four-way sweeping functionality, no room is left untouched, ensuring comfort from wall to wall.
LogisVert Grant: Saving Money While Saving the Planet
This installation is eligible for the $2,172 LogisVert Grant from Hydro-Québec, the highest grant available for a 15,000 BTU heat pump in the province. By choosing the SHARP ZU1, the homeowner not only upgraded their comfort but also made a smart financial decision.
What Makes the LogisVert Grant Special?
- Encourages energy-efficient upgrades
- Reduces upfront costs for homeowners
- Supports Quebec’s transition to greener technologies
This grant underscores the importance of choosing high-performance systems like the SHARP ZU1.
The AirGreen Experience: Why Choose Us?
At AirGreen, we believe that every home deserves a tailor-made HVAC solution. Our installation in Repentigny highlights our commitment to:
- Customer Satisfaction: We take the time to understand your home’s unique needs.
- Expertise: Our technicians are trained to handle the latest HVAC technologies.
- Reliability: From consultation to installation, we ensure a seamless experience.
Technical Specs at a Glance
- Cooling Capacity: 15,000 BTU
- Heating Capacity: -27°C
- AHRI Certified: Yes (213239134)
- Warranty: 10 years on compressor, parts, and labor
- Wi-Fi Connectivity: Included for remote monitoring and control
- Sound Levels: 23 dB(A) indoors, 49 dB(A) outdoors
A Greener Future with SHARP and AirGreen
This installation is more than just a technical upgrade; it’s a step toward a more sustainable future. By choosing the SHARP ZU1, the homeowner in Repentigny now enjoys a cleaner, more energy-efficient home while reducing their carbon footprint.
Whether you’re looking to upgrade your HVAC system or need expert advice on energy-efficient solutions, AirGreen is here to help. Contact us today to learn how we can transform your home with cutting-edge technology and unparalleled service.
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
An on-site estimate, the right capacity, the right equipment.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
