Indoor units

FUJITSU AIRSTAGE, GREE and LENNOX ceiling cassettes for a Montréal office: three 12,000 BTU models compared

Three 12,000 BTU R-32 ceiling cassettes sold by AirGreen, compared figure by figure for a Montréal office: electricity cost per season, deep cold, space above the tiles, noise and NEEP certified records.

By the AirGreen team9 min read
Cassette de plafond FUJITSU AIRSTAGE CENTAURI, carte produit AirGreen
Comparison · ceiling cassettes · 12,000 BTU

Three 12,000 BTU ceiling cassettes for a Montréal office, figure by figure

FUJITSU AIRSTAGE CENTAURI, GREE EXTREME R32 and LENNOX M22D: three R-32 cassettes sold by AirGreen, with the same rated cooling capacity. What each one costs to run, what it publishes in deep cold, how its body fits above a suspended ceiling and what its certified record says, without naming a winner.

Refrigerant: R-32 for all threeRated cooling: 12,000 BTU/hENERGY STAR cold climate: yes for all three (NEEP)

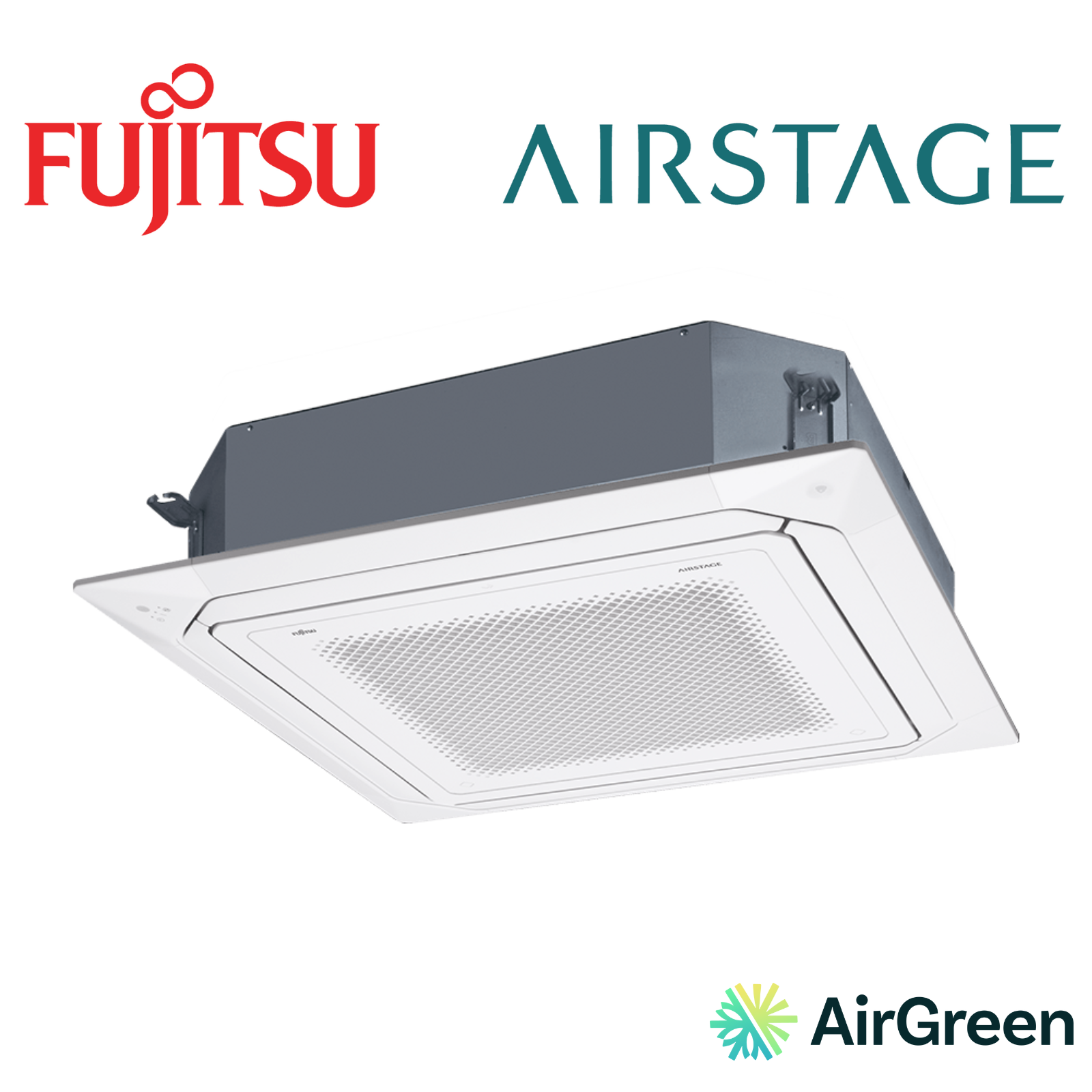

AirGreen product card FUJITSU AIRSTAGE CENTAURI
FUJITSU AIRSTAGE · CENTAURI

Compact 4-way cassette, 12,000 BTU

ACUH12KUAS · AOUH12KUAS1
AHRI 215434546 · NEEP 388267

Also sold as the GENERAL AIRSTAGE CENTAURI 12,000 (same AHRI certificate).

See the product page
AirGreen product card GREE EXTREME R32
GREE · EXTREME R32

8-way cassette, 12,000 BTU

GKH(12)EB-D6DNA1A/I · GWH12AVDXE-D6DNA1B/O
AHRI 216618222 · NEEP 382315

Same indoor unit as the GREE CLIVIA and CROSSOVER R32 8-way cassettes, paired here with a different outdoor unit (different AHRI certificate).

See the product page
AirGreen product card LENNOX M22D
LENNOX · M22D

2 × 2 4-way cassette, 12,000 BTU

M22D012S6-1P · MMLD012S6S-1P
AHRI 216581327 · NEEP 406909

Same certified values as the SAMSUNG WindFree 4-way 12,000 cassette (same NEEP series, records 406909 and 406919).

See the product page

AirGreen product cards, in alphabetical order; the ENERGY STAR badge on the cards is masked.

Estimated running cost

What the electricity costs, in dollars, winter and summer

The three cassettes have different certified HSPF2 and SEER2 values. Pick the price per kWh and an office's operating hours: the amounts follow.

Above the tiles

Your suspended ceiling, from below and from the side

A cassette sits between the tiles of a suspended ceiling. The three bodies are drawn to scale in a 24 in tile, then in the space above the tiles, which you can adjust.

FUJITSU AIRSTAGE CENTAURI

Body: 22.44 × 22.44 in, about 0.78 in on each side in a 24 in tile.

GREE EXTREME R32

Body: 22.44 × 22.44 in, about 0.78 in on each side in a 24 in tile.

LENNOX M22D

Body: 22.63 × 22.63 in, about 0.69 in on each side in a 24 in tile.

The body is only part of the story: each installation manual adds its own clearances (hanger rods, drain slope, service access) and the size of the decorative panel. Have them checked on site with your quote.

Deep cold

What each cassette publishes, from mild weather to −30 °C

Each row gives the certified value at that temperature. When a manufacturer publishes nothing at a temperature, the row shows the two published points around it, or its last published point, without inventing anything in between.

TemperatureFUJITSU AIRSTAGE CENTAURIGREE EXTREME R32LENNOX M22D
8.3 °CFall and spring · 47 °F

19,400 BTU/h max. · rated 16,000 · COP 3.61NEEP certified

14,000 BTU/h max. · rated 12,000 · COP 3.78NEEP certified

16,000 BTU/h max. · rated 14,000 · COP 3.80NEEP certified

−8.3 °CMontréal January mean: −9.2 °C · 17 °F

17,300 BTU/h max. · rated 10,700 · COP 2.99NEEP certified

12,000 BTU/h max. · rated 10,300 · COP 2.80NEEP certified

14,900 BTU/h max. · rated 10,700 · COP 2.61NEEP certified

−15 °CJanuary mean daily low: −13.5 °C · 5 °F

15,500 BTU/h (rated = max.) · COP 2.02NEEP certified

10,000 BTU/h (rated = max.) · COP 1.90NEEP certified

11,200 BTU/h (rated = max.) · COP 1.80NEEP certified

−20.6 °CColdest point published for the FUJITSU AIRSTAGE · −5 °F

14,000 BTU/h max. · COP 1.86NEEP certified; only the max. value is published at this temperature

Between 6,500 and 10,000 BTU/h10,000 at −15 °C and 6,500 at −30 °C (NEEP); nothing is interpolated in between.

Between 7,000 and 11,200 BTU/h11,200 at −15 °C and 7,000 at −25 °C (NEEP); nothing is interpolated in between.

−23.1 °CMontréal design temperature (NRCan)

Last published point: 14,000 BTU/h at −20.6 °CColdest point in NEEP record 388267; the documents we checked give no figure colder than that.

Between 6,500 and 10,000 BTU/h10,000 at −15 °C and 6,500 at −30 °C (NEEP); nothing is interpolated in between.

Between 7,000 and 11,200 BTU/h11,200 at −15 °C and 7,000 at −25 °C (NEEP); nothing is interpolated in between.

−25 °C−13 °F

Last published point: 14,000 BTU/h at −20.6 °CColdest point in NEEP record 388267; the documents we checked give no figure colder than that.

Between 6,500 and 10,000 BTU/h10,000 at −15 °C and 6,500 at −30 °C (NEEP); nothing is interpolated in between.

7,000 BTU/h max. · COP 1.92NEEP certified; only the max. value is published at this temperature

−30 °C−22 °F

Last published point: 14,000 BTU/h at −20.6 °CColdest point in NEEP record 388267; the documents we checked give no figure colder than that.

6,500 BTU/h max. · COP 1.42NEEP certified; only the max. value is published at this temperature

Last published point: 7,000 BTU/h at −25 °CLennox states heating operation down to −25 °C (MMLD engineering handbook, Dec. 2025).

certified max.certified ratedrange between two published pointslast published point, warmer

Office or home, the cold does not negotiate: below a heat pump's last published point, backup heat has to be planned.

Certified data

The three records, line by line

FeatureFUJITSU AIRSTAGE CENTAURIGREE EXTREME R32LENNOX M22D
Certification
AHRI certificate · NEEP record215434546 · NEEP 388267216618222 · NEEP 382315216581327 · NEEP 406909
RefrigerantR-32 (GWP 675)R-32 (GWP 675)R-32 (GWP 675)
ENERGY STAR cold climateYes (NEEP record)Yes (NEEP record)Yes (NEEP record)
Certified efficiency (NEEP)
SEER223.723.022.0
EER214.113.012.6
HSPF2 region IV11.58.510.4
HSPF2 region V (cold climate)9.28.08.3
Rated capacity at 35 °C12,000 BTU/h12,000 BTU/h12,000 BTU/h
Rated heating capacity at 8.3 °C16,000 BTU/h12,000 BTU/h14,000 BTU/h
Rated COP at 8.3 °C3.613.783.80
Maximum capacity at −15 °C15,500 BTU/h10,000 BTU/h11,200 BTU/h
COP at −15 °C2.021.901.80
NEEP turndown ratiomax. at −15 °C ÷ min. at 8.3 °C5.003.263.73
Outdoor unit
Base pan heater (defrost)Not stated in the NEEP recordYes, 72 W (NEEP)Yes, 150 W (NEEP)
Outdoor sound level48 dB(A)55 dB(A)54 dB(A)
Outdoor unit, W × D × H31.46 × 11.42 × 24.88 in34.38 × 14.80 × 21.84 in31.13 × 11.19 × 21.63 in
Cassette (indoor unit)
Cassette body, W × D × H22.44 × 22.44 × 9.65 in22.44 × 22.44 × 10.44 in22.63 × 22.63 × 9.81 in
Maximum airflowmax. 359 CFMmax. 330 CFMmax. 325 CFM
Indoor sound level, min. / max.29 / 37 dB(A)29 / 41 dB(A)25 / 34 dB(A)
Wi-FiOptionalOptionalYes, built in
Line set diameters, liquid / gas1/4 – 3/8 in1/4 – 1/2 in1/4 – 3/8 in
Power supply · MCA · MOP208/230 V · 12 A · 15 A208/230 V · 11 A · 15 A208/230 V · 14 A · 15 A

Certified values: NEEP records 388267, 382315 and 406909 (checked Nov. 17, 2026). Dimensions, airflow, sound levels, Wi-Fi, line sizes and electrical data: AirGreen product pages, based on the manufacturers' documents.

Noise

Sound in the room, from the lowest speed to the highest

dB

How to read these figures. Each dot is a published value for the indoor unit, in dB(A): the lower the figure, the quieter the unit. A 3 dB(A) gap is barely audible; a 10 dB(A) gap is heard as about twice as loud.

Why this is not a ranking. Each manufacturer measures under its own conditions and does not always publish the same fan speeds. In an office, background noise (ventilation, computers, conversations) also matters.

Values from the AirGreen product pages, based on the manufacturers; they describe each unit, not one against the others.

For an office

Three questions the table does not settle

How much heat does the room produce?

Workstations, screens, printers and people add heat all year. A meeting room that is full in the afternoon does not behave like a single office; a load calculation shows it.

Who controls the unit?

Remote, wall controller or app: check what is included, what is optional and who will be able to change the setpoint. Wi-Fi is built into the LENNOX M22D and optional on the other two.

Where does the condensate go?

In cooling mode, a cassette produces water that has to reach a drain. The route, the slope and any pump are checked on site, especially in an office building where the nearest drain can be far away.

Questions

Frequently asked questions

Which one should I pick for an office?

We do not name a winner here. All three have the same rated cooling capacity and the same refrigerant. What decides is how much heat the room gains and loses (people, computers, windows), the space above the ceiling, the noise you can accept and how you want to control the unit.

How much office space does a 12,000 BTU cassette cover?

No reliable square-footage rule replaces a load calculation: an office with ten workstations and a large south window does not need what a storage room of the same size needs. The calculation accounts for internal gains, orientation and insulation; ask for it with your quote.

Why did the old article name other models?

It covered R-410A ranges and variable refrigerant flow systems, with rounded SEER and HSPF figures and installations we cannot document. The three cassettes shown here are R-32 models sold by AirGreen, at 12,000 BTU, with certified values you can check.

What does "also sold as" mean?

The FUJITSU AIRSTAGE CENTAURI and the GENERAL AIRSTAGE CENTAURI 12,000 carry the same AHRI certificate 215434546. The LENNOX M22D and the SAMSUNG WindFree 4-way 12,000 cassette are listed in the same NEEP series with identical certified values. We report these document matches without drawing conclusions about manufacturing.

Are these cassettes eligible for LogisVert?

Eligibility depends on Hydro-Québec's official list in force at the time of purchase, the exact model number of the combination and the type of building. Check it on Hydro-Québec's website with the AHRI certificate number; no amount is promised here.

Where can I check the figures on this page?

Each NEEP record is online under its number (388267, 382315, 406909). The Sources section also lists the Lennox handbook and the AirGreen product pages used for dimensions and sound.

All three cassettes are on the AirGreen site.

Free estimate visit for your office or home, in Montréal, Laval, Longueuil, the North Shore and the South Shore. Quote within 24 hours.

Sources

Documents consulted

NEEP, record 388267FUJITSU ACUH12KUAS + AOUH12KUAS1, AHRI 215434546. Checked Nov. 17, 2026. NEEP, record 382315GREE GKH(12)EB-D6DNA1A/I + GWH12AVDXE-D6DNA1B/O, AHRI 216618222. Checked Nov. 17, 2026. NEEP, record 406909LENNOX M22D012S6-1P + MMLD012S6S-1P, AHRI 216581327. Checked Nov. 17, 2026. NEEP, record 406919SAMSUNG AC012DNNDCG + AC012DXSCCG, AHRI 216441747 (values compared with the LENNOX M22D). Lennox, MMLD single-zone engineering handbookDecember 2025: heating down to −25 °C (−13 °F).
AirGreen product pagesDimensions, airflow, sound levels, Wi-Fi, line sizes and electrical data for the three models, based on the manufacturers' documents.
Environment and Climate Change Canada1991-2020 normals, Montréal-Trudeau: January mean −9.2 °C, mean daily low −13.5 °C.
NRCan, HOT2000 climate mapMontréal Intl, design temperature −23.1 °C, 4,167 degree-days.
IPCC, Fourth Assessment Report100-year global warming potential: R-32 675.
