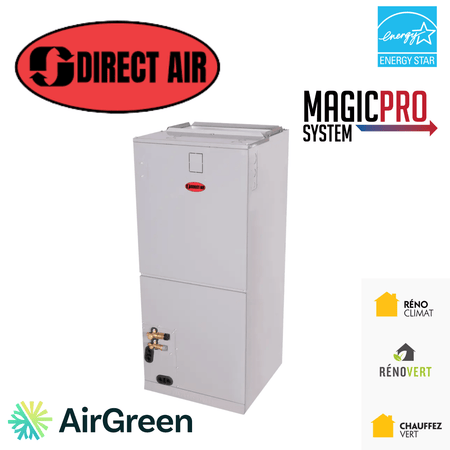

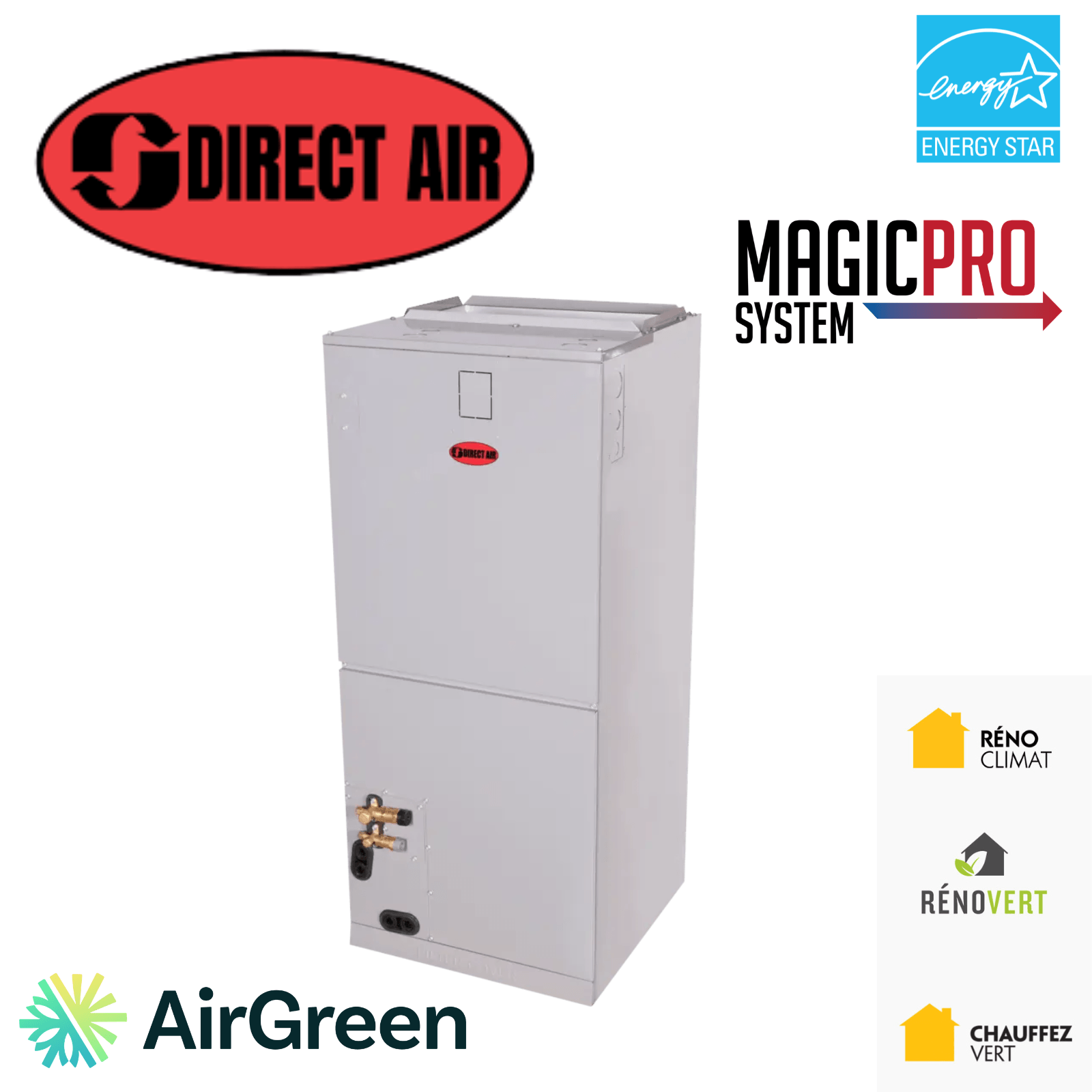

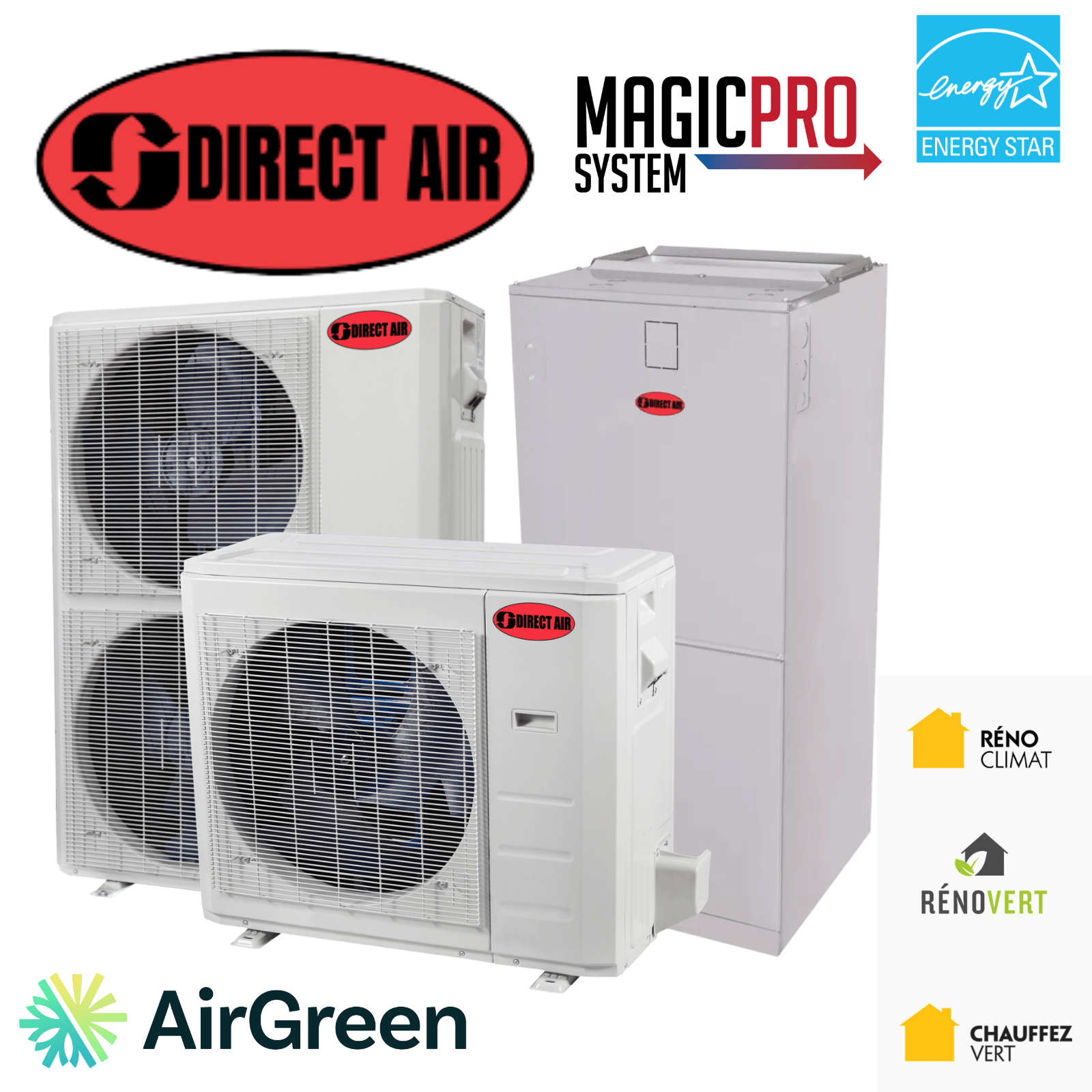

Air Handler DIRECT AIR MAGIC PRO | 2 Tons
SEER2 (Seasonal Air Conditioning Efficiency)
HSPF2 (Seasonal heating efficiency)
EER2 (Instantaneous efficiency in air conditioning)
COP at -8 °C (Heating energy efficiency)
CFM (Airflow)
A high-performance central solution designed for Quebec's climate realities
In Quebec's demanding climate, choosing a reliable and high-performing central HVAC heating and air conditioning system is essential. At AirGreen, we regularly install systems capable of maintaining stable comfort even during periods of extreme cold in Montreal, Laval, Longueuil, North Shore, and South Shore. The Air Handler DIRECT AIR MAGIC PRO | 2 Tonnes stands out as a particularly suitable solution for residential and multi-dwelling properties seeking efficiency, flexibility, and durability.
This model, combined with its compatible central heat pump, offers an intelligent approach to home comfort with modulating inverter technology, allowing for precise adaptation to the building's actual needs.
Advanced technology that optimizes every watt of energy
Energy performance and intelligent modulation
The MAGIC PRO system relies on inverter technology that automatically adjusts power according to demand. Concretely, this means:
- A significant reduction in energy consumption
- Superior thermal stability
- A reduction in on/off cycles, thus less wear and tear

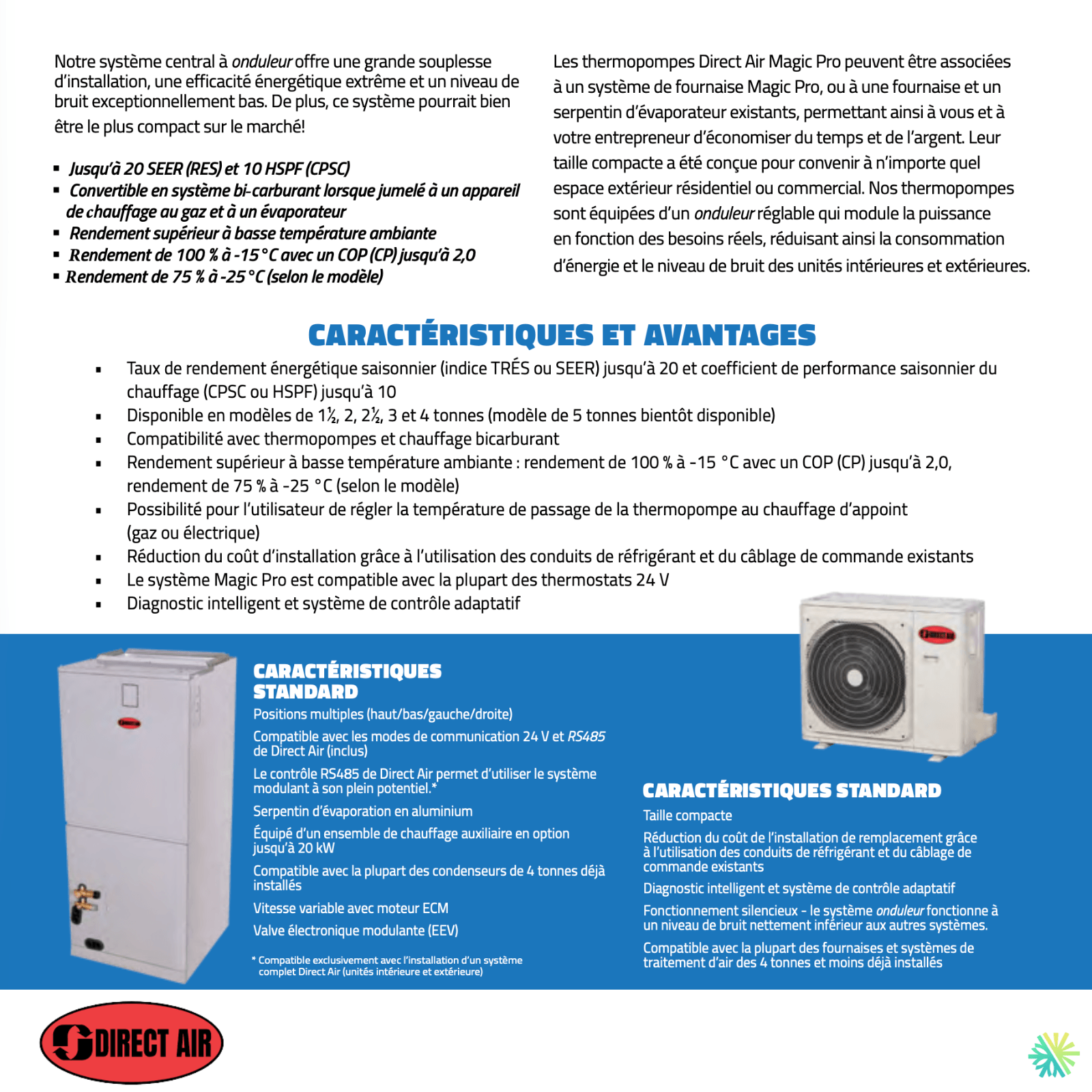

According to the technical brochure, this system can achieve:
- Up to 20 SEER in air conditioning
- Up to 10 HSPF in heating
- A COP of up to 2.0 at -15°C
In real-world applications, we have observed that these performances translate into a tangible reduction in energy costs for our clients, particularly in single-family homes on the South Shore where systems operate intensively in winter.
Efficient heating down to -35°C
One of the most decisive factors for our clients in Montreal and Laval remains heating capacity in extreme conditions. This model offers:
- Operation down to -35°C
- Maintenance of 100% capacity at -15°C
- Approximately 75% capacity at -25°C
This makes it a strategic choice to replace an old central system or complement an existing system with a more modern solution.

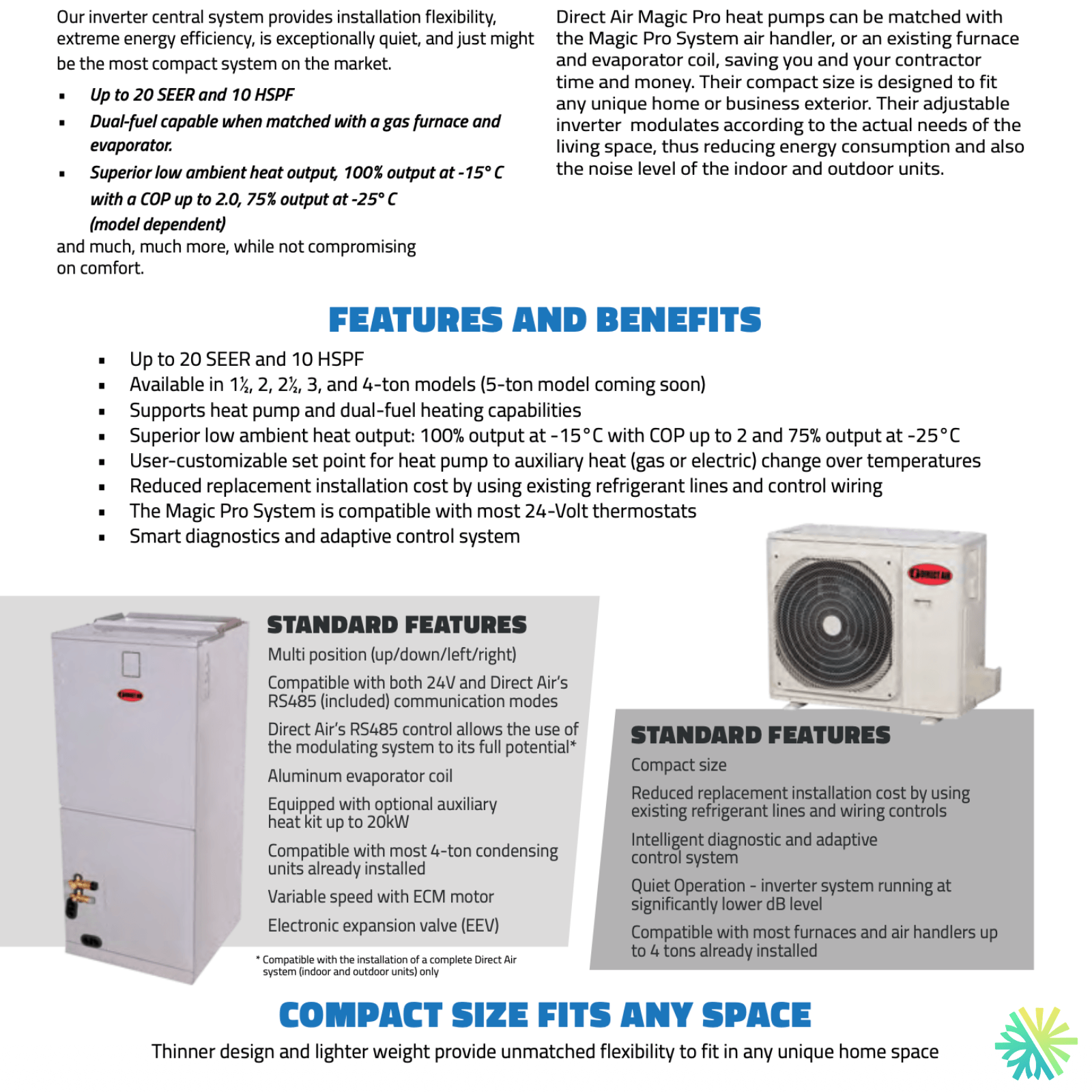

Flexible installation and compatibility with existing systems
Reduced installation costs
One of the great advantages of the DIRECT AIR MAGIC PRO 2 tons is its ability to easily integrate into existing installations:
- Possible use of existing refrigerant lines
- Compatibility with standard 24V thermostats
- Adaptation to existing systems (furnace or coil)
In several projects completed in Longueuil and Boucherville, we were able to significantly reduce installation costs by reusing part of the existing infrastructure, while improving the overall system performance.
Compact size and simplified installation
The indoor unit measures only 17.5 x 21 x 45 inches, which facilitates its integration into:
- Restricted basements
- Utility closets
- Compact mechanical spaces
This format is particularly appreciated in condos in Montreal where space is limited.
Acoustic comfort and quality of life
Quiet operation
With an indoor sound level between 35 and 43 dB(A), this system is designed to provide optimal acoustic comfort. Compared to older systems, the difference is noticeable:
- Less noise in continuous operation
- No sudden starts
- Increased comfort in bedrooms and living areas
We notably installed this model in a duplex in Laval, where the owners sought a quiet solution to avoid disturbances between floors.

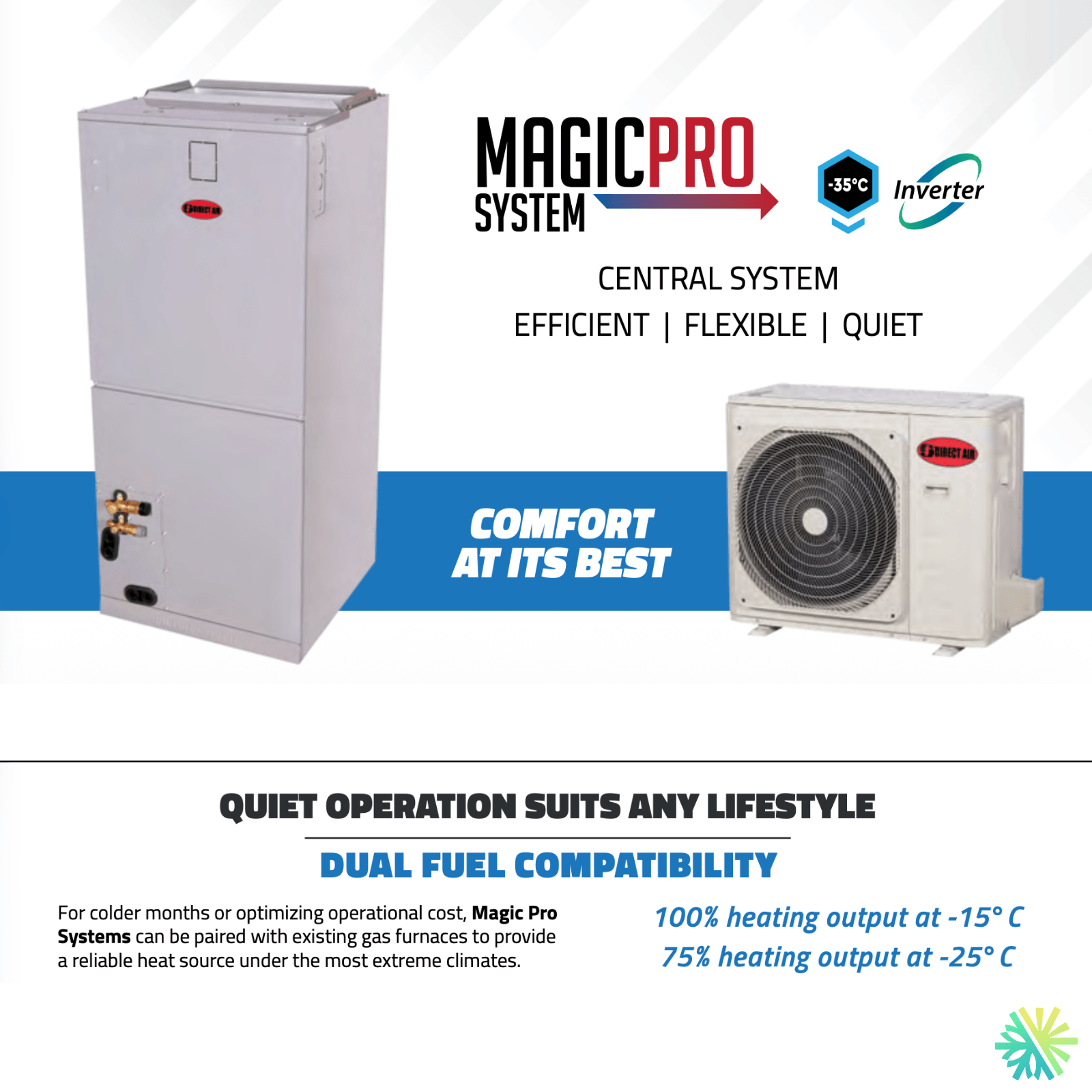

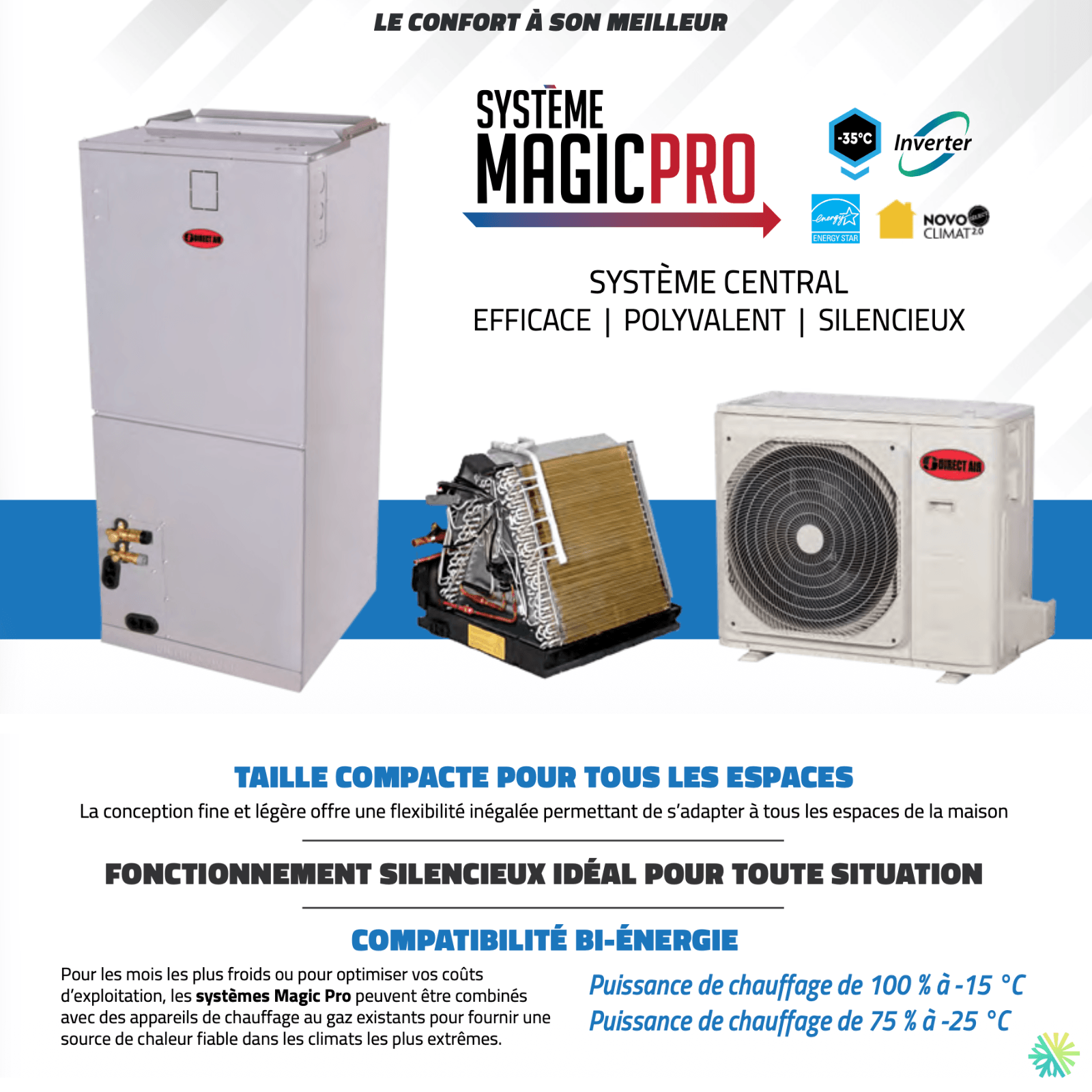

Versatility and bi-energy compatibility
A solution adaptable to evolving needs
The MAGIC PRO system allows for a bi-energy configuration, which means it can be combined with:
- A gas furnace
- Auxiliary electric heating (up to 20 kW)
This allows for:
- Optimizing costs according to energy rates
- Ensuring heating continuity in all circumstances
In some projects on the North Shore, this flexibility has allowed our clients to benefit from a high-performing and economical hybrid system.

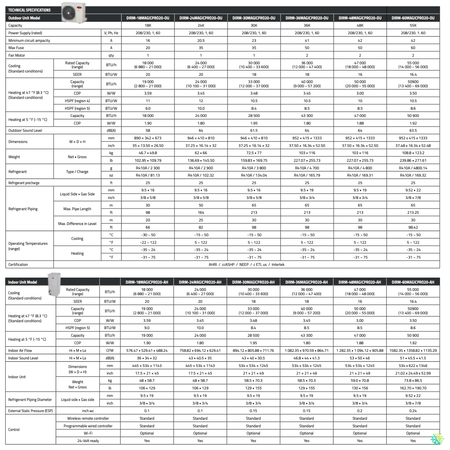

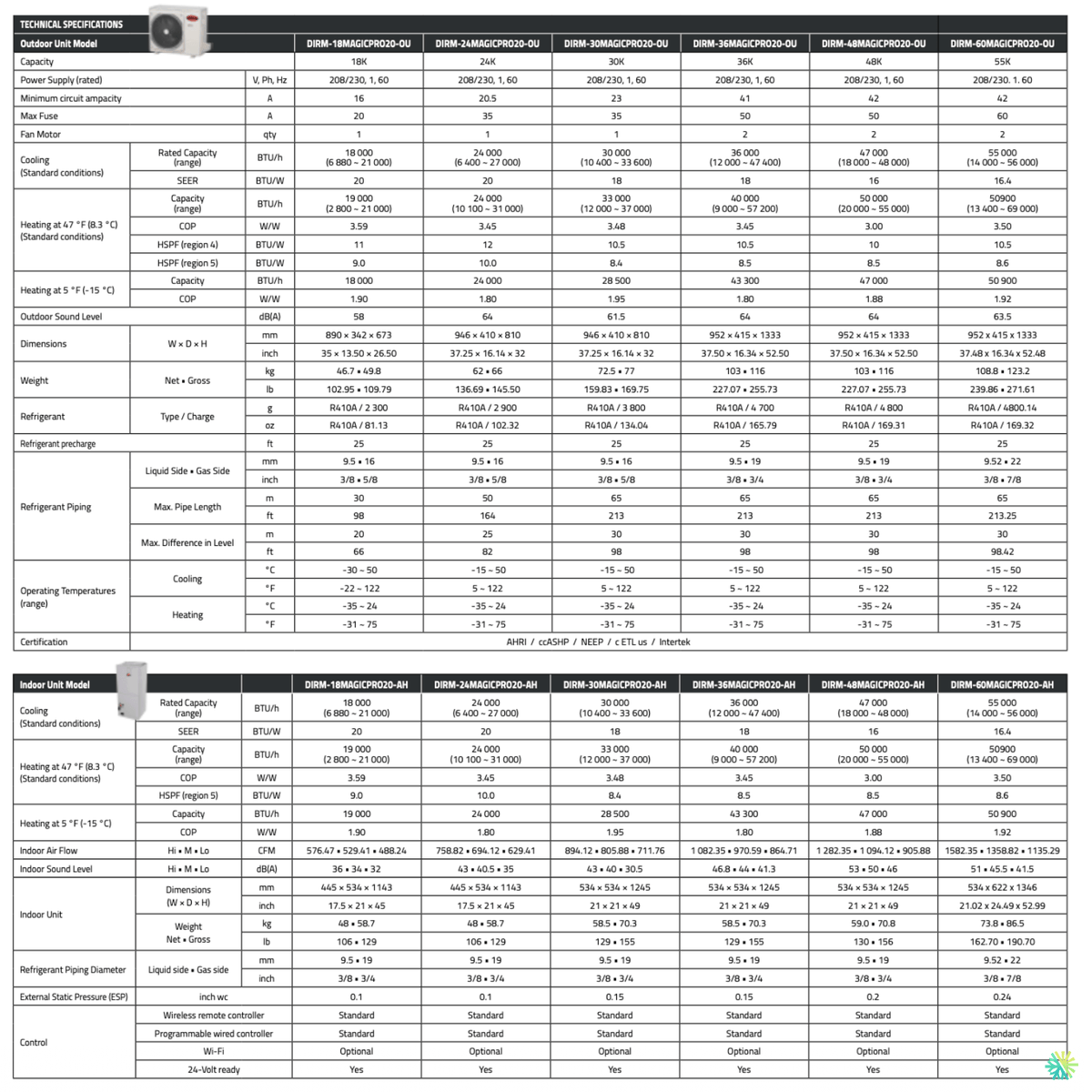

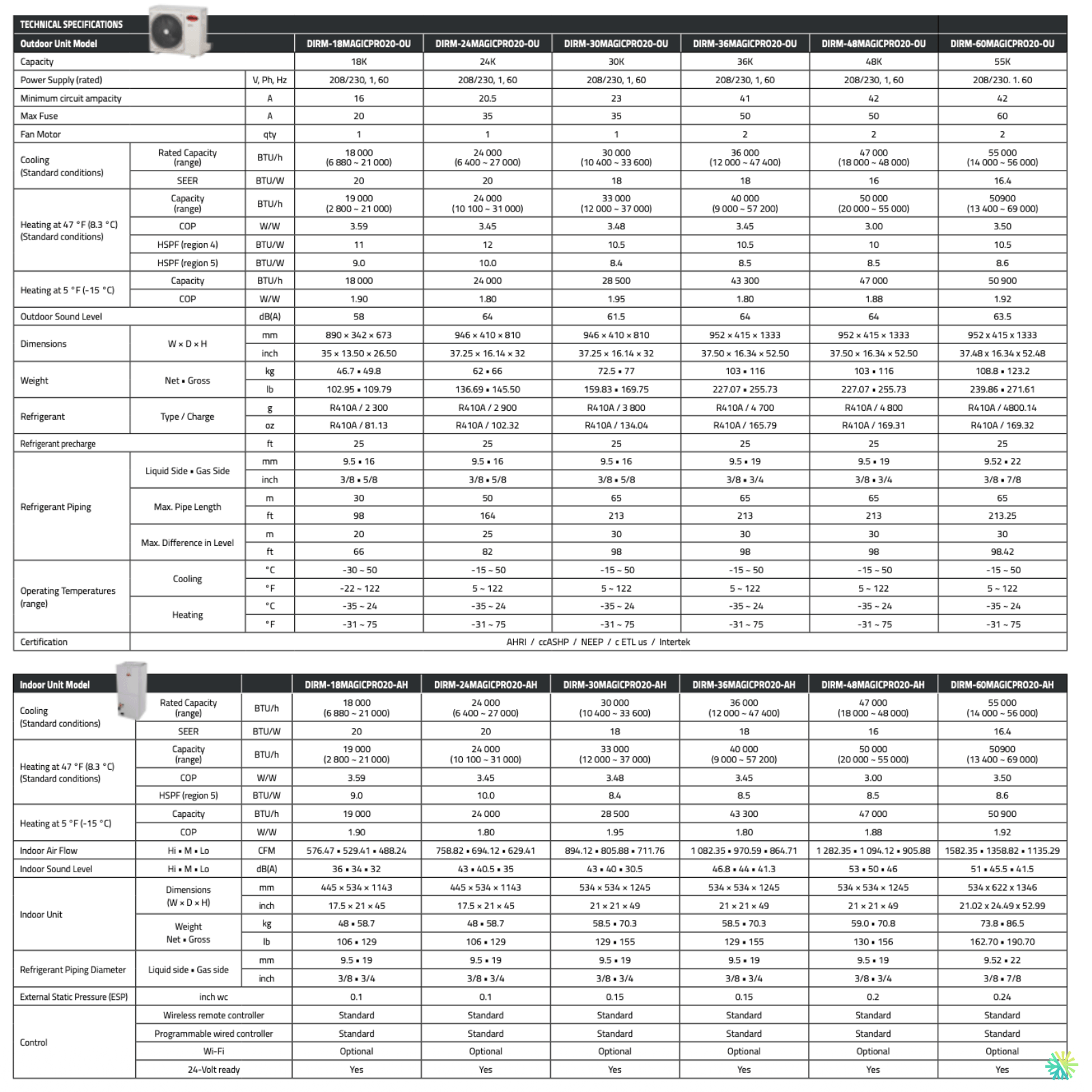

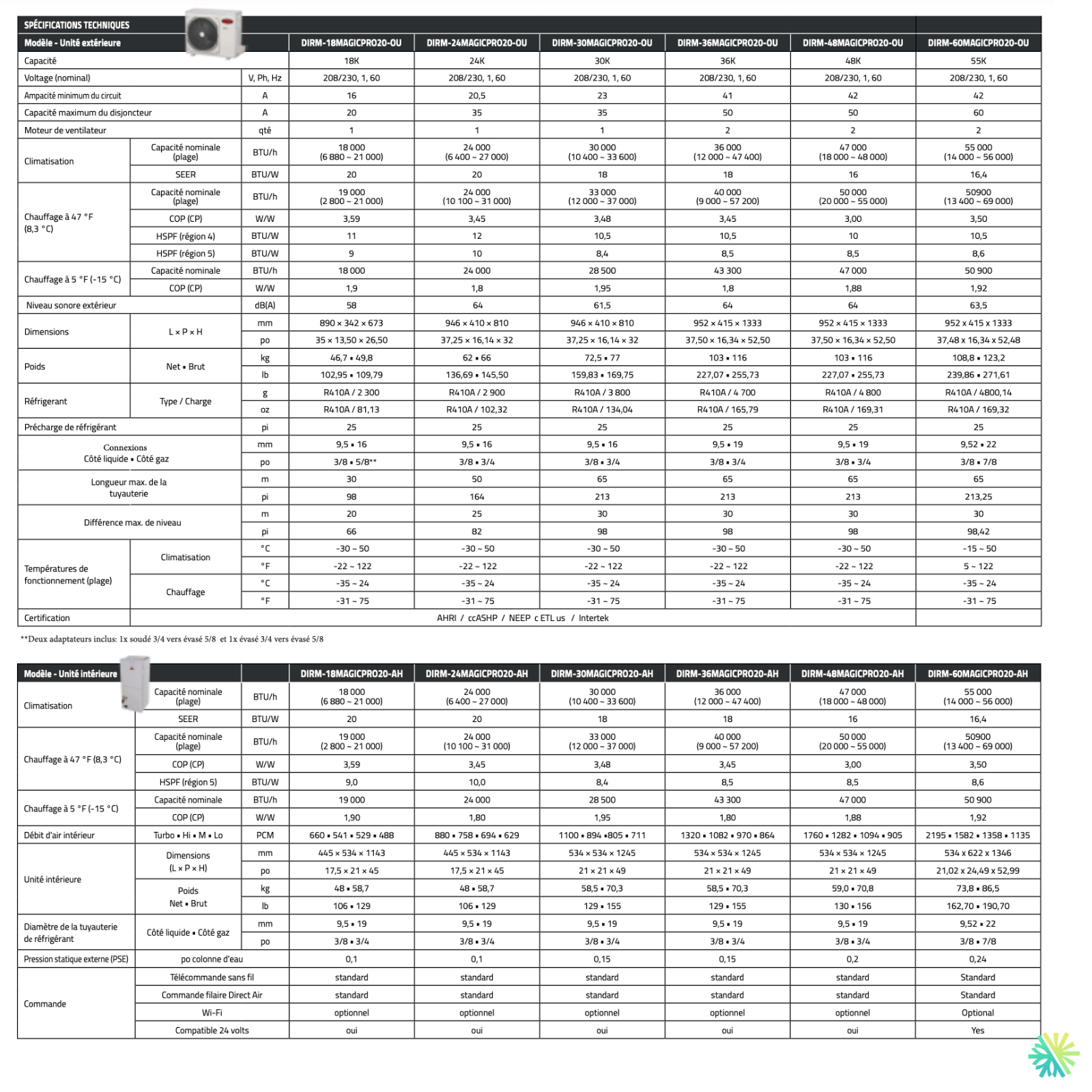

Key technical specifications
Here are the main characteristics of the 2-ton model (DIRM-24MAGICPRO20-AH):
- Capacity: 24,000 BTU
- Power at -8°C: 19,200 BTU
- Power at -15°C: 22,600 BTU
- Refrigerant: R-410A
- Voltage: 220V
- Outdoor sound level: 64 dB(A)
- Airflow: high capacity suitable for central systems
- Warranty: 10 years compressor / 10 years parts
These specifications demonstrate an excellent balance between performance, reliability, and energy efficiency.
AirGreen field experience: actual installation case
Residential project in Montreal (Rosemont)
We recently installed this system in a single-family home from the 1980s. The client was experiencing several issues:
- Uneven heating between floors
- Excessive noise from the existing system
- High energy costs
After the installation of the DIRECT AIR MAGIC PRO 2 tons:
- Homogeneous temperature throughout the house
- Noise reduction of over 50%
- Noticeable decrease in energy bills from the first winter
This type of transformation concretely illustrates the added value of a well-chosen and well-installed system.
Common mistakes to avoid
When choosing a central system, several mistakes can compromise performance:
- Under-sizing or over-sizing BTU capacity
- Neglecting compatibility with existing ducts
- Choosing a system without considering actual winter temperatures
- Installing without optimizing airflow
At AirGreen, every project begins with a complete on-site analysis to avoid these problems and guarantee optimal performance.
Why choose AirGreen for your HVAC installation
Our approach is based on technical expertise and transparency:
- Precise and personalized on-site evaluation
- Installation by certified and experienced technicians
- In-depth knowledge of Direct Air, Fujitsu, Gree, Midea, Samsung systems
- Compliance with RBQ standards with $5M civil liability insurance
We operate daily in Montreal, Laval, Longueuil, North Shore, and South Shore, with concrete field expertise and local climate realities.
Conclusion: a strategic choice for lasting comfort
The Air Handler DIRECT AIR MAGIC PRO | 2 Tonnes represents a modern, efficient central solution adapted to the needs of Quebec properties. Its ability to maintain high performance even in extreme conditions, combined with its installation flexibility, makes it a particularly relevant choice for replacement or modernization projects.
