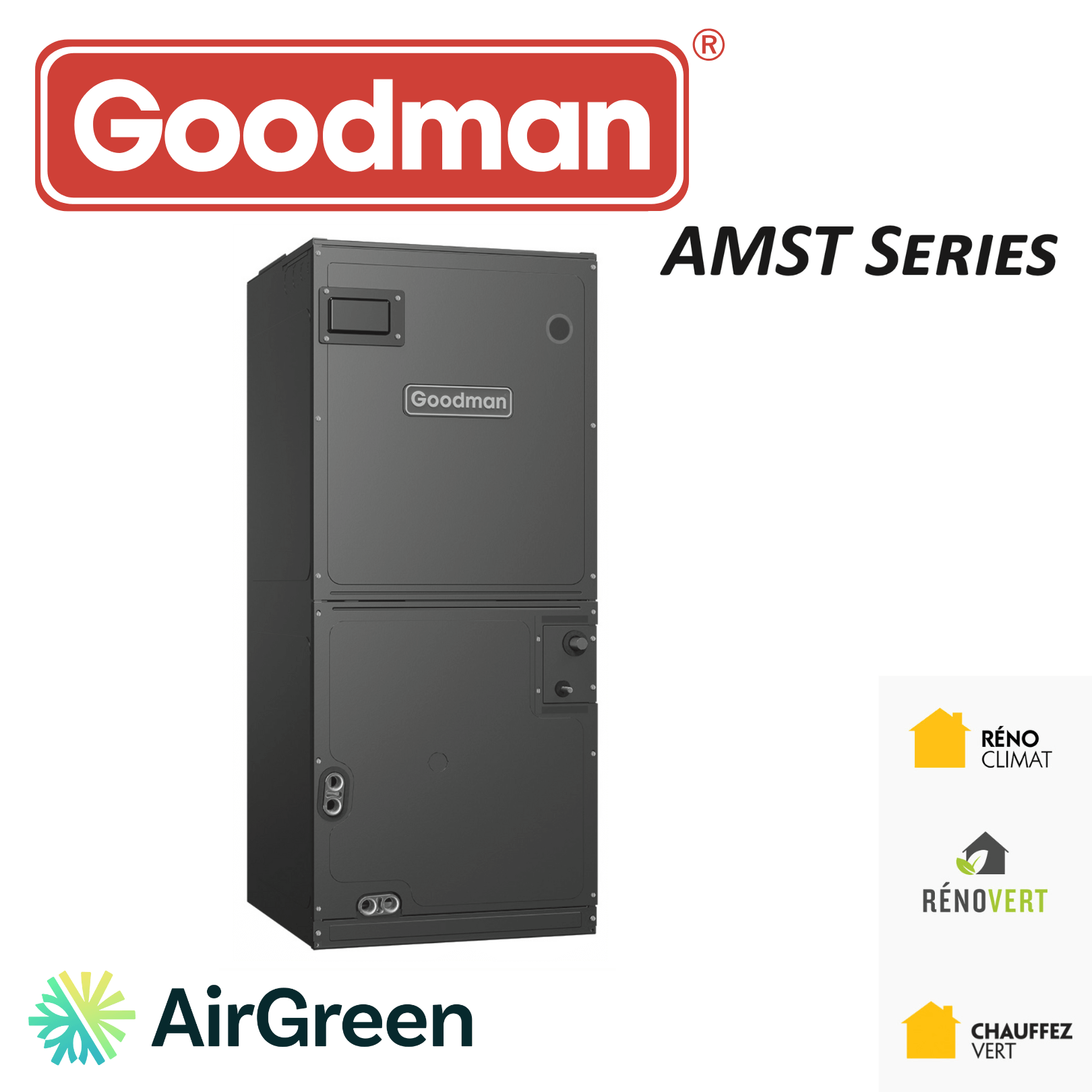

Air Handler GOODMAN R-32 | 5 Tons | Montreal, Laval, Longueuil, South Shore & North Shore

• Provincial Subsidy: $
• Warranty (Compressor - Parts - Labor): Possible
• Additional Warranty (10-10-10): Possible
• Voltage: 220V
• Gas (Freon): R-32
• Piping: 3/8 - 7/8

Air Handler GOODMAN R-32 | 5 Tons | Montreal, Laval, Longueuil, South Shore & North Shore

The Optimal Solution for Climate Comfort in Your Home

In a climate like that of Montreal and its surroundings, where temperature variations are extreme, choosing the right air handler is crucial to ensure optimal comfort year-round. The GOODMAN R-32 Air Handler, with its 5-ton capacity, presents itself as the ideal option for large residences and commercial spaces. This product, backed by the reputation of the GOODMAN brand, offers impressive energy efficiency and unparalleled reliability.

Key Features of the GOODMAN R-32 Air Handler

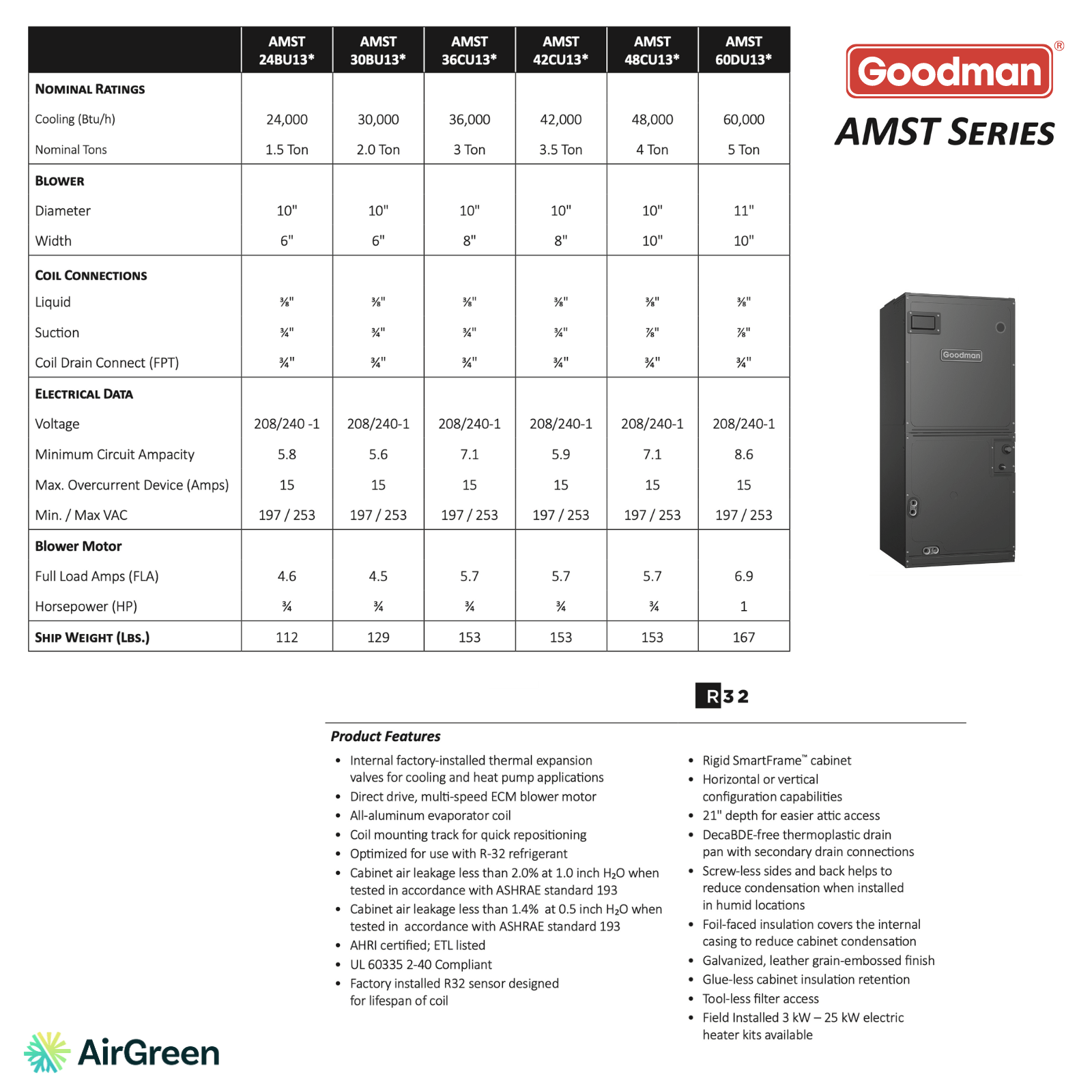

The AMST60DU1300 model, known for its exceptional performance, is designed to provide superior comfort through its numerous innovative features. Here is an overview of the main technical specifications of this unit:

• SEER2: 14.5 – This value represents the seasonal energy efficiency ratio of the air conditioner, indicating optimal energy consumption for maximum comfort.
• HSPF2: 8.2 – The heating seasonal performance factor, ensuring remarkable efficiency even during harsh winters.
• EER2: 12.5 – Energy efficiency in cooling mode, guaranteeing reduced energy costs.
• Power: 60,000 BTU – Suitable for large spaces, this model can efficiently manage the heating and cooling of your space.
• Noise Level: dB(A) – Quiet operation for comfort without noise disturbances.
• Dimensions (W x H x D): 24.63 x 58 x 21 in – Compact dimensions facilitating installation, even in tight spaces.

Design and Reliability

The GOODMAN R-32 Air Handler is built to last. Equipped with a direct drive, multi-speed ECM blower motor, it ensures even air circulation throughout the home, regardless of the operating mode. The all-aluminum evaporator coil is optimized for use with R-32 refrigerant, known for its reduced environmental impact compared to traditional refrigerants.

The integration of an internal thermal expansion valve allows for precise control of refrigerant flow, optimizing cooling and heating performance while extending the unit's lifespan.

Installation and Flexibility

Thanks to its rigid SmartFrame™ design and horizontal or vertical configuration capabilities, this model can be installed in a variety of architectural configurations. The 21-inch depth facilitates access to attics or other confined spaces, making installation simpler and quicker.

Moreover, the cabinet air leakage, tested according to ASHRAE 193 standards, is less than 2.0% at a pressure of 1.0 inch H2O, ensuring maximum energy efficiency and increased comfort. With screw-less panels, the internal insulation of the cabinet is better retained, reducing the risk of condensation in humid environments.

Maintenance and Durability

The thermoplastic condensate drain pan that is DecaBDE-free, with secondary drain connections, is designed to prevent overflows and moisture issues. The components are also easy to access, simplifying regular maintenance and extending the unit's lifespan.

GOODMAN offers a standard 10-year warranty on the compressor and parts, with an optional 10-year labor warranty, ensuring long-term peace of mind. Compliance with UL 60335 2-40 standards and AHRI certification further enhance the reliability and safety of this product.

Environmental Benefits of R-32 Refrigerant

The choice of R-32 refrigerant for this Air Handler is no coincidence. This refrigerant is recognized for its lower global warming potential (GWP), making it a more environmentally friendly choice compared to older refrigerants like R-410A. Additionally, R-32 offers better energy efficiency, contributing to a reduction in CO2 emissions.

Compatibility and Integration

This model is designed to work optimally with the GLZS4BA6010 central heat pump. This compatibility ensures not only a seamless installation but also a smooth integration into your existing HVAC system, maximizing the performance and energy efficiency of your setup.

Subsidies and Financial Incentives

It is important to note that the installation of this Air Handler may make you eligible for provincial subsidies. These financial incentives are offered to encourage residents to adopt more eco-friendly and energy-efficient heating and cooling systems. By choosing the GOODMAN R-32 model, you can not only reduce your energy costs but also benefit from these financial incentives.

Conclusion

In summary, the 5-ton GOODMAN R-32 Air Handler is a wise choice for those seeking a high-performing, energy-efficient, and reliable HVAC system. With its many advanced features, flexible design, and environmental benefits, this unit stands out as a leader in the air handling market. Whether you are in Montreal, Laval, Longueuil, the South Shore, or the North Shore, this Air Handler is designed to meet the specific needs of Canadian climates while offering unparalleled comfort and long-term peace of mind.
