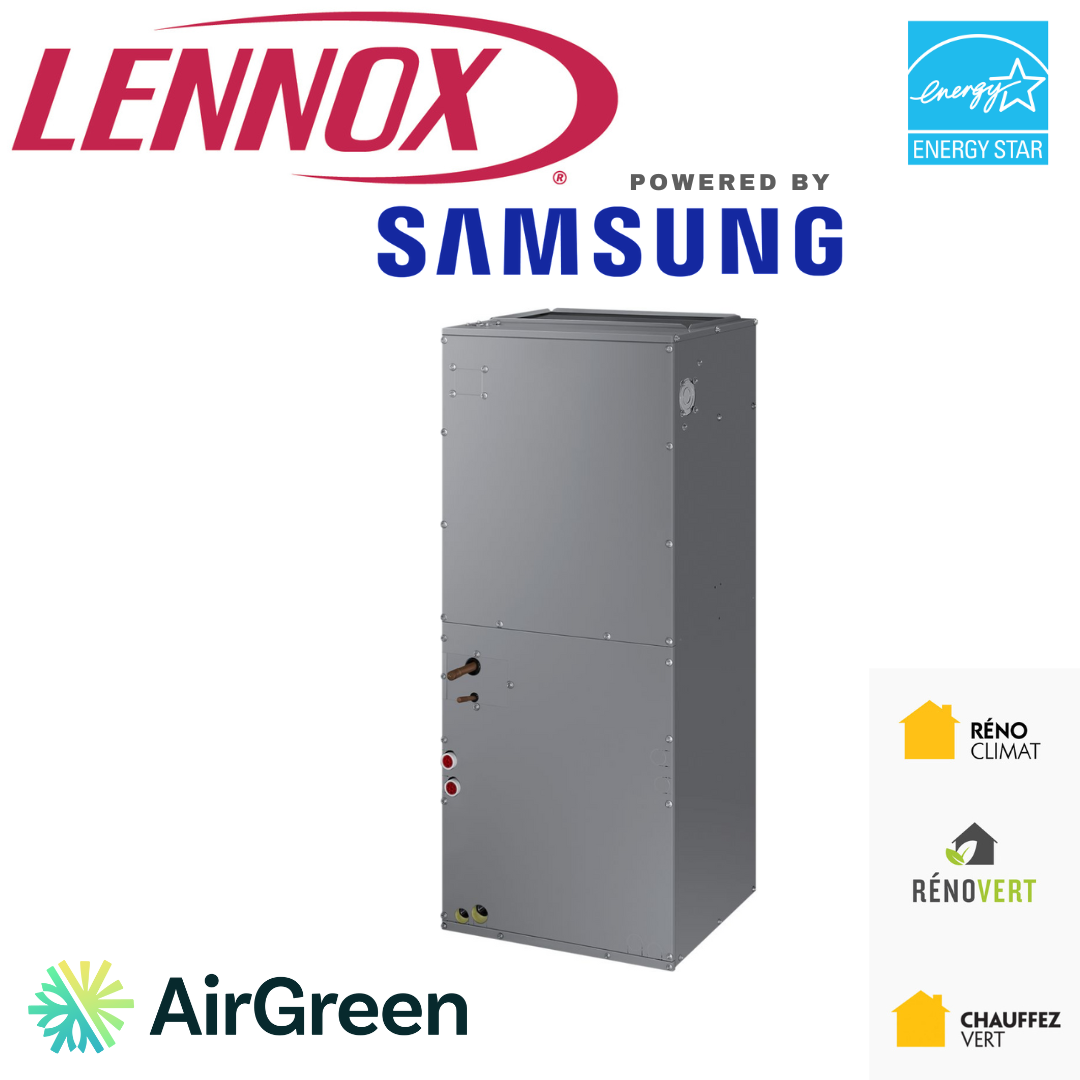

Air Handler LENNOX MMD | 2 Ton | Parts by Samsung

In stock
SKU: MMD024M6
Model Number: MMD024M6
SEER2:
HSPF2:
EER2:
Sound Level: 37 / 43 dB(A)
Size: 2 Tons
Power: 24,000 BTU
Dimensions (L x D x H): 17.5 x 43.38 x 21 in
Works with Central Heat Pump : MMLD024S6S
AHRI:
  • Provincial Subsidy: $
  • Warranty (Compressor - Parts - Labor): Possible
  • Additional Warranty (10-10-10): Possible
  • Voltage: 220V
  • Gas (Freon): R-32
  • Piping: 1/4 - 5/8

State-of-the-art multi-position performance for residential and commercial needs

In a market where energy efficiency, durability and installation flexibility have become key priorities, the " Air Handler LENNOX MMD | 2 Tons | Parts by Samsung " stands out as a must-have unit in the range of HVAC products we install at AirGreen. Designed to adapt to several configurations (vertical, horizontal left or right, and downward blowing), this multi-position unit is ideal for both residential and commercial projects in Montreal, Laval, Longueuil, on the North Shore and the South Shore .

Samsung technology for HVAC performance

A design adapted to the realities on the ground

The LENNOX MMD Air Handler model MMD024M6 , with a capacity of 2 tons (or 24,000 BTU ), is distinguished by its compact structure (17.5 x 43.38 x 21 inches), allowing discreet integration in tight spaces. Its compatibility with the MMLD024S6S central heat pump makes it a strategic choice for installations targeting air conditioning and central heating with a single indoor unit.

Quiet and powerful operation

Thanks to its constant torque DC motor , this unit achieves remarkably low noise levels ( 37 to 43 dB(A) ), ensuring superior acoustic comfort for occupants. The adaptive airflow (up to 760 CFM in cooling mode) allows for optimal temperature distribution throughout the home or business.

Versatility and energy efficiency

Operating with R-32 refrigerant , one of the most environmentally friendly and efficient on the market, this air handler really helps reduce the carbon footprint of buildings. Its design with a copper tube and aluminum fin evaporator , combined with a precise refrigerant circuit, ensures excellent thermal performance and low air resistance.

Easy maintenance for extended lifespan

At AirGreen, we know that sustainability starts with ease of maintenance . That's why we particularly appreciate the tool-free access panel with integrated washable filter. In addition, the accessibility of the blower (mounted on sliding rails) greatly facilitates inspection and cleaning operations.

Smart control and modern connectivity

This unit is compatible with various types of smart controllers , including:

  • Wireless controller (USB-C or solar charging)

  • Programmable thermostats

  • SmartThings mobile apps to adjust temperature, track energy consumption, and receive real-time diagnostics

This level of advanced electronics allows our customers to take complete control of their HVAC system remotely, regardless of their level of familiarity with technology.

A reliable solution for a tailor-made central installation

Thanks to its multi-position capability , the LENNOX MMD Air Handler integrates easily into all types of built environments. Whether it's a century-old home in Outremont, a modern condo in Laval or a business on the South Shore , this unit offers unparalleled installation flexibility .

Main technical specifications

  • Model Number : MMD024M6

  • Capacity : 2 tons (24,000 BTU)

  • Voltage : 208/230 V - 1 Phase - 60 Hz

  • Refrigerant : R-32

  • Piping : 1/4 - 5/8 inch (flare)

  • Airflow (heating/cooling): up to 760 CFM

  • Sound level : 37 to 43 dB(A)

  • Filter : washable, magnetic access

  • Dimensions : 17.5 x 43.38 x 21 in

  • Compatibility : Heat pump MMLD024S6S

What our customers in Montreal and on the North Shore are saying

In a recent installation in Blainville, our teams integrated this unit into a complete dual-zone central heat pump system for a single-family home. The client, impressed by the quiet operation and airflow quality , noted a significant reduction in his energy bill after the first month.

Why choose AirGreen for your Air Handler installation?

  • 100% free on-site quote

  • Clear and no-surprise prices

  • Certified and specialized technicians in central HVAC

  • Payment upon completion of work only

  • Responsive and professional after-sales service

Conclusion: A proven central air handling unit

The LENNOX MMD | 2 Ton Air Handler is more than a technical component: it's the heart of your central HVAC system , ensuring comfort, efficiency, and intelligent control in all seasons. Offering full compatibility with Lennox and Samsung solutions, it's a high-end and durable option for homes and businesses in Greater Montreal.


Would you like to have this LENNOX Air Handler installed at your address in Montreal, Laval, Longueuil, on the North Shore or the South Shore? Contact us at AirGreen for a quick and free quote, or visit our showroom in Boucherville!
