ELIOS 4-Way Cassette | 24,000 BTU R454B | Greater Montreal Installation

Invisible performance for total comfort

At AirGreen , we have always favored comfort solutions that combine performance, elegance, and reliability. The ELIOS 24,000 BTU 4-way cassette perfectly embodies this philosophy. Designed to offer 360° air distribution , it represents an ideal heating and cooling solution for residential and commercial spaces in Greater Montreal , whether it is an office, a condo, or a local business.

Designed by Elios Confort and supported by Le Groupe Master , this unit stands out for its exceptional energy efficiency and discreet installation . It combines cutting-edge technology, remarkable energy efficiency and durability adapted to Quebec's harsh winters.

Exceptional performance down to -25°C

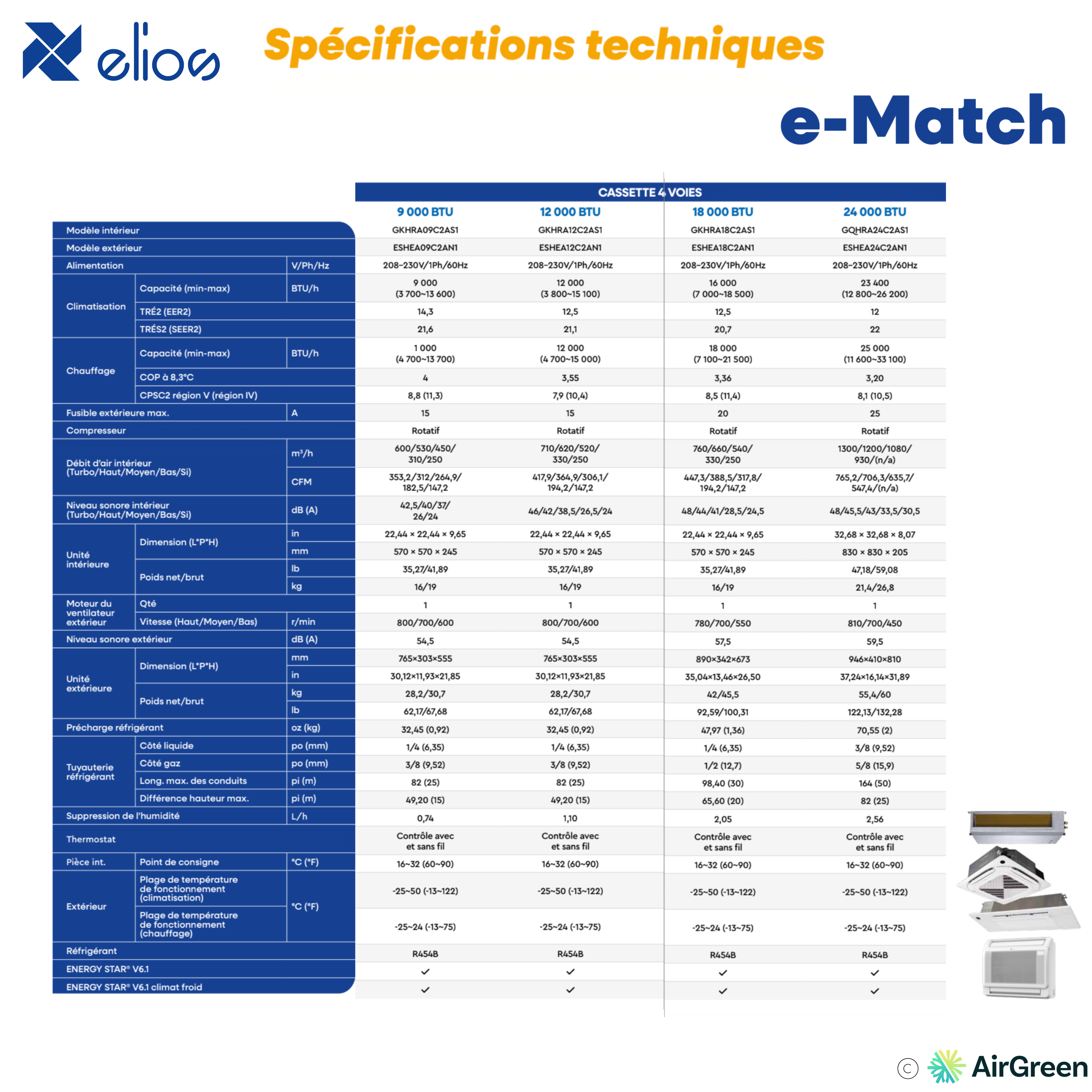

The Elios 24,000 BTU 4-way cassette excels in all seasons. Equipped with an inverter rotary compressor and using environmentally friendly R-454B refrigerant , it achieves a SEER2 of 22.0 , an EER2 of 12.0 and a HSPF2 (CPSC2) of 10.5 .

In concrete terms, this translates into minimal energy consumption, consistent comfort, and stable heating capacity down to -25°C —a rare performance in its category. In the heart of a Montreal winter, this cassette doesn't falter: it continues to provide gentle, even heat without interruption, even when the mercury dips well below zero.

An elegant and discreet solution

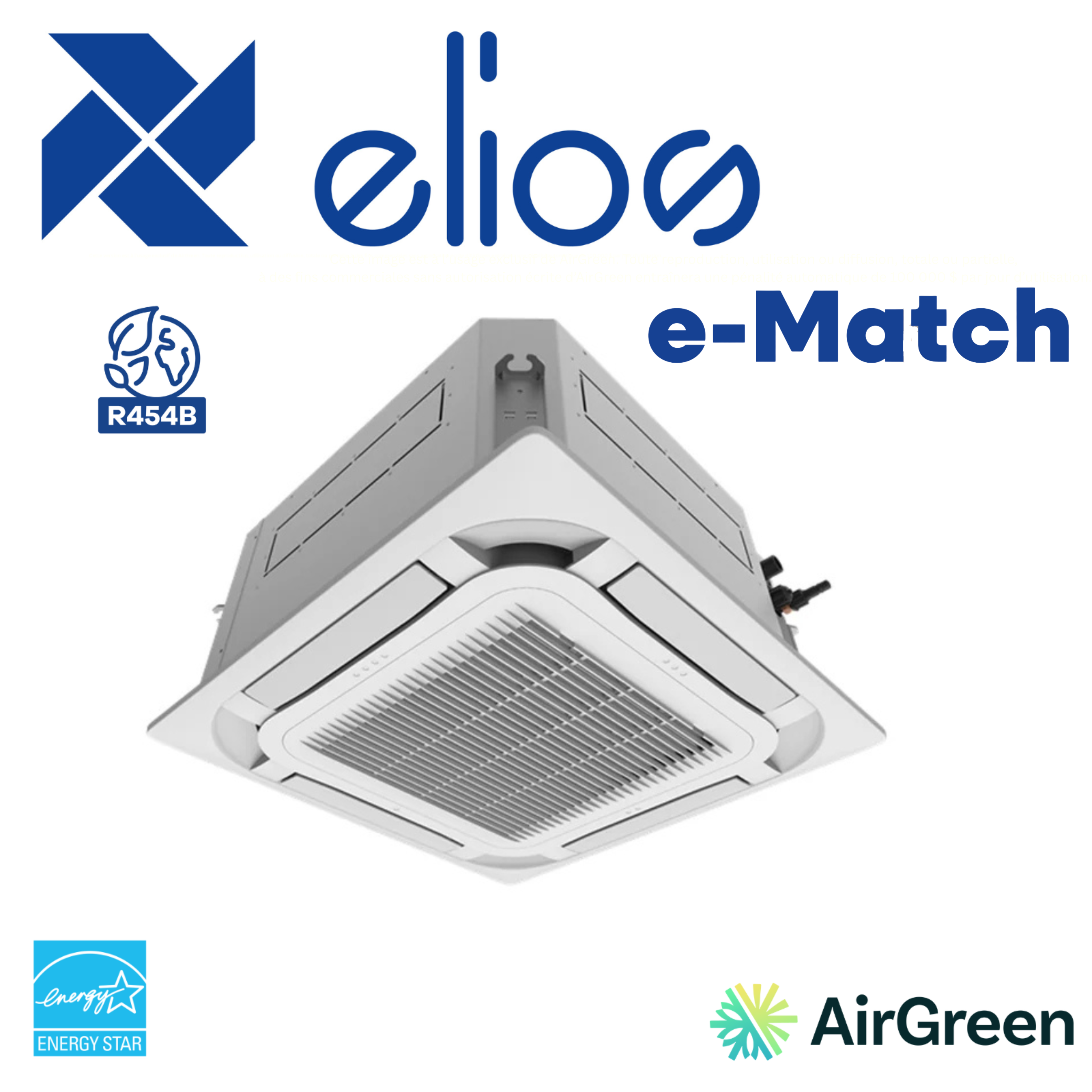

One of the main advantages of the ELIOS 4-way cassette is its discreet integration . With its compact dimensions ( 32.68 × 32.68 × 8.07 in ), it fits easily into standard suspended ceilings or gypsum structures, leaving only a modern and refined grid visible.

This minimalist design adapts to all environments:

• Offices and businesses : uniform air diffusion, ideal for large areas.

• Apartments and condos : discreet integration without encroaching on wall space.

• Single-family homes : consistent comfort room by room.

Thanks to its 360° air diffusion , the ELIOS 4-way cassette eliminates cold spots and guarantees constant comfort in every corner of the room.

A remarkable silence

Comfort isn't just about temperature: it's also about quiet sound.
The indoor unit boasts a noise level as low as 30.5 dB(A) , while the outdoor unit does not exceed 59.5 dB(A) . These figures place the ELIOS 4-way cassette among the quietest systems in its class — a considerable advantage for work environments, bedrooms or relaxation areas.

An installation mastered by AirGreen experts

At AirGreen , our certified refrigeration engineers are fully familiar with the Elios e-Match range. We ensure a complete, secure installation that complies with RBQ standards (#5645-9605-01).

During a recent project in Ville-Marie , our team installed this 24,000 BTU 4-way cassette in a high-ceilinged commercial loft . The goal was to maintain a consistent temperature, summer and winter, while preserving the sleek design of the space. Thanks to 3/8 and 5/8 inch piping , a maximum duct length of 164 feet and a height difference of 25 meters , we were able to position the outdoor unit on the roof without compromising on performance.

The result: consistent comfort , reduced energy consumption , and perfectly respected aesthetics .

Smart and intuitive control

The ELIOS cassette adapts to modern lifestyles. It can be equipped with:

• KJRLAACN1 wired control : simple, non-programmable.

• KJRSAALW1 Wired Control : Programmable with built-in Wi-Fi.

• Optional Wi-Fi Dongle : For full control from a smartphone.

These interfaces allow you to manage temperature, fan speed, or operating mode (heating, air conditioning, dehumidification) remotely — valuable flexibility for owners or property managers.

Safety and reliability at the heart of the design

The Elios e-Match series incorporates refrigerant leak detection . This intelligent sensor continuously monitors the circuit, automatically shuts off the compressor in the event of an anomaly and maintains ventilation to prevent gas build-up. A 24/7 active safety feature, ideal for sensitive residential and commercial installations.

A guarantee that inspires confidence

Elios products are supported by Le Groupe Master , a Canadian leader in HVAC-R distribution. This cassette is covered by:

• Standard warranty: 1 year on parts and 5 years on the compressor.

• Optional warranty: 10 years on parts and compressor.

At AirGreen, we also offer after-sales service and preventative maintenance programs to ensure the longevity of your system and maintain its optimal performance year after year.

Energy efficiency and respect for the environment

The use of R-454B refrigerant , which complies with the strictest environmental standards, allows the ELIOS cassette to significantly reduce its global warming potential (GWP) while maintaining stable heating power.

Thanks to this technology, it obtains ENERGY STAR® Cold Climate certification, proof of its exceptional energy efficiency adapted to Quebec's winter conditions.

Why choose AirGreen for your installation?

Calling on AirGreen means benefiting from a comprehensive approach:

• 100% free on-site estimate , no obligation.

• Transparent prices , detailed before each intervention.

• No deposit required — you only pay when you're satisfied.

• Certified and experienced technicians for fast and careful service.

• Local presence in Montreal, Laval, Longueuil, North Shore and South Shore.

Each installation is treated with the same care, whether it is a condo in Plateau-Mont-Royal or a business in Boucherville.

A complete solution for Quebec comfort

The ELIOS 24,000 BTU 4-way cassette is much more than just an air conditioning system: it's an integrated solution that combines power, efficiency and elegance . Designed to adapt to all environments, it guarantees lasting comfort, even in the extreme conditions of the Quebec climate.

At AirGreen , we believe that a good HVAC system should be unmistakable by its quietness and stability—and that's exactly what this ELIOS cassette promises.

Contact AirGreen today for a free estimate and discover how the ELIOS 4-way cassette can transform your indoor comfort in Montreal, Laval, Longueuil, on the North Shore or the South Shore .
