KINGHOME Multi-Zone R32 8-Way Ceiling Cassette | 9,000 BTU

In stock
SKU: KM09XK8DI
9,000BTU/h · nominal capacity
Optional Wi-FiR-3212-yr compressor, 12-yr parts
Talk to a technician · 514 316-2973
Outdoor unitSUR MULTIZONE SEULEMENT
Cassette (indoor)KM09XK8DI
AHRISUR MULTIZONE SEULEMENT

360° air distribution from the centre of the room, at 27 dB(A) at low speed

When a room is more or less square and its ceiling is a drop ceiling or easy to open, the best spot for an indoor unit is often in the middle, above the people in the room. The 9,000 BTU KINGHOME 8-way ceiling cassette takes exactly that position: a square cabinet hidden in the ceiling, a decorative panel and eight air outlets that spread heat or cool air in every direction at once.

It's the smallest square cassette in the series and, at 27 dB(A) at low speed according to the spec sheet, the quietest of the KINGHOME cassettes. We recommend it for a square primary bedroom, a playroom or a closed office in a finished basement with a drop ceiling, and for small professional spaces, such as a consulting room or a small meeting room in Montréal or Longueuil.

An indoor head that depends on an Ultra Heat outdoor unit

The cassette doesn't work on its own. It's an indoor unit for a KINGHOME Ultra Heat multi-zone heat pump running on R-32: it has no dedicated outdoor unit, no AHRI number and no efficiency rating of its own, and it gets its 220 V power and its refrigerant from the outdoor unit that also serves the other rooms. The certified performance belongs to the complete system.

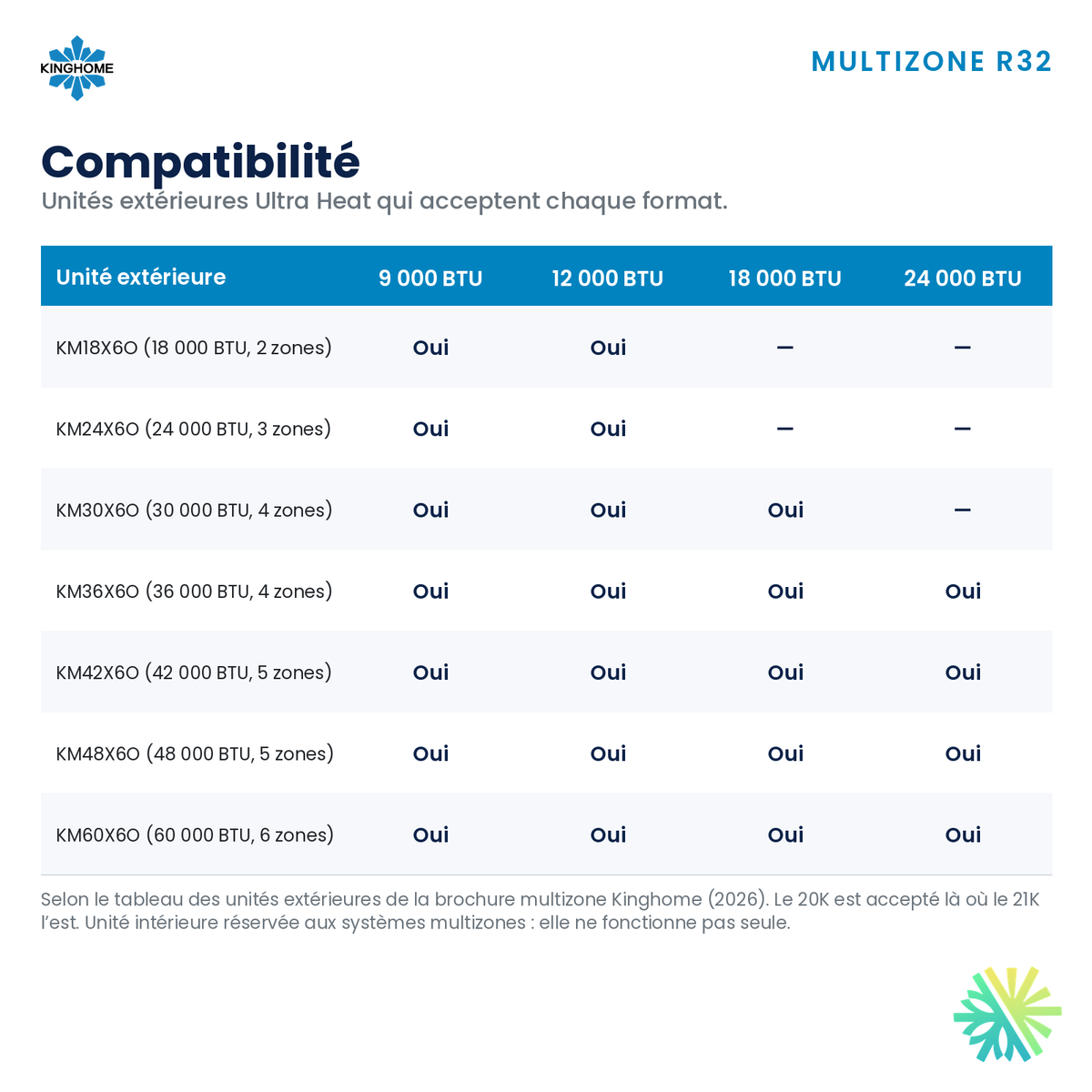

The 9,000 BTU size is accepted by every outdoor unit in the Ultra Heat lineup, according to the manufacturer's compatibility table:

  • KM18X6O (2 zones) and KM24X6O (3 zones), for a condo or a single floor;
  • KM30X6O and KM36X6O (4 zones), for a single-family house;
  • KM42X6O, KM48X6O (5 zones) and KM60X6O (6 zones), for a large house.

The 18,000 to 48,000 BTU units carry the ENERGY STAR cold climate designation and heat down to -30 °C. The 60,000 BTU unit doesn't have that designation. Since this small head can be paired with every unit, it's often used to complete a system: one more room in the basement, on a unit that already serves the main floor and the upstairs.

What 8-way air distribution changes

A wall-mounted head blows from a wall; a one-way cassette, from one end. The 8-way cassette blows from the centre, symmetrically. In a square room, every corner gets its share of air, the airflow is never aimed at a single spot, and the air speed where people sit stays low. That's what gives the even temperature, without drafts, that our customers notice in the very first week.

The cabinet measures 22.44 in by 22.44 in, with a depth of 10.43 in. This square format lines up naturally with the grid of a commercial drop ceiling, which makes installation simpler in an office or a basement with ceiling tiles. The decorative panel extends slightly beyond the cabinet and hides the opening. It does, however, need a deeper plenum than a one-way cassette: that's the first thing we measure.

The numbers from the spec sheet

  • Nominal capacity: 9,000 BTU
  • Maximum airflow: 330 CFM
  • Indoor sound level: 27 dB(A) at low speed, 41 dB(A) at maximum speed
  • Dehumidification: 1.69 pt/h, or about 0.8 L/h
  • Cabinet dimensions: 22.44 x 22.44 x 10.43 in

The figure that sets this model apart is the 27 dB(A) at low speed, the lowest value of all the KINGHOME cassettes. Once the room is at the set point, the unit runs at that speed most of the time, which makes it a good choice for a bedroom or an office where you take video calls. The 330 CFM airflow is spread over eight outlets: each one blows gently, and that's by design.

The right size

The 9,000 BTU suits a closed room of modest size. In a larger family room, or in a damp basement, the 12,000 BTU in the same series removes a lot more humidity with the same cabinet and the same airflow. We do an on-site assessment of heating needs, room by room, before choosing, because an oversized cassette reaches the set point too quickly, stops dehumidifying and leaves the room cold and clammy.

Controls and features

The infrared remote is included. Wi-Fi is available as an option through a Wi-Fi wired controller compatible with the KINGHOME app; a wall-mounted or flush-mounted wired controller is also available. The I-feel function adjusts the temperature based on the reading at the remote, close to where you are. Coil self-cleaning, forced defrost, soft start, low-voltage start-up and a frost-protection maintenance heating mode round out the features.

What we check before the installation

A square cassette in the centre of a room means a good-sized hole in a finished ceiling. Here's what we confirm during our assessments in Montréal, Laval and Longueuil, on the North Shore and on the South Shore.

The plenum depth and the exact position

We measure the clear space above the ceiling for the 10.43 in cabinet and its clearances. We locate the joists, the recessed lights and the ducts so we can centre the unit in the room without cutting into the structure. The cassette hangs from threaded rods anchored in the joists.

The electrical supply

The head is powered by the outdoor unit. The KM18X6O requires an MCA of 15 A and an MOP of 20 A; the KM24X6O, an MCA of 20 A and an MOP of 25 A; the KM30X6O, an MCA of 23 A and an MOP of 35 A. We check the space and the capacity of the panel before confirming.

The outdoor unit

We install it on a wall bracket, above the accumulated snow, so the defrost water drains freely and the unit stays clear after a storm.

The piping and the drain

The 18,000 to 48,000 BTU units have 1/4 and 3/8 in ports. The refrigerant lines are insulated over their full length in the ceiling. The built-in condensate pump lifts the water to a drain point we confirm ahead of time, then we test the drainage with water at start-up. The vacuum is pulled all the way, with no shortcuts.

LogisVert assistance

This indoor head doesn't appear by itself on the Hydro-Québec LogisVert assistance list; eligibility is confirmed on the installation date. The assistance is tied to the complete multi-zone system, based on the Ultra Heat outdoor unit and the certified combination; its indicative amount is calculated using the LogisVert rule ($120 per 1,000 BTU/h of certified heating capacity at -8.3 °C, or $50 with the KM60X6O, which has no cold climate designation). We confirm it for your project in the quote. Only Hydro-Québec confirms the assistance granted.

Why go with AirGreen

  • Salaried refrigeration technicians who know KINGHOME multi-zone systems.
  • Civil liability insurance of $5,000,000.
  • Warranty registration done by us.
  • After-sales service that follows up on your installation.

Ask for your free estimate: we measure the room and the ceiling, choose the right capacity and give you a clear quote for the complete multi-zone system.

Documentation

Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor, on registered models; additional warranty available.
