LENNOX MDDD Ducted Air Handler | 24000 BTU | Parts by Samsung

Hidden excellence: the high-pressure ducted heat pump that revolutionizes residential and commercial comfort

At AirGreen, we understand that air conditioning and heating needs vary depending on buildings, lifestyles, and expectations. That's why we offer the LENNOX MDDD Ducted Air Conditioner | 24000 BTU | Parts by Samsung , a discreet, powerful, and energy-efficient HVAC solution designed to deliver consistent comfort without compromising interior aesthetics. This high-static pressure concealed duct system integrates seamlessly into ceilings, ensuring exceptional performance in residential and commercial environments in Montreal, Laval, Longueuil, the North Shore , and the South Shore .

Concealed ducted unit: for invisible, yet powerful comfort

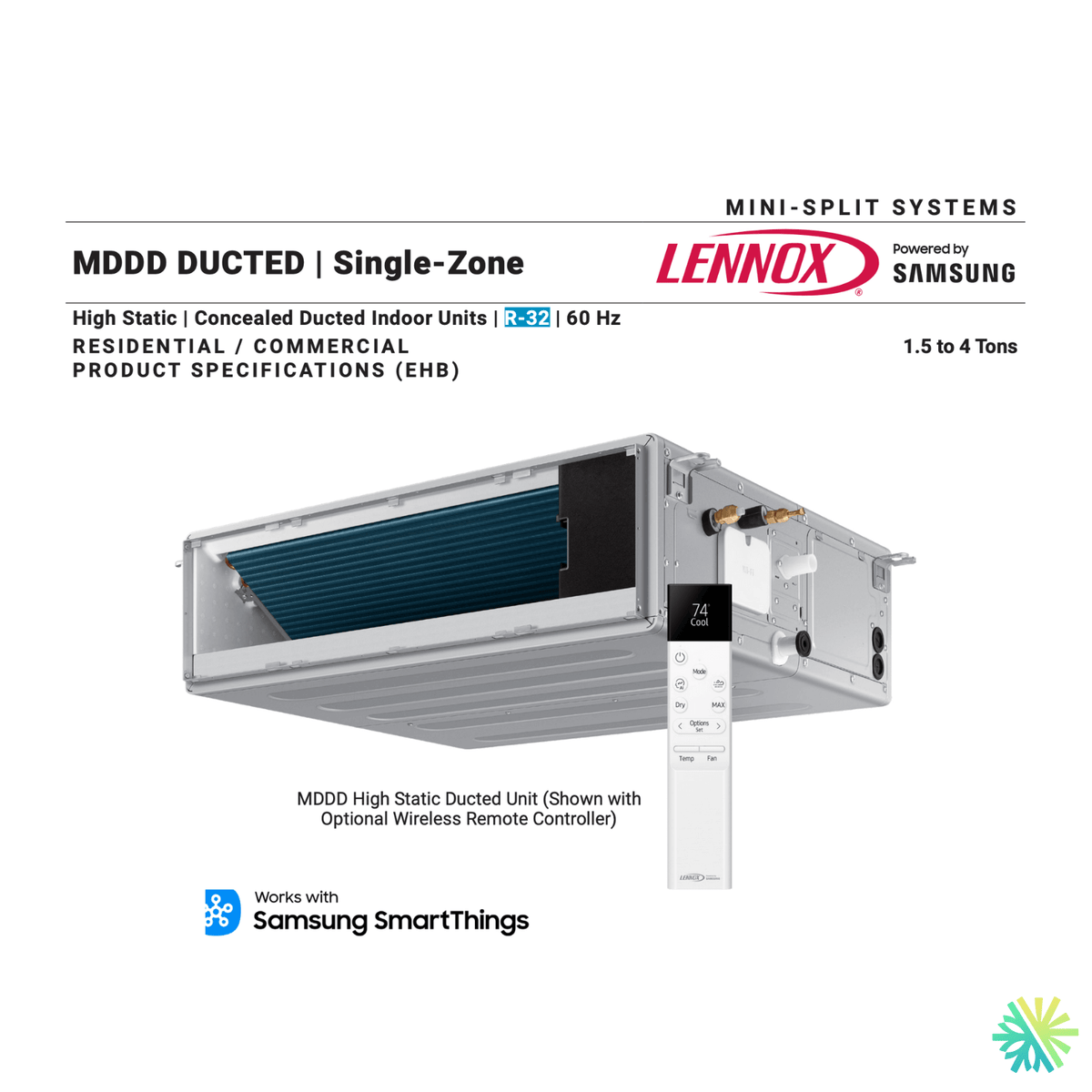

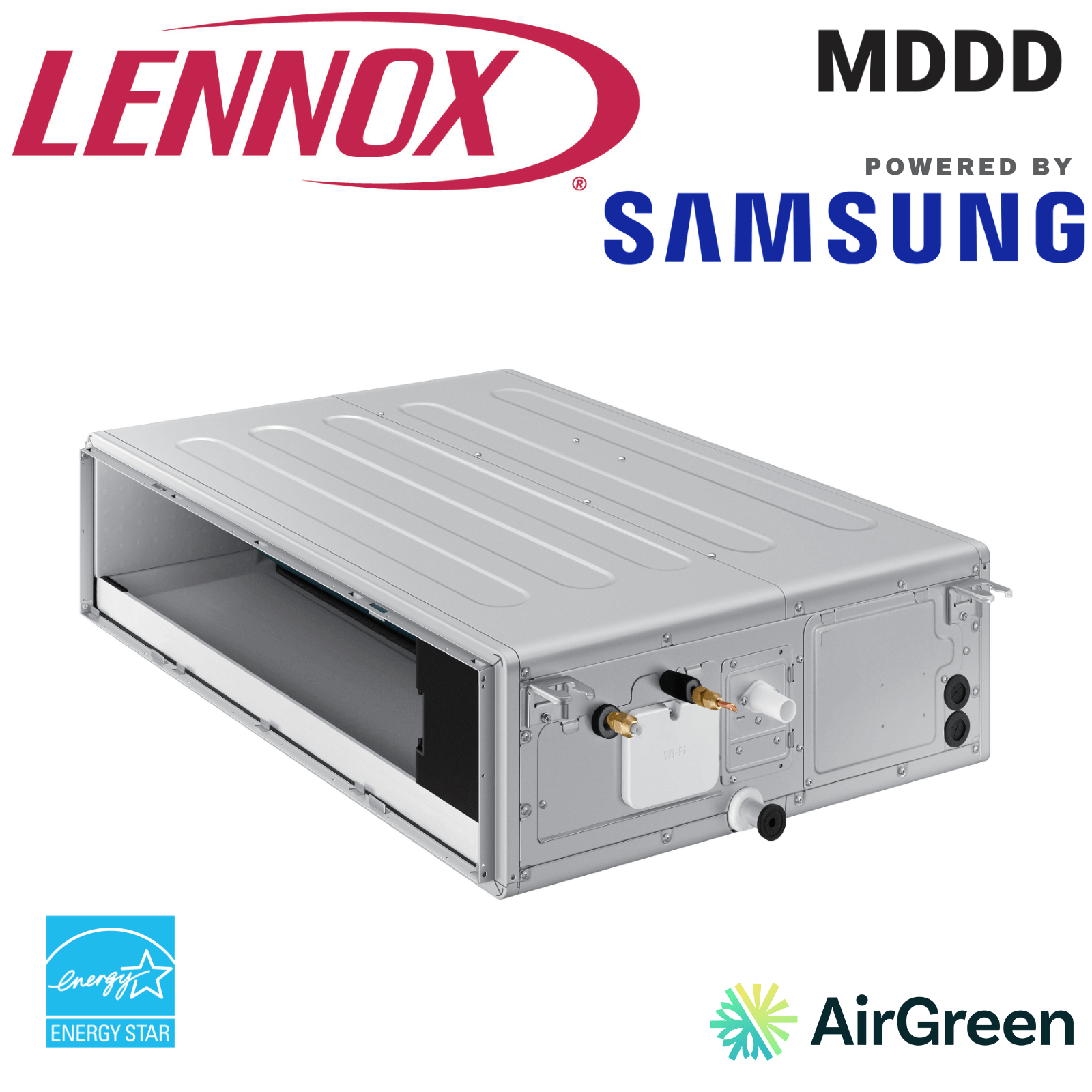

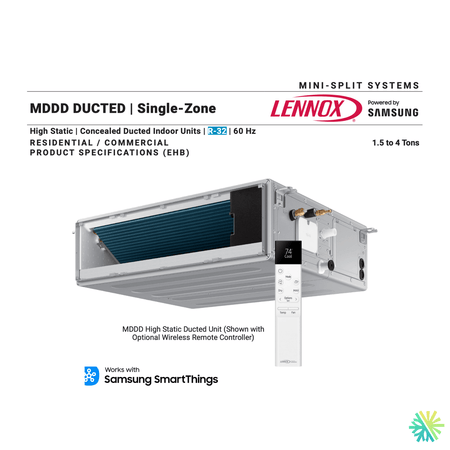

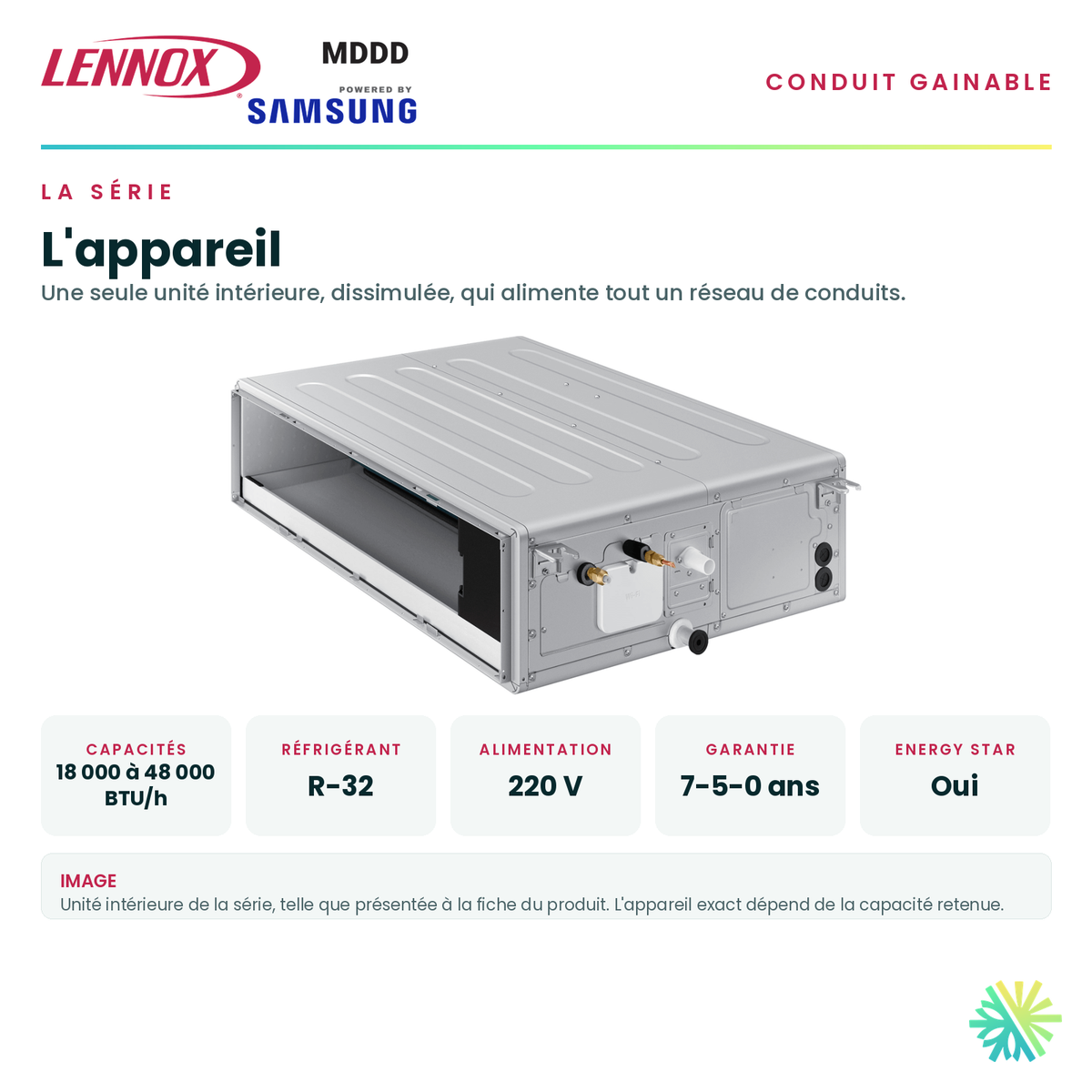

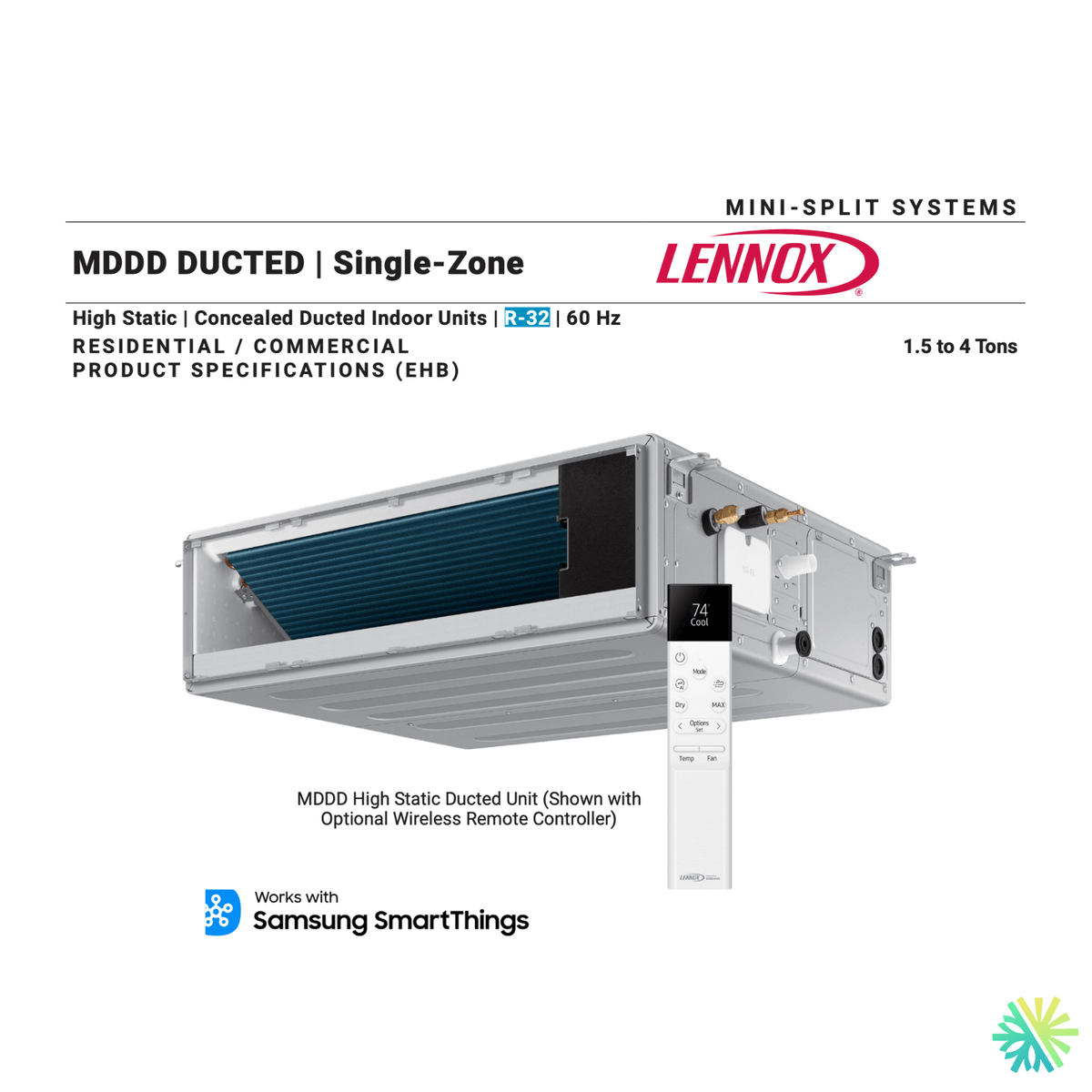

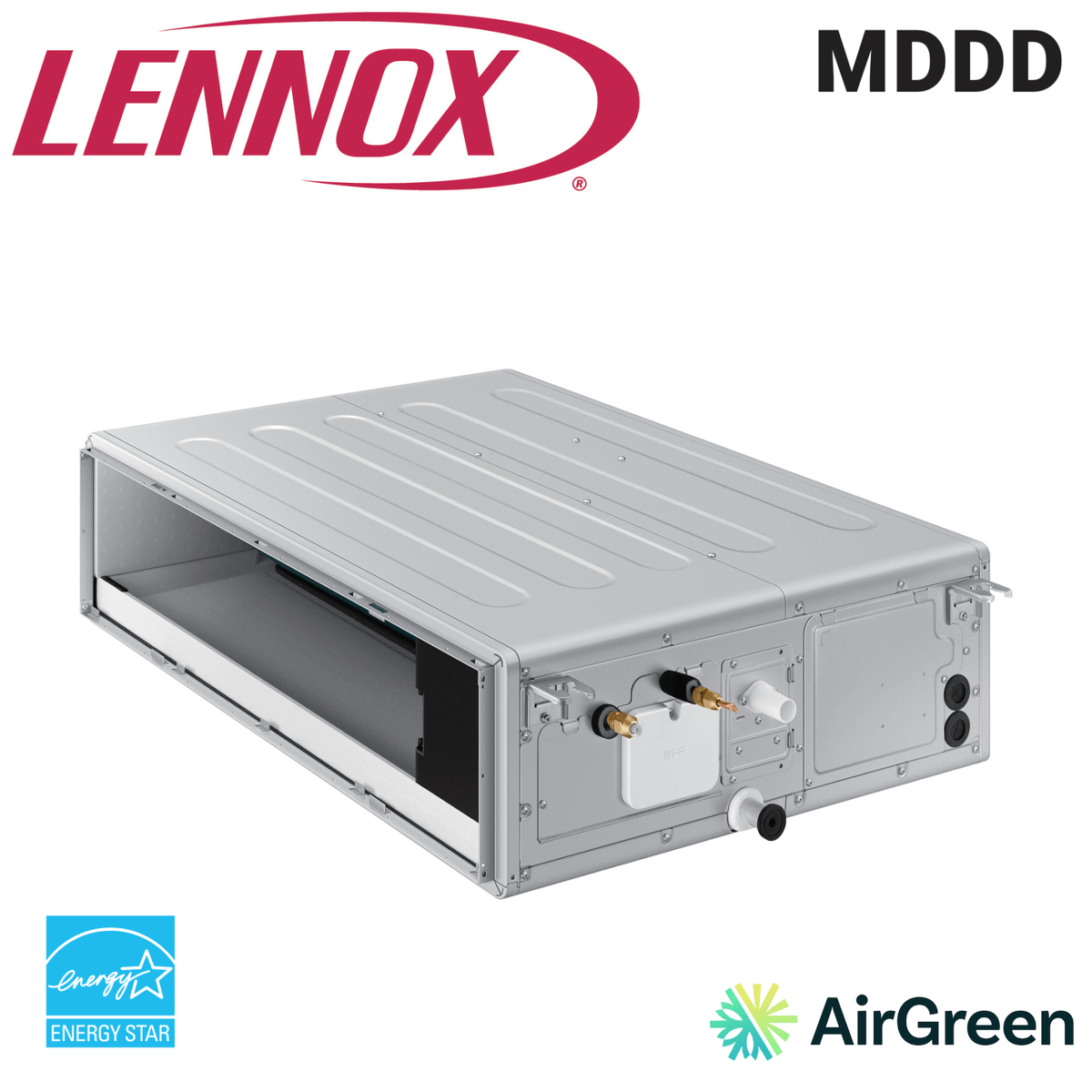

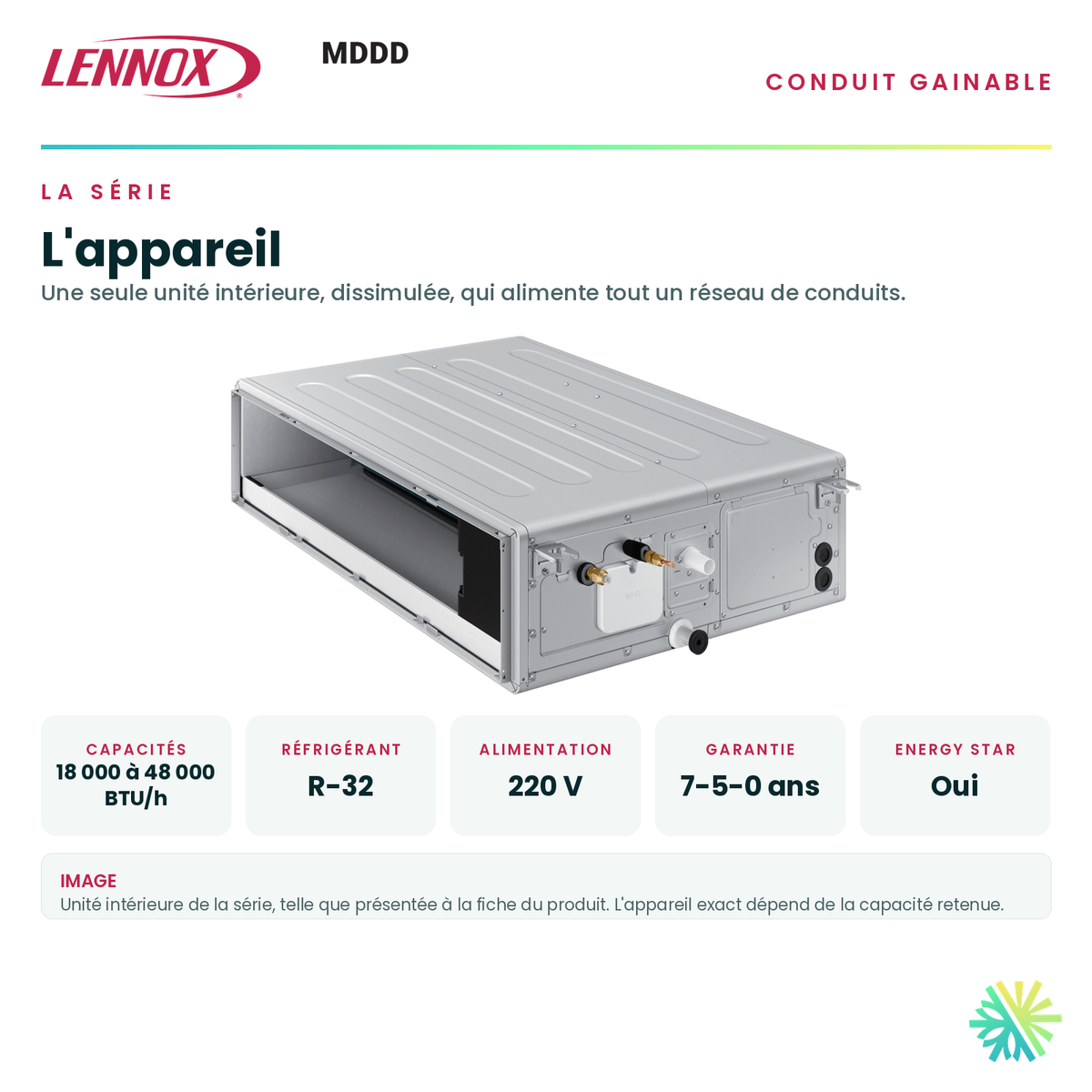

The LENNOX MDDD024S6 , with a capacity of 24,000 BTU , is much more than just an air conditioner or heater. It combines inverter technology, R-32 refrigerant , compact design and advanced features to provide a quiet, long-lasting and consistent comfort experience.

Discreet and flexible installation

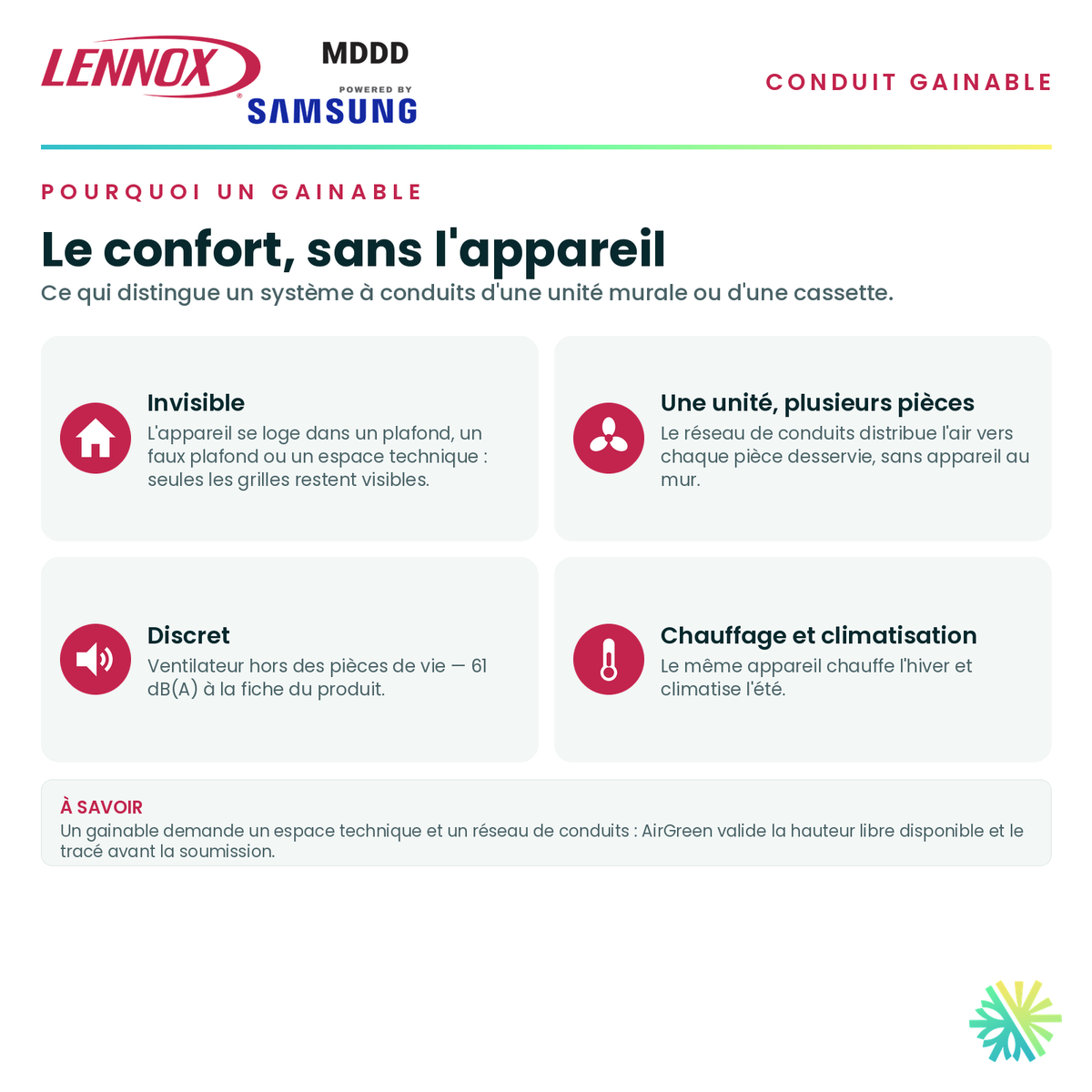

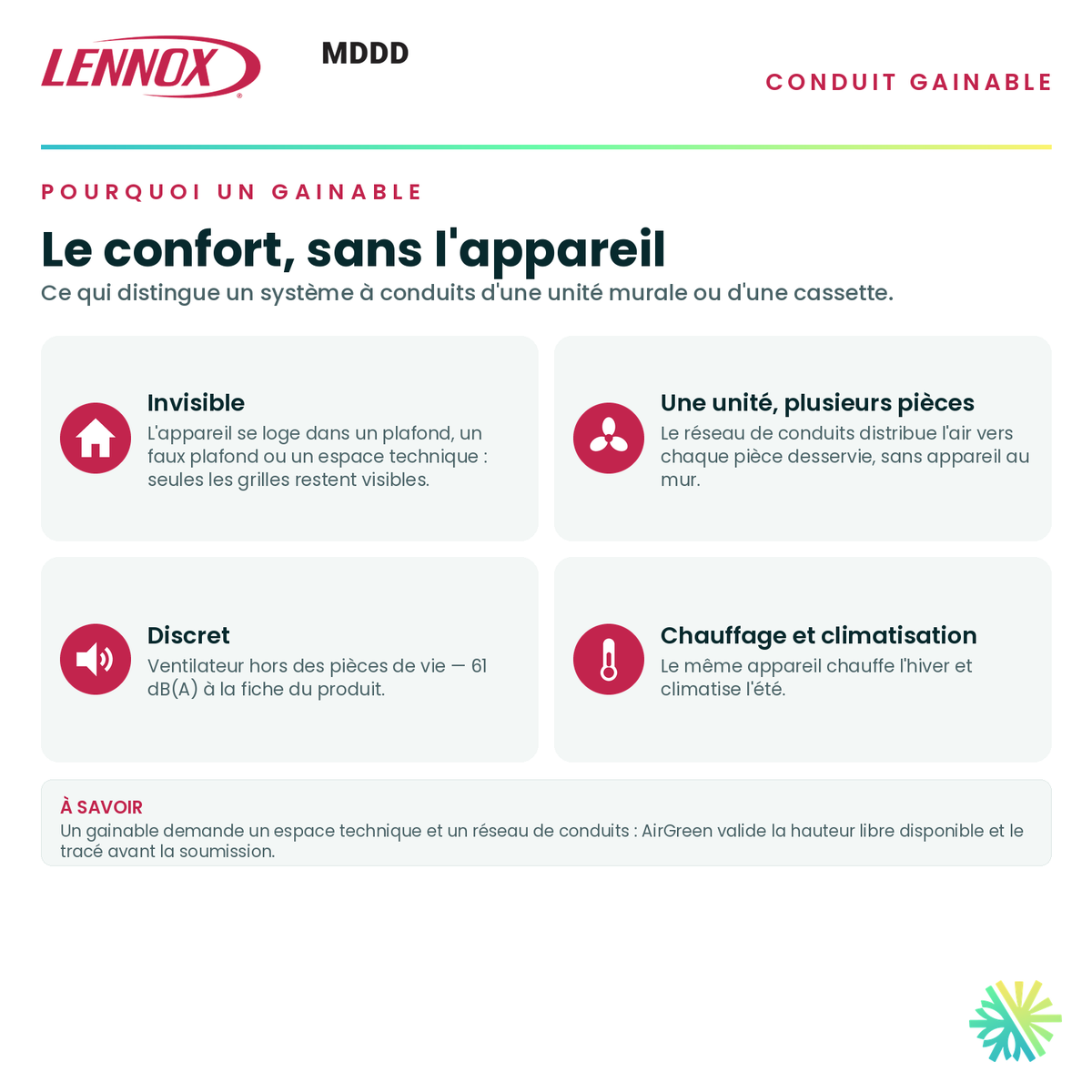

The LENNOX MDDD ducted unit is installed between the suspended ceiling and the slab , with flexible duct connections for horizontal or downward air return. This "invisible" format allows for optimal air distribution without any visible unit in the room. Ideal for high-end projects, renovations or spaces where aesthetics are a priority.

Technical sheet – MDDD024S6

• Cooling capacity : 24,000 BTU

• Refrigerant : R-32 , environmentally friendly

• Sound level : 62 dB(A)

• Piping : 1/4 - 5/8 inch

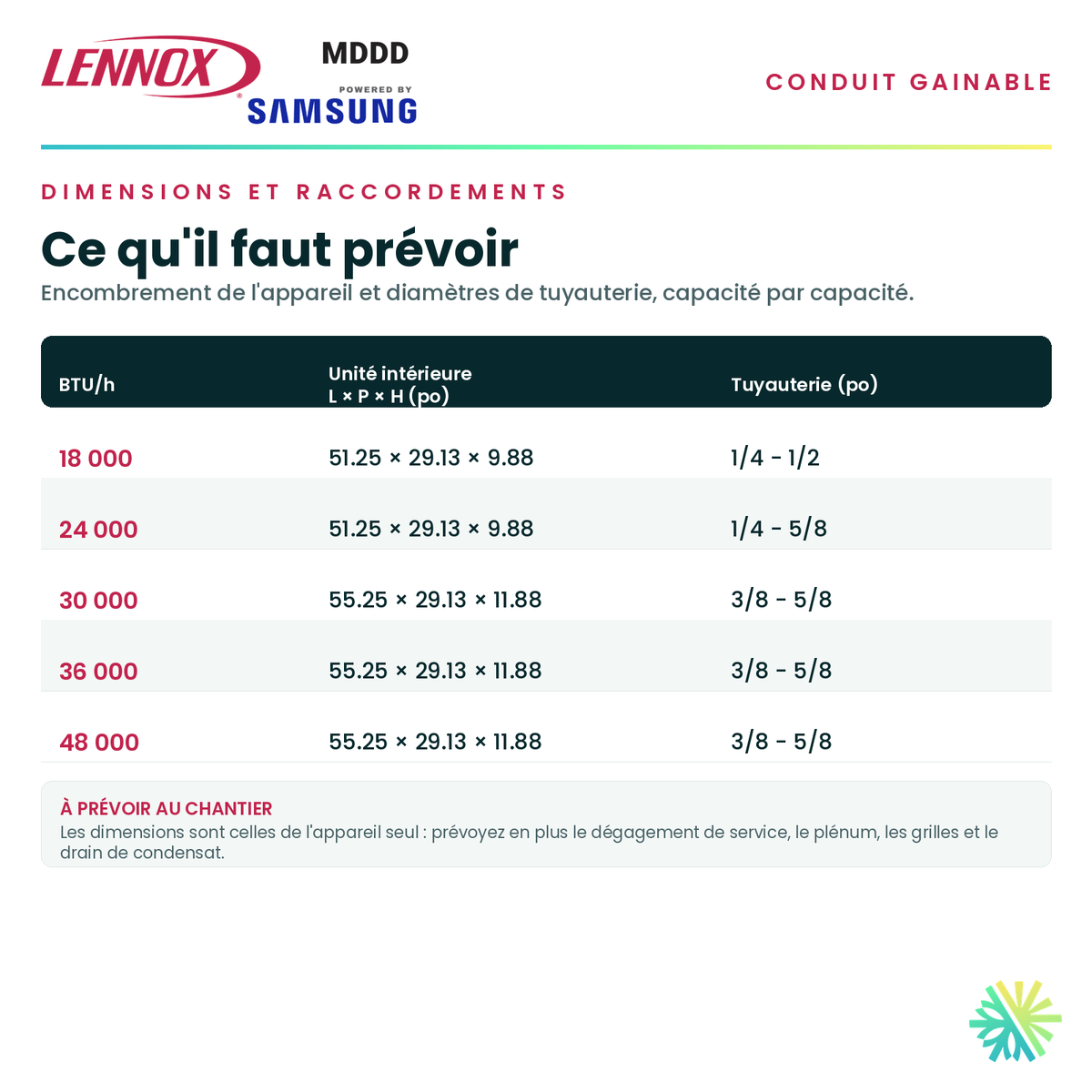

• Dimensions (L x W x H) : 51.25 x 29.13 x 9.88 inches

• Certifications : Energy Star, ETL and CEC approval

• Serial number : MDDD024S6

Features that make the difference

High-efficiency inverter performance

Thanks to Inverter technology , the compressor continuously adjusts its speed to maintain the desired temperature with great precision. This results in:

• Less temperature fluctuations

• Up to 40% energy savings

• Less wear and tear on the system over the long term

Smart and versatile control

This system can be equipped with programmable wall or touchscreen controllers , as well as a smart wireless remote control . Compatible with the SmartThings app, it is possible to manage settings remotely, monitor energy consumption or detect operating errors in real time.

Advanced features built-in

• Built-in drainage pump (30 in. lift)

• Automatic restart after power failure

• Cleanable air filter included

• Three-speed fan (low, medium, high)

• LED display of status and service codes

• Smart pre-heating to avoid cold air blasts in heating mode

HVAC Installation: Why Choose AirGreen?

Recognized local expertise

For several years, AirGreen has been installing ducted HVAC systems in various types of properties in Montreal , Laval , Longueuil , as well as on the North Shore and the South Shore . Our projects include prestigious residences, professional offices, local businesses and urban condos.

Real case: a project in Outremont

We recently installed a LENNOX MDDD | 24,000 BTU system in a renovated century-old home in Outremont. Thanks to its low height and flexible connection, the system could be integrated without altering the heritage structure. The result: modern comfort in a classic setting, with energy consumption reduced by more than 35% according to the client's comparative readings.

Why is R-32 a game changer?

The R-32 refrigerant used in this system is a strategic choice for the planet and your wallet. It offers:

• A global warming potential (GWP) 67% lower than R-410A

• Better thermal conductivity , therefore increased efficiency

• Less refrigerant charge required , reducing maintenance costs

Optional accessories: maximum customization

The LENNOX MDDD is compatible with many accessories:

• Wall-mounted touch controllers

• Adapters for standard 24V thermostat

• Quiet drainage pumps

• High performance filters

• Motion sensors for energy saving

Thanks to this flexibility, we can tailor the installation to your exact needs, whether it is a residential space, a commercial space or a shared office.

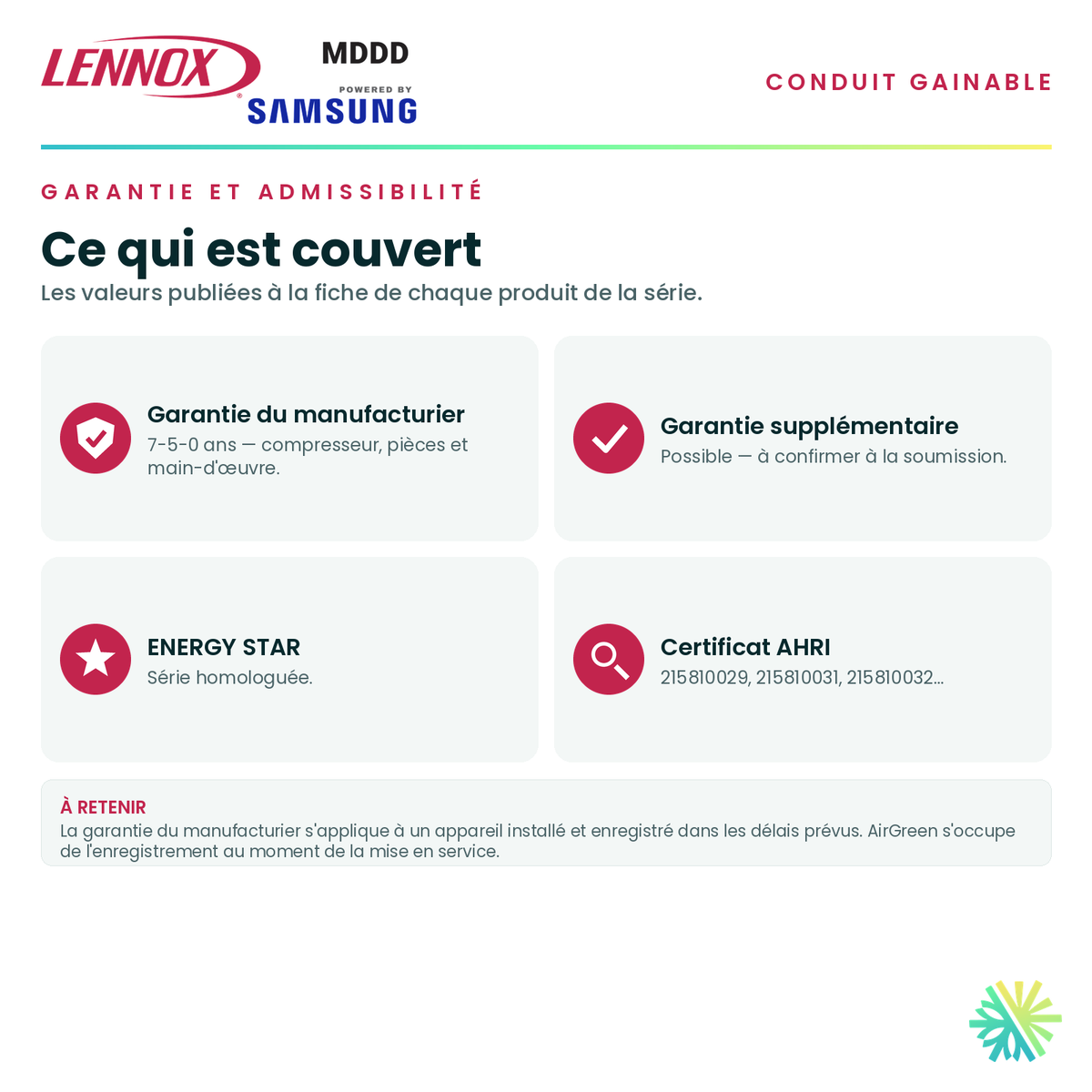

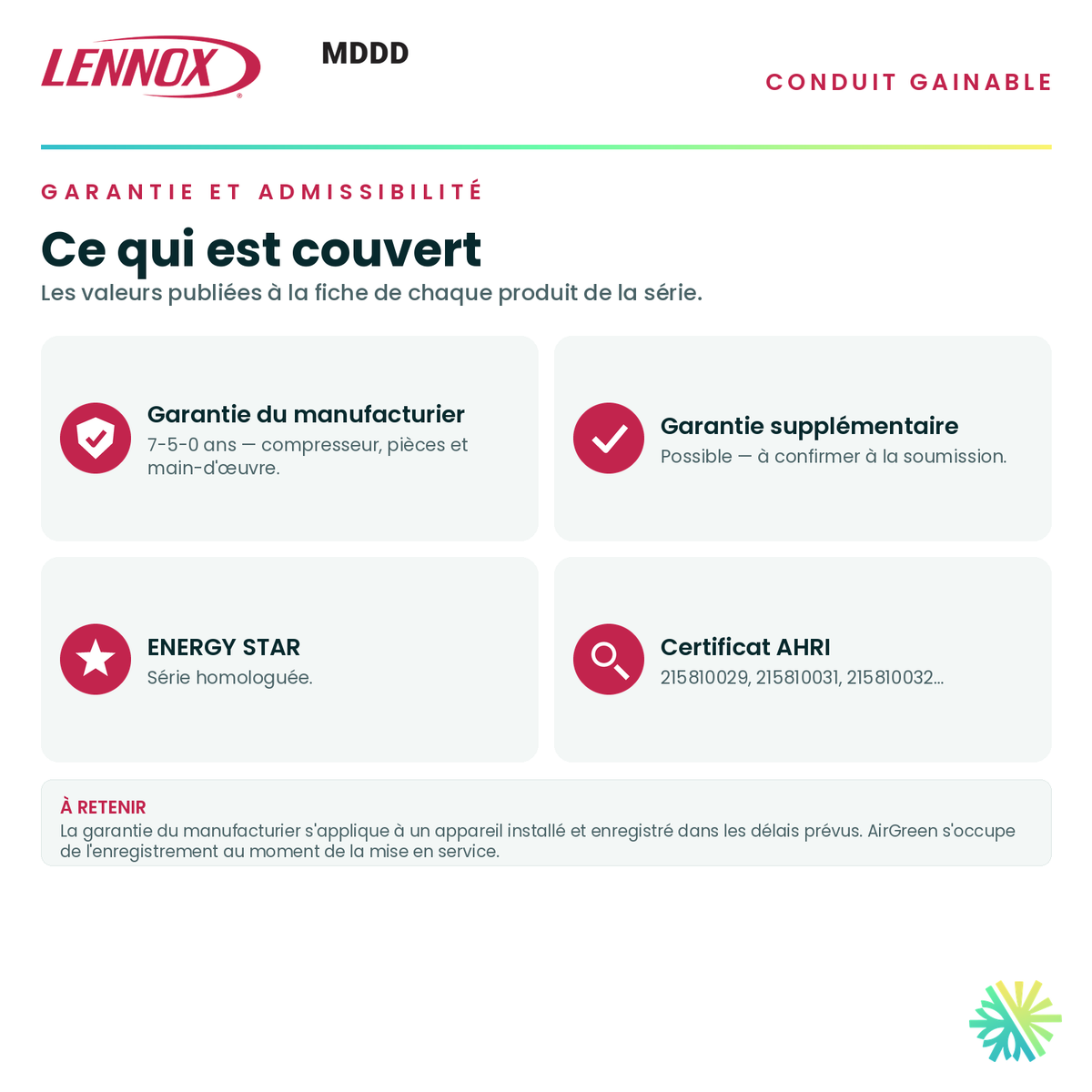

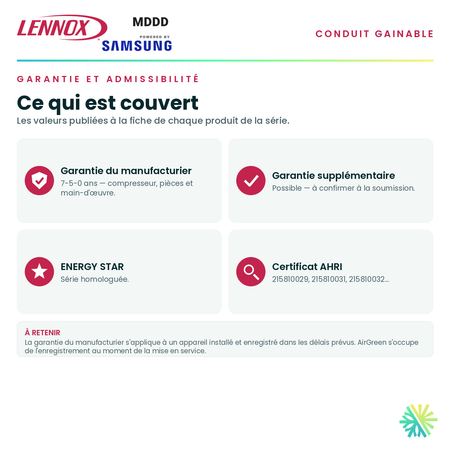

Guarantee and reliability

• 5-year limited warranty on all covered components

• One-year warranty on accessories and controls

• Components certified for safety, reliability and compliance with Canadian standards

No more unpleasant surprises: the AirGreen commitment

At AirGreen, we believe in total transparency :

• Free on-site estimate , no obligation

• Final price communicated in advance , no hidden costs

• No deposit required – you only pay once the work is completed and approved

• Certified technicians , fast, efficient, professional

Conclusion: the ideal solution for tailor-made comfort

The LENNOX MDDD | 24000 BTU Ducted Duct is a premier HVAC solution for demanding projects . With its advanced features, discreet installation, and energy efficiency, it appeals to both homeowners concerned with comfort and aesthetics and building managers looking for performance and durability.

By choosing AirGreen, you choose local expertise , impeccable installations , and impeccable customer service .

Do you have an air conditioning or heating project in Montreal, Laval, Longueuil, the North Shore or the South Shore?
Contact us today for a free, personalized estimate!
