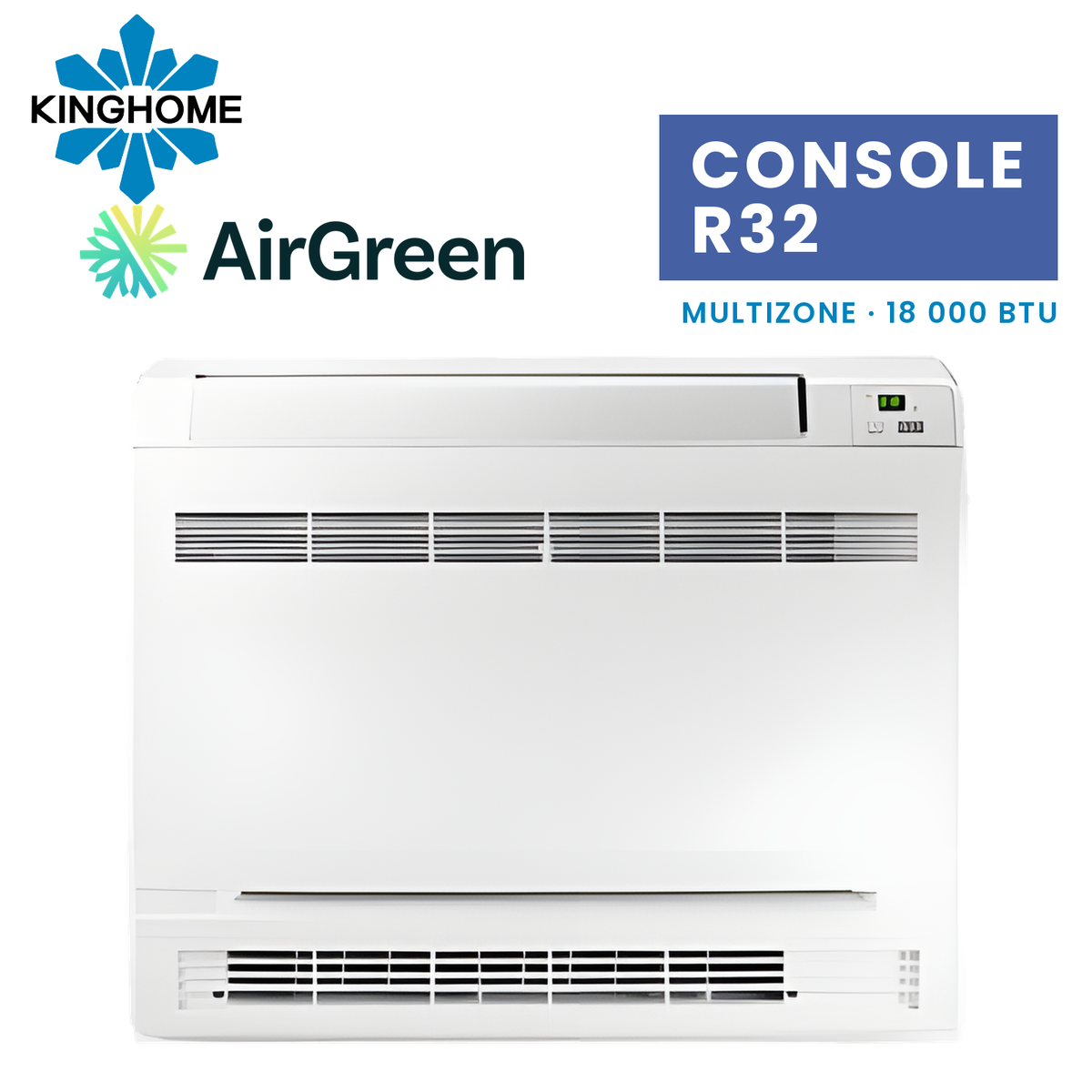

KINGHOME Multi-Zone R32 Floor Console | 18,000 BTU
The console for large rooms: living rooms, open basements and old radiator spots
In the plexes and pre-war houses of Montréal, the heat was almost always under the windows: cast-iron hot-water radiators, convectors, then electric baseboards. The 18,000 BTU size of the KINGHOME floor console takes that same spot in large rooms: the double living room of a Plateau duplex, the family room with a bay window in a Longueuil bungalow, or the open-concept basement whose walls only leave room down low, under the small windows.
This is the largest size of the console. It's an indoor head for a multi-zone heat pump: it requires a compatible KINGHOME Ultra Heat outdoor unit and doesn't work on its own. It has no AHRI certification of its own; the certified efficiency is that of the complete system, published on the outdoor unit's page.
Replacing a radiator with a console
The radiator was placed under the window for a specific reason: to counter the cold air that falls from the glass. A console installed in the same spot does the same job, and it also cools in summer. In a plex living room, where the ceilings are often higher than today's standard, a wall-mounted unit up high lets the heat sit under the ceiling while the floor stays cool. The console blows along the floor in heating mode, then upward in cooling mode.
The other advantage is aesthetic. In a living room with original mouldings, many owners won't accept a wall-mounted unit above a window or an archway. A low console, 23.62 inches high, is much less noticeable, and it sits where the eye already expects to find a heater.

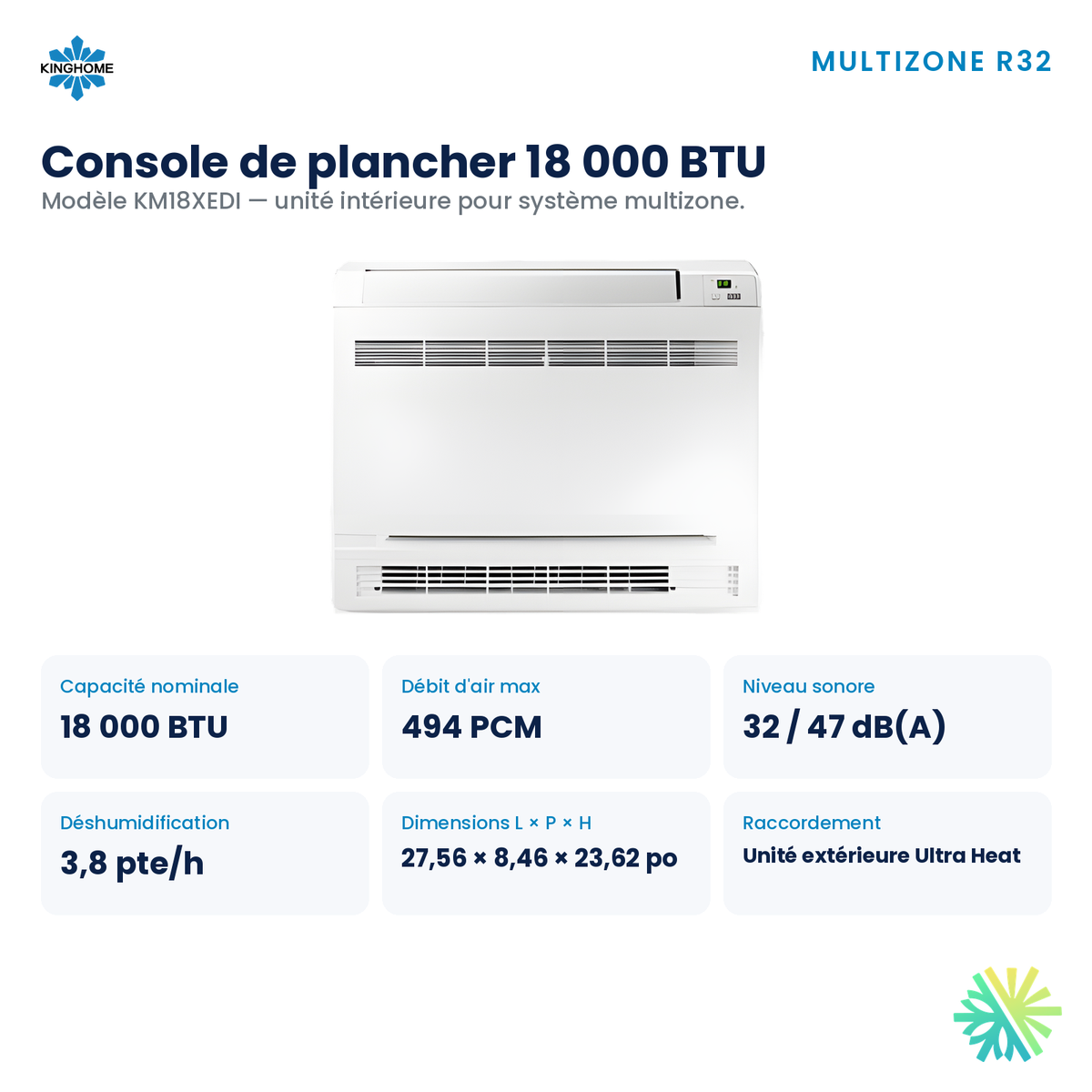

Specs for the 18,000 BTU console
- Nominal capacity: 18,000 BTU, R-32 refrigerant
- Maximum airflow: 494 CFM
- Indoor sound level: 32 to 47 dB(A)
- Dehumidification: 3.8 pt/h, or about 1.8 L/h
- Dimensions: 27.56 x 8.46 x 23.62 inches (width x depth x height)
- 220 V power supplied by the outdoor unit
- Wi-Fi: included

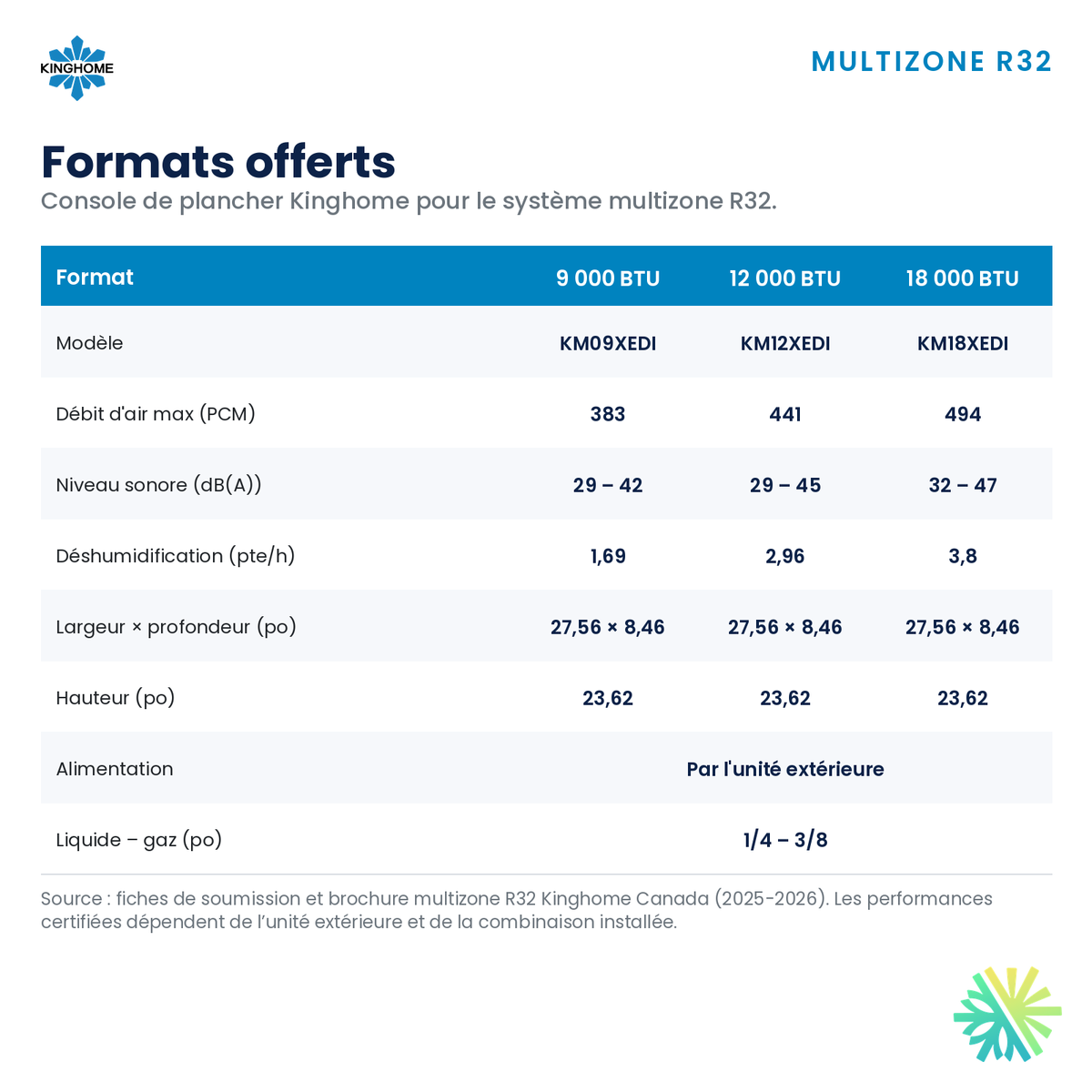

The cabinet is the same size as the 9,000 and 12,000 BTU models. The difference is in the airflow, which reaches 494 CFM, and in the dehumidification of 3.8 pt/h. In a basement, that last figure matters as much as the capacity: summer humidity in a half-buried basement is one of the most common complaints we hear, and a console this size removes it while it cools.
A size for large spaces, not for bedrooms
We don't recommend the 18,000 BTU for a closed bedroom. In a room too small for it, it would reach the set point in a few minutes, slow down, and leave the air humid in summer. This size is meant for rooms where the air moves across a large area: a living room and dining room that open onto each other, a basement finished as a family room, the main room of a year-round chalet in the Laurentians or on the North Shore.
In a large room, the location matters as much as the capacity. We place the console where it can sweep the room lengthwise, usually on the longest exterior wall or under the main window. An 18,000 BTU console squeezed into a corner of the basement, behind a staircase, will never deliver what it promises.
Compatible outdoor units

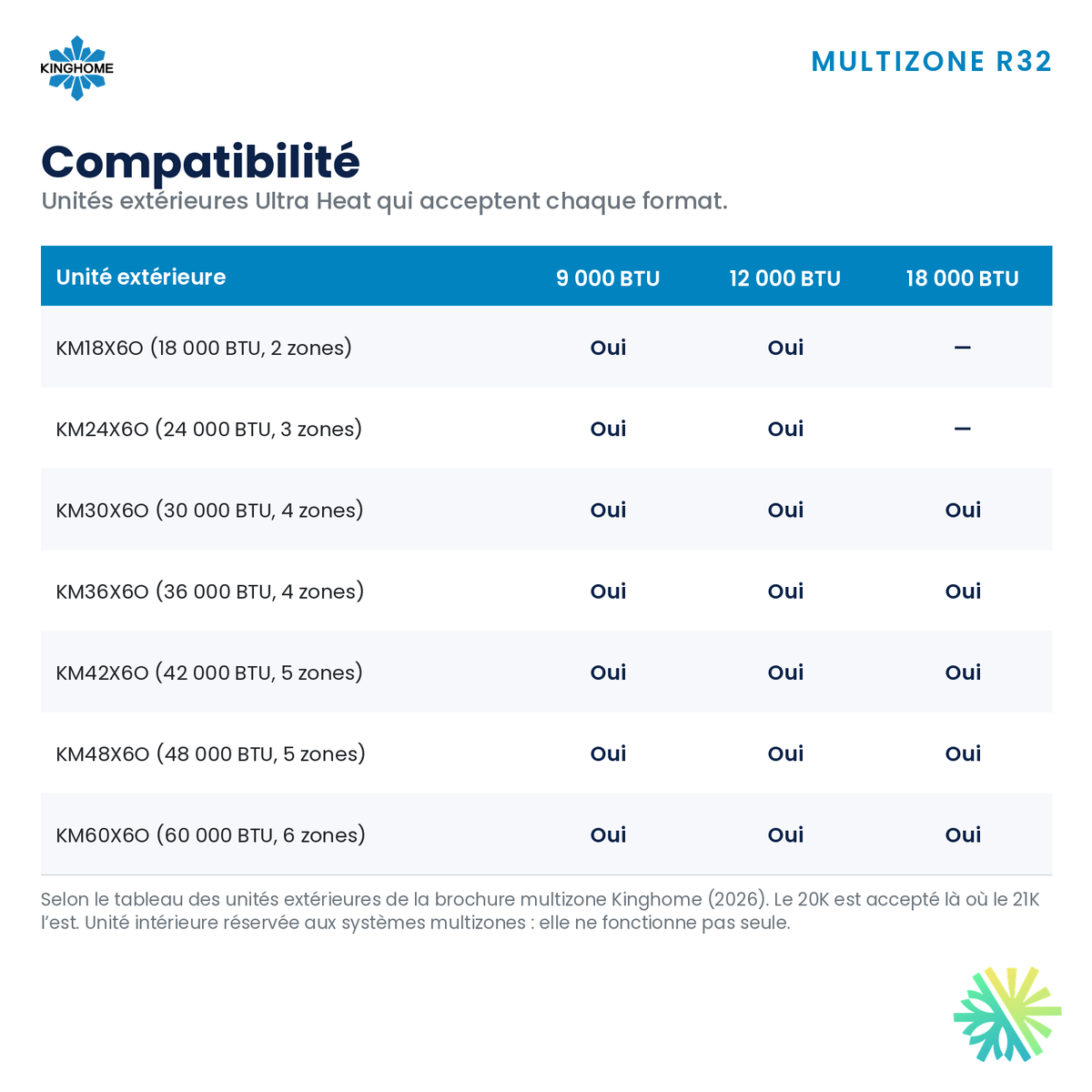

The compatibility table in the KINGHOME multi-zone brochure doesn't allow 18,000 BTU heads on the two smallest outdoor units. This console connects to the following units:
- KM30X6O and KM36X6O (up to 4 zones)
- KM42X6O and KM48X6O (up to 5 zones)
- KM60X6O (up to 6 zones)
The KM18X6O and the KM24X6O don't accept it. A configuration we often look at in a duplex: the 18,000 BTU console in the double living room, two 9,000 BTU wall-mounted heads in the bedrooms and a 12,000 BTU head in the kitchen, on a KM36X6O, subject to the manufacturer's selection table and the on-site assessment of heating needs. The KM30X6O to KM48X6O units carry the ENERGY STAR cold climate designation; the KM60X6O does not, a point we explain whenever that unit is being considered.
Features

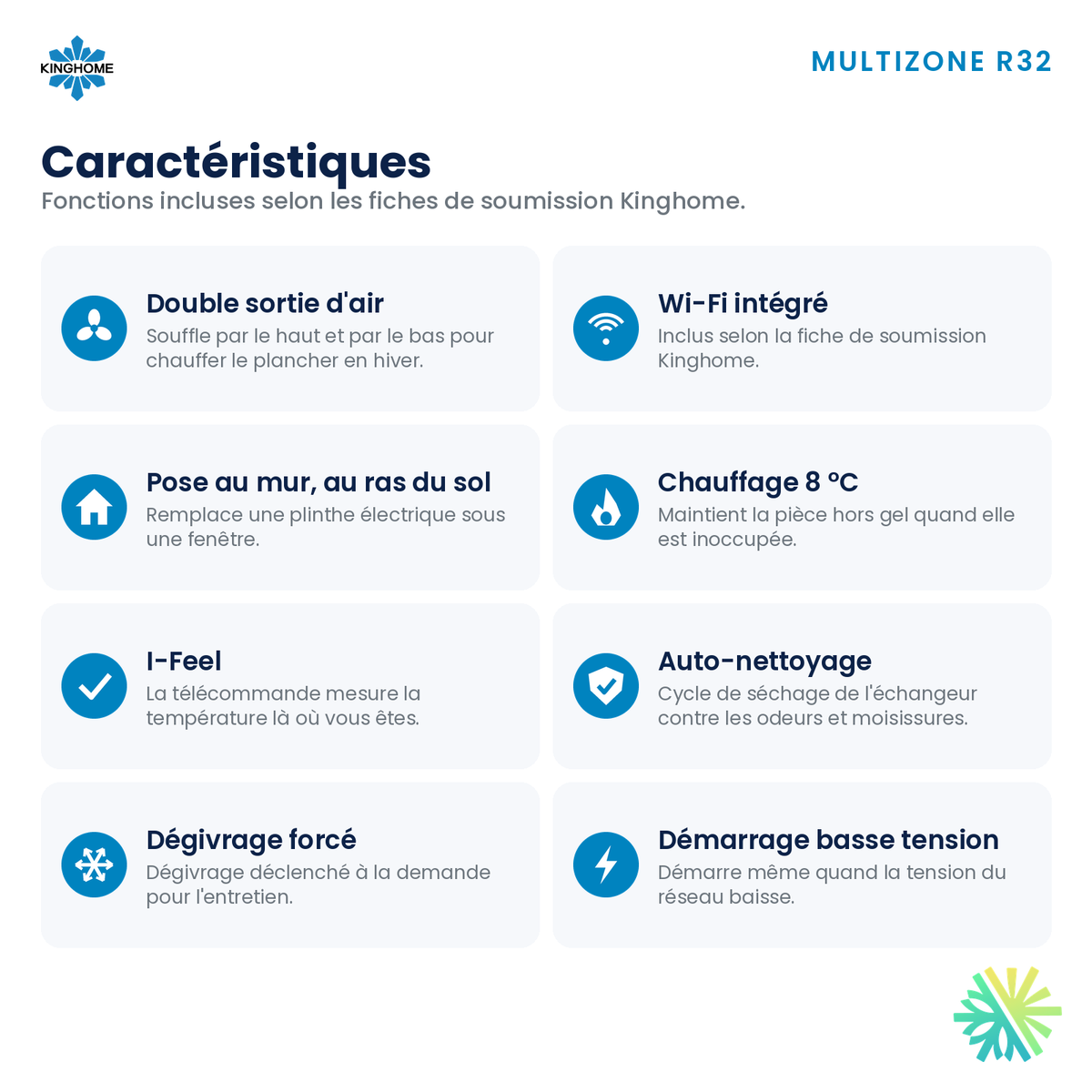

According to the manufacturer's spec sheet, the console includes built-in Wi-Fi, the I-feel function, coil self-cleaning, forced defrost, soft start and low-voltage start-up. The maintenance heating mode keeps a basement or a chalet above freezing while you're away. The filter is accessible through the front panel. The infrared remote is included, and a wired wall controller is available as an option.
What we check before the installation
Here are the points we look at for this size during an assessment in Montréal, Laval or Longueuil, on the North Shore or on the South Shore.
The power supply
The console gets its 220 V power from the outdoor unit. The circuit to plan for at the panel is the outdoor unit's, based on its published minimum circuit ampacity (MCA) and maximum overcurrent protection (MOP). With an 18,000 BTU head in the system, the outdoor unit will be at least a KM30X6O: we check that the electrical service can take that circuit, especially in plexes where several apartments share the same service entrance.
The outdoor unit
We install it on a wall bracket or a raised base, above the snow, with free drainage for the defrost water. In a duplex, the backyard and the back lane often offer the best location; we also check the distance from the neighbours' windows.
The piping
The connection diameters are the ones on the manufacturer's spec sheet. In a plex, the living-room console is often at the front of the building and the outdoor unit at the back: we plan the route through the basement or through a chase in a closet, within the outdoor unit's maximum total line length.
The drain
The drain comes out at the bottom of the console. It needs a continuous slope to a drain pipe or to the outside; in a basement below grade, a condensate pump is usually needed. We never let a drain empty into a wall or onto a foundation.
The floor and the wall
Where a radiator used to be, we check the condition of the floor and the wall, and we neatly close off the old heating pipe openings before mounting the console.
LogisVert assistance
This console doesn't appear on the Hydro-Québec list by itself, since it has no certification of its own. The indicative LogisVert amount is calculated for the complete system, Ultra Heat outdoor unit and combination of heads, using the LogisVert rule ($120 per 1,000 BTU/h of certified heating capacity at -8.3 °C, or $50 with the KM60X6O, which has no cold climate designation); eligibility is confirmed on the installation date. The amount published for each outdoor unit comes from the certification with wall-mounted heads; we confirm that your combination is on the list before the quote. Only Hydro-Québec confirms the assistance granted.
Why go with AirGreen
- Salaried refrigeration technicians who know the plexes and older houses of the region.
- Civil liability insurance of $5,000,000.
- Kinghome warranty registration taken care of.
- After-sales service you can reach after the installation.
Ask for your free estimate: we assess the room and the whole home, then recommend a complete multi-zone configuration.

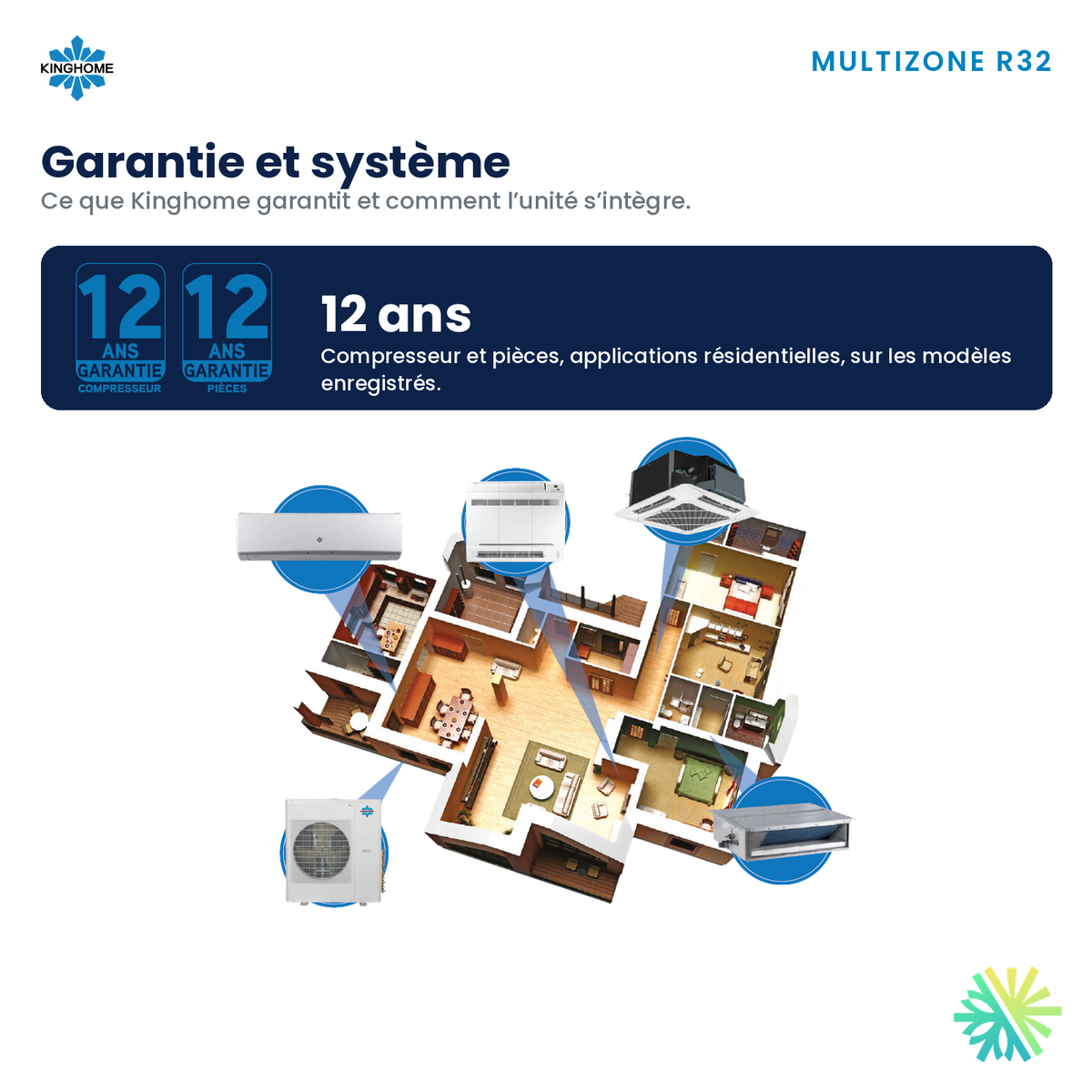

Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor.
