Broan EDGE ERV BLP120E80NS-HW Air Exchanger | Montreal, Laval, Longueuil, South Shore and North Shore
Is it the right size for your home?
It delivers 112 cfm net. Choose your home's living area.
It's the right size.
For a 1,500 to 2,500 sq ft home, about 105 cfm of air needs to be renewed continuously. This unit delivers 112 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$27.33
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code for Greater Montréal. The Code requires 55% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that; 54% is still accepted for work started before October 17, 2027. This unit is rated at 55% at 49 cfm.
Airflow and efficiency at 0 °C and −25 °C: HVI directory, Section III. Cost: 28 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
HardwiredPermanent hardwired connection, no cord
This HW version is permanently wired to the 120 V circuit: a 14-gauge (15 A) wire goes through one of the two knockouts at the back of the junction box. For a plug-in unit, the maker points to the BLP120E80NS-PC.
4 in4 in ports, backdraft dampers optional
The BLP120E units have 4 in ports, while the BLP130E80NS-PC moves to 5 in. The magnetic backdraft dampers (VBACKDRAFT4, set of 2) are sold separately for this model but included with the BLP130E.
55%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 49 cfm.
ExhaustIt defrosts by pausing the fresh air for a few minutes
In cold weather, the supply fan stops for a few minutes while the exhaust keeps running, so warm indoor air thaws the core. During the cycle the house is briefly under negative pressure; if you have a fireplace or a naturally vented combustion appliance, mention it to our estimator.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
2005431Its HVI certification number
Listed in Section III of the Home Ventilating Institute's certified products directory. Anyone can check it.
−13 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 125 to 112 cfm. Most spec sheets show only the first number, precisely because it looks better.
28 WMeasured at the airflow it actually runs at
Its 80% at 0 °C is certified at 49 cfm, the continuous airflow of a typical home. At that setting it draws 28 W, or about 245 kWh a year.
5 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years.
4 inWhat it needs on site

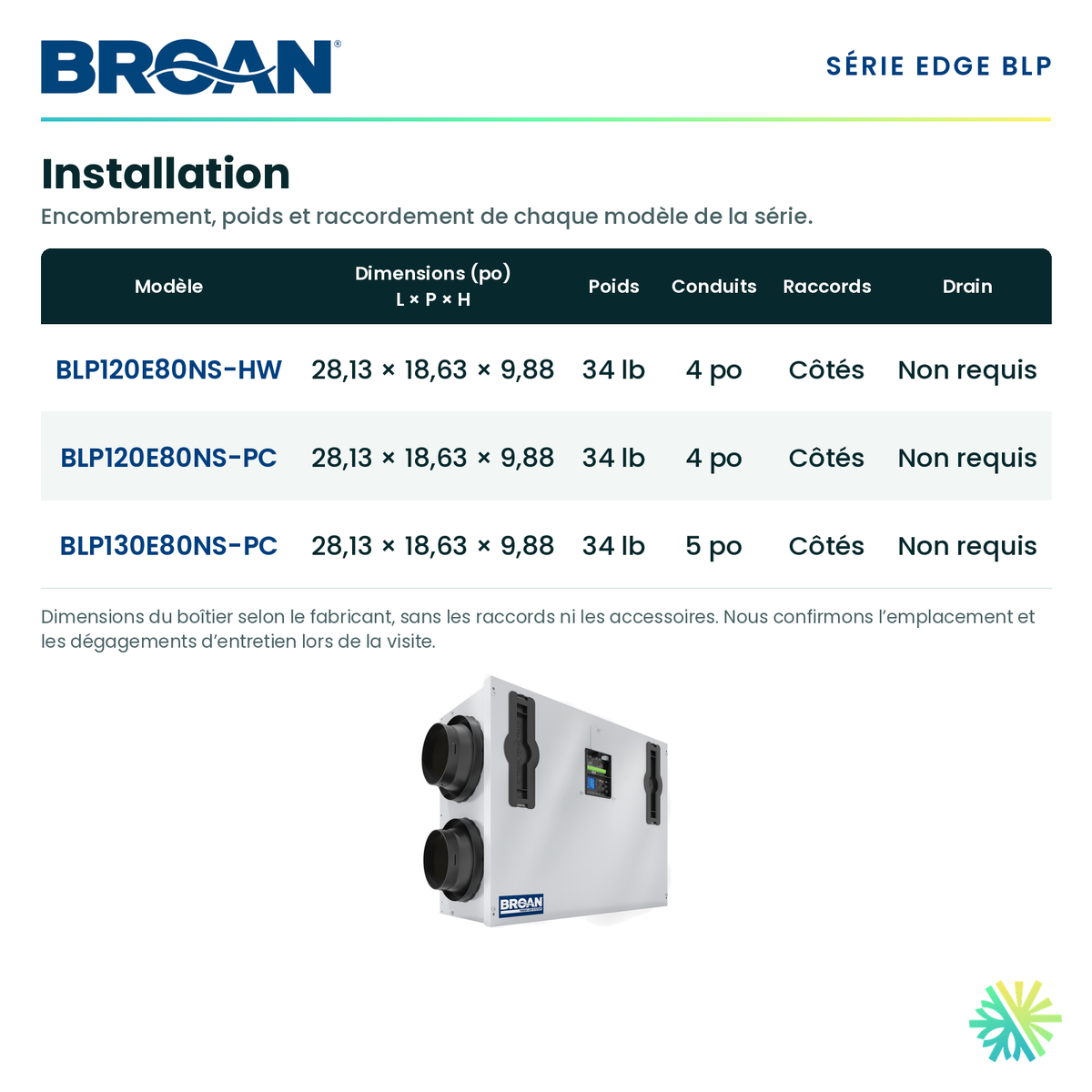

4 in ducts, side connection. It weighs 34 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

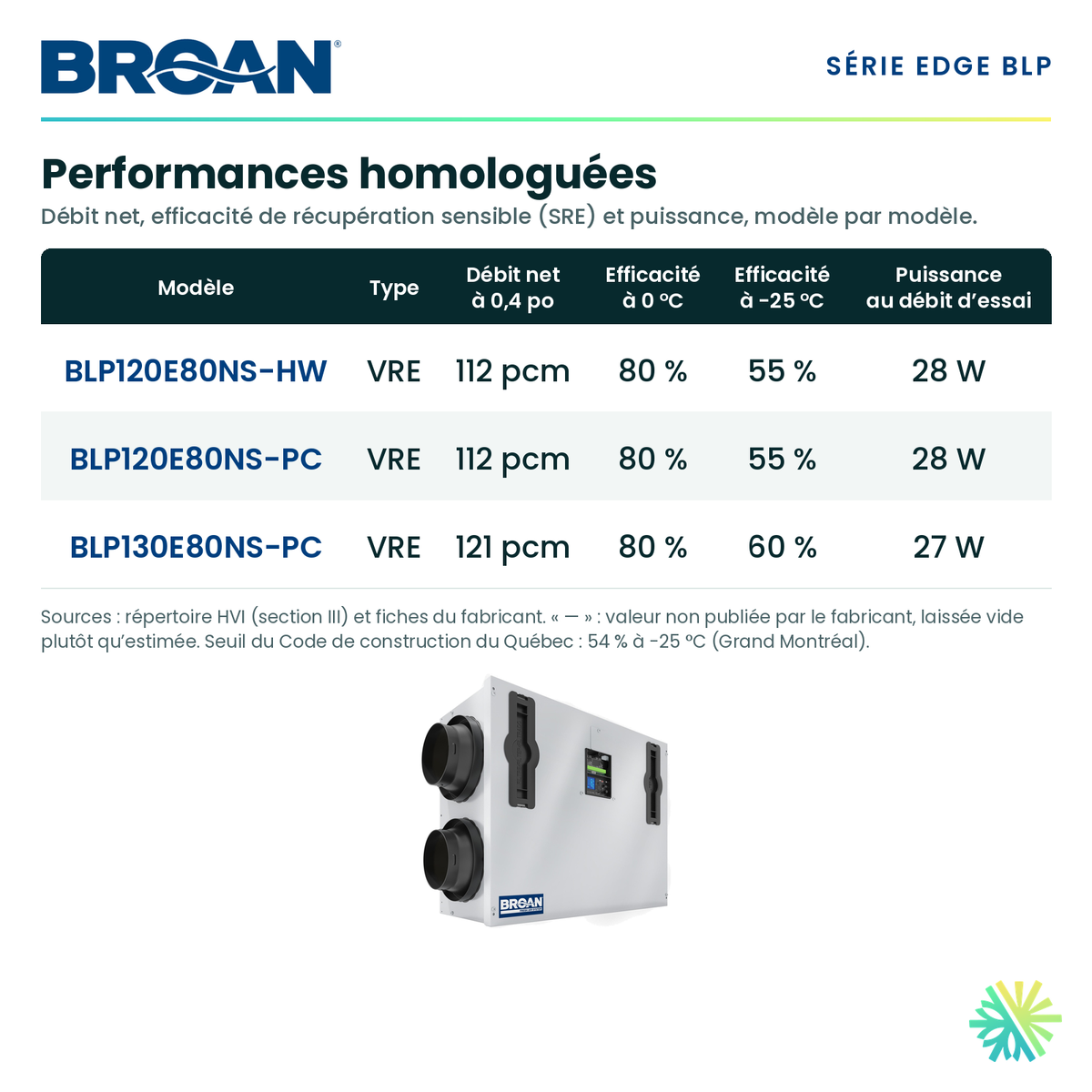

Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 125 cfm
- Net airflow at 0.4 in. w.g.
- 112 cfm
- SRE at 0 °C (49 cfm)
- 80%
- SRE at −25 °C (49 cfm)
- 55%
- ASE at 0 °C
- 83%
- Power draw
- 28 W
- Efficacy
- 1.7 cfm/W
- Type
- ERV
- Connection
- Side ports
- Duct collars
- 4 in
- Defrost cycle
- Exhaust only (supply fan off)
- Filters
- Washable filters included (20 PPI); optional 1-in disposable MERV 13 fresh-air filter (V27000)
- Dimensions (L × D × H)
- 28.13 × 18.63 × 9.88 in
- Weight
- 34 lb
- Power supply
- 120 V
- HVI certification (Section III)
- 2005431
- Warranty — core
- 5 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
- Spec sheet (English)
Net airflow, efficiency at 0 °C and −25 °C, and power draw: Home Ventilating Institute certified products directory, Section III (HVID 2005431). Annual consumption calculated at 28 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
On site, we set the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
The BLP120E in a hardwired version
The Broan EDGE BLP120E80NS-HW is the hardwired version of the BLP120E, the Broan EDGE ERV with 4 in. ports. It has no cord: it is permanently wired to the 120 V circuit. It’s the version to choose for new construction or a major renovation, when an electrician is running the power supply anyway, or when no outlet is planned near the unit.
This energy recovery ventilator (ERV) delivers a net airflow of 112 cfm at 0.4 in. of static pressure, and 125 cfm at 0.2 in. Like the whole EDGE line, it balances itself with VIRTUO technology.
A permanent electrical connection
The manufacturer calls for a 14-gauge (15 A) wire run through one of the two knockouts at the back of the junction box. Nothing hangs loose, nothing gets unplugged by accident. For a plug-in unit, Broan-NuTone points to the BLP120E80NS-PC, which is otherwise the same unit.
4 in. ports
The BLP120E units have 4 in. ports, while the BLP130E80NS-PC moves up to 5 in. The magnetic backdraft dampers (VBACKDRAFT4, set of 2) are sold separately for this model, but included with the BLP130E. A fresh-air damper is required when the ducts connect to a central forced-air system.
A flat cabinet with side ports
In the AI Series, the V130E65RT delivers similar airflow (119 cfm at 0.4 in.), but its 5 in. ports come out the top of a cabinet 21.5 in. high. The EDGE connects its ducts on the side and stands only 9.88 in. high. A real plus when space is tight.
Efficiency and energy use
The washable polymer counterflow core transfers both heat and moisture. HVI measures a sensible recovery efficiency of 80% at 0 °C, at 49 cfm. At −25 °C, the manufacturer’s spec sheet gives 55% at the same 49 cfm. The BLP120E80NS-HW is not on NRCan’s ENERGY STAR list, unlike the BLP130E80NS-PC.
The unit draws 28 W at 49 cfm, or 1.7 cfm/W. Running continuously at that airflow, that comes to about 245 kWh a year. Exhaust defrost kicks in automatically when the core starts to freeze, and no condensate drain is needed.
Installation
Four mounting brackets are included, for a wall, floor, under-ceiling or between-joist installation. For wall mounting, one manufacturer rule matters, though: when the outdoor design temperature is below −5 °C, the outdoor ports must be on top. We take that into account from the moment we choose the location.
Controls
Optional wall controls connect to it (automatic, dehumidistat, touchscreen), plus bathroom controls for a temporary boost. A low-voltage dry-contact output can synchronize a motorized outdoor-air damper (not supplied) with the ERV’s operation.
Installed by AirGreen across Greater Montreal
Even with VIRTUO, the right airflow is the one your home calls for. We work it out room by room following CSA F326, then program it on the screen and check that it is reached on both supply and exhaust. The permanent electrical connection is coordinated with your electrician.
Specifications
- Type: ERV (energy recovery ventilator), Broan EDGE, hardwired version
- ENERGY STAR (Canada): No
- Net airflow: 125 cfm at 0.2 in.; 112 cfm at 0.4 in.
- Sensible recovery efficiency: 80% at 0 °C at 49 cfm (HVI); 55% at −25 °C at 49 cfm (manufacturer’s spec sheet)
- Voltage: 120 V, 60 Hz
- Power supply: permanent connection, no cord
- Dimensions (W × D × H): 28.13 × 18.63 × 9.88 in.
- Weight: 34 lb
- Ducts: 4 in.
- Connection: side
- Drain: not required
- Defrost: automatic, exhaust defrost
- Filters: washable filters included (20 PPI); optional 1-in. disposable MERV 13 fresh-air filter (V27000)
- Backdraft dampers: magnetic, optional (VBACKDRAFT4, set of 2)
- HVI certification (Section III): No. 2005431
- Manufacturer’s warranty: Broan states a 5-year warranty on the core and 5 years on parts.
Sold and installed by AirGreen.
We install in Montreal, Laval, Longueuil, the North Shore and the South Shore. For a quote, call us at 514 316-2973 or write to sales@airgreen.ca.
