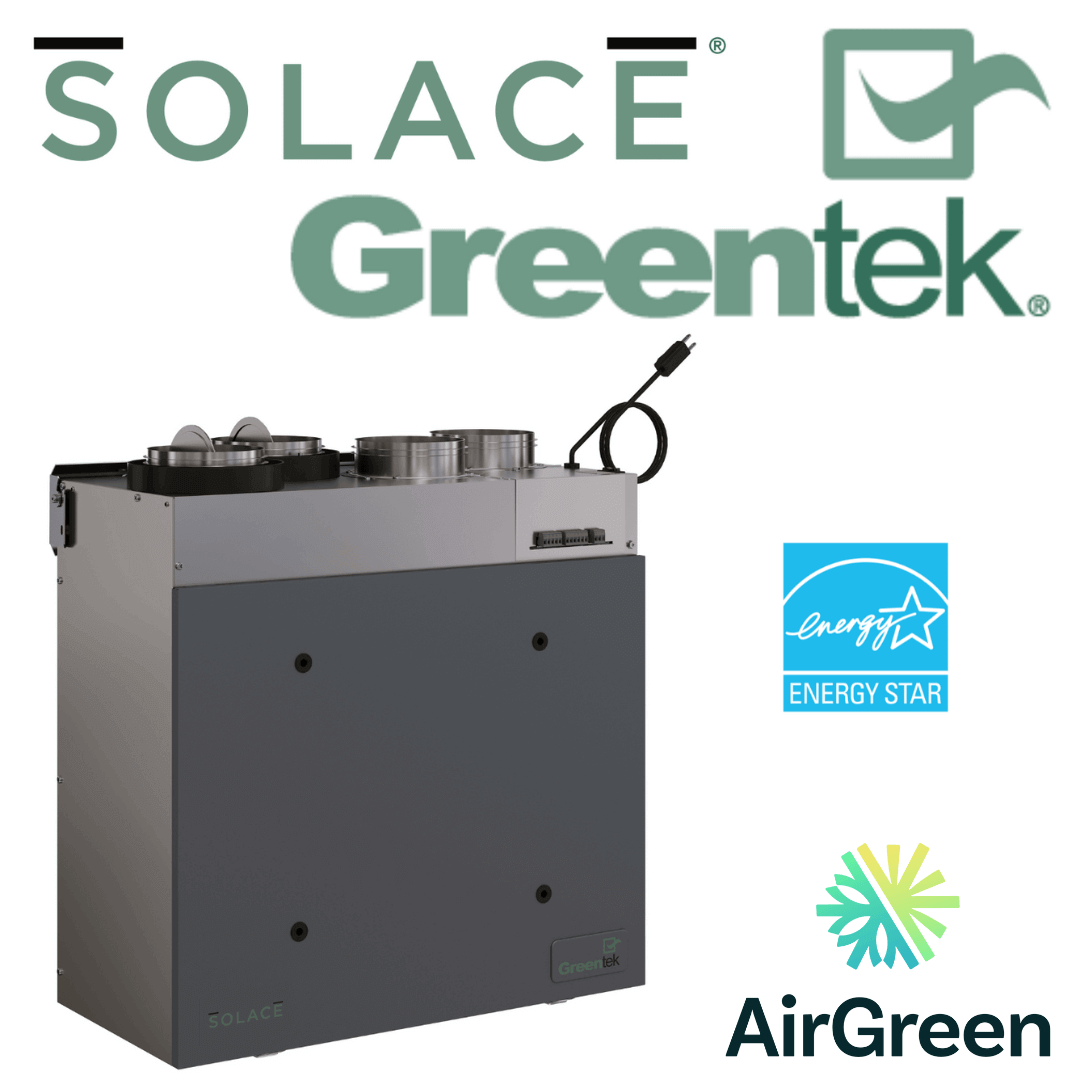

GreenTek SOLACE 1.5H-EC Air Exchanger Greater Montreal
Is it the right size for your home?
It delivers 172 cfm net, enough to ventilate 2,000 to 3,200 sq ft. Choose your home's living area.
It's the right size.
For a 2,500 to 3,200 sq ft home, about 150 cfm of air needs to be renewed continuously. This unit delivers 172 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$22.45
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 68% at 66 cfm.
Airflow and efficiency at 0 °C and −25 °C: HVI directory, Section III. Cost: 23 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
ECMECM motors: 23 W at 70 cfm
Its two electronically commutated motors draw 23 W at 70 cfm, or 3.0 cfm per watt per HVI and the spec sheet. At part load, Greentek notes energy use is much lower than with an AC motor of equivalent output.
172 cfm172 cfm at 0.4 in in the SOLACE 1.5H cabinet
It has the same dimensions as the SOLACE 1.5H (27.88 × 13.38 in) but delivers 172 cfm at 0.4 in instead of 150 cfm, per HVI. Handy when the duct system is more demanding and there is no room for a bigger unit.
68%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 66 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
HRVIt recovers heat, not moisture
Excess moisture leaves the house. In Québec, that's the right choice in most cases: in winter, the problem is almost always too much humidity, not too little.
2505389Its HVI certification number
Listed in Section III of the Home Ventilating Institute's certified products directory. Anyone can check it, and it's the first condition for the Rénoclimat grant.
−17 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 189 to 172 cfm. Most spec sheets show only the first number, precisely because it looks better.
23 WMeasured at the airflow it actually runs at
Its 84% at 0 °C is certified at 70 cfm, the continuous airflow of a typical home. At that setting it draws 23 W, or about 201 kWh a year.
LifetimeThe core warranty
The core does the work and is the most expensive part to replace. Motors: 7 years. Parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site
6 in ducts, top connection. It weighs 51 lb, and it needs enough clearance to slide the core out once a year.
Rénoclimat: $500 to install or replace an HRV or ERV
First condition met: HVI Section III certified, No. 2505389. Second: your EnerGuide rating must improve between the two evaluations. Québec warns that an air exchanger installed on its own can increase a home's energy use; that's why we balance it to the calculated airflow rather than running it at full speed.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

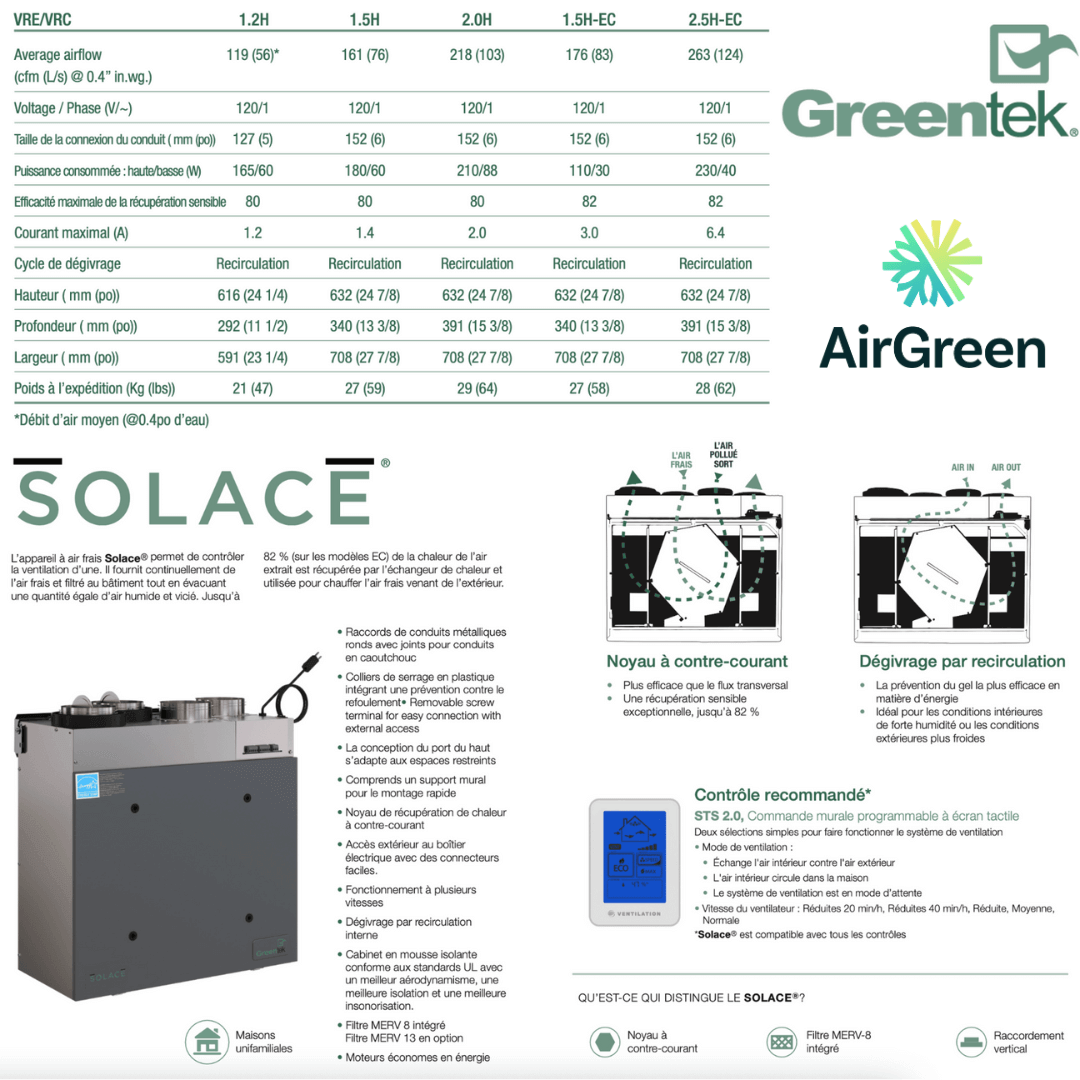

Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 189 cfm
- Net airflow at 0.4 in. w.g.
- 172 cfm
- SRE at 0 °C (70 cfm)
- 84%
- SRE at −25 °C (66 cfm)
- 68%
- Power draw
- 23 W
- Efficacy
- 3.0 cfm/W
- Type
- HRV
- Connection
- Top ports
- Duct collars
- 6 in
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- 2 washable electrostatic panel filters (7.9 × 11.8 in)
- Dimensions (L × D × H)
- 27.88 × 13.38 × 23 in
- Weight
- 51 lb
- Power supply
- 120 V
- HVI certification (Section III)
- 2505389
- Warranty — core
- Lifetime
- Warranty — motors
- 7 years
- Warranty — parts
- 5 years
Net airflow, efficiency at 0 °C and −25 °C, and power draw: Home Ventilating Institute certified products directory, Section III (HVID 2505389). Annual consumption calculated at 23 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
Ventilation Reimagined: Greentek Solace 1.5H-EC
The Greentek Solace 1.5H-EC is a cutting-edge Heat Recovery Ventilator (HRV) from the innovative Solace series by Systemair. This HRV blends exceptional performance, convenience, and unprecedented user-friendliness to deliver clean, filtered air into your home while also enhancing overall comfort levels.
Greentek Solace 1.5H-EC Specifications:
- Manufacturer: Greentek, a Systemair company
- Model Series: New Solace Series
- Model Description: Solace 1.5H-EC
- Ventilation Performance: 176 cfm @0.4 in. wg
- Manufacturer’s Part Number: 463315
- Equivalent Fantech Model: HERO 150H-EC 463253
- Wall Controller Included: None
- Core Type: Heat Recovery Ventilator (HRV)
- Defrost Type: Damper Defrost
- Motor Type: ECM (High Efficiency)
- Heat Recovery Rate (SRE): 82%
- Moisture Transfer Rate: 0%
Key Features:
- High Ventilation Capacity: The Solace 1.5H-EC provides a controlled method of ventilating a home, continuously supplying up to 176 cfm of fresh, filtered air while removing an equal amount of stale, moist air.
- Integrated MERV8 Fresh Air Filter: The built-in MERV8 filter assures superior indoor air quality by effectively eliminating airborne contaminants.
- Unobstructed Front Access: The design of the Solace 1.5H-EC allows for easy, unobstructed frontal access for seamless operation and maintenance.
- Energy-Efficient Counter Flow Core: The Solace 1.5H-EC uses an energy-efficient counterflow core that delivers exceptional heat transfer performance.
- Electronically Commutated Motors (ECM): These high-efficiency motors are designed to reduce power consumption and lower operational costs.
- TurboTouch Function: This unique feature boosts the exhaust capacity for 20, 40, or 60 minutes, enhancing the overall ventilation performance of the unit.
As modern, well-insulated homes often suffer from insufficient ventilation, mechanical ventilation systems are becoming increasingly essential. The Solace 1.5H-EC offers a controlled way to ventilate a home, working continuously to supply fresh, filtered air into the building while removing an equal amount of stale, moist air.
Up to 82% of the heat from the extracted air is recovered by the heat exchanger and used to heat the fresh air coming from outside. During the summer, the energy from the extracted air is transferred to cool the incoming fresh air, reducing the cooling loads on air conditioning units.
Furthermore, the Solace 1.5H-EC features a counterflow core to deliver exceptional heat transfer performance. The product includes a wall mount, an external electrical box with easy-connect ports, integrated in-door manometer ports, and duct ports with plastic collar shrouds for a simple and fast installation process.
In addition to these features, the Solace 1.5H-EC is compatible with the new Greentek wall controls. The use of Electronically Commutated Motors (ECM) ensures a higher level of efficiency and the TurboTouch function adds an extra layer of control over your home's ventilation.
In conclusion, the Greentek Solace 1.5H-EC HRV delivers an efficient, comfortable, and quiet ventilation solution for the homes of the future. With its advanced technology and design, it promises superior performance in line with Greentek's commitment to improving indoor air quality and home comfort. This innovative unit will redefine your understanding and experience of home ventilation.
