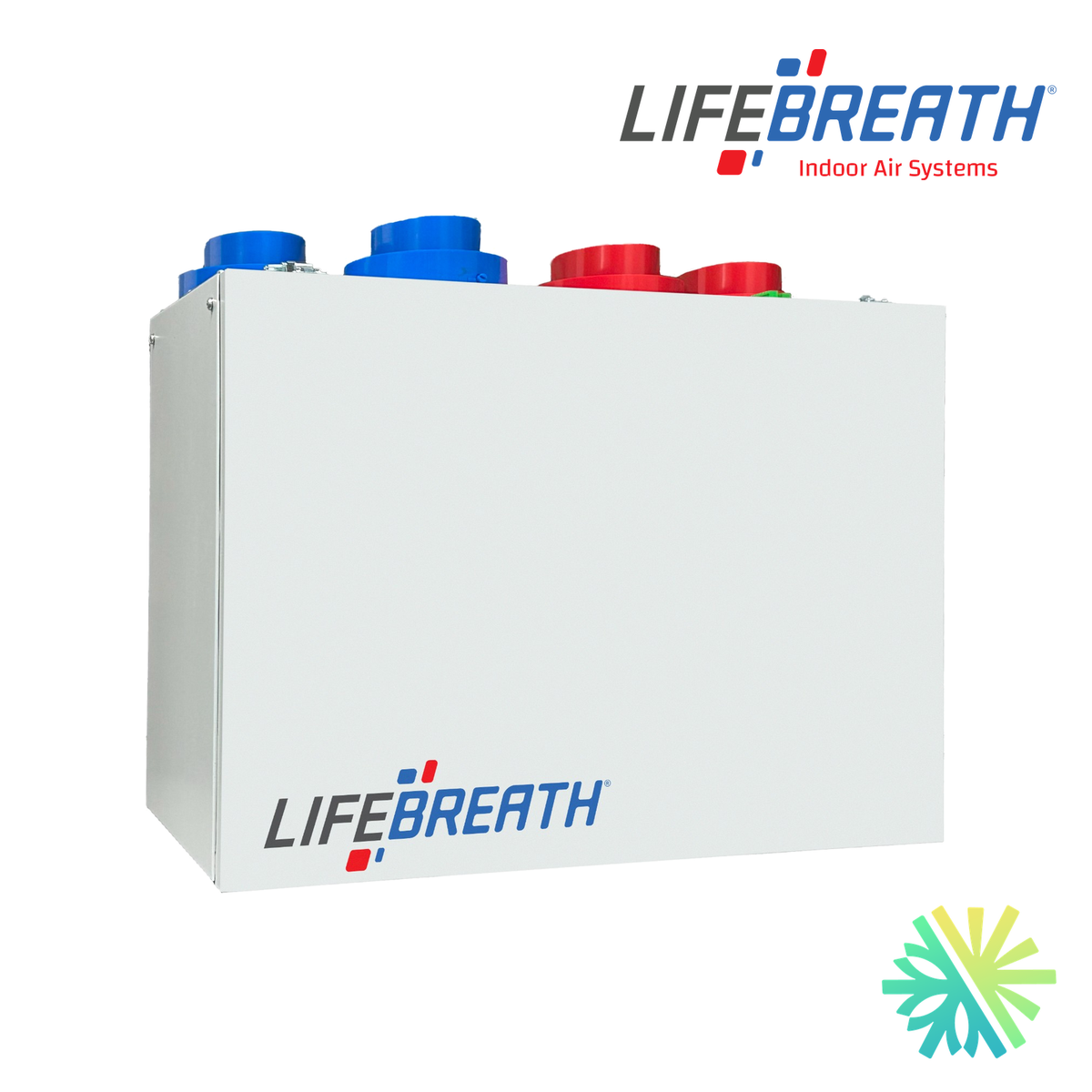

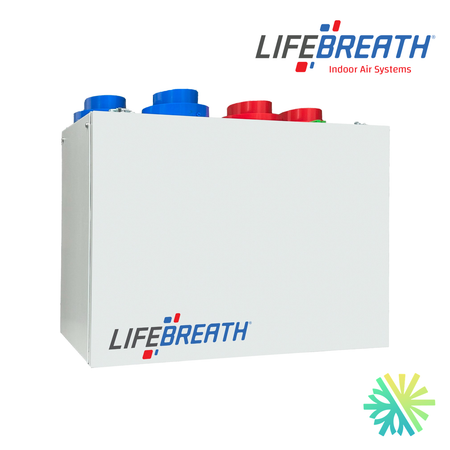

Lifebreath 180 ERVD-FID ERV Air Exchanger | Montreal, Laval, Longueuil, South Shore and North Shore

In stock
SKU: 180 ERVD-FID
172 cfm net2,000 to 3,200 sq ft60% at −25 °C
Talk to an HVAC technician · 514 316-2973
Meets the Québec CodeCore warranty: 5 years
01 · Your home

Is it the right size for your home?

It delivers 172 cfm net, enough to ventilate 2,000 to 3,200 sq ft. Choose your home's living area.

It's the right size.

For a 2,500 to 3,200 sq ft home, about 150 cfm of air needs to be renewed continuously. This unit delivers 172 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.

Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. We set the exact airflow during our on-site assessment.

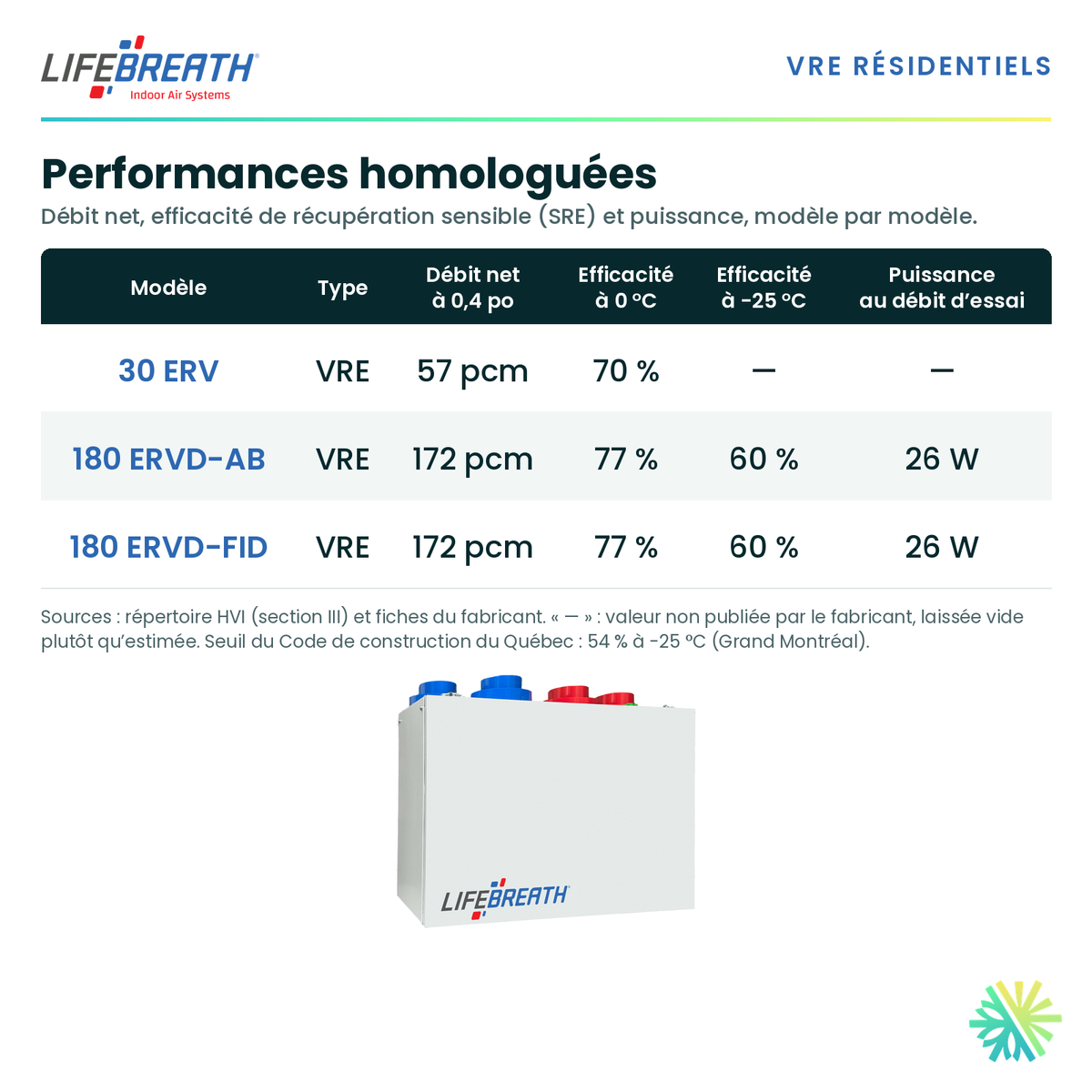

02 · Performance

What it does, in numbers

Heat recovery
60%
At −25 °CCode: 55% or 60% minimum
77%
At 0 °CCertified at 68 cfm
Net airflowThe ducts cost it 14 cfm
0.2 in · test bench186 cfm
0.4 in · with ducts172 cfm

$25.38

Electricity per year

Less than a 60 W light bulb

Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.

26W
Running continuously
228kWh
Per year
3months
Filter cleaning

Meets both thresholds of the Québec Construction Code (art. 9.36.3.9). At −25 °C and at least 22 L/s, the Code (art. 9.36.3.9, in force since April 17, 2025) requires 55% where there are fewer than 6,000 heating degree-days and 60% elsewhere. This unit is rated at 60% at 66 cfm (HVI).

Airflow and efficiency at 0 °C and −25 °C: HVI directory, Section III. Cost: 26 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).

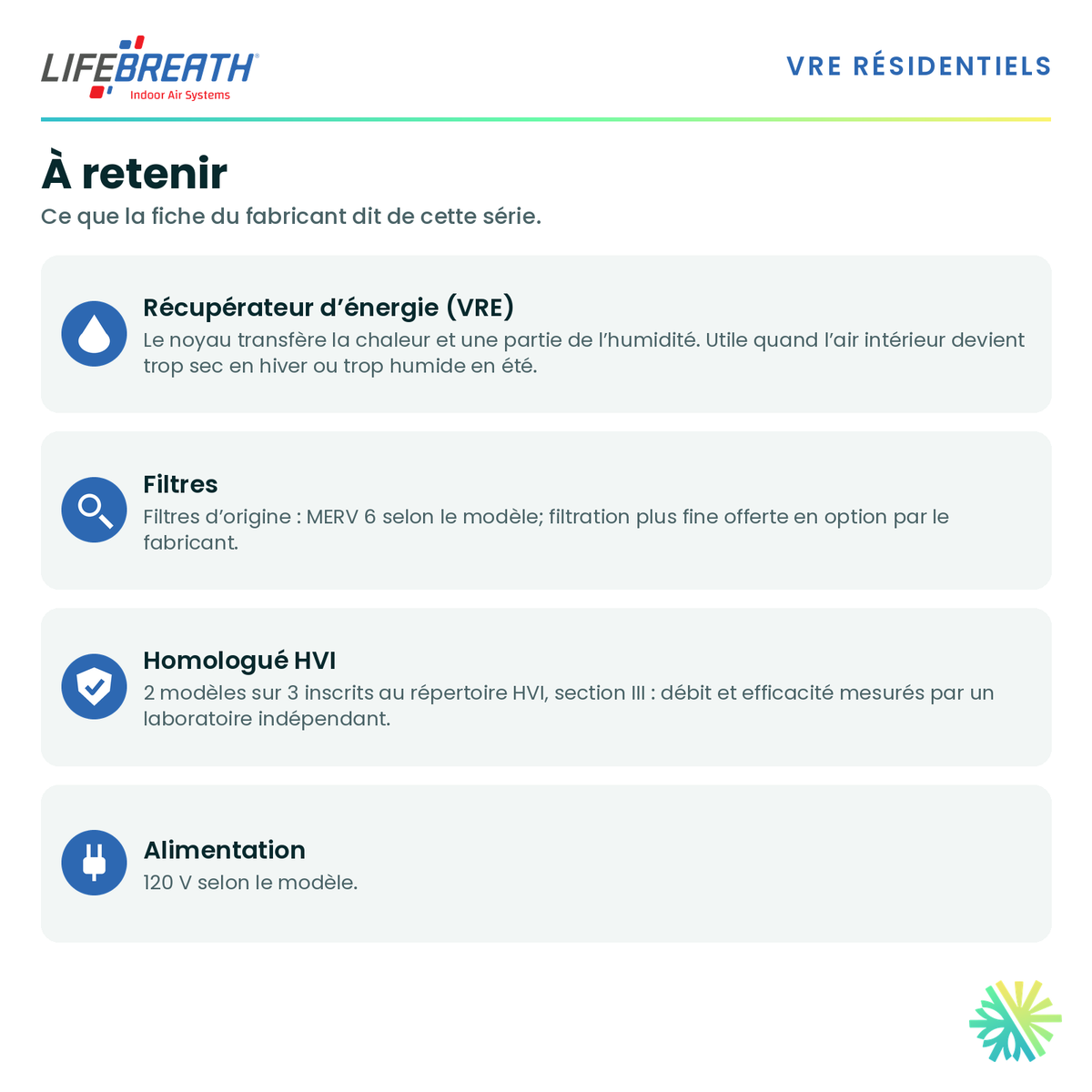

03 · Good to know

What you should know about this one

Published, verifiable facts, not brochure claims.

FID“FID”: fault codes shown on the DXPL03

The FID suffix stands for “Fault Indicator Display”. On the DXPL03, error codes replace the humidity reading: sensors (Err 1 and 2), airflow out of range (Err 3 and 4), clean filter (Err 8). Lifebreath states it is Title 24 compliant.

AutoKeeps the auto balancing of the -AB version

Like the 180 ERVD-AB, it sets supply and exhaust airflow separately with the included DXPL03, then adjusts its EC motors from live pressure readings. Codes Err 1, 3 and 4 only activate in auto balancing mode.

60%What it still recovers at −25 °C

The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 66 cfm.

DamperIt defrosts with indoor air

In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. During the cycle, no outdoor air comes in through the unit.

ERVIt moves moisture too, not just heat

An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.

2005569Its HVI certification number

Listed in Section III of the Home Ventilating Institute's certified products directory. Anyone can check it.

−14 cfmWhat the ducts cost it

Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 186 to 172 cfm. Most spec sheets show only the first number, precisely because it looks better.

26 WMeasured at the airflow it actually runs at

Its 77% at 0 °C is certified at 68 cfm, the continuous airflow of a typical home. At that setting it draws 26 W, or about 228 kWh a year.

5 yearsThe core warranty

The core does the work and is the most expensive part to replace. Motors and parts: 5 years.

5 inWhat it needs on site

5 in ducts, top connection. It weighs 53 lb, and it needs enough clearance to slide the core out for cleaning.

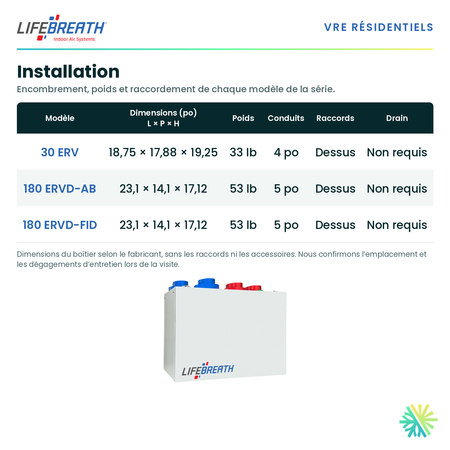

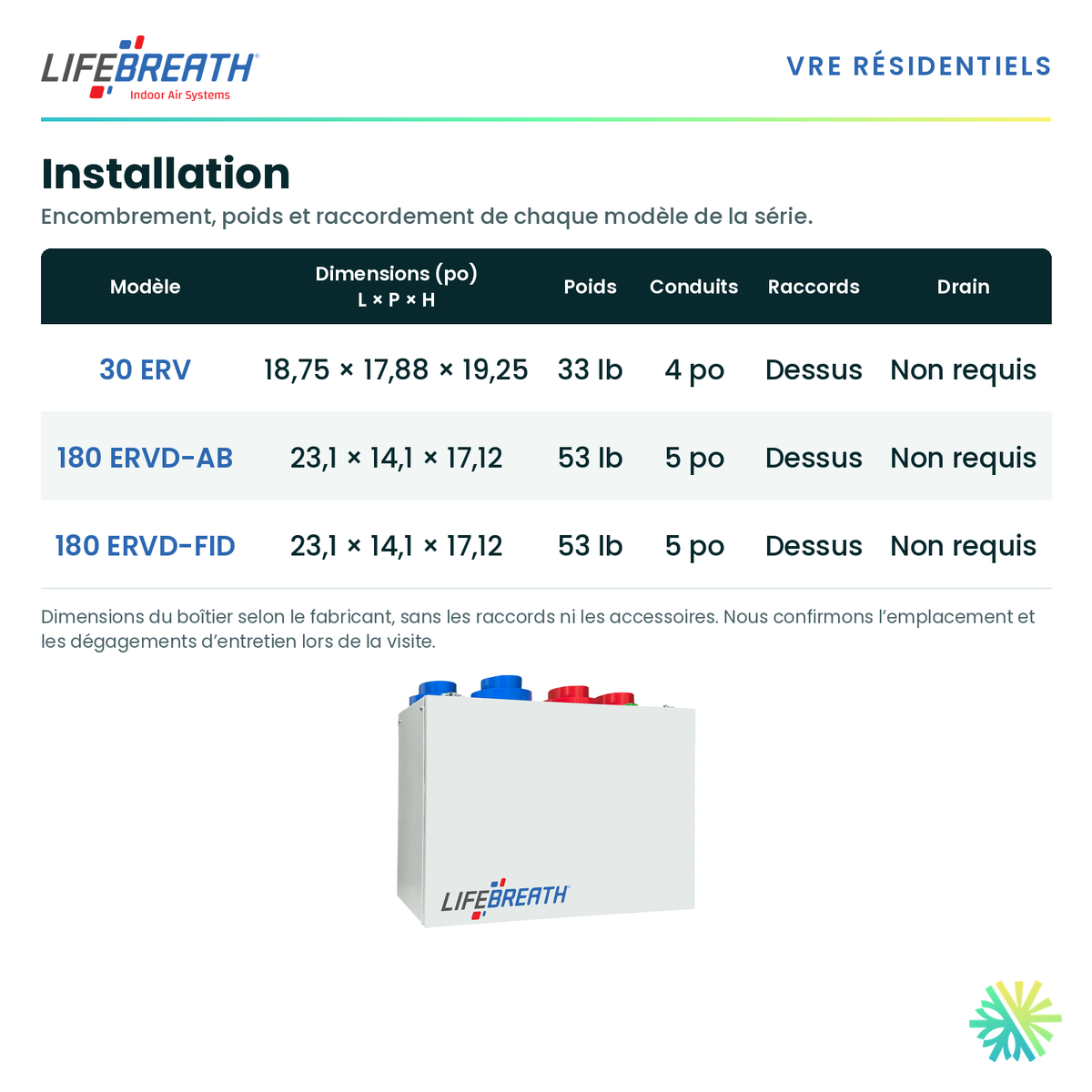

04 · Installation

What it needs on site

5 in ductsCollar diameter
Top connectionTop ports
53 lbUnit weight
23.1 × 14.1 × 17.12 inLength × depth × height
120 VPower supply

In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

Complete spec sheetData and cited sources
Net airflow at 0.2 in. w.g.
186 cfm
Net airflow at 0.4 in. w.g.
172 cfm
SRE at 0 °C (68 cfm)
77%
SRE at −25 °C (66 cfm)
60%
ASE at 0 °C
79%
Power draw
26 W
Efficacy
2.6 cfm/W
Type
ERV
Connection
Top ports
Duct collars
5 in
Defrost cycle
Recirculation (motorized damper)
Filters
2 washable MERV 6 filters (exhaust and supply); MERV 13 upgrade (65-192-6R)
Dimensions (L × D × H)
23.1 × 14.1 × 17.12 in
Weight
53 lb
Power supply
120 V
HVI certification (Section III)
2005569
Warranty — core
5 years
Warranty — motors
5 years
Warranty — parts
5 years
Spec sheet (French)
PDF
Spec sheet (English)
PDF

Net airflow, efficiency at 0 °C and −25 °C, and power draw: Home Ventilating Institute certified products directory, Section III (HVID 2005569). Annual consumption calculated at 26 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.

05 · In the same family

The next model down and up

Talk to an HVAC technician before you choose

We assess your needs on site, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.

An ERV that displays its fault codes

A filter due for cleaning, a failed sensor, an airflow out of range: the Lifebreath 180 ERVD-FID, an energy recovery ventilator (ERV), tells you itself. The FID suffix stands for “Fault Indicator Display.” On the DXPL03 control, the code appears in place of the relative humidity reading, for about one second every five seconds, during normal operation. Lifebreath states that it is Title 24 compliant.

On Lifebreath's spec sheet, its net airflow goes from 186 cfm at 0.2 in. of static pressure to 172 cfm at 0.4 in.

The codes displayed

  • Err 1: a pressure sensor, on the fresh-air or the stale-air side, no longer responds.
  • Err 2: the temperature sensor connection is broken.
  • Err 3 and Err 4: the unit cannot hold the requested airflow, for fresh air (Err 3) or stale air (Err 4); Lifebreath sets the allowed deviation at ±(15 cfm + 10% of the setting).
  • Err 8: filter cleaning reminder.

Codes Err 1, 3 and 4 only activate in auto balancing mode, with a built-in delay against false alarms. When several faults are active, only the one with the lowest number is displayed. After a sensor failure, the unit spends three minutes in manual balancing, then tries to return to auto balancing, and repeats this as long as the fault is not fixed.

The auto balancing of the AB version

It shares the same logic as the 180 ERVD-AB: on the included DXPL03, the fresh-air and stale-air airflows are each set on their own, and live pressure readings adjust the speed of the EC motors to hold them.

Efficiency and energy use

Its enthalpy core passes heat and part of the moisture from the outgoing air to the incoming air: in winter, the home dries out less. According to HVI, its sensible recovery efficiency reaches 77% at 0 °C and 68 cfm. At −25 °C and 66 cfm, its sensible recovery efficiency is 60% (HVI directory, November 4, 2026 edition); the Québec Construction Code (art. 9.36.3.9) requires at least 55% where there are fewer than 6,000 heating degree-days and 60% elsewhere, at no less than 22 L/s. The 180 ERVD-FID therefore meets both thresholds.

At its 68 cfm HVI test point, its EC motors draw 26 W, which works out to 2.6 cfm per watt. Running non-stop at that setting, it would use about 228 kWh a year, around $25 at Hydro-Québec Rate D (second tier, 11.142 ¢/kWh).

Defrost

In deep cold, a recirculating damper handles defrost: for the length of the cycle, house air replaces outdoor air in the core.

Installation

The unit weighs 53 lb (24 kg) and hangs from the supplied adjustable straps. Its dimensions are 23.1 × 14.1 × 17.12 in. (L × D × H). All the ducts connect on top, to 5 in. round collars that each have a balancing damper. Lifebreath's spec sheet presents the drain as optional. In front of the door, leave 25 in. (635 mm) of clearance.

Filters

A washable MERV 6 filter equips each airstream, stale and fresh; part 65-192-6R replaces these filters with MERV 13 ones.

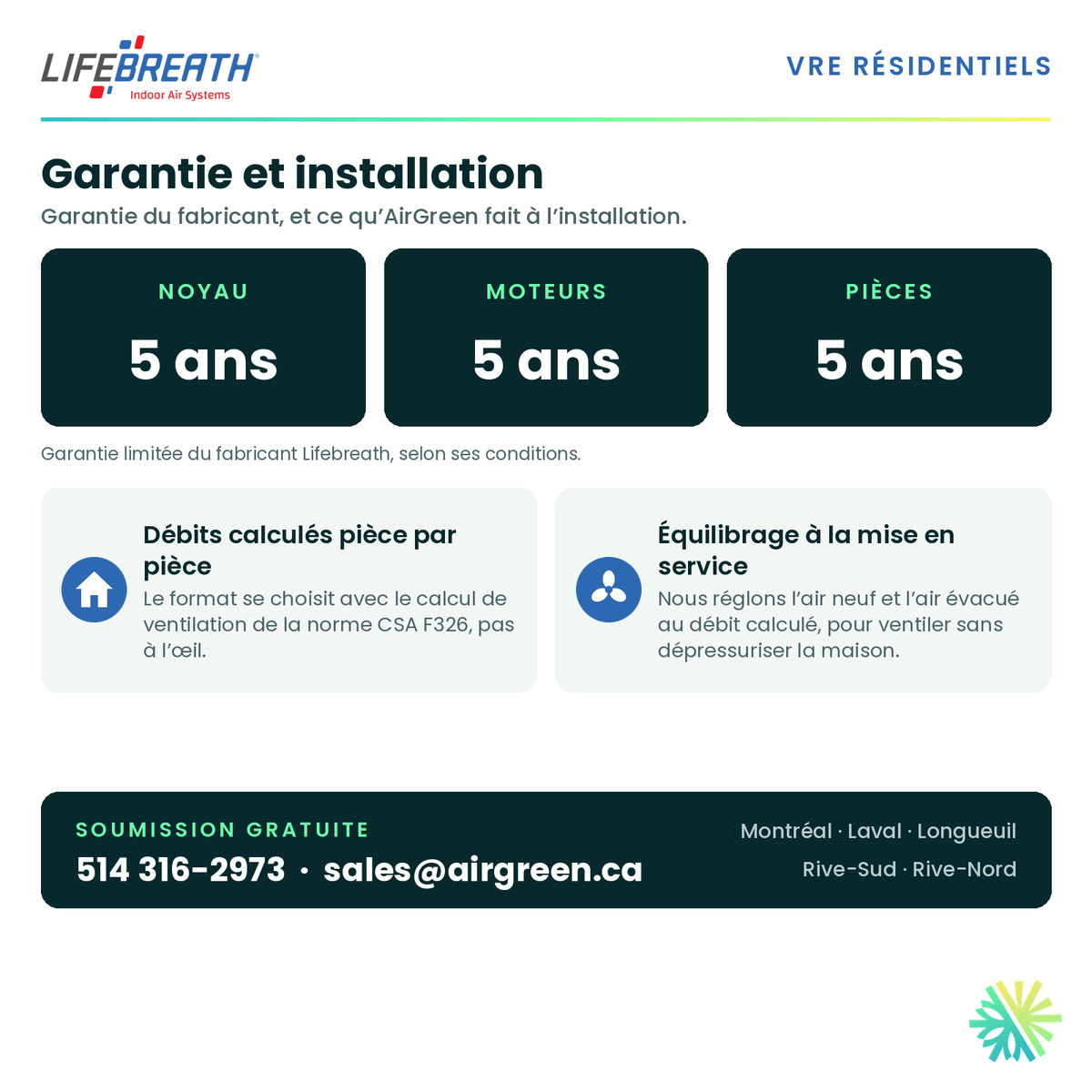

Warranty

Core, motors and parts are warranted for 5 years by Lifebreath.

Which home it suits

For a good-sized single-family home (172 cfm net at 0.4 in.), this model is meant for the owner who does not want to keep an eye on the air exchanger: the unit holds its airflows on its own and reports a filter to clean or a failed sensor itself. It also has its place in a rental unit or a second home, where nobody checks the unit every week. If the code display is of no use to you, the 180 ERVD-AB offers the same auto balancing.

Installation by AirGreen in Greater Montreal

Before recommending the 180 ERVD-FID, we assess the home's ventilation needs on site (bedrooms, bathrooms, kitchen, basement) and check that its 172 cfm net at 0.4 in. covers them with the planned duct length.

The unit goes in a heated space with easy access to its door; Lifebreath does not recommend the attic and calls for a level installation. On start-up day, the DXPL03 must be the only control connected during auto balancing, as Lifebreath requires: any timer is disconnected, then reconnected afterwards. We then show you how to read the codes on the DXPL03 screen.

These codes also help us with after-sales service: if you call us with the code displayed, we already know, before we come out, whether it is a filter, a sensor or an airflow out of range.

AirGreen serves Montreal, Laval, Longueuil, the North Shore and the South Shore.

Since October 1, 2026, Rénoclimat no longer funds HRV or ERV installations, except for a home already evaluated before the change whose post-work evaluation is done by March 31, 2027.

Ask for your free quote: 514 316-2973 or sales@airgreen.ca. We will call you back to go over your project.
