What you should know about this one
Published, verifiable facts, not brochure claims.
IIndoor version: four 18 × 18 in connections on the ends
The 1500I installs indoors, set on the floor or hung from threaded rods (brackets and rods not included). Its four 18 × 18 in connections are on the ends of the unit, whereas the rooftop 1500E connects to the building from underneath.
240SPECM-240SP: dual-voltage 208/240 V single-phase ECM motors
The ECM-240SP suffix marks two 1 HP variable-speed ECM motors on a dual-voltage unit fed at 208 or 240 V single phase (MOP 30 A). The sheet gives 1500 cfm at 1.0 in of external static pressure, with three independently adjustable speeds.
ExhaustIt defrosts by pausing the fresh air for a few minutes
In cold weather, the supply fan stops for a few minutes while the exhaust keeps running, so warm indoor air thaws the core. During the cycle the house is briefly under negative pressure; if you have a fireplace or a naturally vented combustion appliance, mention it to our estimator.
HRVIt recovers heat, not moisture
Excess moisture leaves the house. In Québec, that's the right choice in most cases: in winter, a house almost always has too much humidity, not too little.
15 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 2 years.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

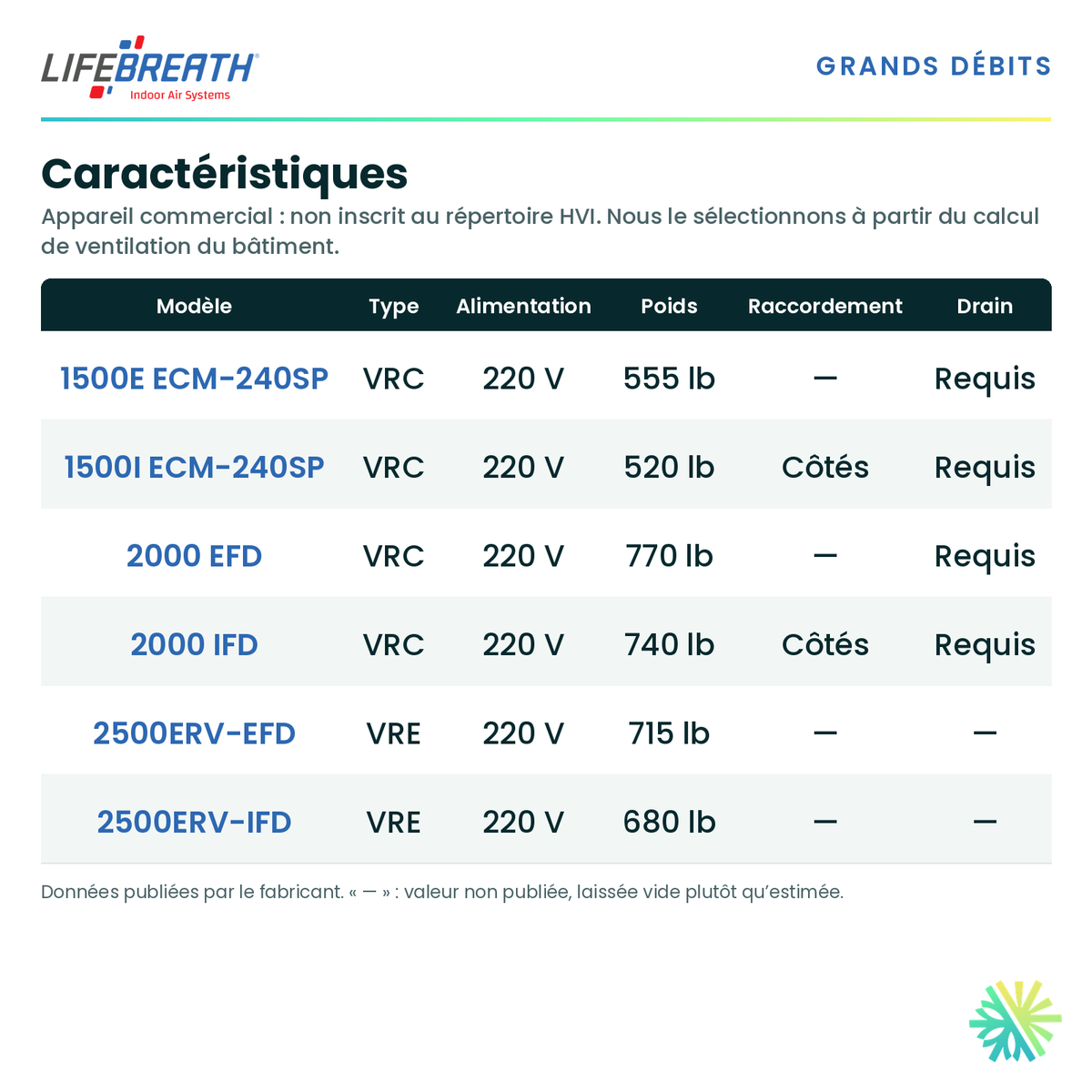

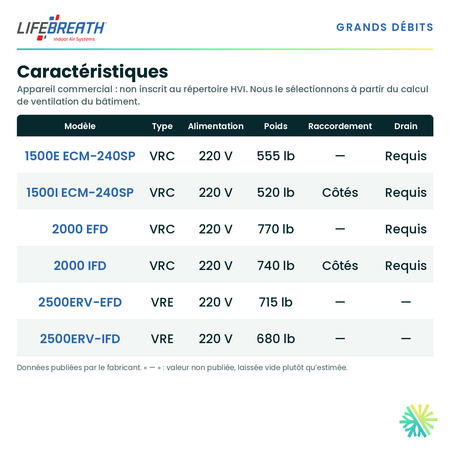

Complete spec sheetData and cited sources
- Type
- HRV
- Connection
- Side ports
- Condensate drain
- Required
- Defrost cycle
- Exhaust only (supply fan off)
- Filters
- 4 pleated MERV 8 filters (20 × 16 × 2 in), 2 per airstream
- Dimensions (L × D × H)
- 66.75 × 44 × 37 in
- Weight
- 520 lb
- Power supply
- 220 V
- Warranty — core
- 15 years
- Warranty — motors
- 2 years
- Warranty — parts
- 2 years
- Spec sheet (French)
- Spec sheet (English)
The manufacturer doesn't publish an efficiency at −25 °C for this model; we don't make one up.
Talk to an HVAC technician before you choose
We assess your needs on site, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
Lifebreath 1500I ECM-240SP: 1,500 cfm inside the building

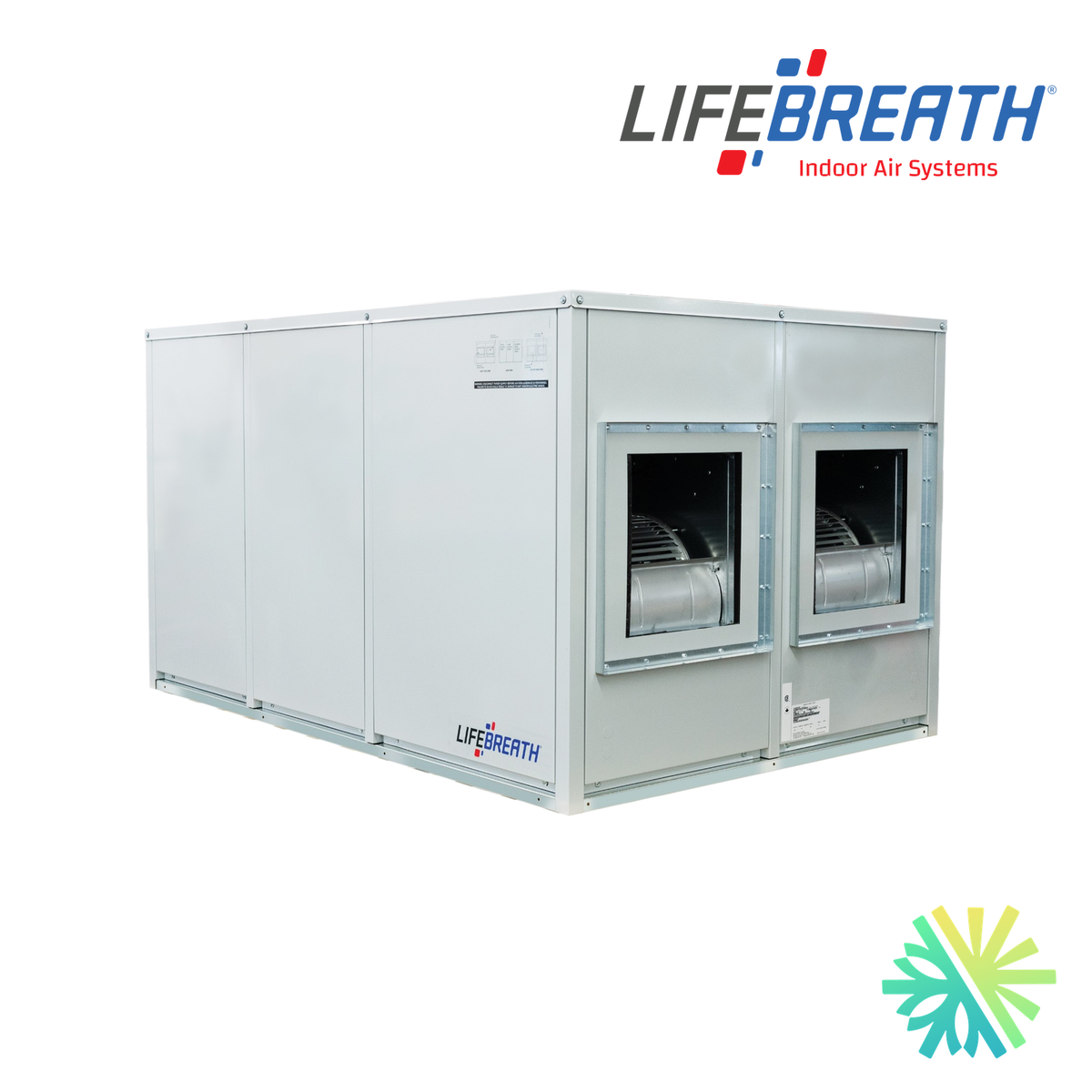

The Lifebreath 1500I ECM-240SP is the indoor version of Lifebreath's 1500: a commercial heat recovery ventilator that sits in a mechanical room or hangs from the ceiling of a warehouse heated to at least 16 °C (60 °F). Its spec sheet lists 1,500 cfm (705 L/s) at 1.0 in. of external static pressure. That airflow makes it a fit for schools, gyms, office buildings and big-box stores whose roof cannot take an outdoor unit.
As a commercial unit, the 1500I has no HVI rating: nothing in that directory puts a figure on its net airflow or its efficiency the way it does for a residential HRV. For a project that includes dwelling units, article 9.36.3.9 of the Québec Construction Code requires, for their principal ventilation system, a unit whose efficiency is tested and certified by a body the Code recognizes; we check this point before settling on the 1500I.
I for Indoor: Four 18 × 18 in. Connections on the Ends
The 1500I sits on the floor, on a wooden or metal support, or hangs from threaded rods that form a cradle for it; brackets and rods are not supplied. The manual requires a level installation so that water drains properly from the cores and the pans. Its four 18 × 18 in. (457 × 457 mm) connections are on the ends of the unit, two on the inlet side and two on the outlet side according to the spec sheet drawing.
This in-line layout makes it easier to run ducts along a mechanical corridor. The 1500I does, however, arrive without outdoor hoods: the contractor supplies them. Lifebreath recommends spacing them at least 10 ft (3 m) apart, keeping them at least 18 in. (46 cm) higher than the ground or the snow, fitting them with a 1/4 in. mesh screen and not exceeding 750 ft/min through their free area. The ducts that connect them to the unit are insulated to at least R-4 (RSI 0.75).
Dual-Voltage 208/240 V ECM Motors
Its two 1.0 HP variable-speed ECM motors equip a dual-voltage unit: 208 V single-phase (20.6 A, minimum circuit ampacity of 25.8 A) or 240 V single-phase (18.2 A, 20.5 A), with a maximum overcurrent protection of 30 A. That is what the ECM-240SP suffix sums up.
Efficiency and Defrost
Heat recovery is handled by six cross-flow aluminum cores. Lifebreath lists an efficiency of 65% at 1,500 cfm, which its commercial sales sheet ties to 0 °C, with no further detail on the test. Two direct-drive centrifugal blowers move the air. To defrost, the unit shuts off the fresh-air motor for a factory-set time and lets the exhaust air melt the frost: below −3 °C (27 °F) outdoors, the manual describes a one-minute stop of both motors, four minutes of exhaust only, then 30 minutes with both motors running, which DIP switch 8 cuts to 20 minutes.
Installation: Weight, Drain and Clearance
The unit weighs 520 lb (236 kg), and 650 lb shipping. Its 22-gauge powder-coated steel cabinet carries 1 in. of elastomeric insulation, and water collects in two galvanized steel pans, each fitted with a 1/2 in. OD connection. According to the spec sheet, the unit conforms to CSA and UL standards. A drain is required: on the floor, the unit has to be raised enough to give the drain lines a slope. Keep at least 40 in. (1 m) clear on one side of the unit to service the cores.
1500I or 1500E: A Question of Location
The two versions share the ECM motors, the six cores, the filters and the airflow of 1,500 cfm at 1.0 in. What sets them apart is location: the 1500E installs outdoors, on a roof curb, and connects to the building from underneath, whereas the 1500I needs room indoors and two wall or roof penetrations for the outdoor air. In an existing building with a mechanical room available, the 1500I often avoids roofing work.
Controls
A built-in microprocessor board, fitted with interlock contacts, runs the unit; each of its three speeds, however, is adjusted on the ECM board in the electrical box. As options, the series manual offers the 99-500 three-speed control, the 99-BC02 to 99-BC04 wall controls, 20, 40 or 60 minute high-speed timers, wired (99-DET01) or wireless (99-DET02), and a 99-DH01 dehumidistat that switches to high speed when indoor humidity exceeds the setting.
Filter Care
Each airstream has two 20 × 16 × 2 in. MERV 8 pleated filters, four in all. They are replaced rather than washed; in a busy building, we adjust the frequency based on what we see on the first visits. The filters come out through a service panel, reachable on one side or both, after which the cores slide out of the unit.
Warranty
The heat recovery core of the 1500I ECM-240SP is covered for 15 years; replacement parts, for 2 years. The spec sheet does not set the motors apart from the other parts in its warranty.
Installation by AirGreen in Greater Montreal
Before recommending the Lifebreath 1500I ECM-240SP, we assess the building's ventilation needs on site, based on how the spaces are used and occupied. We also look at the space available, the electrical supply and the duct route, for which the manual caps air velocity at 725 ft/min on the 1500.
The job ends with balancing: with a Pitot tube, we read the fresh-air and exhaust-air flows, then adjust the speeds until they match. Those readings stay on file: at each maintenance visit, we compare them with the new measurements.
Ask for a quote at 514 316-2973 or sales@airgreen.ca: we will call you back. We work in Montreal, Laval, Longueuil, the North Shore and the South Shore, with our team under AirGreen's RBQ licence 5645-9605-01.
