vänEE G2400EE Air Exchanger | Montreal, Laval, Longueuil, South Shore and North Shore
Is it the right size for your home?
It delivers 210 cfm net, enough to ventilate 2,500 to 4,000 sq ft. Choose your home's living area.
It's the right size.
For a 2,500 to 3,200 sq ft home, about 150 cfm of air needs to be renewed continuously. This unit delivers 210 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$20.50
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 65% at 64 cfm.
Airflow and efficiency: manufacturer's published data. Cost: 21 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
83%Counterflow core: 83% efficiency at 0 °C
The G2400EE is the only Gold ERV with a counterflow core (14.25 × 14.25 × 16.6 in, 136 sq ft). It reaches 83% sensible recovery efficiency at 0 °C, versus 75% for the G3000EE and its cross-flow core.
No damperElectronic balancing with no balancing dampers
At installation, airflows are balanced electronically from the wall control, with no balancing dampers to set. Plan for a Gold-Touch or X-Touch main control: they are the only ones compatible with this unit.
65%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 64 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
−17 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 227 to 210 cfm. Most spec sheets show only the first number, precisely because it looks better.
21 WMeasured at the airflow it actually runs at
Its 83% at 0 °C is measured at 64 cfm, the continuous airflow of a typical home. At that setting it draws 21 W, or about 184 kWh a year.
10 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site
6 in (oval) ducts, top connection. It weighs 108 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

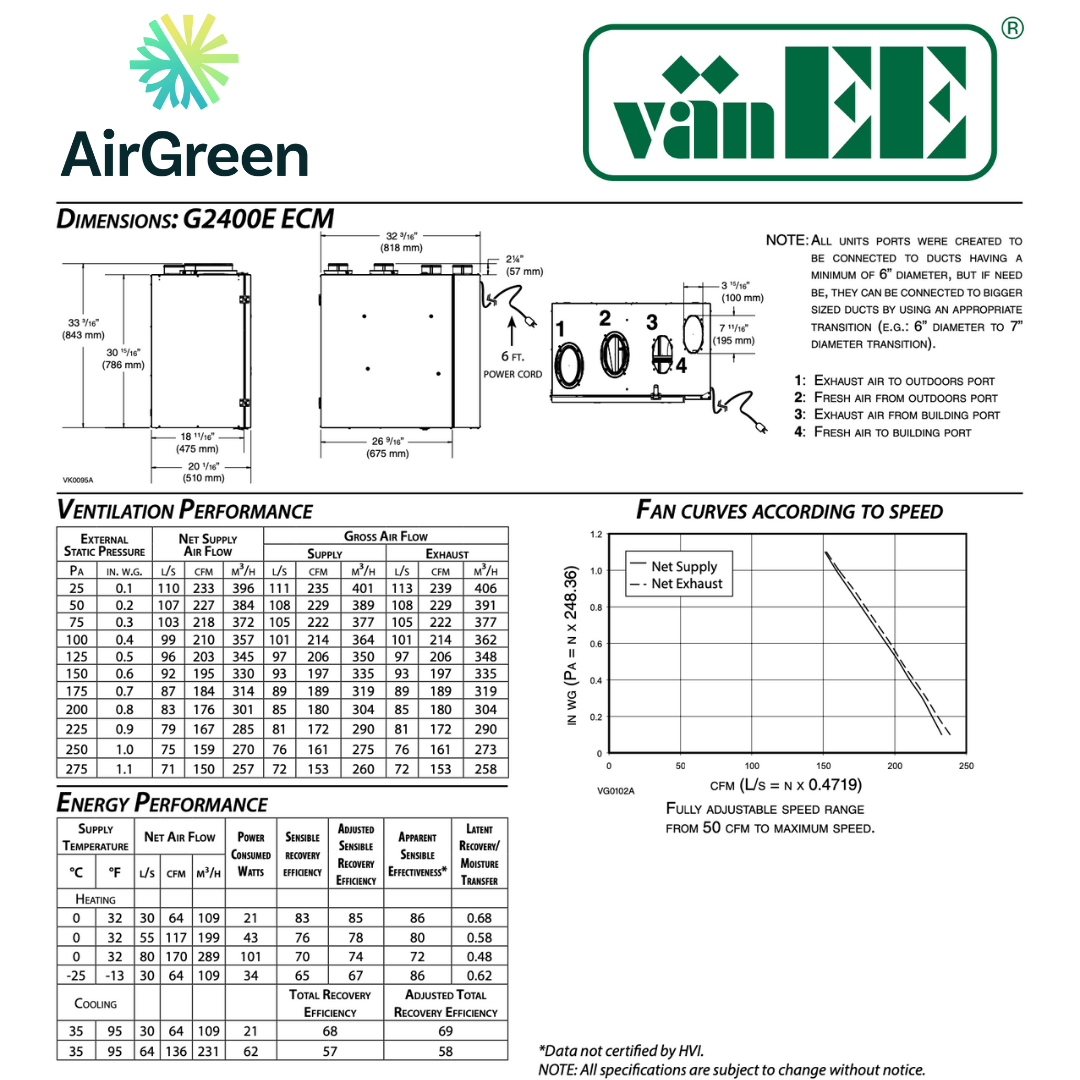

Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 227 cfm
- Net airflow at 0.4 in. w.g.
- 210 cfm
- SRE at 0 °C (64 cfm)
- 83%
- SRE at −25 °C (64 cfm)
- 65%
- ASE at 0 °C
- 86%
- Power draw
- 21 W
- Efficacy
- 3.0 cfm/W
- Type
- ERV
- Connection
- Top ports
- Duct collars
- 6 in (oval)
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- 2 washable MERV 6 filters (optional HEPA)
- Dimensions (L × D × H)
- 32.19 × 20.06 × 33.19 in
- Weight
- 108 lb
- Power supply
- 120 V
- Warranty — core
- 10 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Airflow and efficiency: manufacturer's published data. Annual consumption calculated at 21 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
AirGreen Showcases the vänEE G2400E ECM: The Pinnacle of Air Exchange Technology in Montreal
Elevating Indoor Air Quality with the vänEE Gold Series G2400E ECM
The vänEE G2400E ECM: A Marvel of Efficiency and Innovation
At AirGreen, a premier HVAC company based in Montreal, we are thrilled to introduce the vänEE G2400E ECM from the prestigious Gold Series. This model, a VRE type air exchanger with vertical ports, is not merely an addition to our product line; it represents a leap forward in our quest to enhance indoor air quality across Montreal, Laval, Longueuil, and the North and South Shore regions. The vänEE G2400E ECM, boasting a sensible recovery efficiency of 84% and PCM/CFM of 227, is designed to deliver unparalleled air exchange performance in a compact form, measuring 32.19 x 33.19 x 20.06 inches.
Groundbreaking Design Meets Unmatched Performance
The vänEE G2400E ECM is a testament to the fusion of compact design and expansive impact. It offers a significant airflow range from 50 to 210 CFM, thanks to its high-performance ECM motors, making it suitable for larger residential and light commercial applications while maintaining ease of installation due to its adaptable size and port configuration options.
Key Features of the vänEE G2400E ECM
Advanced Air Exchange Capabilities
- Optimized Air Flow: The vänEE G2400E ECM is equipped with state-of-the-art features such as pressure taps and electronic balancing, ensuring balanced and efficient air exchange, crucial for maintaining optimal indoor air quality.
- Flexible Installation: With its vertical ports, the unit can be installed in various spaces, offering versatility in placement and integration into different architectural designs.
Quiet Operation and Enhanced Comfort
- Innovative ECM Motor Technology: The vänEE G2400E ECM's Electronically Commutated Motors (ECM) provide quieter operation than traditional motors, contributing to a more peaceful indoor environment.
Installation and Maintenance: A Paradigm of Convenience
Effortless Installation
- User-Friendly Design: The vänEE G2400E ECM is designed for easy installation, featuring a wall mounting bracket and electronic balancing without the need for balancing dampers, simplifying the installation process.
- Versatile Configuration: The unit's adaptable design allows for installation with various port configurations, catering to different building layouts and installation requirements.
Maintenance Made Easy
- Accessible Components: All components of the vänEE G2400E ECM that may require maintenance can be accessed easily, allowing for quick and straightforward repairs.
- Permanently Lubricated Motors: The high-output ECM motors are permanently lubricated, ensuring long-lasting operation with minimal maintenance.
Energy Efficiency and Environmental Impact
The ERV Edge
- Heat Recovery Ventilation: The vänEE G2400E ECM uses an advanced defrosting system, maintaining balanced air pressure in the home. This method is efficient in both humid and dry climates, making it an excellent choice for year-round ventilation.
- Eco-Friendly Operation: By optimizing energy use, the vänEE G2400E ECM contributes to a reduced environmental footprint, aligning with modern eco-conscious living standards.
Why Choose AirGreen for Your vänEE G2400E ECM Installation?
At AirGreen, we understand the importance of quality air in your home or business. Our team of skilled professionals is dedicated to providing not just products, but complete HVAC solutions that cater to your specific needs.
Our Commitment to Excellence
- Expert Installation Services: Our technicians are trained to install the vänEE G2400E ECM with precision and care, ensuring optimal performance and customer satisfaction.
- Comprehensive Support: We believe in building lasting relationships with our clients, offering ongoing support and advice to ensure your comfort and well-being.
Conclusion: Experience the Difference with AirGreen and the vänEE G2400E ECM
In conclusion, the vänEE G2400E ECM, offered by AirGreen, represents a significant advancement in HVAC technology, combining efficiency, reliability, and environmental responsibility. Its advanced features, compact design, and superior performance make it an ideal solution for enhancing indoor air quality in Montreal and its surrounding areas. Choose AirGreen for your vänEE G2400E ECM installation and experience the difference in comfort, quality, and peace of mind.
