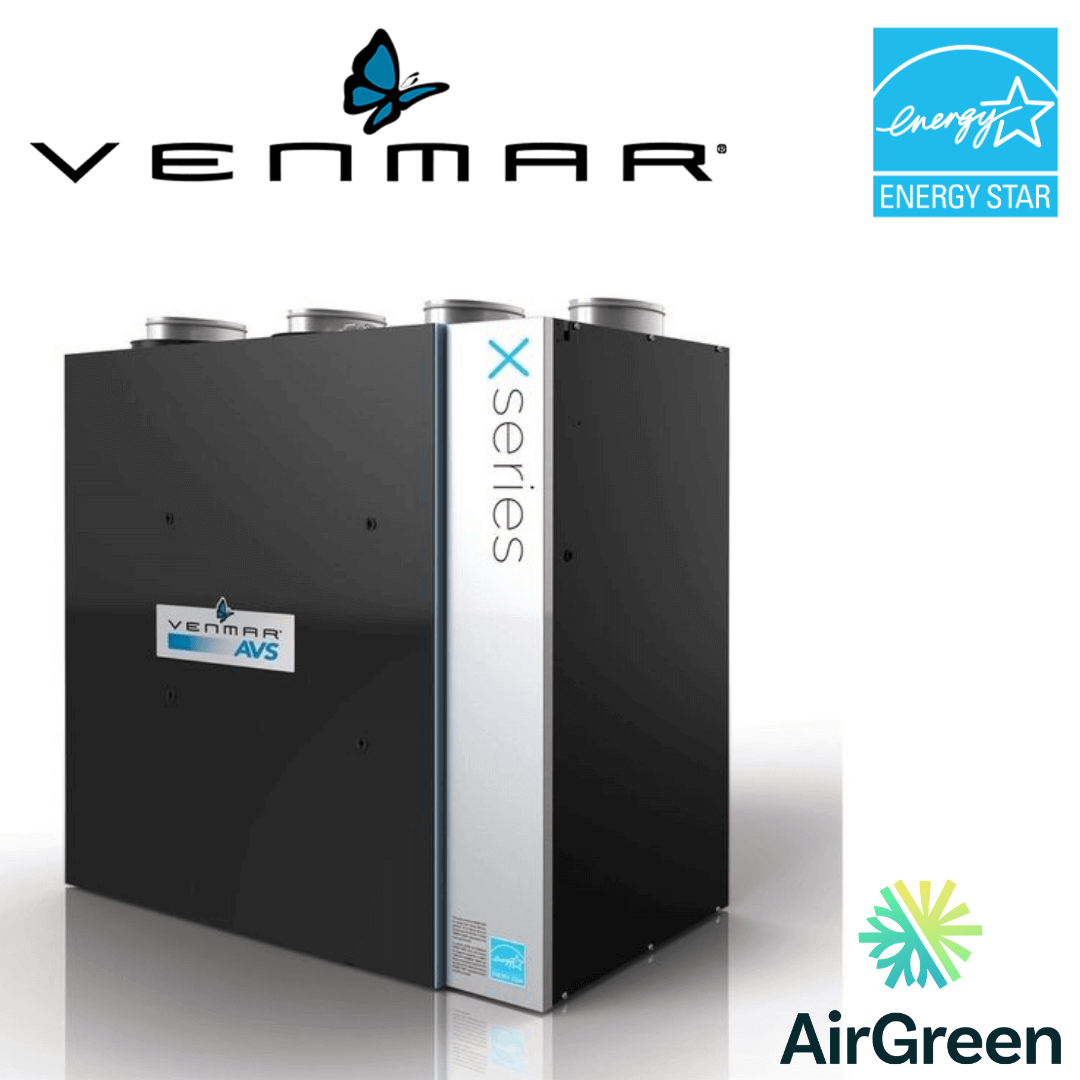

Air Exchanger VENMAR AVS® X SERIES X30ERVE Greater Montreal
Is it the right size for your home?
It delivers 244 cfm net, enough to ventilate 2,900 to 4,600 sq ft. Choose your home's living area.
It's the right size.
For a 3,200 to 5,000 sq ft home, about 215 cfm of air needs to be renewed continuously. This unit delivers 244 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$17.57
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 65% at 64 cfm.
Airflow and efficiency: manufacturer's published data. Cost: 18 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
27 inPlan 27 in of clearance in front of the door
The guide calls for 27 in of free space in front of the unit so the door can open. An 18 in clearance is acceptable, but the door must then be removed for each maintenance: plan for it in a tight mechanical room.
18–40 °CInstall in a conditioned space, 18 to 40 °C
The guide requires a conditioned space kept between 18 and 40 °C with at most 60% relative humidity. An unheated attic, garage or crawl space is therefore not suitable for this unit.
65%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 64 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
−15 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 259 to 244 cfm. Most spec sheets show only the first number, precisely because it looks better.
18 WMeasured at the airflow it actually runs at
Its 75% at 0 °C is measured at 64 cfm, the continuous airflow of a typical home. At that setting it draws 18 W, or about 158 kWh a year.
10 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site
6 in (oval) ducts, top connection. It weighs 96 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

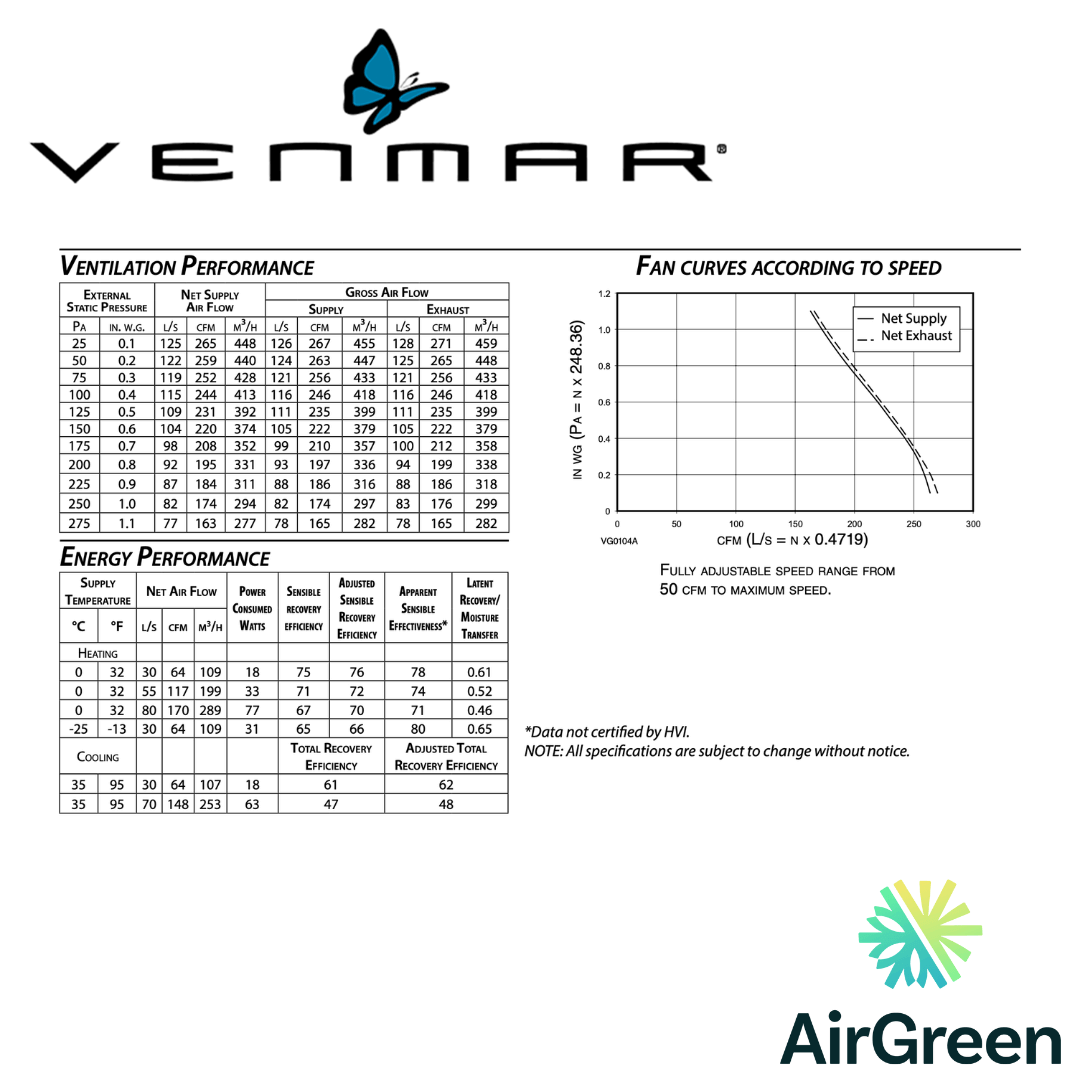

Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 259 cfm
- Net airflow at 0.4 in. w.g.
- 244 cfm
- SRE at 0 °C (64 cfm)
- 75%
- SRE at −25 °C (64 cfm)
- 65%
- ASE at 0 °C
- 78%
- Power draw
- 18 W
- Efficacy
- 3.6 cfm/W
- Type
- ERV
- Connection
- Top ports
- Duct collars
- 6 in (oval)
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- 2 washable MERV 6 filters; optional HEPA filter no. 21996
- Dimensions (L × D × H)
- 32.19 × 20.06 × 33.19 in
- Weight
- 96 lb
- Power supply
- 120 V
- Warranty — core
- 10 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Airflow and efficiency: manufacturer's published data. Annual consumption calculated at 18 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
VENMAR AVS® X SERIES™ ERV 259 CFM 75% SRE TOP PORTS X30ERVE
AirGreen, a leading HVAC company based in Montreal, takes immense pleasure in offering you the VENMAR AVS® X SERIES™ ERV 259 CFM 75% SRE TOP PORTS X30ERVE. As a respected provider of HVAC sales and installation services, we cover Greater Montreal, Laval, Longueuil, South Shore, and North Shore, offering top-tier, energy-efficient solutions to our valued customers.
In our dedication to improving the air quality and energy efficiency of your homes, we provide a selection of Venmar Air Exchangers in the Air Exchanger section of our website. The X30ERVE is one such top-of-the-range product, designed to bring a breath of fresh air into your living spaces.
The Future of Fresh Air is Here
The Venmar X30ERVE is a revolution in whole home ventilation systems, a pivotal part of today's energy-efficient homes. The newly introduced X Series is a stellar combination of prime performance and supreme energy efficiency. This results in fresher, purer air in your home at a significantly reduced overall operating cost. We call this "Pure Efficiency."
The X30ERV ECM model is specifically designed as the perfect solution for mid to large-sized homes, presenting the most energy-efficient ventilation solution. With a high-efficiency energy recovery core that provides a sensible recovery efficiency of 75% at 0°C and 65% at -25°C, this unit guarantees an impressive performance.
Superior Features of the X30ERV ECM
- Delivers up to 241 CFM at 0.4 in. w.g.
- Engineered with German-made ECM motors renowned for their quality.
- Exhibits minimal power consumption of 18W and CFM/Watt of 3.6 at 64 CFM.
- Comes with Merv 6 grade filters, and also offers optional HEPA filtration.
- Incorporates electronic balancing and doesn't require any balancing dampers.
Furthermore, a Novoclimat 2.0 compliant version of this unit is also available, showing our commitment to sustainable practices.
Unsurpassed Standards of Air Quality
Venmar AVS's X Series goes beyond industry standards, bringing together unparalleled performance and energy efficiency. Its high airflow, impressive energy recovery, low power consumption, and superior filtration combine to create an efficient and sophisticated platform.
The X30ERV ECM is the optimal solution for mid to large-sized homes seeking the most energy-efficient ventilation solution. It can also serve some light commercial applications thanks to its high fresh air supply capacity.
Easy Repairs and Maintenance
Ease of maintenance is a significant feature of the X30ERV ECM. The high output ECM motors are permanently lubricated, leading to a longer lifespan. The unit's electronic circuit board eliminates electromechanical parts, greatly reducing repair time.
Exclusive Controls
The X30ERV ECM is equipped with the exclusive X-Touch Wall Control, which is the only wall control compatible with the X Series. This unit allows for electronic balancing at installation, eliminating the need for balancing dampers.
Additional Options
For even better performance, the X30ERV ECM includes the option to use a HEPA Filter 21996. This feature offers an additional 0.3 in. w.g. static pressure at the highest speed, promising even cleaner and purer air circulation.
Warranty and Certifications
The X30ERV ECM unit is protected by a 5-year warranty on parts only, excluding the energy recovery core, which is covered by a 10-year warranty with the original proof of purchase. It complies with the CSA C22.2 no. 113 Standard applicable to ventilators and CSA F326 requirements regulating the installation of Energy Recovery Ventilators. The unit is HVI certified and ENERGY STAR® qualified, reflecting its high-quality and energy-efficient design.
