Air Exchanger VENMAR AVS® AI2 SERIES A210E75RS Greater Montreal
Is it the right size for your home?
It delivers 206 cfm net, enough to ventilate 2,400 to 3,900 sq ft. Choose your home's living area.
It's the right size.
For a 2,500 to 3,200 sq ft home, about 150 cfm of air needs to be renewed continuously. This unit delivers 206 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$27.33
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 65% at 83 cfm.
Airflow and efficiency: manufacturer's data; airflow at 0.4 in and power draw from the V210E75RS spec sheet. Cost: 28 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.

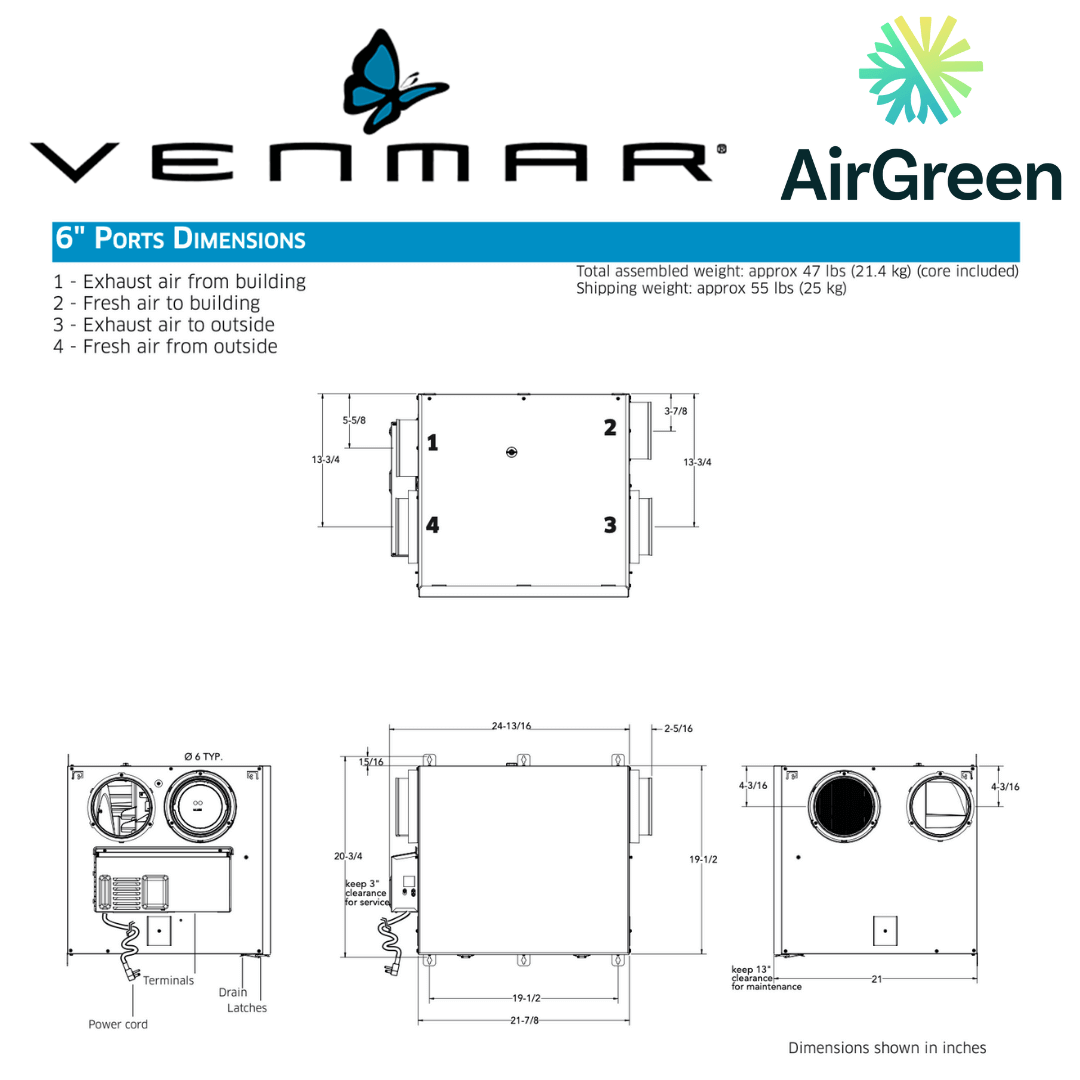

19.5 inSide ports: 19.5 in tall, 27.13 in wide
The RS version keeps the A210E75RT's published performance, but its 6 in collars exit on the side: the cabinet is 19.5 in tall and 27.13 in wide, versus 21.69 by 24.81 in for the top-port version.
8 in8 in ducts advised above 200 cfm
Venmar recommends 8 in instead of 6 in ducting when the required airflow is over 200 cfm with long runs or many elbows. 6-to-8 in transitions then go on the ports, secured with duct tape only.
65%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 83 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
−4 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 210 to 206 cfm. Most spec sheets show only the first number, precisely because it looks better.
28 WMeasured at the airflow it actually runs at
Its 81% at 0 °C is measured at 64 cfm, the continuous airflow of a typical home. At that setting it draws 28 W, or about 245 kWh a year.
5 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site
6 in ducts, side connection. It weighs 47 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.
Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 210 cfm
- Net airflow at 0.4 in. w.g.
- 206 cfm
- SRE at 0 °C (64 cfm)
- 81%
- SRE at −25 °C (83 cfm)
- 65%
- ASE at 0 °C
- 84%
- Power draw
- 28 W
- Efficacy
- 2.3 cfm/W
- Type
- ERV
- Connection
- Side ports
- Duct collars
- 6 in
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- Washable MERV 8 filter and washable exhaust filter included
- Dimensions (L × D × H)
- 27.13 × 21 × 19.5 in
- Weight
- 47 lb
- Power supply
- 120 V
- Warranty — core
- 5 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Manufacturer's published data for this model; airflow at 0.4 in and power draw from the V210E75RS spec sheet, a model with identical published ratings. Annual consumption calculated at 28 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.

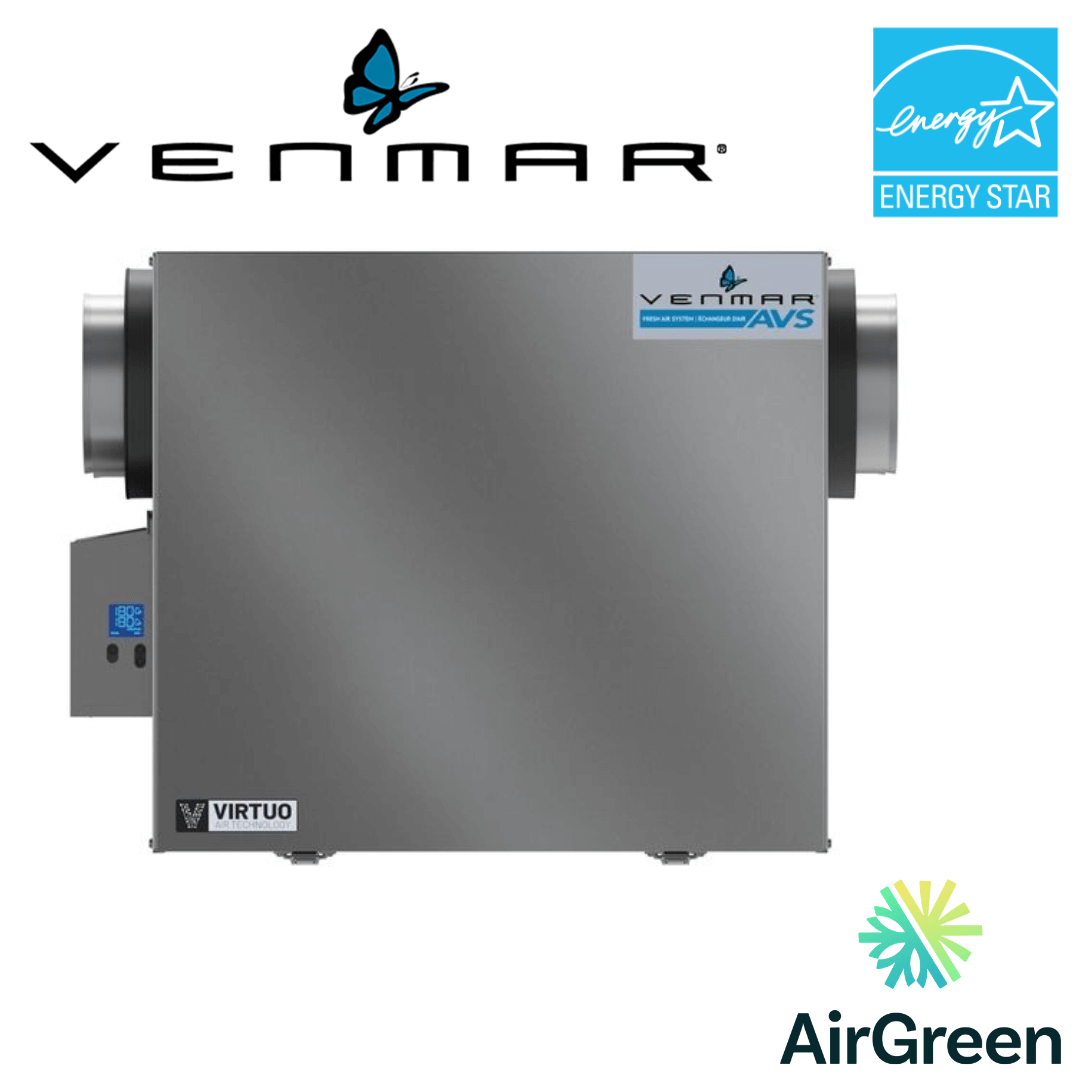

VENMAR AVS® AI2 SERIES ERV 210 CFM 78% SRE A210E75RS (side ports)
AirGreen is a leading HVAC (Heating, Ventilation, and Air Conditioning) company based in Montreal, providing top-notch HVAC sales and installation services across Greater Montreal, Laval, Longueuil, South Shore, and North Shore. As part of our commitment to enhancing air quality and comfort in your living spaces, we host an Air Exchanger section on our website, showcasing the incredible Venmar Air Exchangers. One of the stand-out products in this category is the VENMAR AVS® AI2 SERIES ERV 210 CFM 78% SRE A210E75RS (side ports).
This comprehensive and unique product description is designed to guide you through the outstanding capabilities, exceptional features, and unrivaled value this product offers in your home or business environment.
Innovative Residential Indoor Air Quality Solution
The VENMAR AVS® AI2 SERIES ERV is an impressive innovation from Venmar, a proven industry leader in residential indoor air quality. This Energy Recovery Ventilator (ERV) utilizes Venmar's cutting-edge VIRTUO™ technology, touted for enabling the easiest and quickest installation process on the market. Thanks to auto-balancing and self-adjusting features, installers can save up to 20 minutes of installation time, reducing complexity and the need for call-backs.
The system also features a built-in LCD screen that acts as a real-time diagnostic error tool, displaying airflows and power consumption. This smart technology saves contractors valuable time, making the installation process smooth and efficient.
Exceptional Performance and Consistency
This product stands out for delivering consistent results, regardless of the type of dwelling, through its effective airflow verification mechanism. The ERV's powerful, efficient, and proprietary blower fan motors, which deliver an impressive 210 CFM, make it the ideal HVAC solution for larger homes.
Enhancing Indoor Air Quality
Installing the VENMAR AVS® AI2 SERIES ERV goes beyond just adding an appliance to your home—it represents a significant enhancement in the quality of your indoor air. This ERV system ensures a constant supply of tempered, filtered outdoor fresh air while simultaneously exhausting stale, polluted air from your home. The result? An indoor environment filled with healthier, more comfortable air.
The ERV comes standard with a MERV 8 filter, designed to offer a larger capture area than many competing units on the market. It's also reusable and washable, offering savings for homeowners in the long run.
Streamlined Setup with VIRTUO™ Technology
The VIRTUO™ technology streamlines setup by managing airflow verification and balancing, eliminating a complex aspect of the installation process. This 'set it and forget it' system continuously delivers fresh, clean air.
VIRTUO™ ensures consistent results with airflow verification, auto-balancing, and self-adjustment technology, maintaining the quality initial configuration in all dwelling types.
Powerful, Reliable, and Energy-Efficient
The VENMAR AVS® AI2 SERIES ERV is equipped with powerful and energy-efficient ECM PMSM motors, capable of delivering up to 210 CFM. This proprietary design is the most reliable on the market.
It boasts superior ERV core performance and durability, reaching up to 81% SRE at 0°C at 64 CFM, and certified at 65% SRE at -25°C at 83 CFM.
Superior Air Quality and User-Friendly Controls
The unit delivers superior air quality with an included MERV 8 filter, with optional high filtration available. An integrated LCD screen simplifies the process of setting the desired CFM, displaying real-time airflows, power consumption, and acting as a diagnostic error tool.
This model is compatible with a wide range of modern, user-friendly controls to meet specific needs and different applications. It offers both top and side port configurations to accommodate different installation locations.
Certifications and Warranties
The VENMAR AVS® AI2 SERIES ERV is not only high-performing but also certified and reliable. It's ENERGY STAR® certified and has passed the Home Ventilating Institute (HVI) tests. Furthermore, it comes with a 5-year warranty on parts, and a 5-year warranty on the core or thermal wheel, giving you peace of mind for your investment.
This ERV is not only designed to improve contractors' life and profitability, but it also ensures superior and consistent air quality in your home. Thanks to the Virtuo Air Technology™, airflow calibration and auto-balancing are quickly achieved and maintained throughout the life of the product.
Select your desired CFM using the integrated LCD screen, with its built-in electronic airflow measurement device.
A Commitment to Energy Efficiency
This product has earned the ENERGY STAR® certification by meeting strict energy efficiency guidelines set by Natural Resources Canada and the US EPA. It meets ENERGY STAR requirements only when used in Canada, providing an extra level of assurance for our environmentally conscious customers.
With AirGreen and VENMAR AVS® AI2 SERIES ERV 210 CFM 78% SRE A210E75RS, embrace superior indoor air quality with the peace of mind that comes from knowing you've chosen the best in the market. We look forward to becoming your trusted partner for improving your indoor air quality, delivering a healthier, more comfortable home environment for you.
Whether you're in Greater Montreal, Laval, Longueuil, South Shore, or North Shore, trust AirGreen for all your HVAC needs. Let us breathe new life into your living spaces with top-quality air exchange solutions that prioritize your comfort and health.
