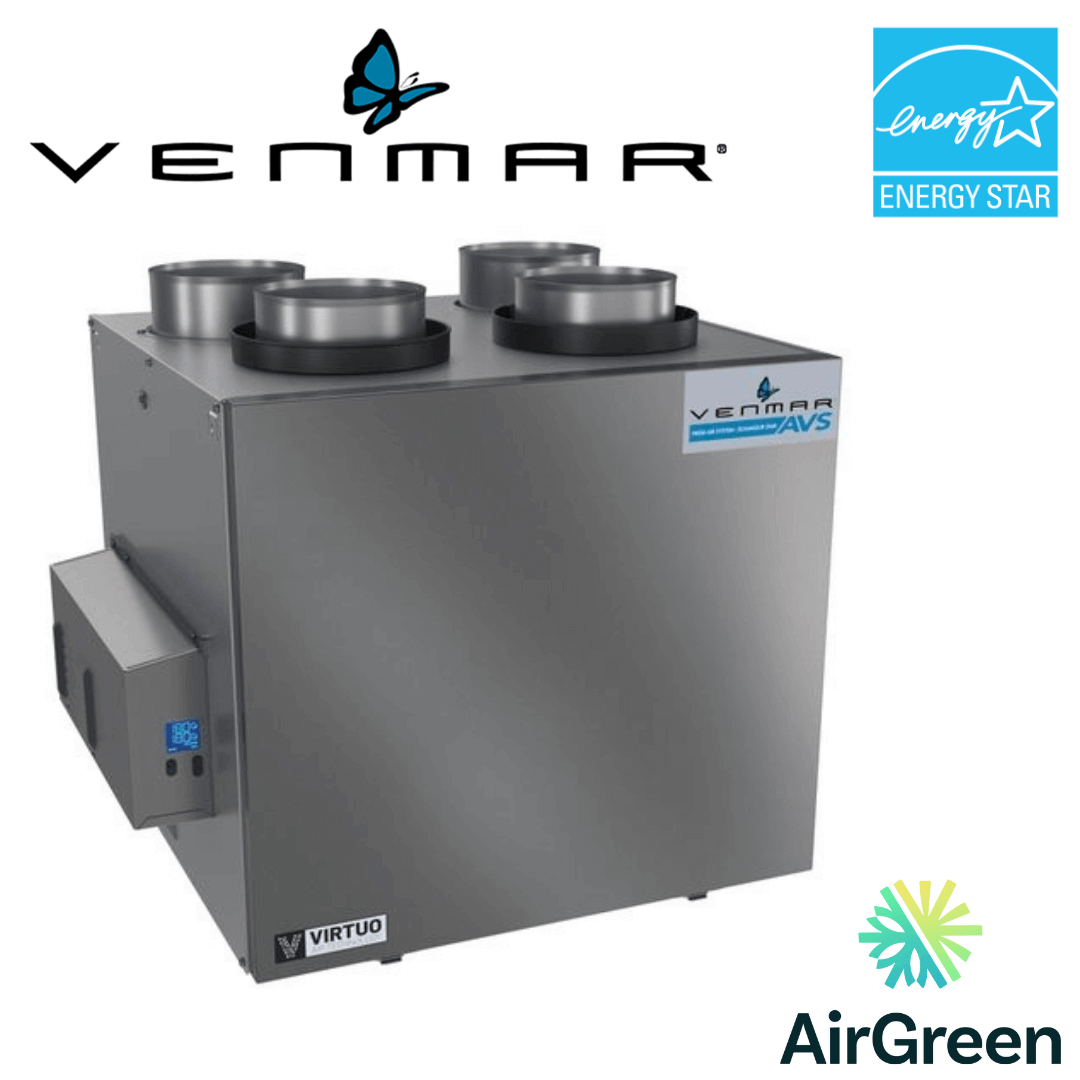

Air Exchanger VENMAR AVS® AI2 SERIES A230H75RT Greater Montreal
Is it the right size for your home?
It delivers 225 cfm net, enough to ventilate 2,600 to 4,200 sq ft. Choose your home's living area.
It's the right size.
For a 2,500 to 3,200 sq ft home, about 150 cfm of air needs to be renewed continuously. This unit delivers 225 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$24.40
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 67% at 81 cfm.
Airflow and efficiency: manufacturer's data; airflow at 0.4 in and power draw from the V230H75RT spec sheet. Cost: 25 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
8 inLong duct runs: move up to 8 in ducts
To go past 200 cfm through long runs or many elbows, the guide recommends 8 in instead of 6 in ducting, with 6-to-8 in transitions on the ports, to keep static pressure down.
3 inFan-cooled electronics, 3 in clearance on that side
A fan in the electrical box of the 210 and 230 cfm models can start when it is over 40 °C near the unit. The guide also asks for 3 in of clearance on the electrical box side for cooling and servicing.
67%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 81 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
HRVIt recovers heat, not moisture
Excess moisture leaves the house. In Québec, that's the right choice in most cases: in winter, the problem is almost always too much humidity, not too little.
−6 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 231 to 225 cfm. Most spec sheets show only the first number, precisely because it looks better.
25 WMeasured at the airflow it actually runs at
Its 78% at 0 °C is measured at 66 cfm, the continuous airflow of a typical home. At that setting it draws 25 W, or about 219 kWh a year.
10 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site
6 in ducts, top connection and a condensate drain. It weighs 47 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.
Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 231 cfm
- Net airflow at 0.4 in. w.g.
- 225 cfm
- SRE at 0 °C (66 cfm)
- 78%
- SRE at −25 °C (81 cfm)
- 67%
- ASE at 0 °C
- 82%
- Power draw
- 25 W
- Efficacy
- 2.6 cfm/W
- Type
- HRV
- Connection
- Top ports
- Duct collars
- 6 in
- Condensate drain
- Required
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- Washable MERV 8 filter and washable exhaust filter included

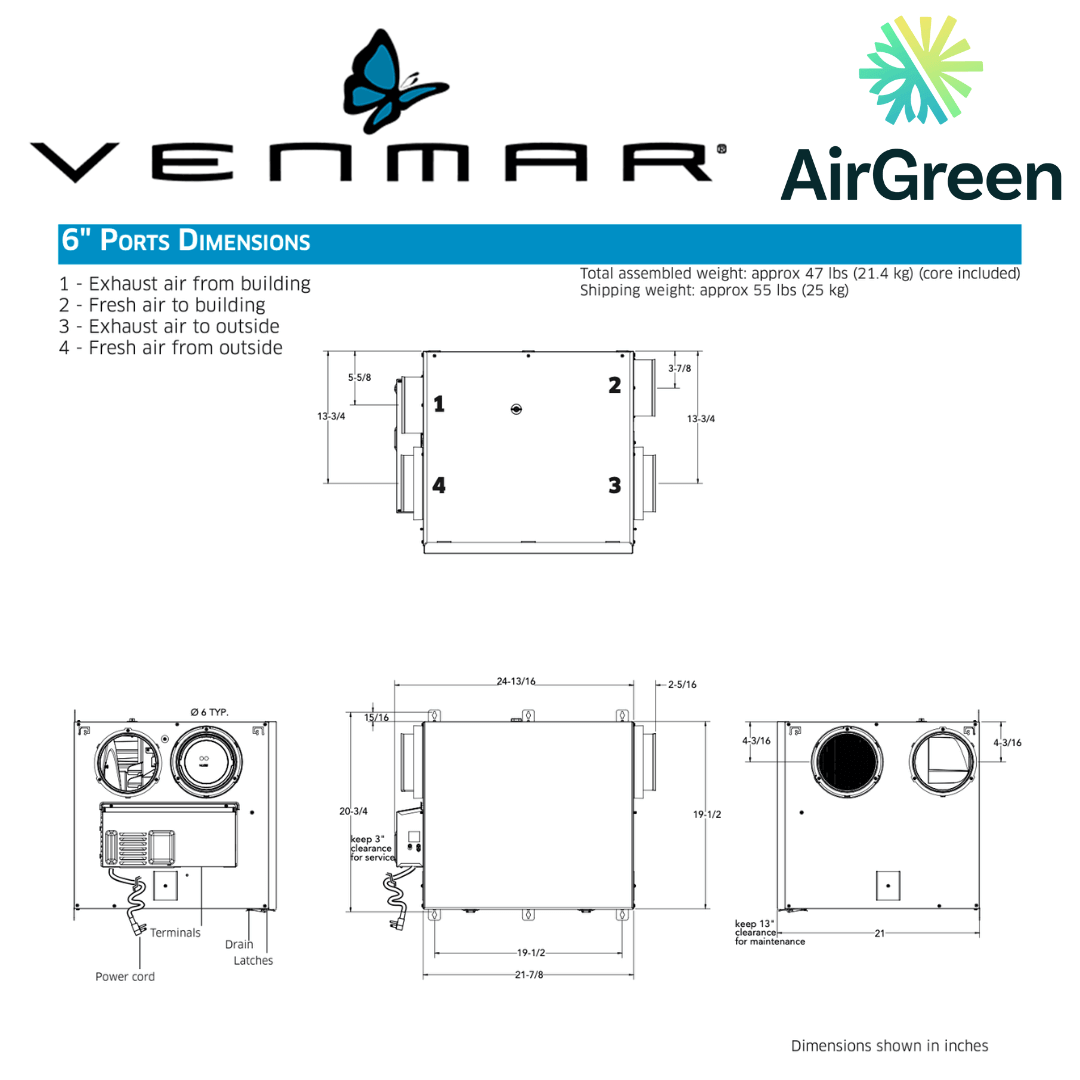

- Dimensions (L × D × H)
- 24.81 × 21 × 21.69 in
- Weight
- 47 lb
- Power supply
- 120 V
- Warranty — core
- 10 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Manufacturer's published data for this model; airflow at 0.4 in and power draw from the V230H75RT spec sheet, a model with identical published ratings. Annual consumption calculated at 25 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
VENMAR AVS® AI2 SERIES ERV 230 CFM 78% SRE A230H75RT
Introducing the VENMAR AVS® AI2 SERIES ERV 230 CFM 78% SRE A230H75RT, offered by AirGreen, your trusted HVAC provider in Montreal and across the Greater Montreal, Laval, Longueuil, South Shore and North Shore. At AirGreen, we are dedicated to improving indoor air quality for our customers. Our wide array of products, including the Heat Recovery Ventilator (HRV) from Venmar, are meticulously chosen for their high efficiency, reliable performance and advanced technology.
Unparalleled Indoor Air Quality Solution
VENMAR AVS® AI2 SERIES ERV is a pinnacle of advancement in residential indoor air quality. This Heat Recovery Ventilator (HRV) is outfitted with VIRTUO™ technology, the easiest installation solution in the market. It brings down the installation time significantly, saving up to 20 minutes, due to its auto-balancing and self-adjusting technology. The LCD screen displays real-time airflows, power consumption and acts as a diagnostic error tool. This feature not only simplifies the complex part of installation, but it also significantly reduces the number of call-backs, making it a time-saving solution for the contractor.
Consistent and Powerful Performance
This HRV provides consistent performance with its efficient and effective airflow verification mechanism, making it a reliable solution in the market regardless of dwelling type. It delivers 230 CFM, powered by our proprietary, efficient, and potent blower fan motors, making it an optimal solution for larger homes.
Improved Indoor Air Quality with HRV
By installing a Heat Recovery Ventilator (HRV), you can significantly improve the indoor air quality of your home. It supplies tempered, filtered outdoor fresh air, while expelling the stale and polluted indoor air from your home. This exchange results in healthier, fresher and more comfortable air within your home. The standard MERV 8 filter, with a more significant capture area than units in the market, provides superior filtration. It is reusable and washable, saving the homeowner money in the long run.
Quick and Hassle-free Setup with VIRTUO™ Technology
The VIRTUO™ technology enables quick setup by handling the airflow verification and balancing. This feature effectively eradicates a complex part of the installation process, making the setup a breeze. The auto-balancing and self-adjustment technology maintains the initial quality configuration in all dwelling types, delivering consistent results.
Powerful, Reliable and Energy-Efficient HRV
This HRV model comes with ECM PMSM motors, offering efficient operation with a powerful delivery of up to 231 CFM. It delivers superior HRV core performance and durability, achieving up to 78% SRE at 0°C at 66 CFM and is certified at 67% SRE at -25°C at 81 CFM.
Superior Air Quality and User-friendly Controls
Our HRV offers superior air quality with an included MERV 8 filter and optional high filtration. The integrated LCD screen simplifies the process of setting the desired CFM, displaying real-time airflows, power consumption, and acting as a diagnostic error tool. This unit is compatible with a variety of modern and user-friendly controls to cater to specific needs and different applications. It provides top & side port configurations to accommodate different installation locations.
Certifications and Warranties
Our VENMAR AVS® AI2 SERIES ERV is not only high-performing but also reliable and certified. It has ENERGY STAR® certification and has undergone rigorous testing from the Home Ventilating Institute (HVI). Moreover, it comes with a 5-year warranty on parts and a 10-year warranty on core or thermal wheel, offering peace of mind for your investment.
Energy Efficiency Commitment
This product earned the ENERGY STAR® by meeting strict energy efficiency guidelines set by Natural Resources Canada and the US EPA. This product meets ENERGY STAR requirements only when used in Canada, providing an extra assurance for our environmentally conscious customers.
Embrace superior indoor air quality with the peace of mind that you've chosen the best on the market with AirGreen and the VENMAR AVS® AI2 SERIES ERV 230 CFM 78% SRE A230H75RT. We look forward to becoming your trusted partner in improving indoor air quality, offering a healthier and more comfortable living environment for you.
Whether you're in Greater Montreal, Laval, Longueuil, South Shore, or North Shore, trust AirGreen for all your HVAC needs. Let us breathe new life into your living spaces with high-quality air exchange solutions that prioritize your comfort and health.
