Air Exchanger VENMAR AVS® X SERIES X24HRVE Greater Montreal
Is it the right size for your home?
It delivers 227 cfm net, enough to ventilate 2,700 to 4,300 sq ft. Choose your home's living area.
It's the right size.
For a 3,200 to 5,000 sq ft home, about 215 cfm of air needs to be renewed continuously. This unit delivers 227 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$18.54
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 70% at 64 cfm.
Airflow and efficiency at 0 °C and −25 °C: HVI directory, Section III. Cost: 19 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
X-TouchElectronic balancing through the X-Touch control
No balancing dampers to set: the installer balances the airflows with the X-Touch, the only wall control compatible with the X Series. The adjusted values stay in memory even after a power failure.
HEPAOptional HEPA filter (no. 21996)
Besides the two washable MERV 6 filters, a HEPA filter can be installed for finer filtration. Allow an extra 0.3 in of static pressure at top speed when designing the ducts.
70%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 64 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
HRVIt recovers heat, not moisture
Excess moisture leaves the house. In Québec, that's the right choice in most cases: in winter, the problem is almost always too much humidity, not too little.
2505118Its HVI certification number
Listed in Section III of the Home Ventilating Institute's certified products directory. Anyone can check it, and it's the first condition for the Rénoclimat grant.
−19 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 246 to 227 cfm. Most spec sheets show only the first number, precisely because it looks better.
19 WMeasured at the airflow it actually runs at
Its 81% at 0 °C is certified at 64 cfm, the continuous airflow of a typical home. At that setting it draws 19 W, or about 166 kWh a year.
LifetimeThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site
6 in (oval) ducts, top connection and a condensate drain. It weighs 94 lb, and it needs enough clearance to slide the core out once a year.
Rénoclimat: $500 to install or replace an HRV or ERV
First condition met: HVI Section III certified, No. 2505118. Second: your EnerGuide rating must improve between the two evaluations. Québec warns that an air exchanger installed on its own can increase a home's energy use; that's why we balance it to the calculated airflow rather than running it at full speed.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

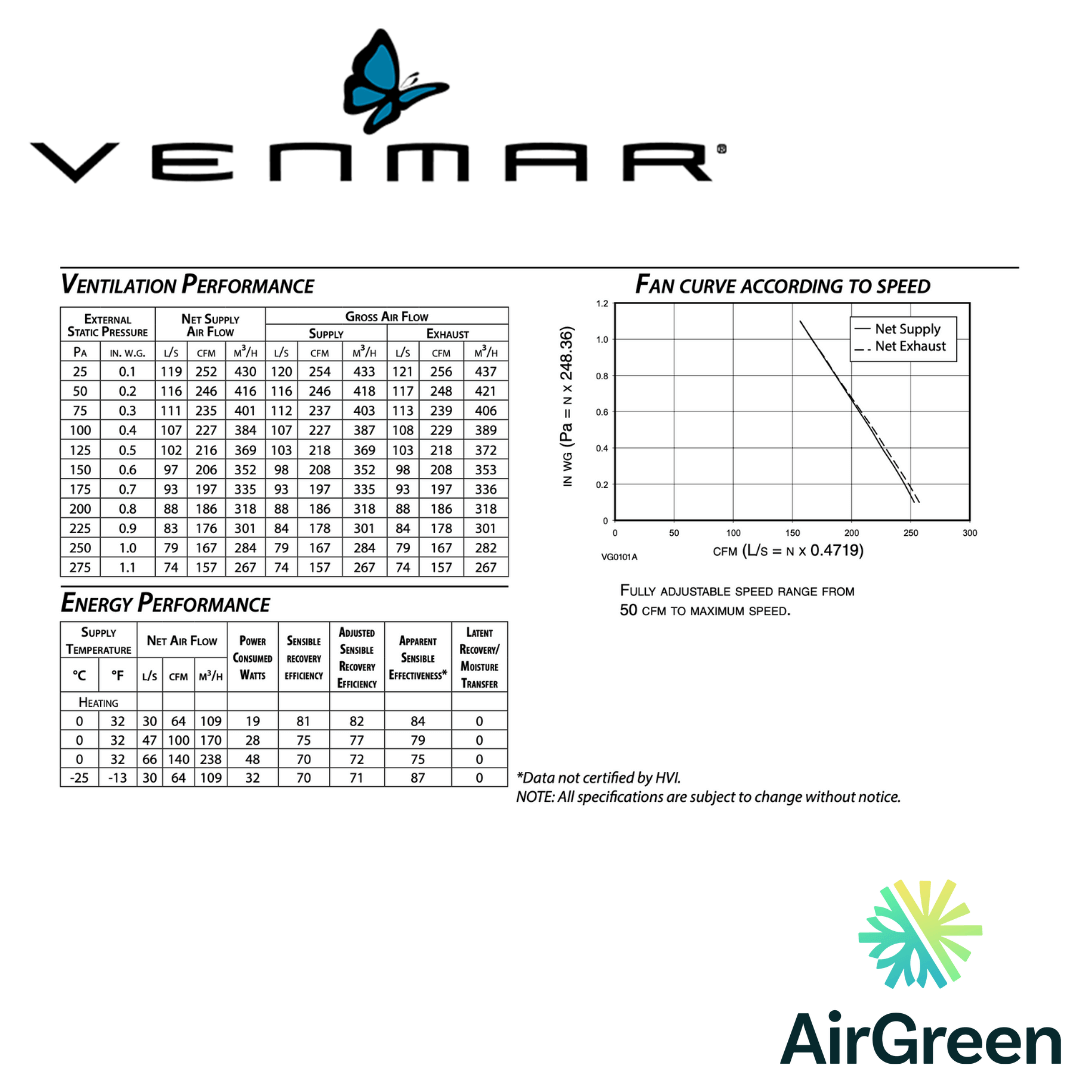

Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 246 cfm
- Net airflow at 0.4 in. w.g.
- 227 cfm
- SRE at 0 °C (64 cfm)
- 81%
- SRE at −25 °C (64 cfm)
- 70%
- ASE at 0 °C
- 84%
- Power draw
- 19 W
- Efficacy
- 3.3 cfm/W
- Type
- HRV
- Connection
- Top ports
- Duct collars
- 6 in (oval)
- Condensate drain
- Required
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- 2 washable MERV 6 filters; optional HEPA filter no. 21996
- Dimensions (L × D × H)
- 32.19 × 20.06 × 33.19 in
- Weight
- 94 lb
- Power supply
- 120 V
- HVI certification (Section III)
- 2505118
- Warranty — core
- Lifetime
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Net airflow, efficiency at 0 °C and −25 °C, and power draw: Home Ventilating Institute certified products directory, Section III (HVID 2505118). Annual consumption calculated at 19 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.

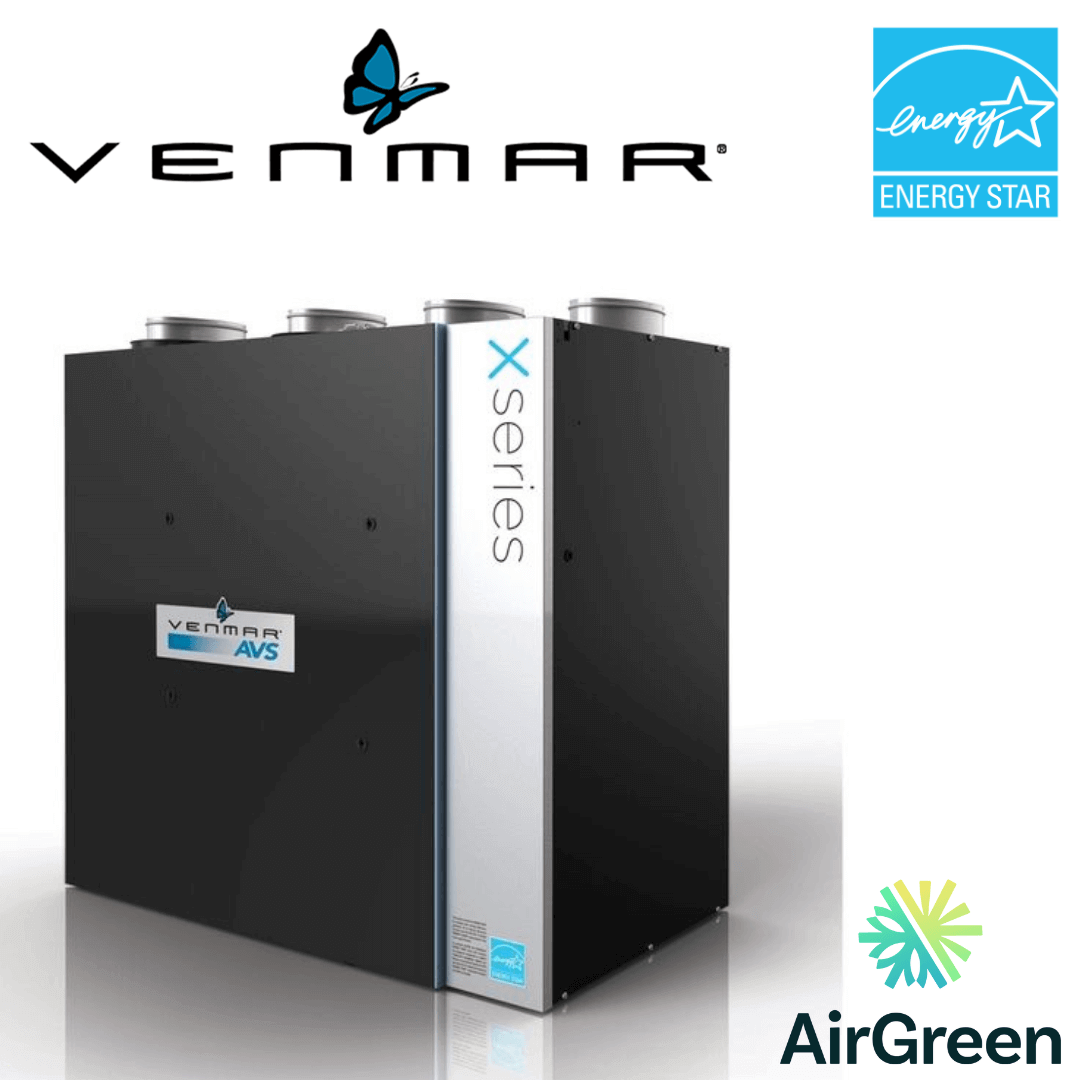

VENMAR AVS® X SERIES™ HRV 246 CFM 81% SRE TOP PORTS X24HRVE: The Future of Fresh Air
Welcome to AirGreen, your premier HVAC solution provider in Montreal. Offering sales and installation services for HVAC all over Greater Montreal, Laval, Longueuil, South Shore, and North Shore, our company is committed to providing you with top-of-the-line products and services. One such solution is housed within our Air Exchanger section, where we proudly showcase our Venmar Air Exchangers. Today, we'd like to introduce you to the VENMAR AVS® X SERIES™ HRV 246 CFM 81% SRE TOP PORTS X24HRVE.
Whole home ventilation systems are a cornerstone of today's energy-efficient homes, and the VENMAR AVS® X SERIES™ HRV X24HRVE takes that concept to the next level. This unit embodies the future of fresh air, combining the best performance with the best energy efficiency to provide the freshest, purest air in your home at a lower overall operating cost. In short, this unit defines Pure Efficiency.
Design and Performance
Perfect for mid to large-sized homes, the X24HRV ECM model is designed for those seeking the most energy-efficient ventilation solution. With the ability to provide up to 226 CFM at 0.4 in. w.g., this unit makes no compromises in delivering powerful ventilation. Its high-efficiency heat recovery core boasts a sensible recovery efficiency of 81% at 0°C and 73% at -25°C.
The X24HRV ECM model uses German-made ECM motors, recognized globally for their exceptional quality and performance. Furthermore, this unit's minimal power consumption of 19W and CFM/Watt of 3.4 at 64 CFM showcase its superior energy efficiency.
Exceptional Filtration
The X24HRV ECM model doesn’t just exchange air, it purifies it. Equipped with Merv 6 grade filters, this unit ensures the air in your home is clean and healthy. For those desiring an even higher level of filtration, optional HEPA filtration is available.
Balancing and Maintenance
One of the standout features of the X24HRV ECM model is its electronic balancing, which means there are no balancing dampers. Balancing is performed with the help of the X-Touch wall control, resulting in a streamlined, more efficient process.
Maintenance is also a breeze with this model. The X24HRV ECM high output ECM motors are permanently lubricated, ensuring a long life of service. Additionally, the unit’s electronic circuit board eliminates electromechanical parts, reducing repair time to a minimum.
Warranty
The X24HRV ECM model is covered by a 5-year warranty on parts and a limited lifetime warranty on the heat recovery core, giving you peace of mind with your purchase. Proof of purchase is required.
Advanced Controls
To make operation as simple and efficient as possible, the X24HRV ECM model comes with an exclusive X-Touch wall control. This unit is the only one compatible with the X Series and offers electronic balancing.
Added Options
Beyond its primary features, the X24HRV ECM model has added options to enhance its performance and adapt to your needs. Notably, there's the optional HEPA Filter 21996, which provides an additional layer of filtration for the purest air possible. Please note that there is an additional 0.3 in. w.g. static pressure at the highest speed to be considered. More details can be found in the HEPA filter instructions.
Compliance with Standards
The X24HRV ECM model complies with the CSA C22.2 no. 113 Standard applicable to ventilators and CSA F326 requirements regulating the installation of Heat Recovery Ventilators. Its technical data was obtained from published results of tests relating to CSA C439 Standards, and it's HVI certified and ENERGY STAR® qualified.
