MIDEA ATOM X Electric Furnace | 2 Tons

• Warranty (Compressor - Parts - Labor): Possible
• Additional Warranty (10-10-10): Possible
• Voltage: 220V
• Gas (Freon): R-454B
• Piping: 3/8 - 5/8

The new benchmark for residential and commercial comfort in Quebec

At AirGreen , we believe that indoor comfort should never depend on the outside temperature. With the MIDEA ATOM X | 2 Ton Electric Furnace , it is now possible to enjoy consistent, even, and energy-efficient heat even when the thermometer dips well below zero. This next-generation model is part of the MIDEA ATOM X Mini VRF range, a revolutionary system that combines the precision of individual control with the performance of a complete central heating system.

Designed to work in synergy with the MIDEA MDV-V24WMN10T central heat pump , this 2-ton furnace offers a perfect balance of power, efficiency and adaptability. It is aimed at residential owners concerned about the quality of their comfort as well as commercial property managers looking for a durable, quiet and high-performance solution.

The power of Mini VRF technology: tailor-made comfort

The Mini VRF (Variable Refrigerant Flow) inverter technology that powers the ATOM X series represents a major advancement in heating and cooling. Unlike conventional fixed-flow systems, the Mini VRF automatically adjusts the amount of refrigerant circulating in the network, optimizing the performance of each indoor unit.

This intelligent approach allows:

• Exceptional energy efficiency , with a SEER2 of up to 18.5 and an HSPF2 of 9.2 , far exceeding ENERGY STAR standards.

• Heating guaranteed down to –30°C , even in the middle of a Quebec winter.

• Stable and quiet operation , without sudden temperature variations or annoying blower noise.

• Increased reliability , thanks to a high-efficiency dual rotary compressor that continuously adjusts its speed according to actual demand.

The system is Cold Climate V6.1 certified, confirming its ability to maintain its full heating capacity at –20°C . This is a considerable asset in a region where winters can last more than five months a year.

A smart electric furnace that adapts to all configurations

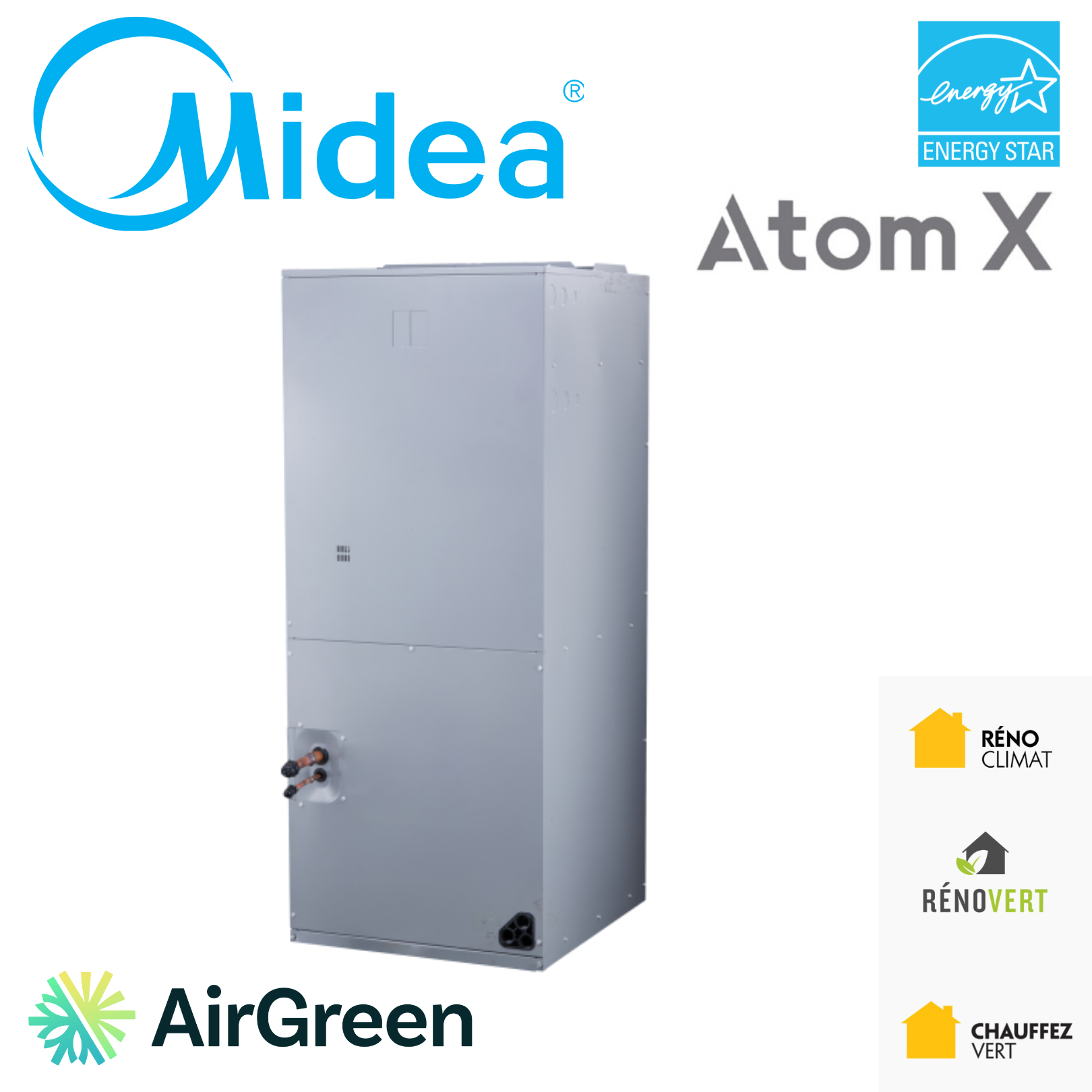

The MIH24VMN10 Electric Furnace – the central element of this 2-ton configuration – was designed to blend harmoniously into different environments, whether it be a single-family home, a duplex, a condo or a commercial premises.

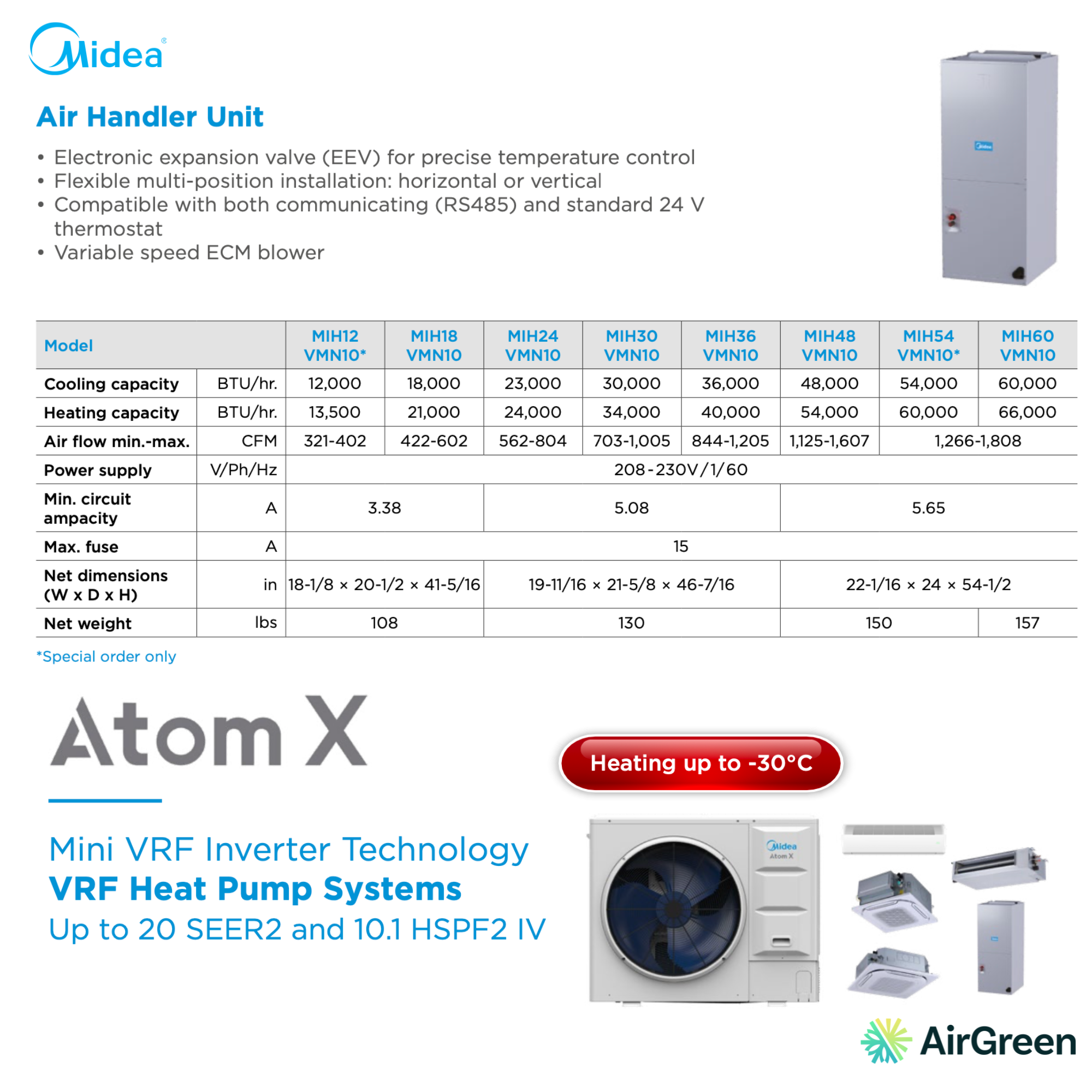

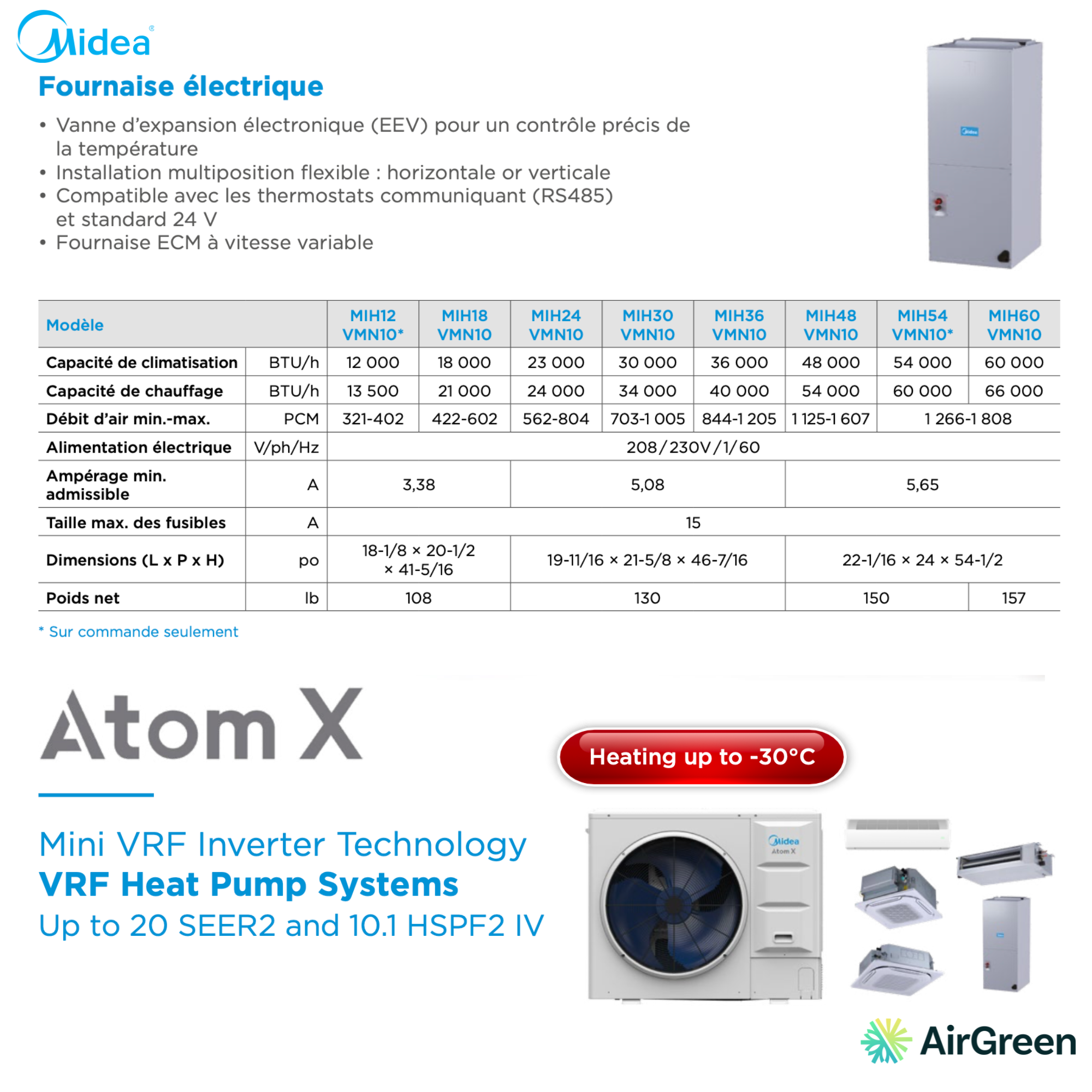

Key specifications

• Heating capacity: 24,000 BTU/h

• Air conditioning capacity: 23,000 BTU/h

• Power supply: 208–230 V / 1 phase / 60 Hz

• Airflow: 562 to 804 CFM

• Motor Type: Variable Speed ​​ECM (Energy Saving and Noise Reduction)

• Compatibility: RS485 smart thermostats and standard 24V controls

• Installation: horizontal or vertical, depending on the space available

The variable-speed ECM motor automatically adjusts fan speed to maintain a constant temperature without excessive power consumption. The result is stable comfort, improved indoor air quality , and significant energy savings.

A modular design: total flexibility and absolute precision

The MIDEA ATOM X system is distinguished by its exceptional modularity . A single outdoor unit can power multiple indoor units – wall-mounted, cassette, ducted or furnace – allowing comfort to be tailored room by room.

Each zone can be controlled independently, allowing you to reduce consumption in unoccupied rooms while maintaining optimal comfort in the main spaces. This flexibility is ideal for multi-zone residences, duplexes, retail stores, offices, or small multi-story buildings.

Installation is simplified thanks to flexible communication cabling , a maximum distance of 2,000 meters between units, and automatic charging of R-454B refrigerant , which eliminates human error during commissioning.

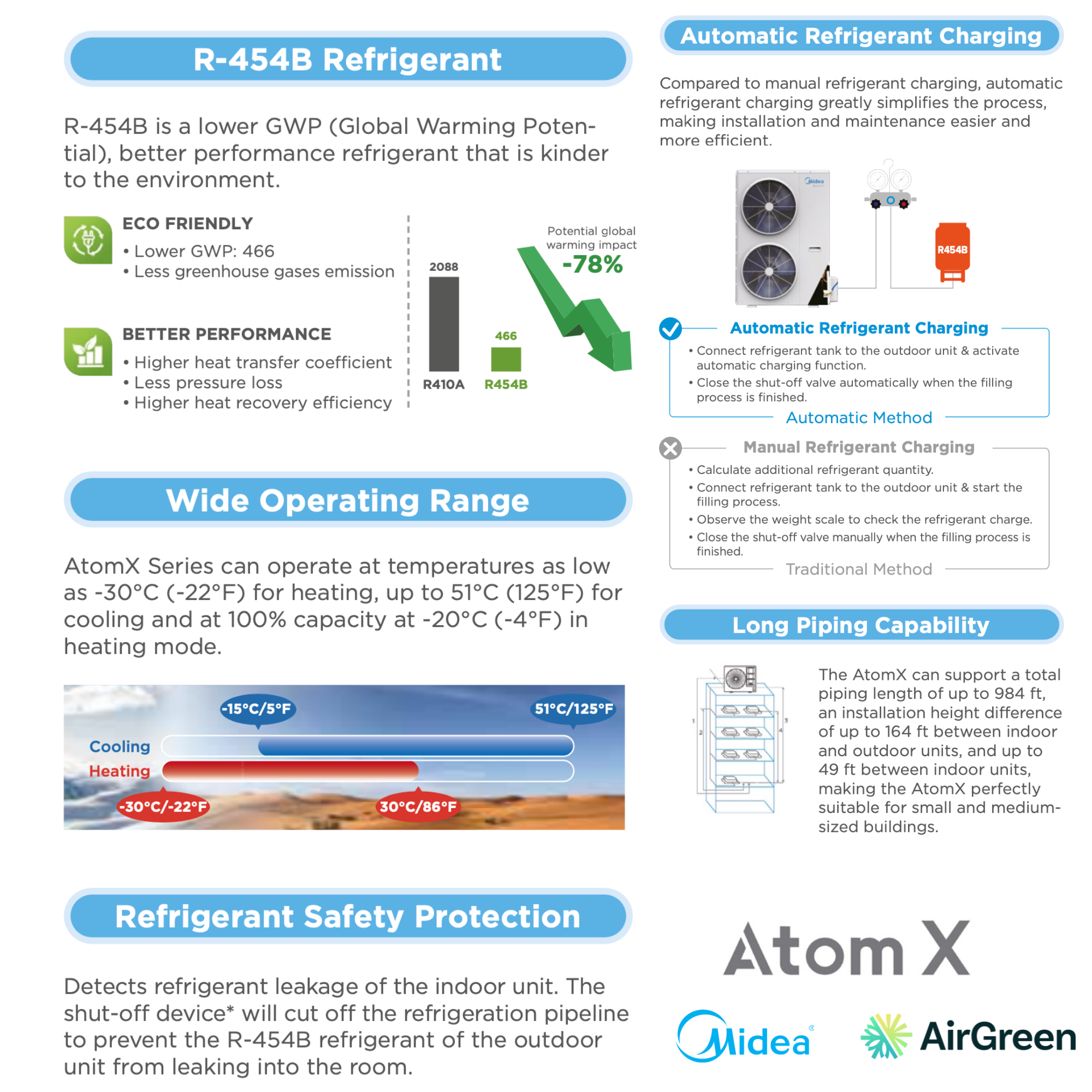

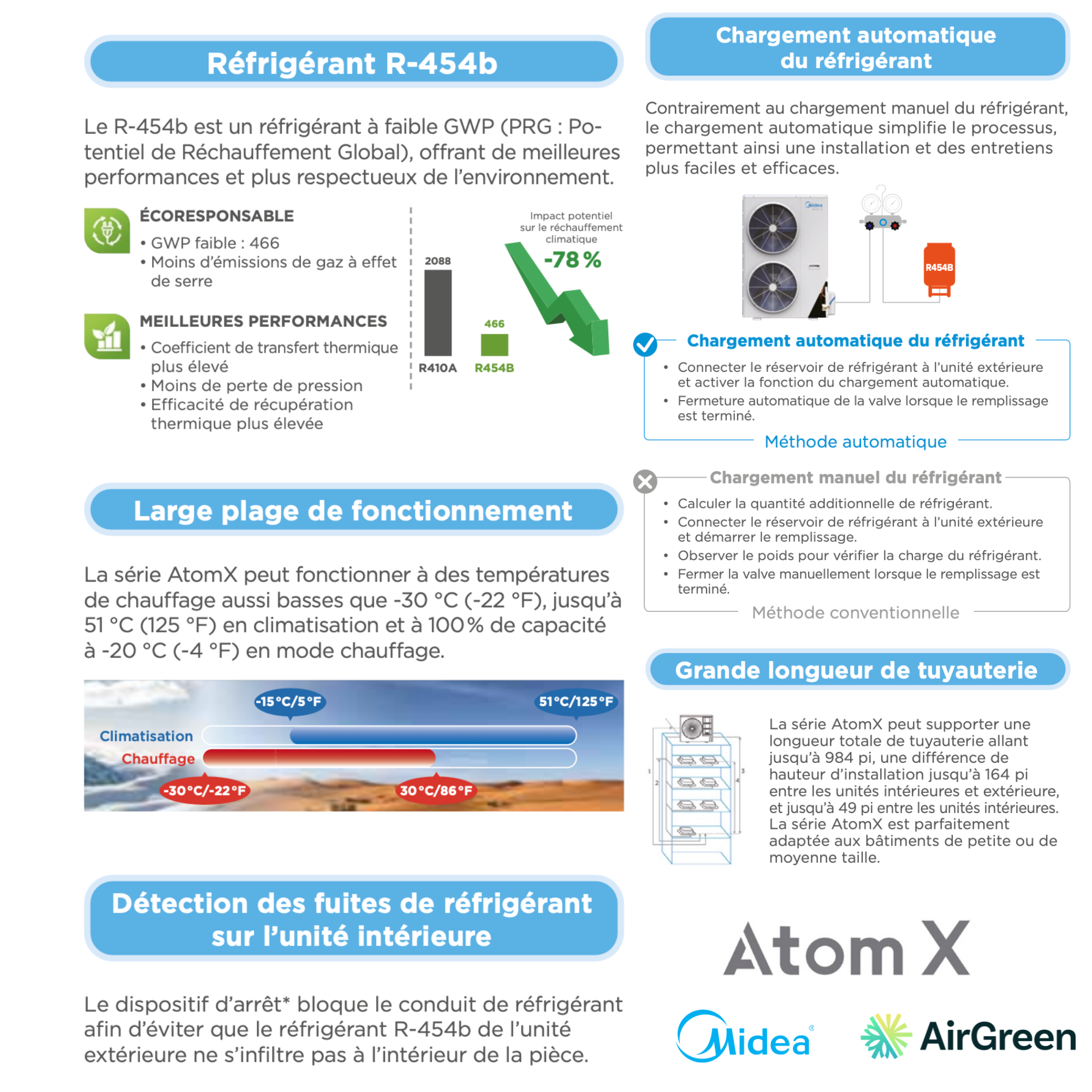

R-454B refrigerant is a new generation gas with low global warming potential (GWP 466), which is 78% less climate impact than R-410A. In addition to being more environmentally friendly, it offers more efficient heat transfer and better thermal stability , which improves overall system performance.

Impressive performance, summer and winter

The ATOM X series is not just a winter product: it also offers efficient air conditioning up to +51 °C , ensuring constant freshness during heat waves. Its EER2 of 11.7 demonstrates an excellent power-to-consumption ratio.

The robust design of the system allows:

• A total pipe length of up to 984 feet .

• An installation height difference of up to 164 feet between indoor and outdoor units.

• Intelligent communication between units for centralized or individual control.

These features make the MIDEA ATOM X an ideal solution for high-end residential projects, local businesses, or small condominiums requiring stable comfort in several distinct zones.

Intuitive control and smart connectivity

For a complete user experience, MIDEA offers several control options:

• The WDC3-120T2 wired control , which allows you to control up to 16 indoor units from a single point.

• The RM23A remote control , simple and ergonomic, offers the essential functions: Auto, Night, Silent, Turbo mode, programmable timer, parental lock, and “Follow Me” function.

• SmartHome connectivity , allowing you to manage the system remotely from a smartphone or tablet, wherever you are.

These options ensure precise comfort control , better energy management , and a modern and intuitive user experience .

Certified warranty and reliability

All MIDEA ATOM X series products are AHRI and ENERGY STAR Cold Climate certified , attesting to their real-world performance in northern conditions.
MIDEA manufacturing quality is backed by a 10-year residential warranty on parts, compressor and labor (offered exclusively in Quebec by Descair ) as well as a 10-year commercial warranty on parts and compressor .

This comprehensive coverage reflects the confidence we place in the reliability of our systems and their long-term durability.

Why trust AirGreen

By choosing AirGreen, you benefit from the expertise of a Quebec company certified RBQ (license 5645-9605-01) , specialized in the design, installation and maintenance of high-efficiency HVAC systems. We operate throughout Greater Montreal: Montreal, Laval, Longueuil, the North Shore and the South Shore .

Our commitments are simple and transparent:

• 100% free on-site estimate , no obligation.

• No deposit required — you only pay once the work is completed and approved.

• Fair and clear prices , no hidden costs.

• Certified and experienced refrigeration technicians , trained in the latest VRF and Inverter technologies.

• Fast and courteous after-sales service , available all year round.

Thanks to our experience, we know how to recognize the precise needs of each client and offer the configuration best suited to their building, their lifestyle and their budget.

An energy-efficient and responsible choice

The MIDEA ATOM X 2 Tonnes represents the future of heating and air conditioning: a system that is efficient, environmentally friendly and economically advantageous .

Thanks to its variable-speed motor and low-GWP refrigerant, this model not only reduces your carbon footprint, but also your long-term operating costs. It's a solution that's fully in line with Quebec's energy transition, supported by subsidy programs like LogisVert (up to $2,160 in financial assistance for this model).

The electric furnace of the future, today

The MIDEA ATOM X | 2 Ton Electric Furnace is not just a heating appliance: it is an integrated system of comfort, efficiency and innovation .
It combines the best of VRF technology with a design designed for the climatic realities of Quebec. Durable, quiet and intelligent, it is the essential choice for anyone who wants to optimize their comfort while reducing their energy bill .
