MIDEA ATOM X Electric Furnace | 5 Tons

• Warranty (Compressor - Parts - Labor): Possible
• Additional Warranty (10-10-10): Possible
• Voltage: 220V
• Gas (Freon): R-454B
• Piping: 3/8 - 3/4

The thermal comfort revolution: power, reliability and performance by MIDEA

At AirGreen , we believe that the comfort of your home or business should never depend on the whims of Quebec's climate. That's why we chose to offer the MIDEA ATOM X | 5 Ton Electric Furnace , a next-generation HVAC solution designed to meet the energy, ecological and comfort needs of today's families and businesses.

This high-end model combines Mini VRF Inverter technology with precision engineering , capable of providing stable heating even in extreme cold down to -30°C . In summer, the same unit provides constant and gentle air conditioning, even during heat waves of 51°C . It is a true technological feat designed for Montreal winters, Laval's shoulder seasons, or even the hot summers of the South Shore.

Intelligent design adapted to the Quebec climate

Mini VRF technology: intelligent and flexible comfort management

The Midea Atom X series represents a major advancement in the world of heating and cooling. Thanks to its Inverter Mini VRF (Variable Refrigerant Flow) technology, the furnace can power multiple indoor units —whether wall-mounted, cassette, ducted, or electric—while providing precise, individual temperature control in each zone.

This means a house, duplex, or commercial building can benefit from perfectly balanced multi-zone comfort , with stable and consistent temperatures in every room. No more fluctuations between floors, overheating in the living room, or overly cold bedrooms in the basement.

Each indoor unit communicates intelligently with the main system to adjust power, reducing power consumption and extending compressor life.

Certified and measurable performance

Exemplary energy efficiency

The MIDEA ATOM X 5 Ton Electric Furnace displays performance values ​​that place it among the best in its category:

• SEER2 (air conditioning efficiency): 20.0

• HSPF2 (heating efficiency): 10.1

• EER2 (instantaneous efficiency): 9.5

These figures reflect exceptional energy efficiency. The result: a lower electricity bill, quieter operation, and a minimal environmental footprint. ENERGY STAR Cold Climate certification confirms that this system is designed to operate efficiently even in northern climates.

Guaranteed heating down to –30°C

Thanks to its high-efficiency dual rotary compressor, the MIDEA ATOM X maintains full power down to –20°C , and continues to provide stable heating down to –30°C . This ensures consistent comfort, even during the harshest Montreal winters. In contrast, the system supports air conditioning temperatures of up to 51°C , an extremely wide operating range that makes it ideal for year-round use.

Sustainable, eco-responsible and silent engineering

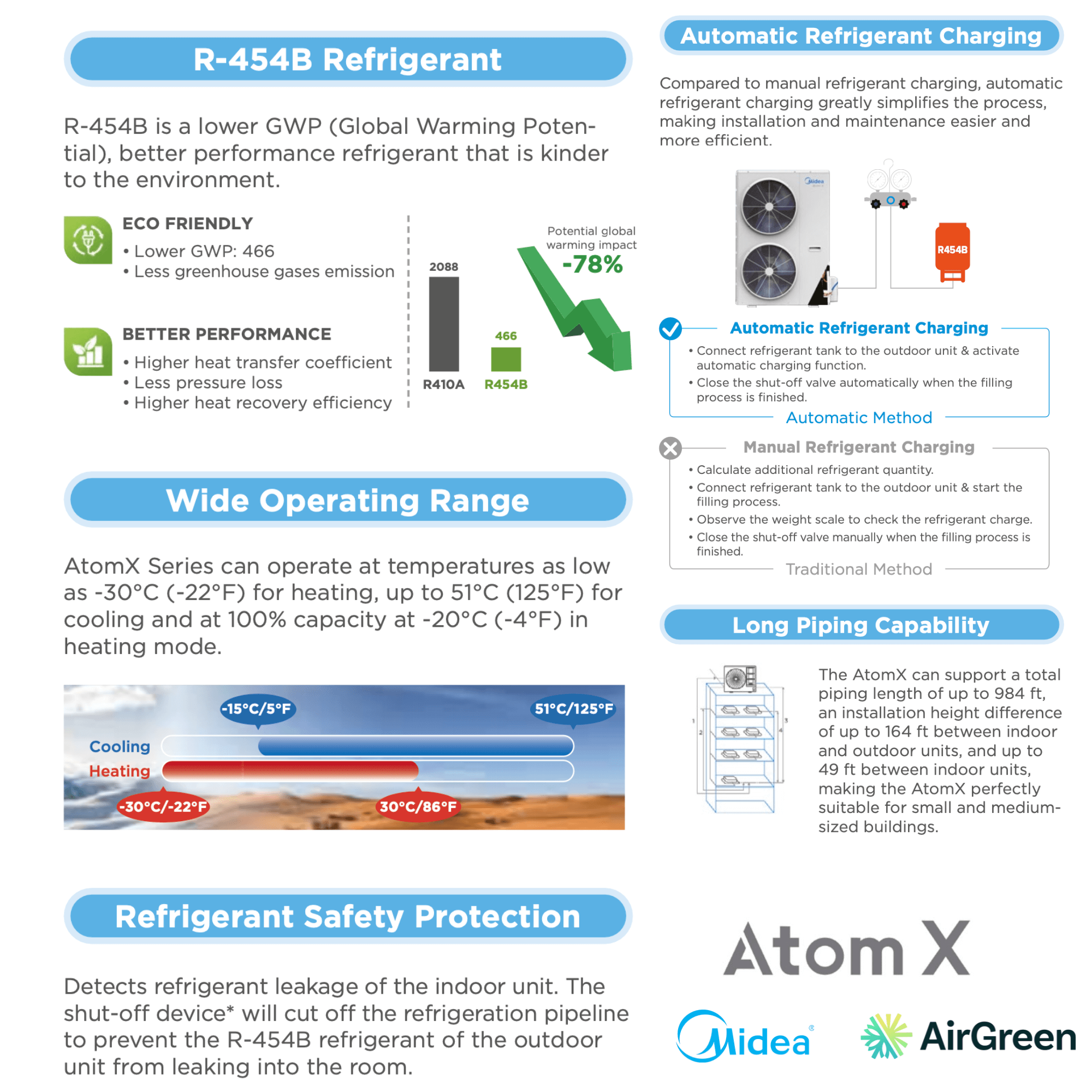

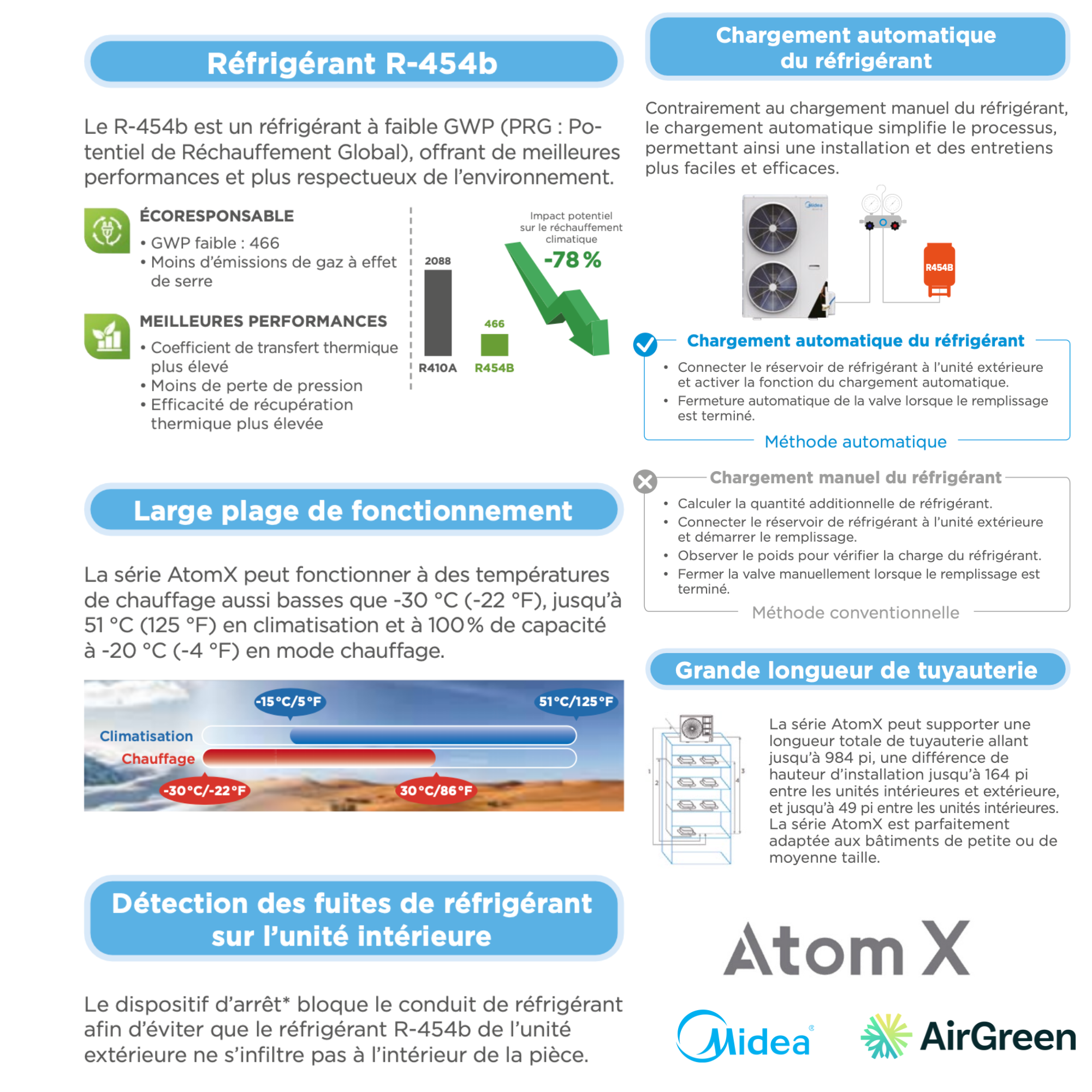

R-454B Refrigerant: An Environmentally Friendly Choice

The Atom X series uses R-454B refrigerant, known for its low global warming potential (GWP 466) , which is nearly 80% lower than traditional R-410A. This new generation refrigerant combines superior energy performance with reduced environmental impact , making this model a sustainable choice for the long term.

R-454B also provides:

• better heat transfer for optimized performance,

• less pressure loss , therefore a constant flow,

• and increased efficiency in heat recovery .

At AirGreen, we always prioritize environmentally friendly HVAC solutions without compromising on comfort.

A quieter and more stable system

The MIDEA ATOM X has been designed to blend discreetly into your environment. With a noise level of just 60 dB(A) , even at full power, the system blends into everyday life without disruption. This discretion is combined with smooth operation without excessive vibration, thanks to the optimized compressor design and automatic fan speed management.

A system designed for simplicity and precision

Automatic refrigerant charging

No more long and complex manual procedures: the MIDEA ATOM X is equipped with an automatic refrigerant charging system . This innovation significantly reduces installation time and the risk of human error.
Once the tank is connected, the system calculates the required quantity and automatically adjusts the load, ensuring optimal performance from the first start-up.

Long range and flexible installation

The Atom X Series offers a communication distance of up to 2,000 meters (6,562 ft) between units, thanks to free-topology cabling and excellent interference protection .
It supports a total piping length of 984 ft , a height difference of 164 ft between units, and up to 9 indoor units connected to the same outdoor unit.
This level of flexibility allows our teams to install the system in buildings of all sizes—townhouses, condos, offices, restaurants, or retail—without compromising on performance.

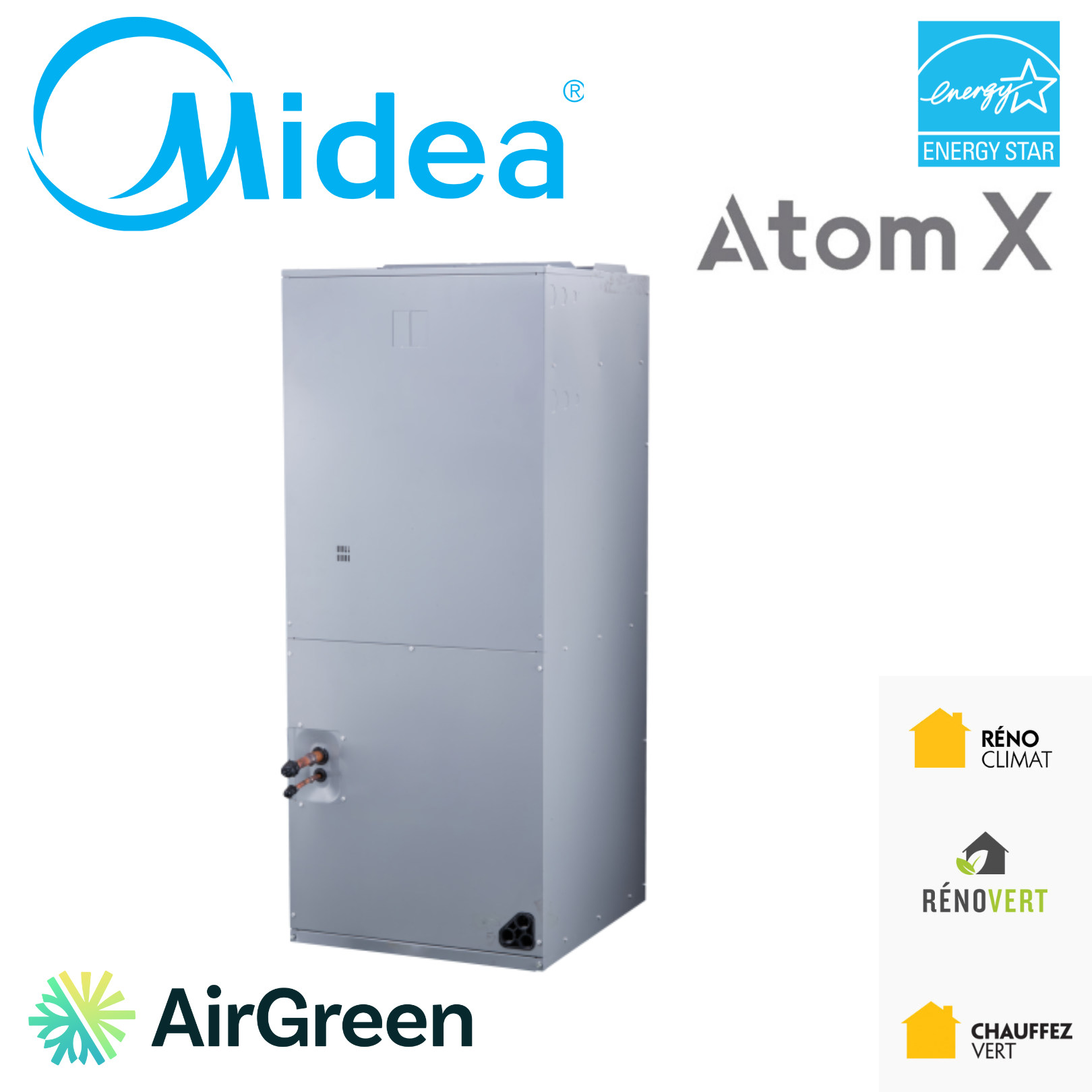

The power of the 5 Ton model: MIH54VMN10

The MIDEA ATOM X Electric Furnace – 5 Tons (60,000 BTU) is the ideal model for large residences or multi-unit buildings requiring centralized heating and air conditioning.

Main features:

• Power : 60,000 BTU

• Voltage : 220 V / 1 phase / 60 Hz

• Dimensions (W × D × H) : 22.06 × 24 × 54.5 in.

• Compressor : High efficiency twin rotary

• Refrigerant : R-454B

• Certifications : AHRI, ENERGY STAR, Cold Climate V6.1

• Sound level : 60 dB(A)

• Warranty : 10 years parts and compressor / 10 years labor (residential, in Quebec)

This furnace pairs perfectly with the MIDEA MDV-V60WMN10T central heat pump , providing a complete, scalable heating and cooling solution, ready to face the challenges of the Quebec climate.

Versatility, control and smart comfort

Multi-position installation and universal compatibility

The MIDEA ATOM X has been designed to simplify the lives of installers and users. Its multi-position installation (horizontal or vertical) adapts to space constraints, while its compatibility with standard 24V thermostats and RS485 communicating thermostats allows for flexible control, whether wall-mounted, centralized, or remotely connected via mobile app.

Intelligent control and multi-zone management

Thanks to intelligent VRF management, each room equipped with an indoor unit can be controlled independently — perfect for large family homes, apartment buildings or commercial spaces where needs vary from one area to another.
The RM23A remote control or the WDC3-120T2 wired control (optional) offer precise control of temperatures, speeds, shutters and timers , all in a bilingual environment (Celsius/Fahrenheit).

You can also schedule weekly schedules, set temperature limits, and track system performance from your phone.

Why entrust your installation to AirGreen?

Local and certified expertise

At AirGreen , our mission is simple: to offer the best HVAC technologies available, with impeccable installation and service.
Our RBQ and CCQ certified refrigeration technicians have extensive expertise in Midea and VRF systems. We guarantee a compliant, safe, and durable installation—from wiring to electronic configuration.

A transparent and stress-free approach

• 100% free on-site estimate : our experts will come to your home to assess your actual needs before making any proposal.

• Transparent and fixed prices : no surprises at the end, everything is clear from the start.

• No deposit required : you only pay at the end, when you are satisfied.

• Fast and reliable after-sales service : our local team is available year-round for maintenance, repairs or technical support.

With AirGreen, you enjoy complete peace of mind—from the first call to when your system is up and running.

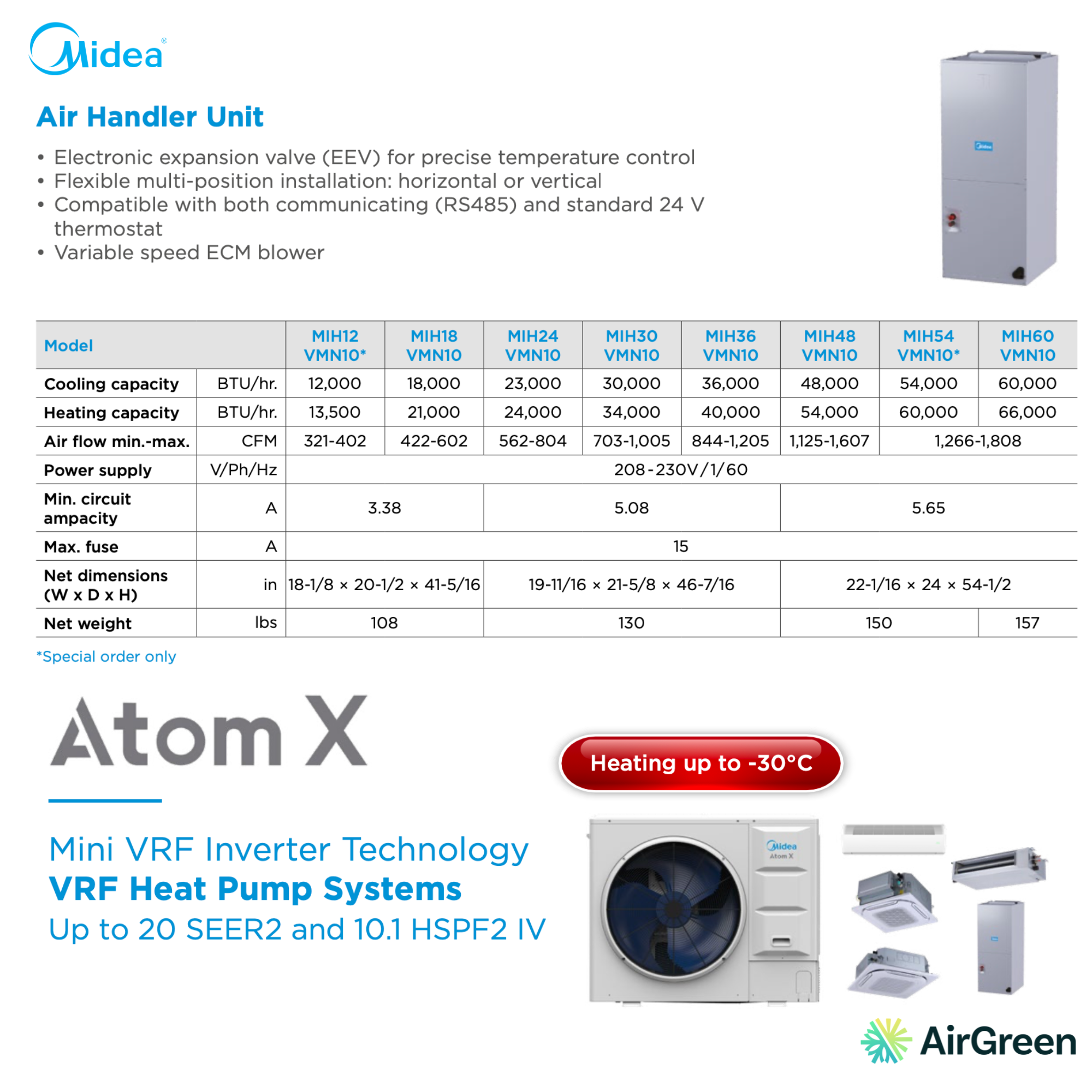

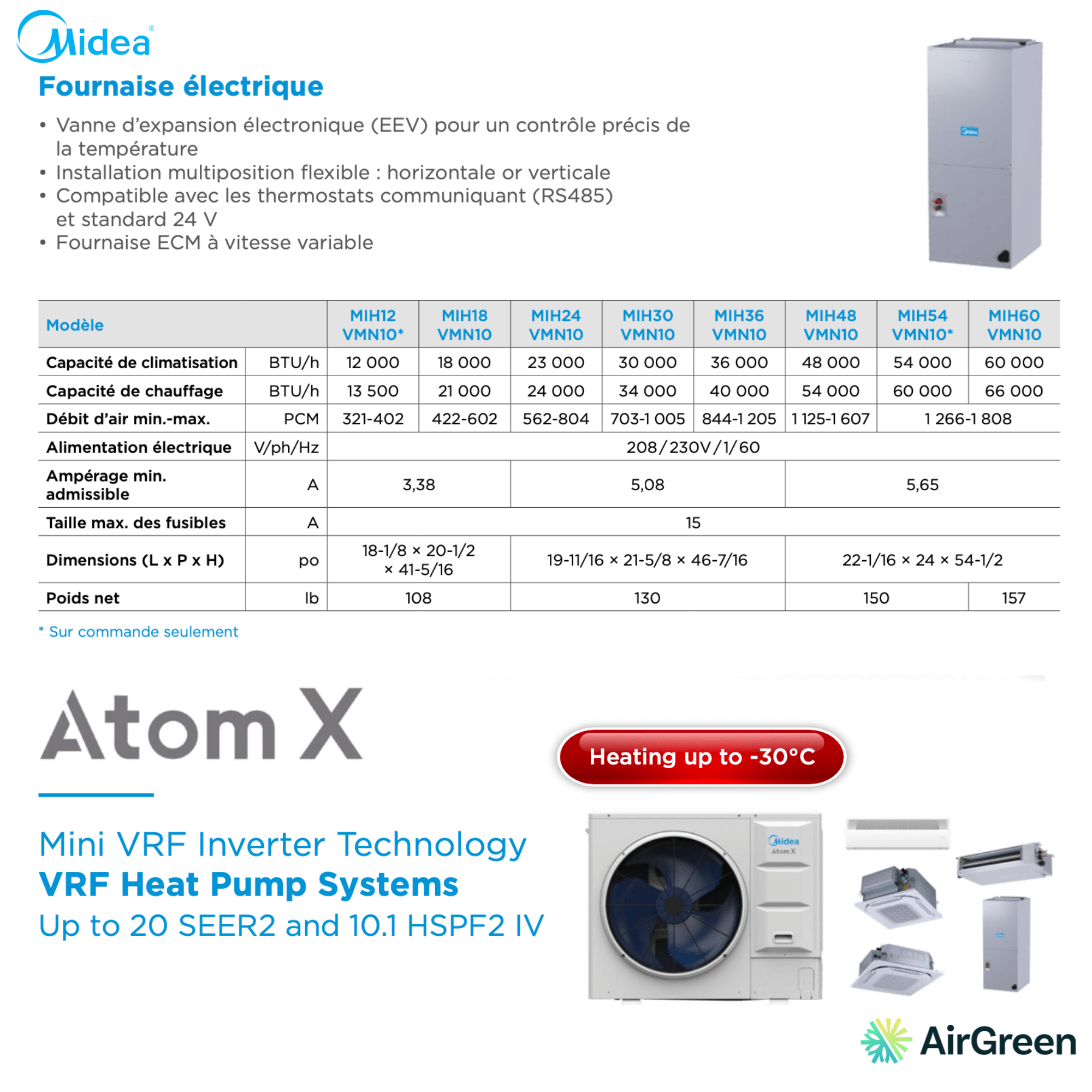

Technical Data Sheet – MIDEA ATOM X Electric Furnace | 5 Tons

A complete solution for a greener future

The MIDEA ATOM X 5 Tonnes embodies what we at AirGreen call responsible comfort : a powerful, efficient, sustainable and environmentally friendly system.
With its advanced VRF technology, eco-friendly refrigerant and ENERGY STAR certified performance, it represents a smart investment for any homeowner looking to combine energy savings , air quality and durability .

In Montreal, Laval, Longueuil, on the North Shore as well as on the South Shore , we have already installed numerous Atom X units in residences, businesses and condominiums, all praised for their quiet comfort, stability and flawless reliability.

Looking to upgrade your HVAC system or replace your current furnace?
📞 Contact AirGreen Air Conditioning & Heating today at 514-316-2973 or by email at sales@airgreen.ca .
Our certified advisors and technicians will guide you towards the best solution, adapted to your building, your needs and your budget.
