A ducted unit for the sleeping area of a condo or townhouse
In a two-bedroom condo or a two-storey townhouse, the sleeping area often groups two bedrooms and an office along the same hallway. Putting a wall-mounted head in every room means more visible units and more refrigerant lines. The KINGHOME 12,000 BTU high-static ducted unit serves these rooms from a single unit hidden in the hallway ceiling, with one supply grille per room. It's the solution we suggest most often for condos in Montréal and townhouses in Laval or on the South Shore built with a dropped ceiling in the hallway.
This ducted unit is an indoor head for a multi-zone heat pump. It doesn't work on its own: it has to be connected to a compatible KINGHOME Ultra Heat outdoor unit. It has no efficiency certification of its own; the certified performance belongs to the complete system.
The hallway, the natural spot for the ducted unit
Builders often drop the hallway ceiling to run the bathroom exhaust and the plumbing through it. Once opened up, this space takes the ducted unit: the unit hangs between the joists or under the slab, and short ducts reach each bedroom from the top of the partition wall. The return air goes through a grille in the hallway ceiling. The bedrooms only see a discreet grille, and no refrigerant line runs through their walls.
The high-static design gives the fan the reserve it needs to supply three rooms through ducts of different lengths, with elbows and grilles that slow the air down. The available static pressure is set at commissioning based on the duct network actually installed.

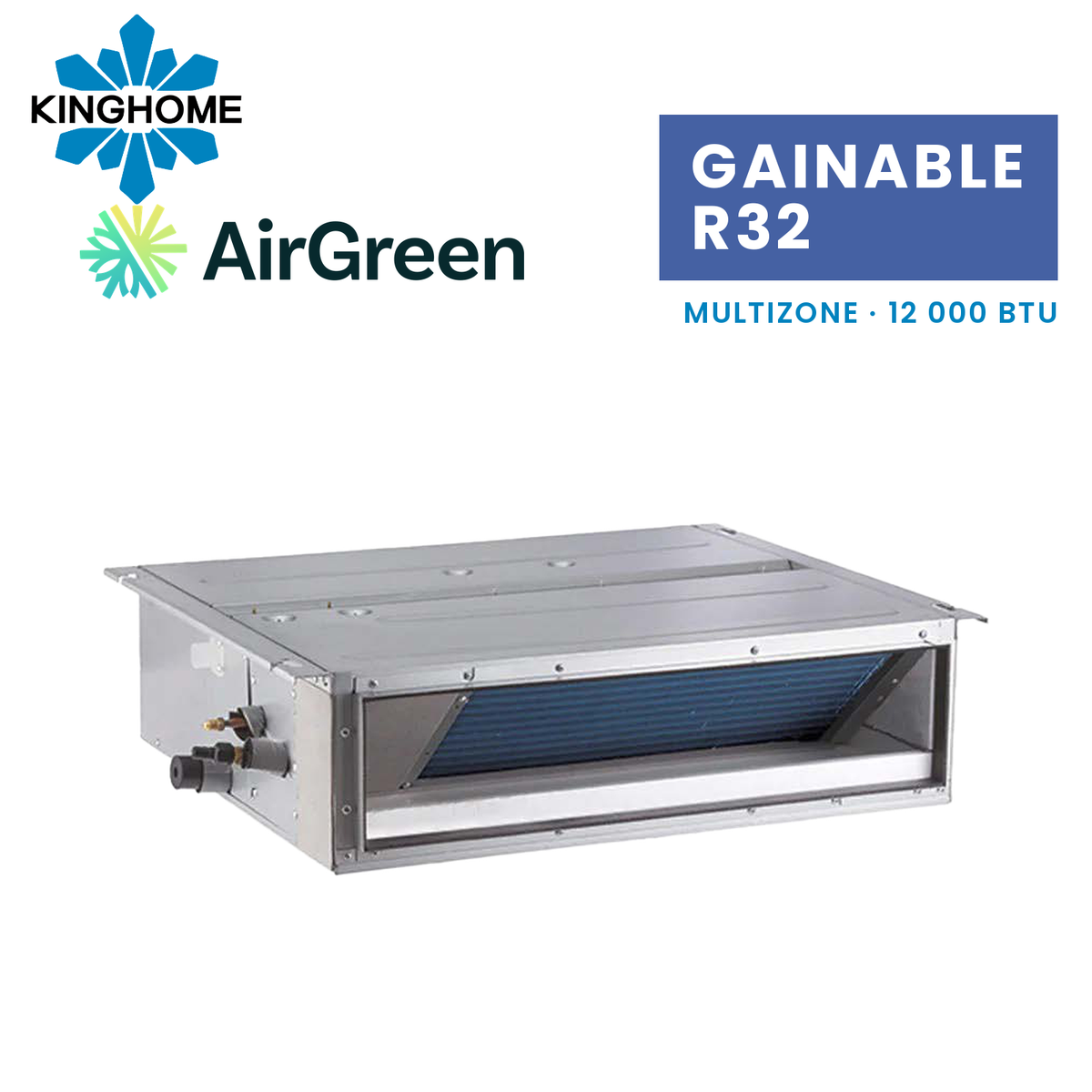

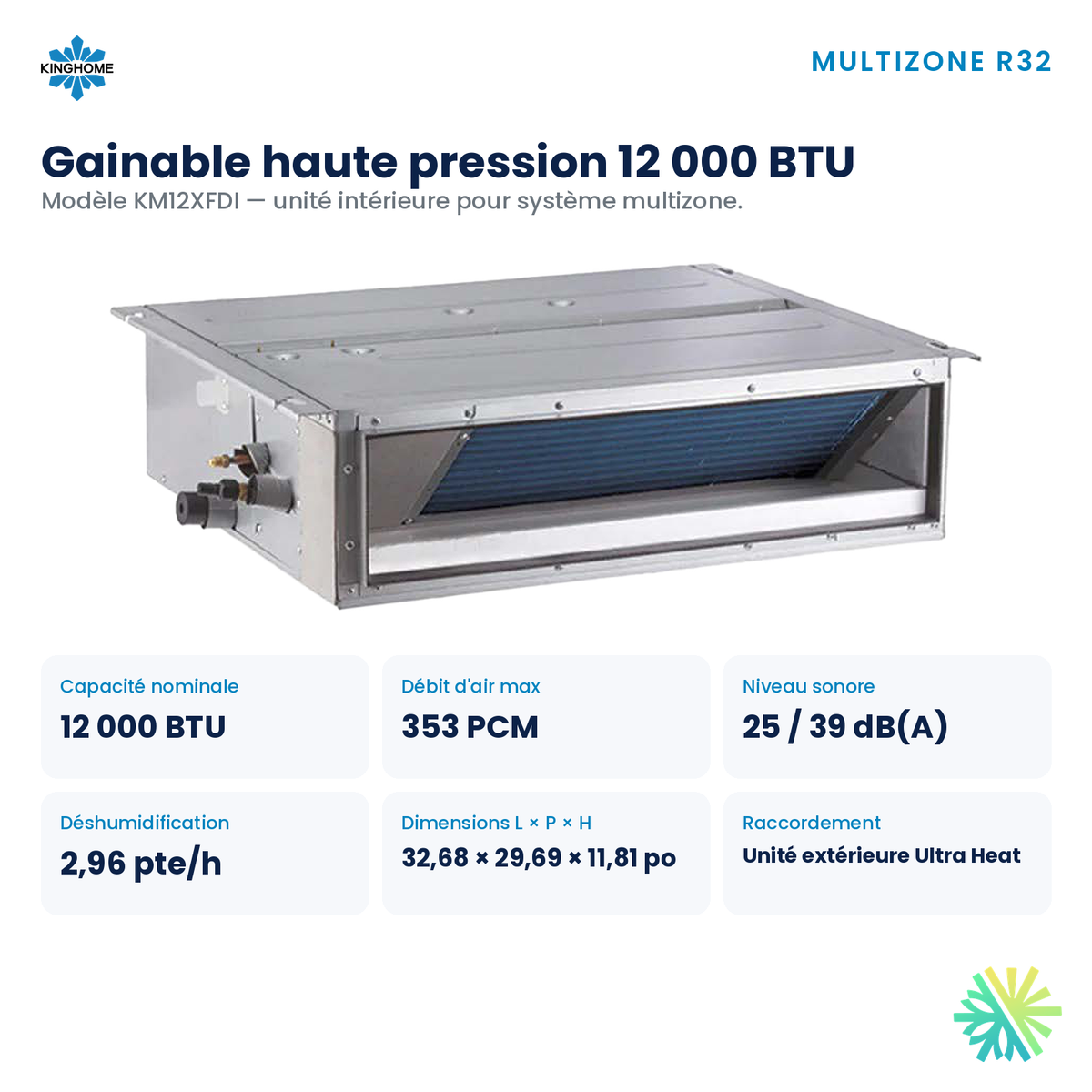

Specs for the 12,000 BTU ducted unit
- Nominal capacity: 12,000 BTU, R-32 refrigerant
- Maximum airflow: 353 CFM
- Indoor sound level: 25 to 39 dB(A)
- Dehumidification: 2.96 pt/h, or about 1.4 L/h
- Dimensions: 32.68 x 29.69 x 11.81 inches (width x depth x height)
- 220 V power supplied by the outdoor unit
- Wi-Fi: included, through the supplied wired wall controller
The cabinet is the same as on the 9,000 BTU model. Airflow goes up to 353 CFM and dehumidification to 2.96 pt/h, almost double. In a condo's sleeping area, where people sleep with the windows shut in summer, this is the figure that makes the difference between a bedroom that's cool and dry and one that's cool but muggy. The sound level stays at 25 dB(A) on low speed and doesn't go above 39 dB(A) at maximum.
One set point for several rooms
A ducted unit serves a single zone: all the connected rooms get the same set point. For a sleeping area, this trade-off is generally well accepted, since the bedrooms are used in similar ways. We balance the network at installation so each room gets airflow in proportion to its needs. If one bedroom is much more exposed than the others, for example a corner bedroom above a garage, we talk it over: a separate head may then be the better choice.
What's supplied
According to the manufacturer's spec sheet, the unit includes a built-in condensate pump and the wired wall controller with Wi-Fi. Add to that the dehumidification mode, self-cleaning, forced defrost, soft start, low-voltage start-up and a frost-protection maintenance heating mode. The wall controller goes in the hallway or in the main bedroom, depending on where you want the temperature to be read.
Compatible Ultra Heat outdoor units
According to the compatibility table in the KINGHOME multi-zone brochure, 12,000 BTU heads connect to every outdoor unit:
- KM18X6O (up to 2 zones): the sleeping area on this ducted unit, the open area on a wall-mounted head
- KM24X6O (up to 3 zones)
- KM30X6O and KM36X6O (up to 4 zones)
- KM42X6O and KM48X6O (up to 5 zones), KM60X6O (up to 6 zones)
The KM18X6O to KM48X6O units carry the ENERGY STAR cold climate designation and heat down to -30 °C according to their spec sheet; the KM60X6O doesn't carry this designation. According to the manufacturer's brochure, a system's certified performance varies depending on whether the heads are wall-mounted, ducted or mixed; the values published on each outdoor unit's page are for wall-mounted heads. We check the certification that applies to your combination.
What we check before the installation
In Montréal, Laval or Longueuil, on the North Shore or on the South Shore, the assessment for a ducted unit covers the following points.
The hallway ceiling
We open up or probe the dropped ceiling to measure the actual space: the unit needs its full 11.81 inches of height, plus room for the fittings and the pump. We also locate the ventilation ducts, sprinklers and plumbing already in place. An access hatch is planned for the filter and for maintenance.
The duct network
The ducts are sized for 353 CFM, insulated and sealed. Each bedroom has its own supply grille; the return is in the hallway. We make sure the bedroom doors let the air come back, with an undercut or a transfer grille.
The power supply
The ducted unit gets its 220 V from the outdoor unit. The circuit at the panel is the outdoor unit's, based on the minimum circuit ampacity (MCA) and maximum overcurrent protection (MOP) on its spec sheet.
The outdoor unit
On a wall bracket above the snow, or on the balcony if the condo board allows it, always with free drainage for the defrost water.
The piping and the drain
The diameters follow the manufacturer's spec sheet, within the outdoor unit's length limits. The built-in pump lifts the condensate to a drain; above a finished room, we add a secondary drain pan.
LogisVert assistance
This ducted unit doesn't appear on the Hydro-Québec list by itself, since it has no certification of its own. The indicative LogisVert amount is tied to the complete system: it's calculated using the LogisVert rule ($120 per 1,000 BTU/h of certified heating capacity at -8.3 °C, or $50 with the KM60X6O, which has no cold climate designation); eligibility is confirmed on the installation date. A combination that includes a ducted unit falls under a different certification from one with wall-mounted heads: we check that it's listed before giving you an amount. Only Hydro-Québec confirms the assistance granted.
Why go with AirGreen
- Salaried refrigeration technicians who also do the ductwork.
- Civil liability insurance of $5,000,000, often required by condo boards.
- Kinghome warranty registration handled by our team.
- After-sales service for filter and pump maintenance.
Ask for your free estimate: we assess the hallway ceiling, lay out the ducts to each bedroom and give you a clear quote.
