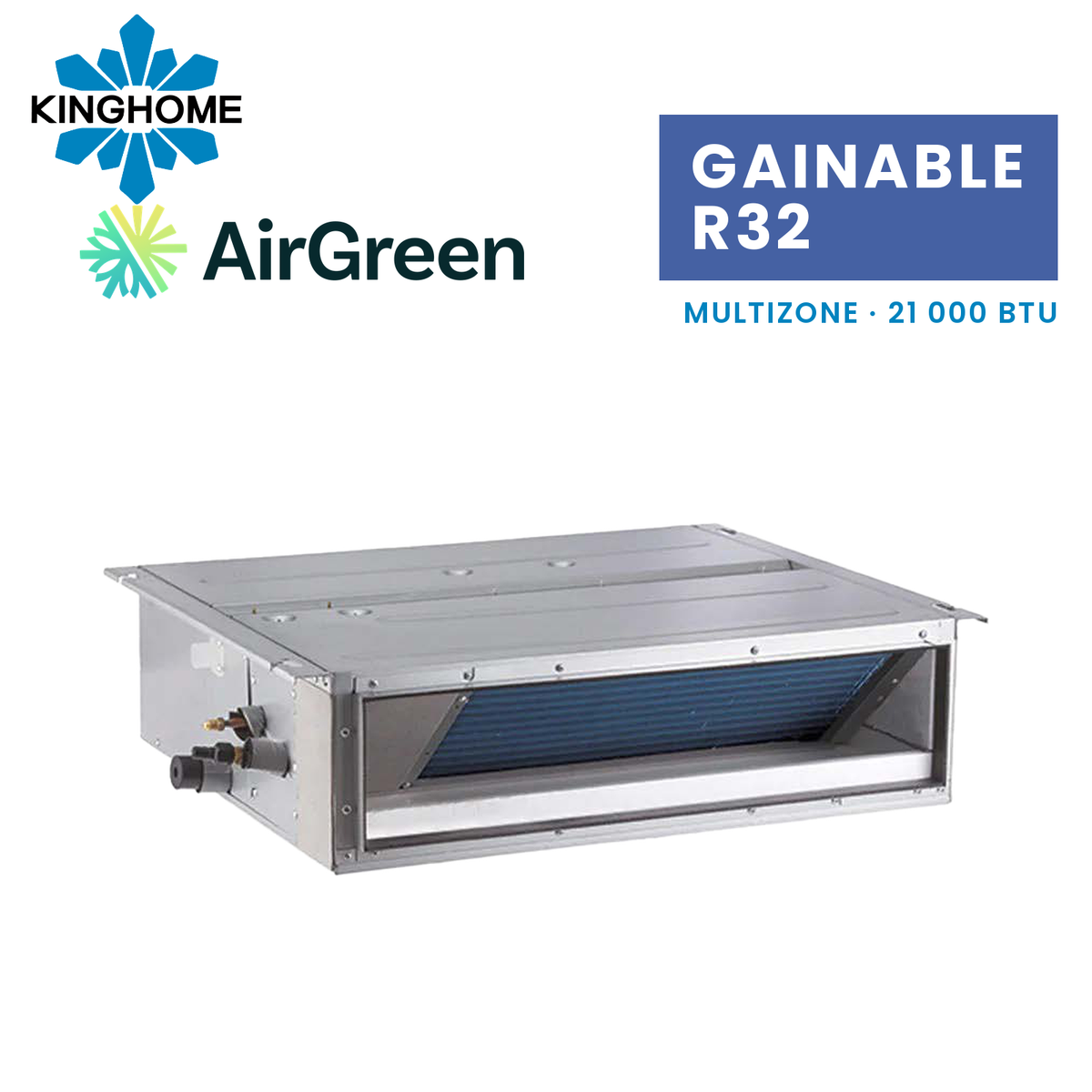

The in-between ducted unit: more capacity in the same cabinet as the 18,000 BTU
The 21,000 BTU size of the KINGHOME high-static ducted unit exists for a specific reason: some zones need a little more than 18,000 BTU without justifying the jump to 24,000 BTU. We suggest it in two situations. The first is the finished, partitioned basement, with a family room, an office and a guest room, where summer humidity is the main complaint. The second is the upper floor of an older house, in a neighbourhood like Ahuntsic, Pointe-Claire or Vieux-Longueuil, where the roof and window insulation was never redone and heat loss is higher than in a recent build.
This ducted unit is an indoor head for a multi-zone heat pump. It only works with a compatible KINGHOME Ultra Heat outdoor unit and has no efficiency certification of its own: the certified performance is that of the complete system.
What the 21,000 BTU changes compared with the 18,000 BTU
The two sizes share the same 44.49 x 29.69 x 11.81-inch cabinet and the same 589 CFM maximum airflow. A location planned for one therefore suits the other, and so does the duct network. What changes is the capacity and the dehumidification, which goes up to 4.23 pt/h. At the same airflow, more capacity means the air passes over a colder coil in cooling mode and comes out drier. That's exactly what a basement needs, where humidity, more than temperature, makes the rooms uncomfortable in summer.
In heating, the extra capacity serves zones that lose more heat. An upper floor under a poorly insulated roof, original windows, bedrooms above an unheated garage: these are the cases where the 18,000 BTU would be working at its limit in very cold weather.

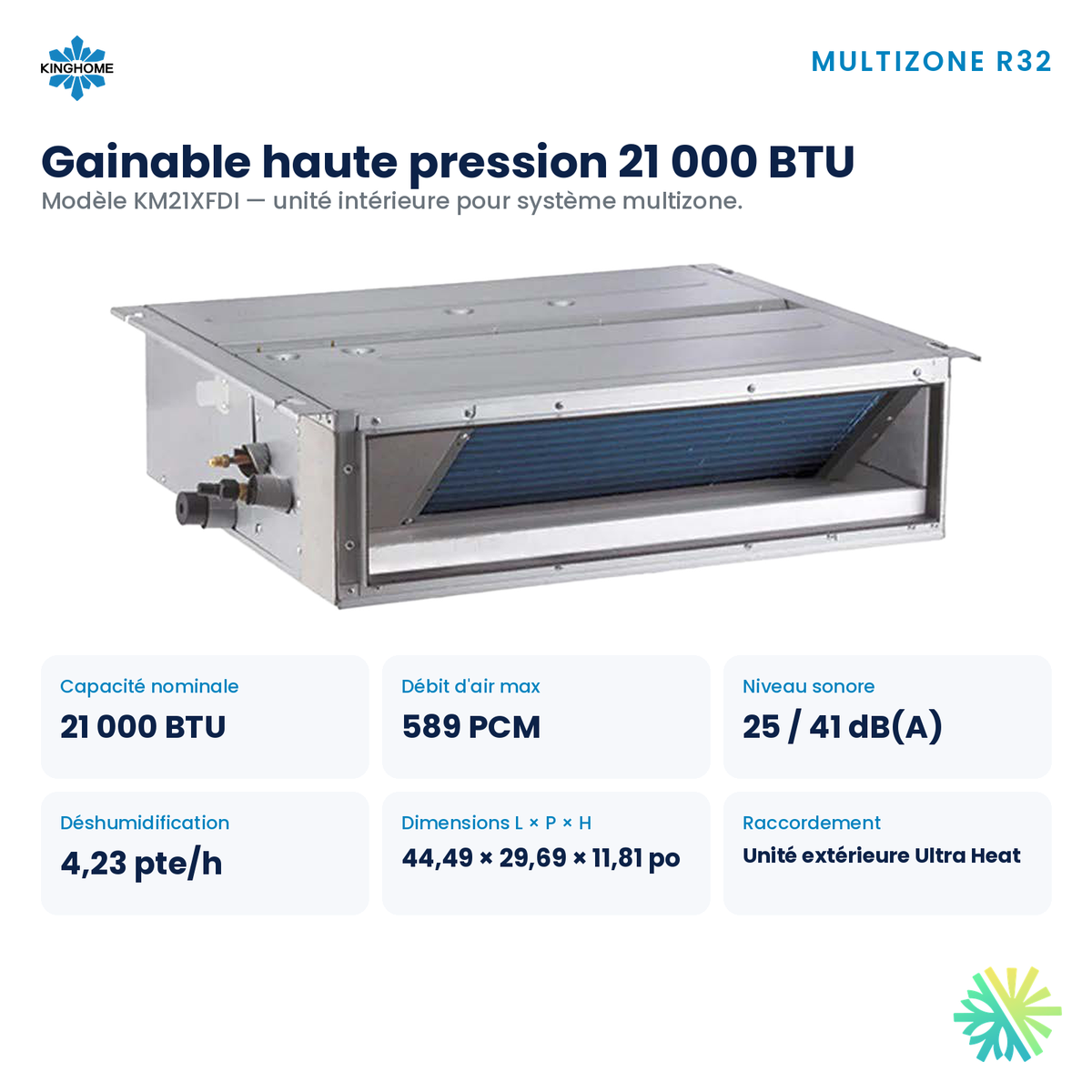

Specs for the 21,000 BTU ducted unit
- Nominal capacity: 21,000 BTU, R-32 refrigerant
- Maximum airflow: 589 CFM
- Indoor sound level: 25 to 41 dB(A)
- Dehumidification: 4.23 pt/h, or about 2 L/h
- Dimensions: 44.49 x 29.69 x 11.81 inches (width x depth x height)
- 220 V power supplied by the outdoor unit
- Wi-Fi: included, through the supplied wired wall controller
The sound level stays at 25 dB(A) on low speed, like the smaller sizes, and reaches 41 dB(A) at maximum. Since the unit is installed outside the rooms, all you hear is the air at the grilles.
The finished basement, a typical case
In a finished basement, the ducted unit fits between the ceiling joists or in the mechanical room, near the electrical service and the water heater. Short ducts reach the family room, the office and the guest room. Since the unit is on the same level as the rooms it serves, the ducts stay short and straight. The return air goes through a central grille, and the built-in condensate pump sends the water to the floor drain or the sump pit.
An honest note: a very damp basement may also need a dedicated dehumidifier, especially in spring and fall, when the heat pump isn't cooling. We assess this point during the visit rather than suggest the ducted unit solves everything.
What's supplied
According to the manufacturer's spec sheet, the unit includes a built-in condensate pump and the wired wall controller with Wi-Fi. Add to that the dehumidification mode, self-cleaning, forced defrost, soft start, low-voltage start-up and a frost-protection maintenance heating mode, which is handy for a basement that's rarely used.
Compatible Ultra Heat outdoor units
The compatibility table in the KINGHOME multi-zone brochure limits 21,000 BTU heads to the following outdoor units:
- KM36X6O (up to 4 zones)
- KM42X6O and KM48X6O (up to 5 zones)
- KM60X6O (up to 6 zones)
Unlike the 18,000 BTU size, this ducted unit isn't accepted by the KM30X6O, or by the KM18X6O or the KM24X6O. That's an important factor in the choice: going with the 21,000 BTU steers the whole project toward an outdoor unit of at least 36,000 BTU. In a single-family home, this ducted unit in the basement is then paired with two or three heads on the main floor and upstairs. The KM36X6O to KM48X6O units carry the ENERGY STAR cold climate designation and heat down to -30 °C according to their spec sheet; the KM60X6O doesn't carry it. According to the manufacturer's brochure, a system's certified performance varies depending on whether the heads are wall-mounted, ducted or mixed; each outdoor unit's page shows the values with wall-mounted heads.
What we check before the installation
In Montréal, Laval or Longueuil, on the North Shore or on the South Shore, the assessment for this ducted unit covers the following points.
Space and access
The unit needs 44.49 x 29.69 inches and 11.81 inches of height, plus the fittings. Between the joists of a basement, we check the clear height left under the bulkhead. An access hatch is mandatory for the filter and the pump.
The duct network
The ducts are sized for 589 CFM, insulated and sealed. We plan one supply grille per room, a central return and an air gap under each door.
The power supply
The ducted unit gets its 220 V from the outdoor unit. The circuit to plan is the outdoor unit's, at least a KM36X6O, based on the minimum circuit ampacity (MCA) and maximum overcurrent protection (MOP) listed on its spec sheet. We make sure the electrical service can take this circuit on top of the existing loads.
The outdoor unit
On a wall bracket above the snow, away from the basement windows, with free drainage for the defrost water.
The piping and the drain
The diameters follow the manufacturer's spec sheet, within the outdoor unit's length limits. The built-in pump lifts the condensate to a drain; a secondary drain pan protects the finished ceiling.
LogisVert assistance
This ducted unit doesn't appear on the Hydro-Québec list by itself, since it has no certification of its own. The indicative LogisVert amount is tied to the complete system: it's calculated using the LogisVert rule ($120 per 1,000 BTU/h of certified heating capacity at -8.3 °C, or $50 with the KM60X6O, which has no cold climate designation); eligibility is confirmed on the installation date. A combination that includes a ducted unit falls under a different certification from one with wall-mounted heads: we check that it's listed before giving you an amount. Only Hydro-Québec confirms the assistance granted.
Why go with AirGreen
- Salaried refrigeration technicians who also do the ductwork.
- Civil liability insurance of $5,000,000.
- Kinghome warranty registration done at commissioning.
- After-sales service for maintenance and questions.
Ask for your free estimate: we compare the 18,000 and 21,000 BTU for your house and give you a clear quote.
Documentation
Warranty: 12 years on the compressor, 12 years on parts and 6 years on labour, directly from the distributor.
