A ducted unit in the basement to heat and cool the main floor of a bungalow

The bungalow is the typical house in many neighbourhoods of Laval, Longueuil, Saint-Léonard or the North Shore. Its main floor groups the living room, dining room and kitchen, often opened up to one another during a renovation, with the bedrooms at the end of the hallway. The basement, just below, offers a rare advantage: an accessible ceiling between the joists, directly under the rooms to be served. The KINGHOME 24,000 BTU high-static ducted unit takes advantage of this layout. Installed in the basement ceiling, it blows air up to the main floor through floor registers, the way an old forced-air furnace did, but with much shorter ducts.

This ducted unit is an indoor head for a multi-zone heat pump. It only works with a compatible KINGHOME Ultra Heat outdoor unit. It has no AHRI certification of its own; the certified performance is that of the complete system.

Floor registers instead of wall-mounted heads

In a bungalow living room, the walls are often taken up by the picture window, the fireplace, the bookshelves and the TV. A high-capacity wall-mounted head is hard to fit in. With the ducted unit in the basement, the air comes in through floor registers, under the windows, right where cold air falls from the glass in winter. The return air goes through a central grille in the hallway or at the bottom of an interior wall.

The high-static design lets the fan serve several registers spread across the main floor, from a single unit, with duct runs of different lengths. The available static pressure is set at commissioning based on the installed duct network.

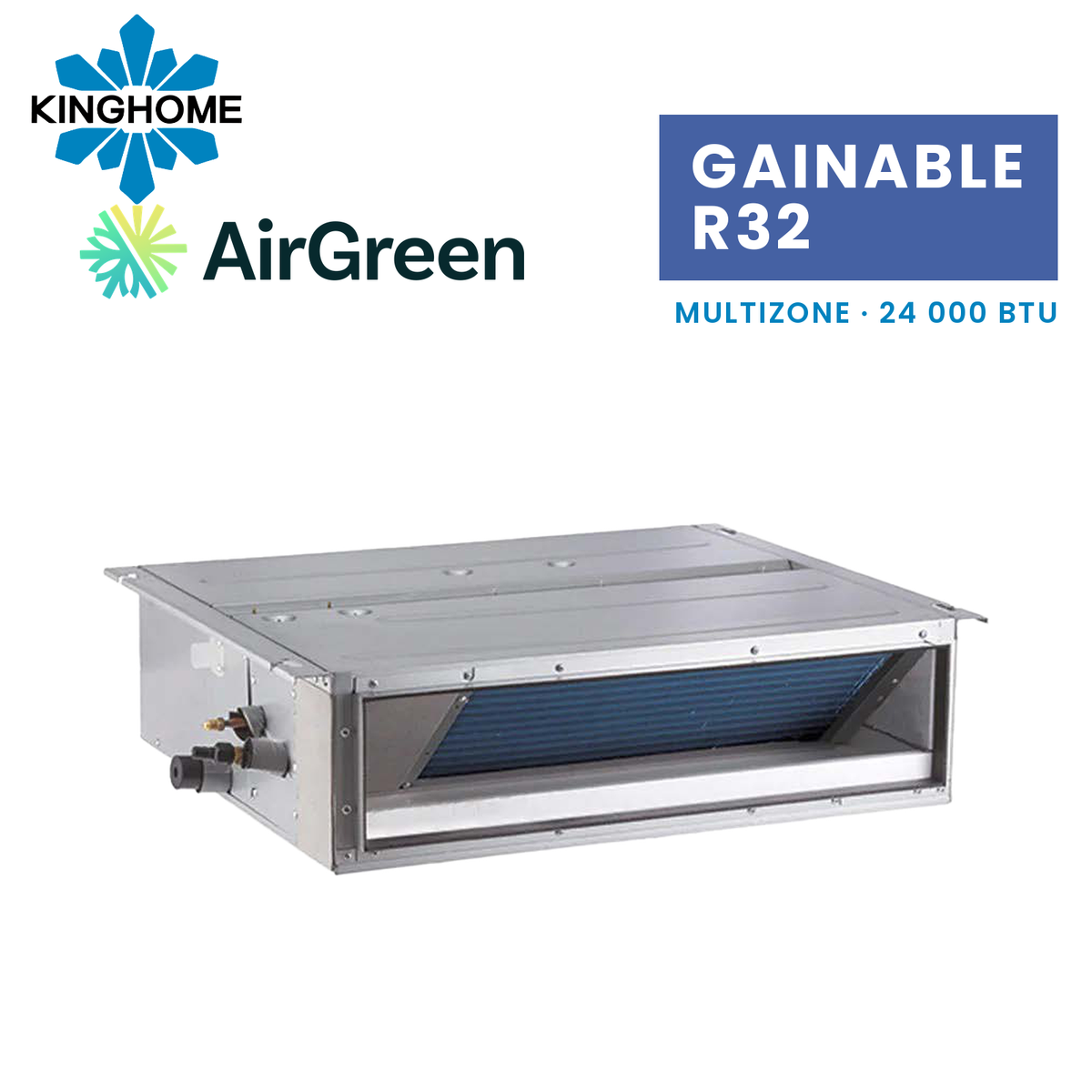

Specs for the 24,000 BTU ducted unit

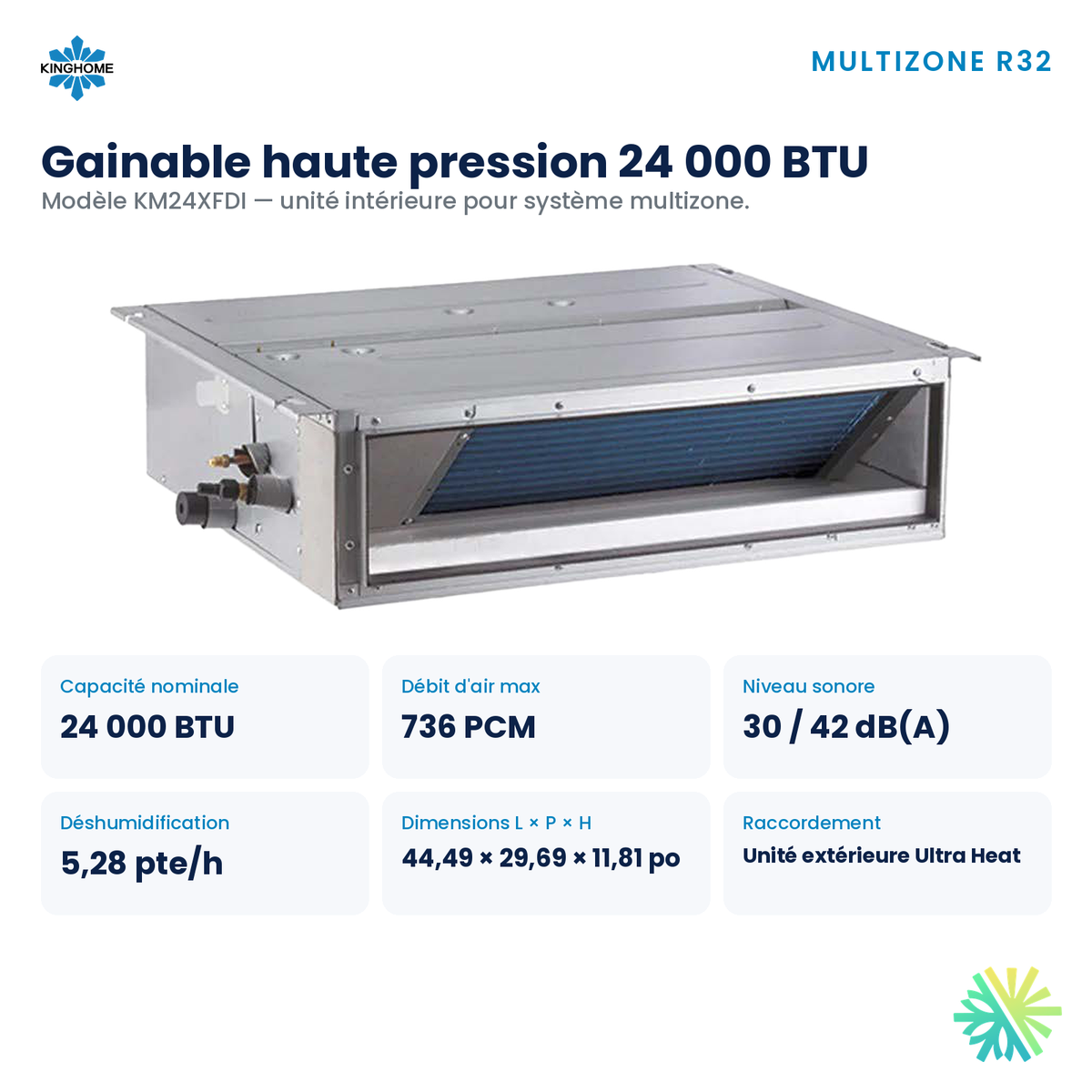

  • Nominal capacity: 24,000 BTU, R-32 refrigerant
  • Maximum airflow: 736 CFM
  • Indoor sound level: 30 to 42 dB(A)
  • Dehumidification: 5.28 pt/h, or about 2.5 L/h
  • Dimensions: 44.49 x 29.69 x 11.81 inches (width x depth x height)
  • 220 V power supplied by the outdoor unit
  • Wi-Fi: included, through the supplied wired wall controller

At 736 CFM, this size has the highest airflow of the ducted units built in the 44.49-inch cabinet. It covers an open living room, dining room and kitchen with a single air circuit. The 5.28 pt/h dehumidification matters for the kitchen, which releases moisture with every meal, and for humid July days. The 30 to 42 dB(A) sound level is measured at the unit; installed in the basement, it's even less noticeable on the main floor.

The 11.81-inch height usually fits under the joists of a bungalow basement, often in a bulkhead along the centre beam, where the plumbing and wiring already run.

One zone for the open area, others for the bedrooms

The ducted unit serves one zone with a single set point. For the open area on the main floor, that makes sense: these rooms are used together. The bedrooms, on the other hand, have different needs at night. We usually handle them with separate heads on the same outdoor unit, or with a second, smaller ducted unit. The basement can become one more zone. Splitting the house this way, by how each area is used, rather than with a single unit for the whole bungalow, gives better comfort and better control over energy use.

What's supplied

According to the manufacturer's spec sheet, the unit includes a built-in condensate pump and the wired wall controller with Wi-Fi, to be mounted on the main floor so the temperature is read in the zone being served. Add to that the dehumidification mode, self-cleaning, forced defrost, soft start, low-voltage start-up and a frost-protection maintenance heating mode.

Compatible Ultra Heat outdoor units

According to the compatibility table in the KINGHOME multi-zone brochure, 24,000 BTU heads connect to the following units:

  • KM36X6O (up to 4 zones)
  • KM42X6O and KM48X6O (up to 5 zones)
  • KM60X6O (up to 6 zones)

The KM18X6O, the KM24X6O and the KM30X6O don't accept it. In a bungalow, we often combine this ducted unit with two 9,000 BTU heads in the bedrooms and one head in the basement, on a KM36X6O or a KM42X6O depending on the load, subject to the manufacturer's selection table. The KM36X6O to KM48X6O units carry the ENERGY STAR cold climate designation and heat down to -30 °C according to their spec sheet; the KM60X6O does not carry it. According to the manufacturer's brochure, a system's certified performance varies depending on whether the heads are wall-mounted, ducted or mixed; each outdoor unit's page gives the values with wall-mounted heads.

What we check before the installation

Here's what we look at for this ducted unit during an assessment in Montréal, Laval or Longueuil, on the North Shore or on the South Shore.

The basement ceiling

We locate the direction of the joists, the centre beam, the plumbing and the electrical wires. The unit has to fit its 44.49 x 29.69 inches and its 11.81-inch height, with an access hatch if the ceiling is finished. If the basement is finished, we plan the bulkhead with you.

The registers and the ducts

We place the floor registers under the main windows and size the ducts for 736 CFM. Every penetration through the floor is sealed. The return air is planned on the main floor, never in the basement, so the two zones don't mix.

The power supply

The ducted unit gets its 220 V from the outdoor unit. The circuit at the panel is the outdoor unit's, at least a KM36X6O, based on its minimum circuit ampacity (MCA) and maximum overcurrent protection (MOP). We check the electrical service, which is often original in a bungalow.

The outdoor unit

On a wall bracket above the snow, or on a raised base, with free drainage for the defrost water and away from the basement windows.

The piping and the drain

The diameters follow the manufacturer's spec sheet, within the outdoor unit's length limits. In the basement, the built-in pump lifts the condensate to the floor drain, the sump pit or a plumbing drain.

LogisVert assistance

This ducted unit doesn't appear on the Hydro-Québec list by itself, since it has no certification of its own. The indicative LogisVert amount is tied to the complete system and calculated using the LogisVert rule ($120 per 1,000 BTU/h of certified heating capacity at -8.3 °C, or $50 with the KM60X6O, which has no cold climate designation); eligibility is confirmed on the installation date. A combination that includes a ducted unit falls under a different certification from one with wall-mounted heads: we check that it's listed before giving you an amount. Only Hydro-Québec confirms the assistance granted.
